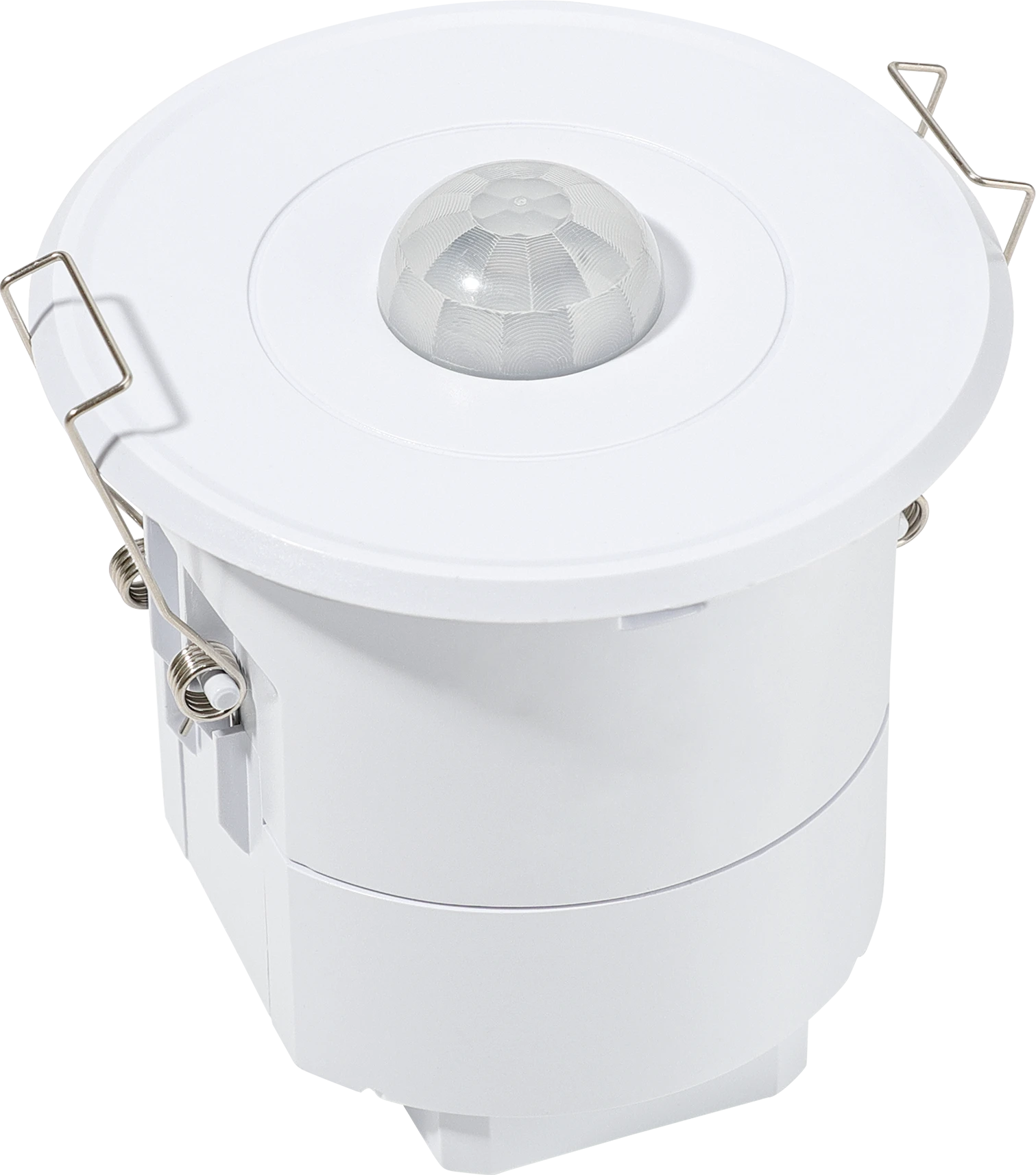

HIR28VFC/W
PIR Lowbay | ON/OFF and IR Controller | Ceiling mounting
BENEFITS
- Adaptable: Metal surface mount box options
- Autonomous: On/Off control with one relay channel output
- User-Friendly: With one-key commissioning with IR controller

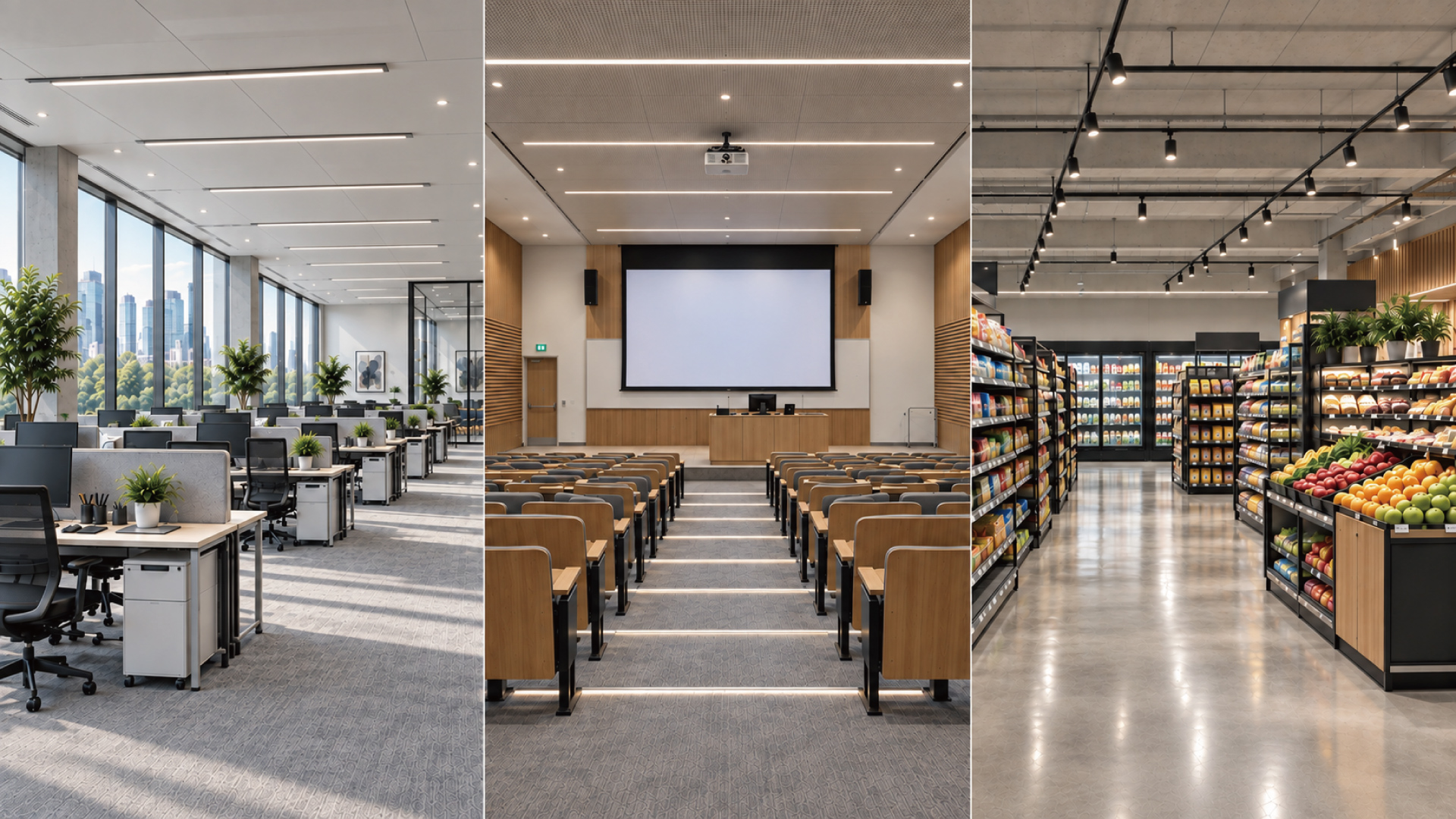

APPLICATIONS
- Wide-range Low-bay Spaces / Max. 6 m · Ø 18 m
- Offices · Education · Retail
- Open-plan Offices · Lecture Halls · Supermarkets
Product information "HIR28VFC/W"

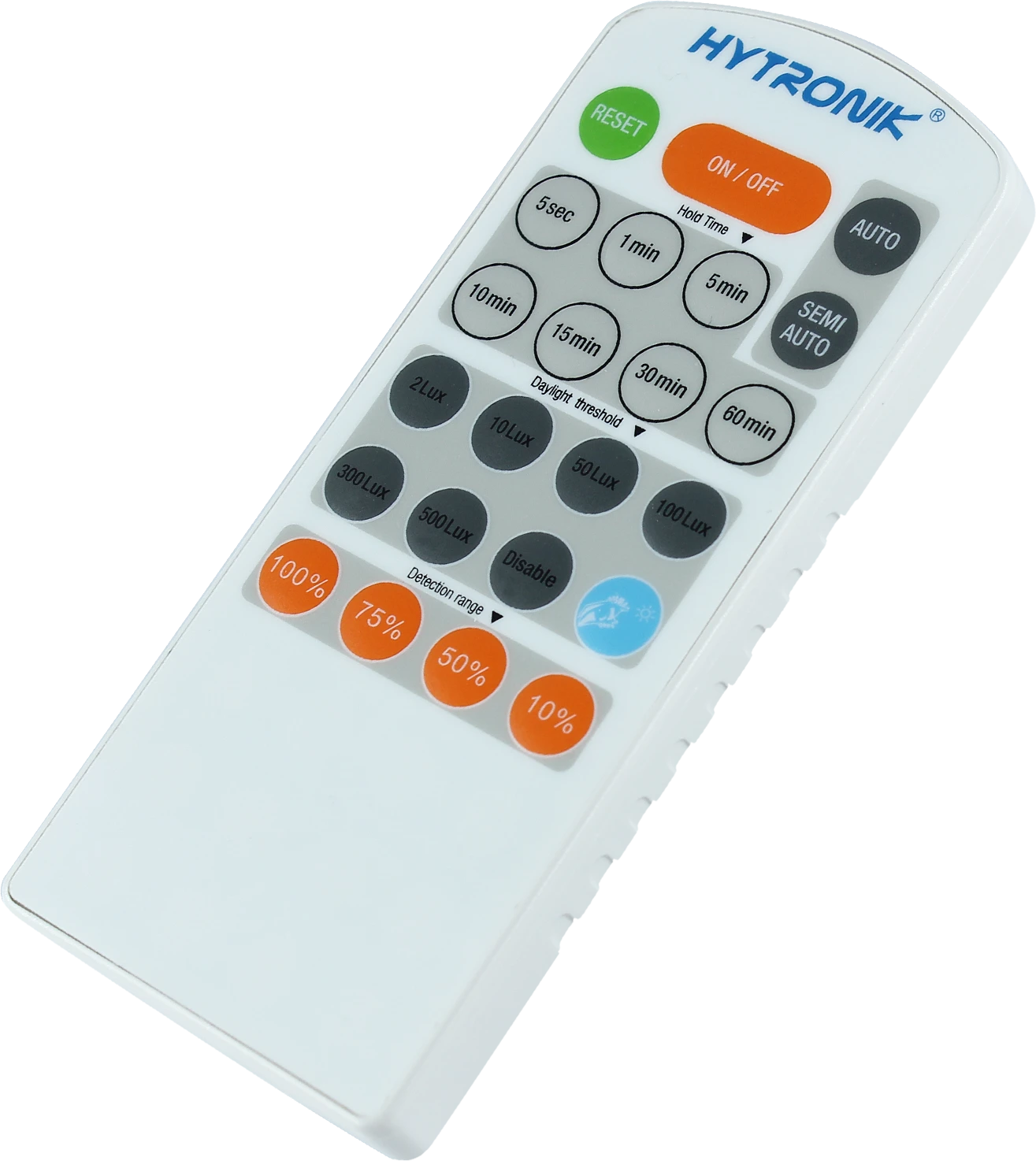

HIR28VFC is a PIR standalone motion sensor designed for On/Off occupancy control or semi-automatic (absence detection) control, featuring a single relay channel output. Setup is simplified with a remote control handset that supports program memory, enabling one-key commissioning for multiple devices with common settings.
| Commissioning Methods: | IR Remote Controller |
|---|---|
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 18x6 |
| Dimming (Output) Interface: | Volt-free Contact (VFC) |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Wide Range Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Product Status: | Active / Make to Stock |
| Product height: | 85.0000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 89.0000 g |
| Product width: | 78.0000 mm |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Zhaga: | No |
