HIR28DCVFC/W
PIR Lowbay | DALI 2CH with PSU and IR Controller | Ceiling mounting
BENEFITS
- Adaptable: Metal surface mount box options
- Independent: Self-powered DALI control for up to 2x40 drivers
- User-Friendly: One-key commissioning with IR controller

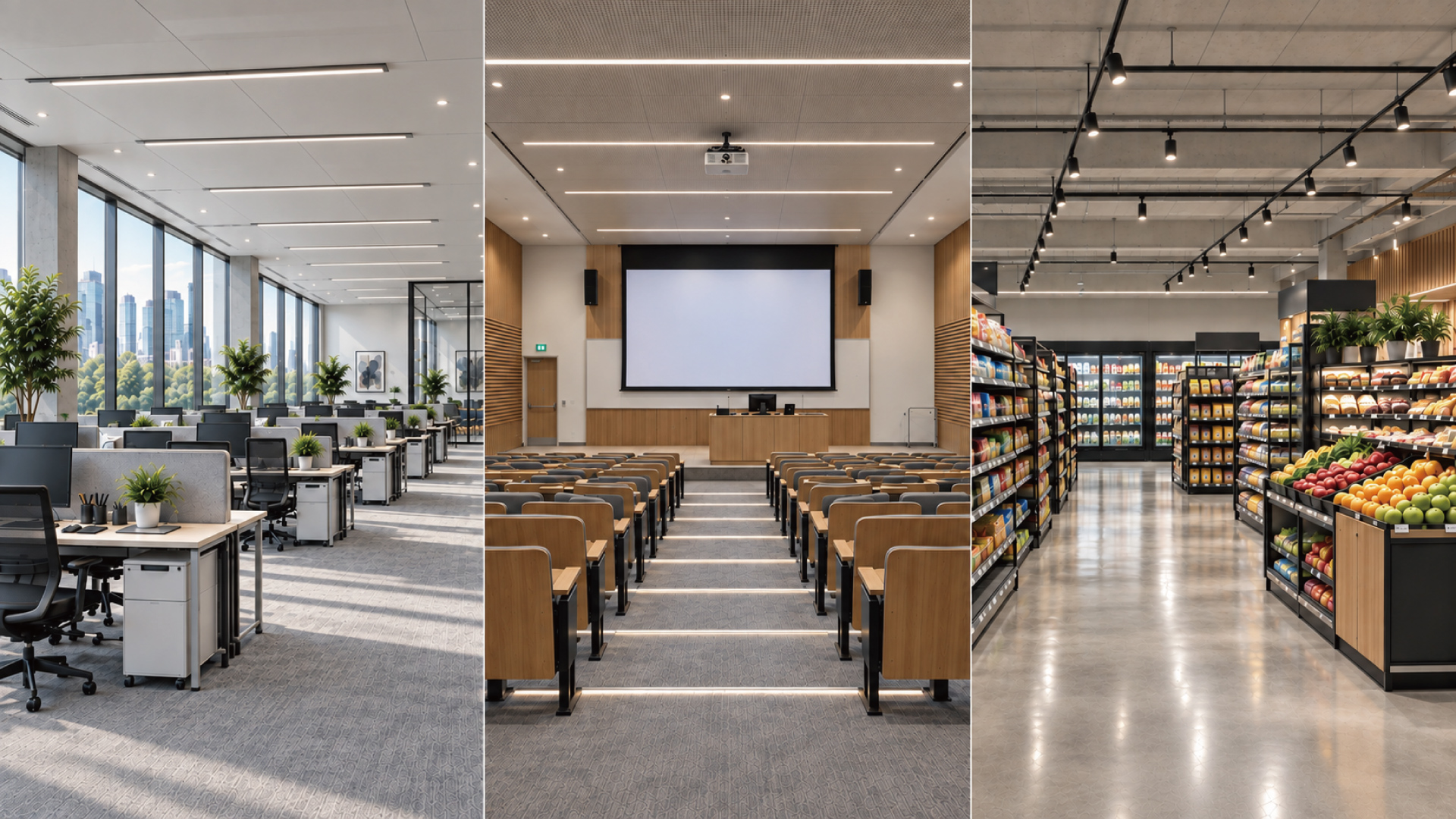

APPLICATIONS
- Wide-range Low-bay Spaces / Max. 6 m · Ø 18 m
- Offices · Education · Retail
- Open-plan Offices · Lecture Halls · Supermarkets
Product information "HIR28DCVFC/W"
It is a PIR standalone motion sensor designed for aesthetically demanding architectural projects. It features On/Off control with a voltage-free NO relay output, suitable for simple occupancy control or semi-automatic absence detection. Ideal for various indoor environments, it ensures high-quality performance while maintaining architectural integrity.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 18x6 |
| Dimming (Output) Interface: | Volt-free Contact (VFC) |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Lens type: | Wide Range Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 12-48VDC |
| Output Voltage: | 24VDC≤5A 250VAC≤5A |
| Product Status: | Active / Make to Stock |
| Product height: | 85.0000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 82.0000 g |
| Product width: | 78.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir28dcvfc-w.pdf
