Active / Make to Stock
HIR28/AA
PIR Lowbay | ON/OFF | Adjustable Angle
BENEFITS
- Adjustable: Max.,70 degree angle + 360 degree rotatable for detection
- Autonomous: On/Off occupancy control for up to 800W
- User-Friendly: With one-key commissioning via IR controller
APPLICATIONS
- For wall/surface mount application
- Corridor, Hallway
- Classrooms, Offices
Product information "HIR28/AA"

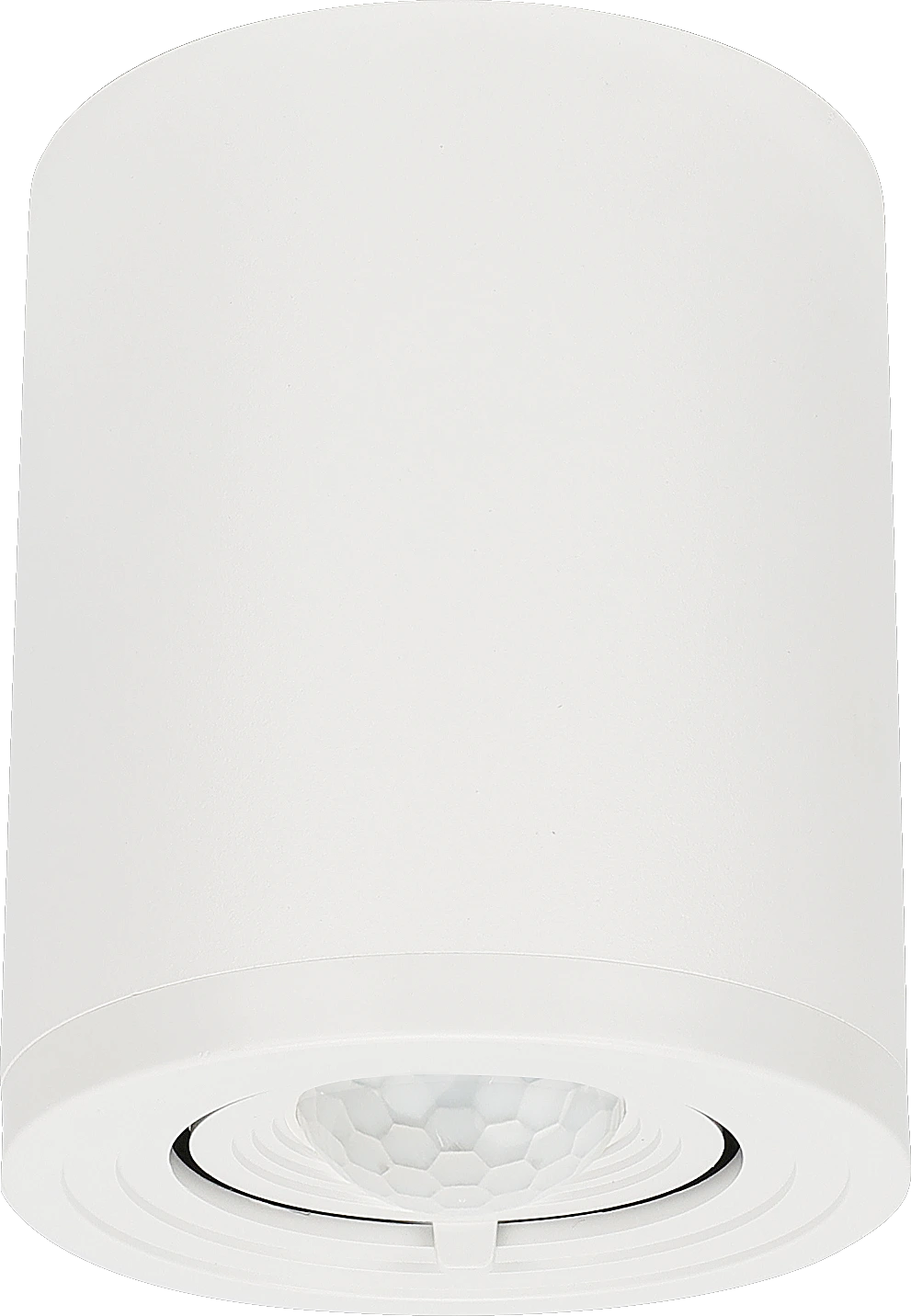

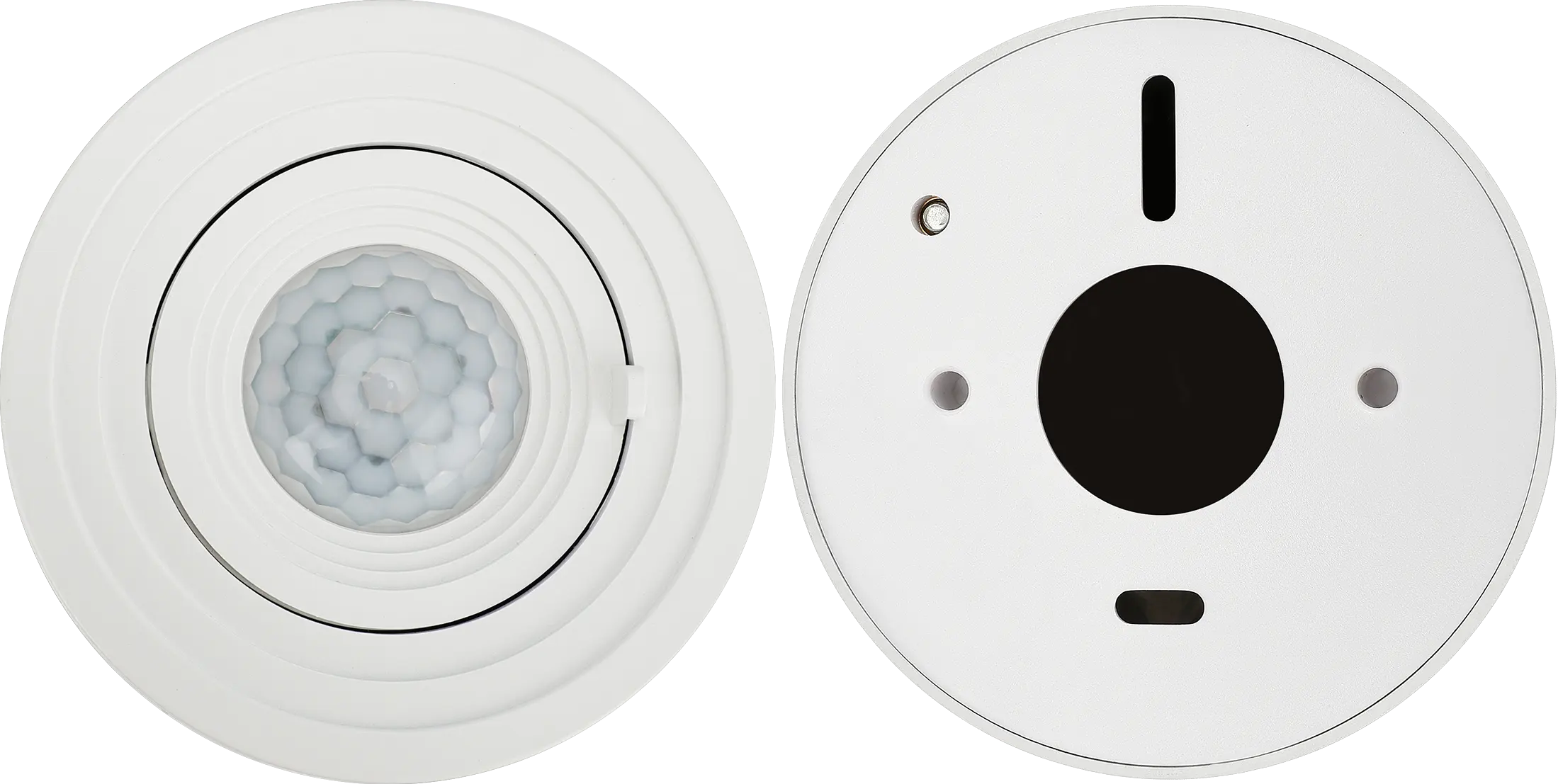

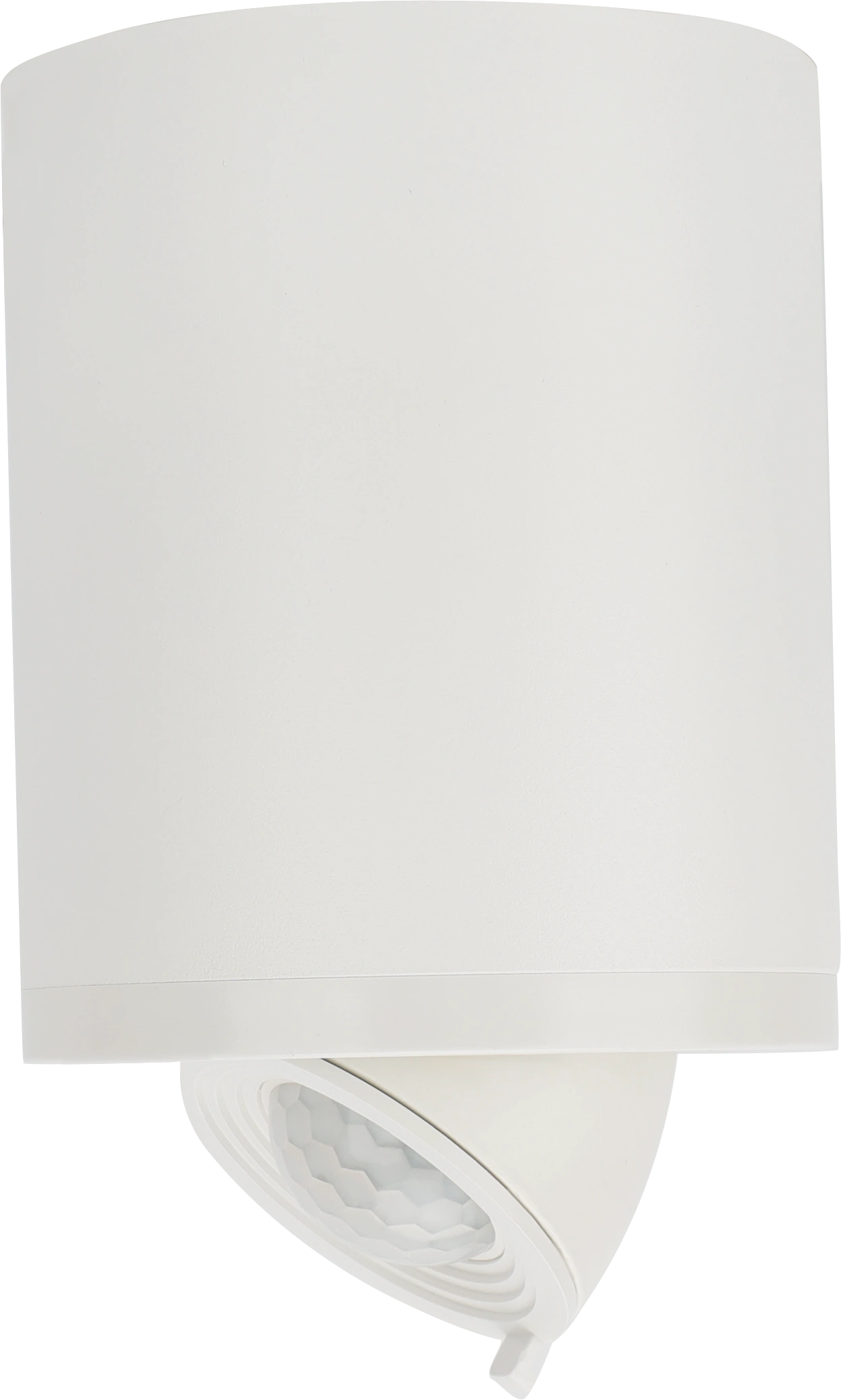

HIR28/AA is a PIR standalone motion sensor featuring on/off relay control. Designed in a metal surface mount box, it features adjustable detection angles, capable of 360-degree rotation and extending up to 70 degrees for maximum angle adjustment
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Load capacitive: | 400.0000 VA |
| Load resistive: | 800.0000 W |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 115.0000 mm |
| Product length: | 94.0000 mm |
| Product weight: | 381.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -35 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Zhaga: | No |
Datasheets
Product datasheet: hir28-aa.pdf
