Coming Soon / In Development

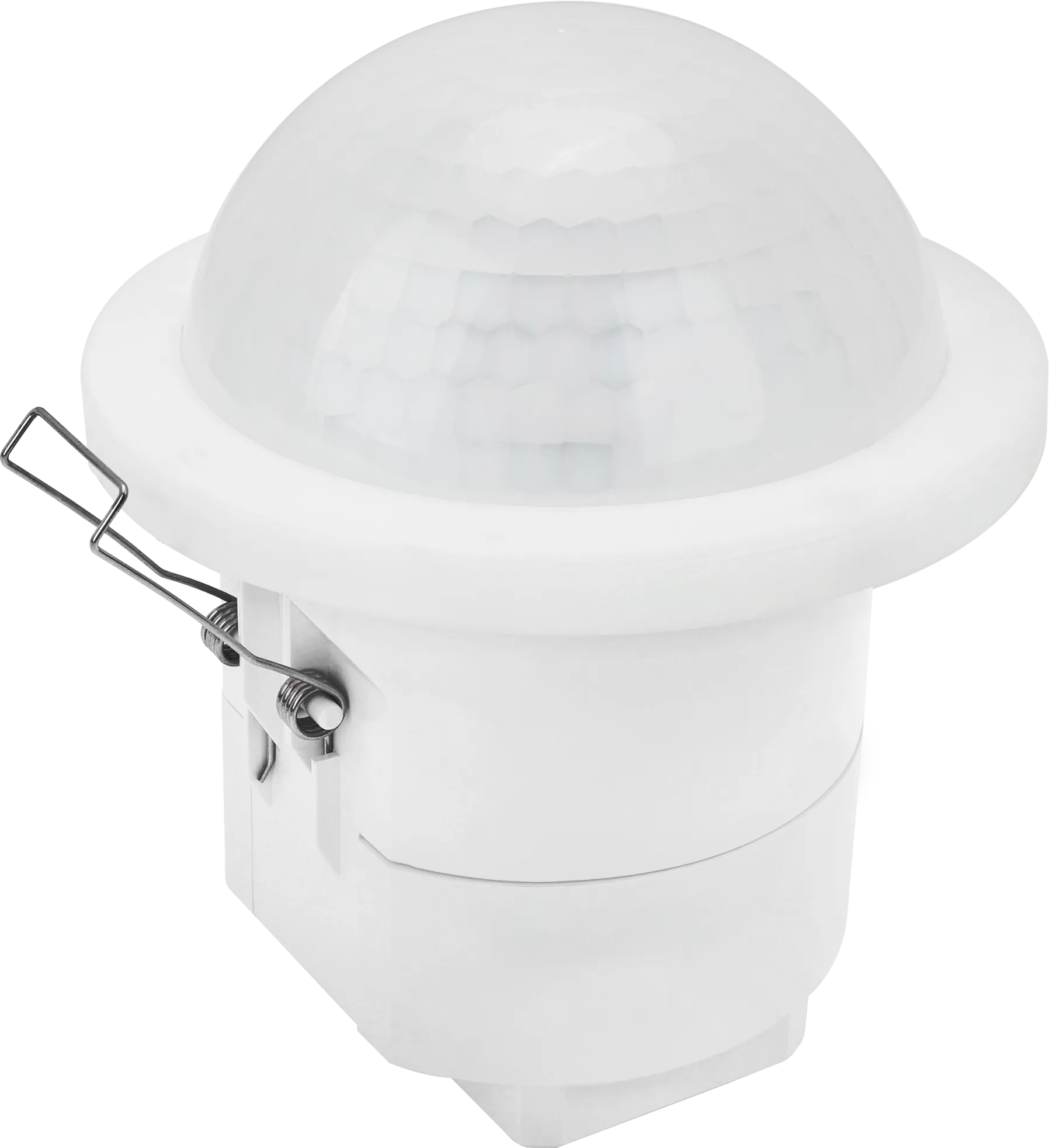

HIR27/WM
DALI-2 PIR Lowbay wide range | minor movement detection | Integrated 60 mA PSU
BENEFITS
- Discreet: Recessed design integrates neatly into the ceiling
- Sensitive: PIR and micro-motion sensing improves presence detection
- Efficient: One-key commissioning with IR controller
APPLICATIONS
- Offices
- Meeting Rooms
- Quiet Public Spaces (Libraries, Galleries)
Product information "HIR27/WM"
HIR27/WM integrates a high-sensitivity PIR occupancy sensor and a light sensor, delivering reliable sensing input for DALI luminaires. Designed for offices and quiet public spaces, it features an integrated 60 mA DALI power supply, eliminating the need for external power devices to simplify installation and enhance system stability. All parameters—including sensitivity, hold time, lux threshold, and brightness levels—can be configured via the HRC-11 handheld remote, enabling fast setup and one-key commissioning for multiple devices.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20×5 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP54 |
| Installation Type: | Stand-alone |
| Maximum Mounting Height: | 5.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Coming Soon / In Development |
| Product height: | 66.3000 mm |
| Product length: | 102.0000 mm |
| Product width: | 102.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir27-wm.pdf
