HIR27/AA
PIR Lowbay | Tri-level/DALI with PSU | Adjustable Angle
BENEFITS

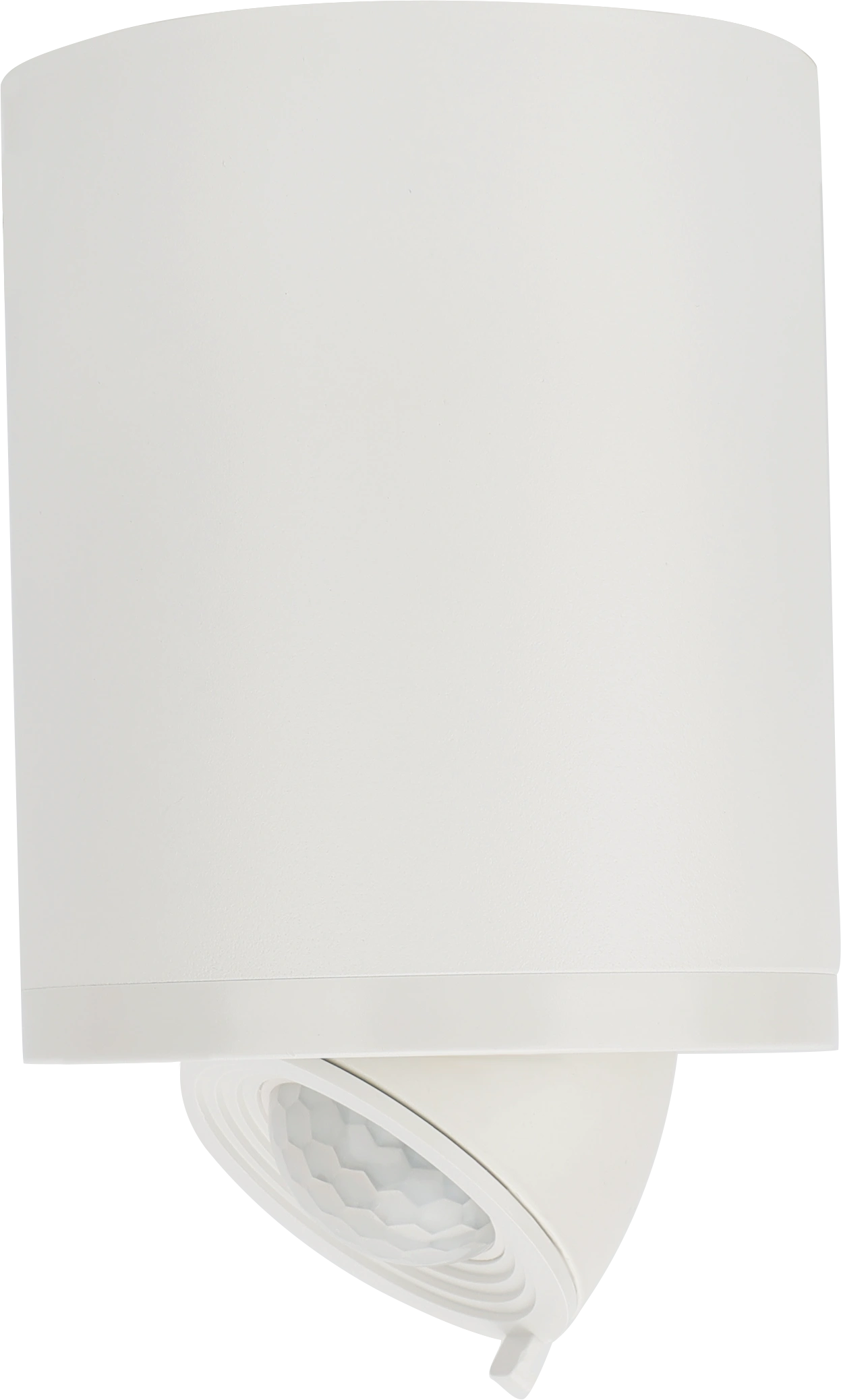

- Adjustable: Max.,70 degree angle + 360 degree rotatable for detection
- 2 in 1: 80mA DALI power supply built-in + Tri-level control
- User-Friendly: With one-key commissioning via IR controller
APPLICATIONS
- For wall/surface mount application
- Corridor, Hallway
- Classrooms, Offices
Product information "HIR27/AA"

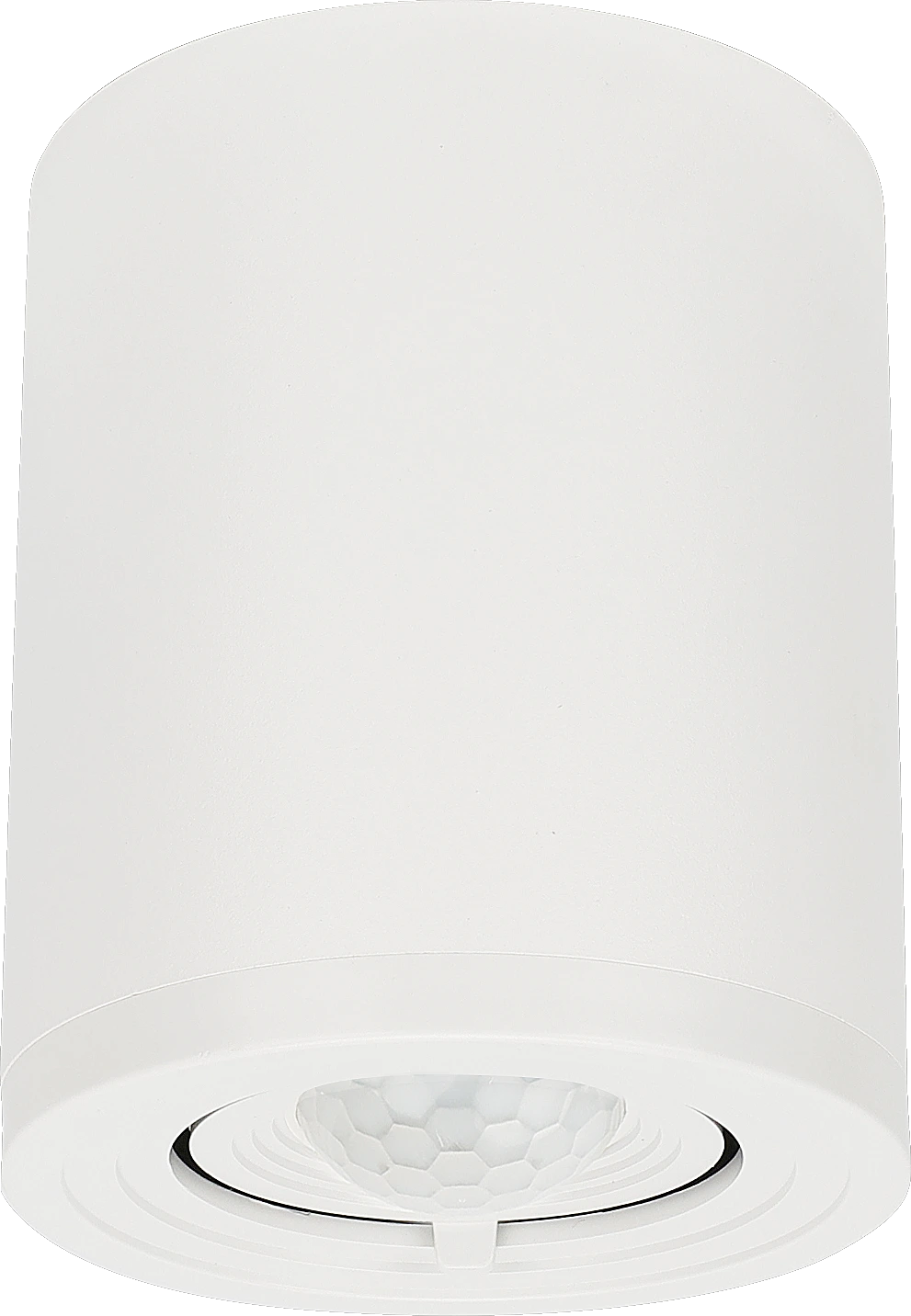

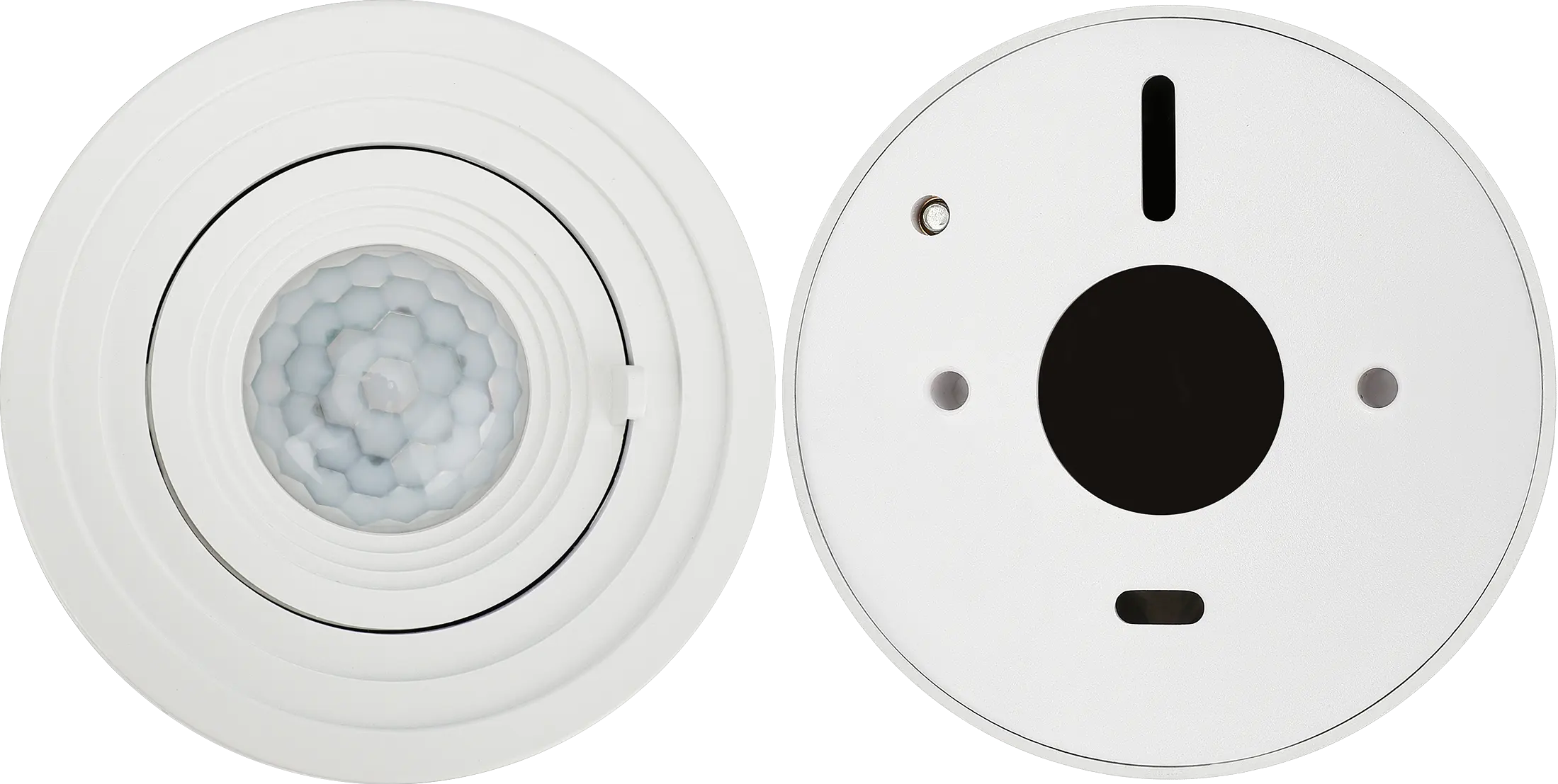

It is a PIR standalone motion sensor, with one DALI channel output (80mA DALI power supply built-in). Designed in a metal surface mount box, it features adjustable detection angles, capable of 360-degree rotation and extending up to 70 degrees for maximum angle adjustment
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 90.0000 mA |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 15×3 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 115.0000 mm |
| Product length: | 94.0000 mm |
| Product weight: | 330.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Zhaga: | No |
Datasheets
Product datasheet: hir27-aa.pdf
