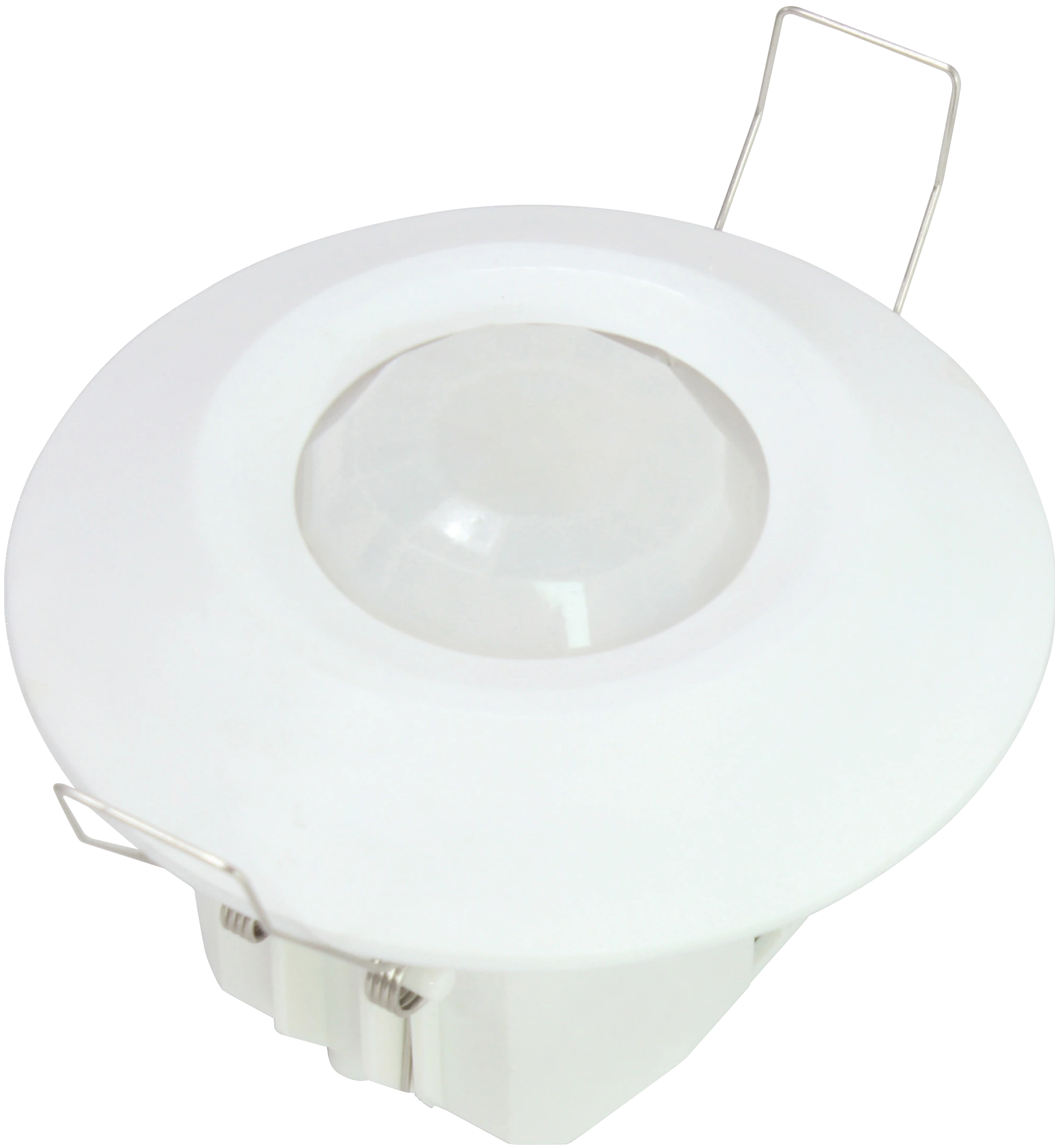

HIR20
PIR Lowbay | Remote controller ON/OFF | Ceiling mounting
BENEFITS
- Compact: Standard rectangular stand alone sensor design
- Independent: On/off occupancy control for up to 800W
- User-Friendly: With one-key commissioning with Remote Control
APPLICATIONS
- Standalone installation for ceiling up to 3m
- Offices
- Schools
Product information "HIR20"

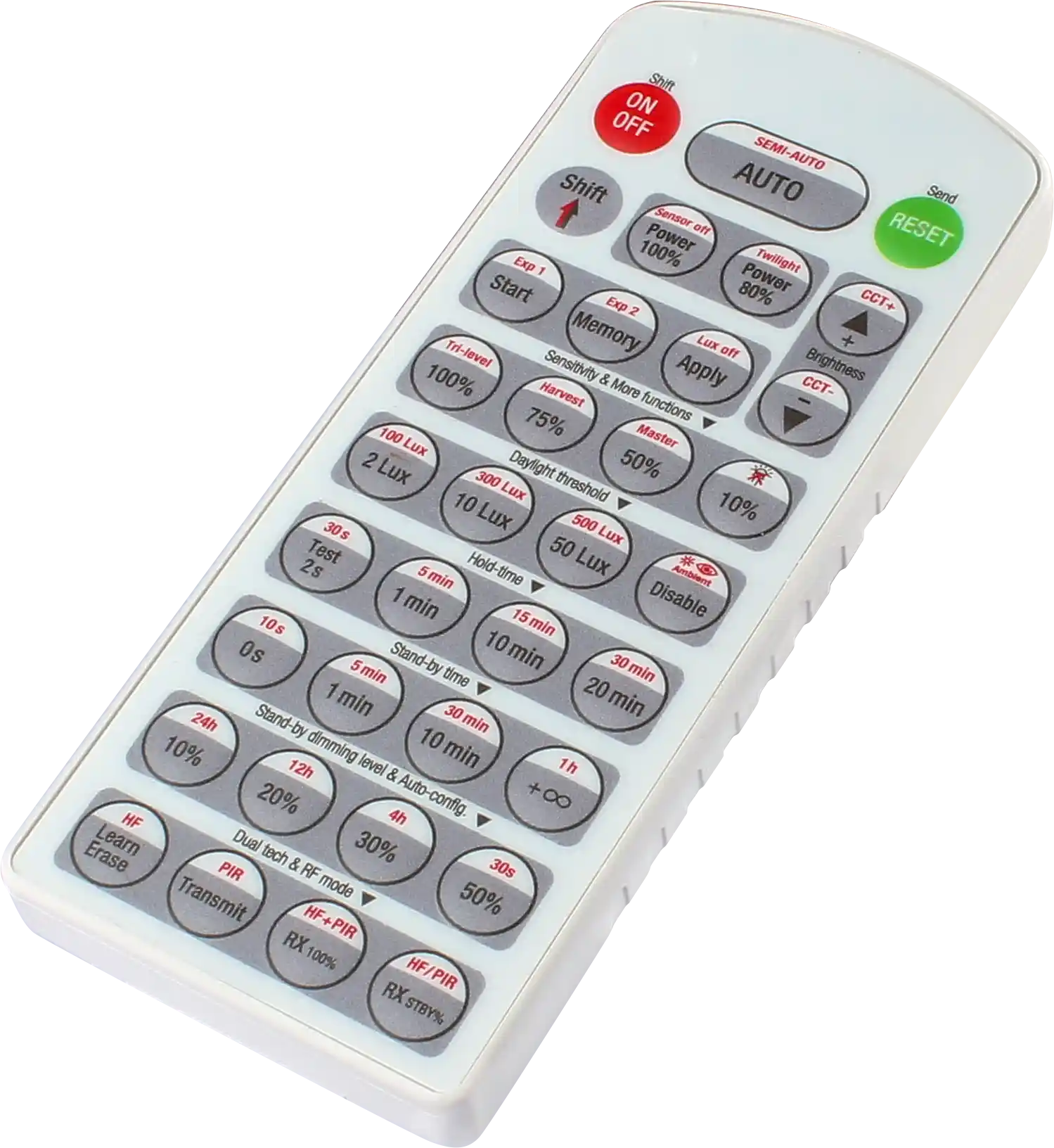

HIR20 is a flush mount PIR motion sensor with an intelligent photocell included. The sensor can be set up using a remote control handset with program memory.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 8x3 |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Load capacitive: | 800.0000 VA |
| Load resistive: | 1600.0000 W |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 70.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 73.3000 mm |
| Product length: | 85.0000 mm |
| Product weight: | 150.0000 g |
| Product width: | 85.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir20.pdf
Installation Manual
User manual: installation-manual-hir20.pdf
