HIR15/D2
PIR Highbay | DALI-2 input device | Zhaga Book 18 Standard
BENEFITS
- Standardized: Zhaga Book 18 interface with IP65 for reliable integration
- DALI-2 feature: Occupancy (part 303) Daylight (part 304)
- Standardized: DALI-2 protocol certified as D4i Type B
APPLICATIONS

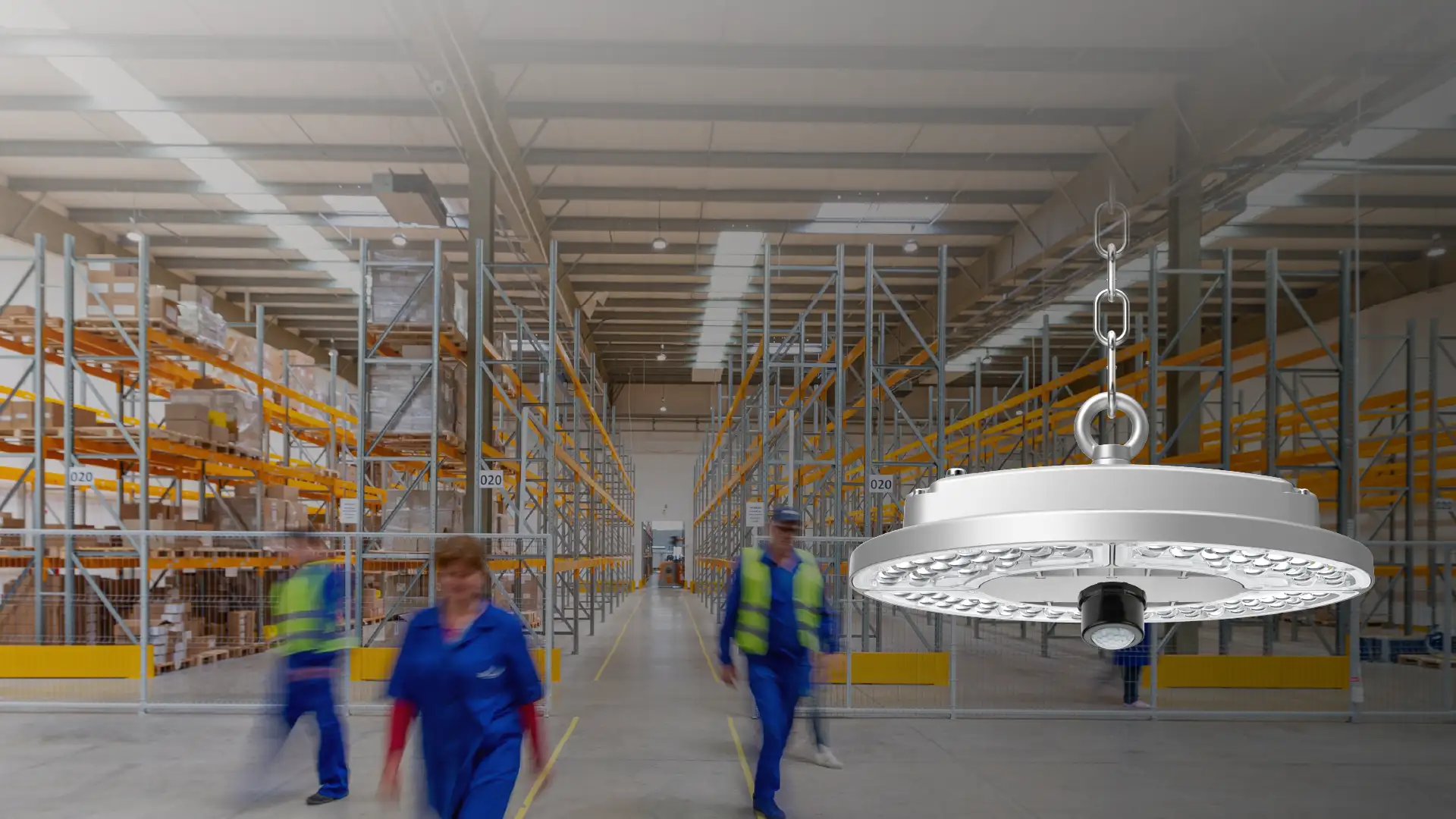

- For highbay luminaire up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights
Product information "HIR15/D2"

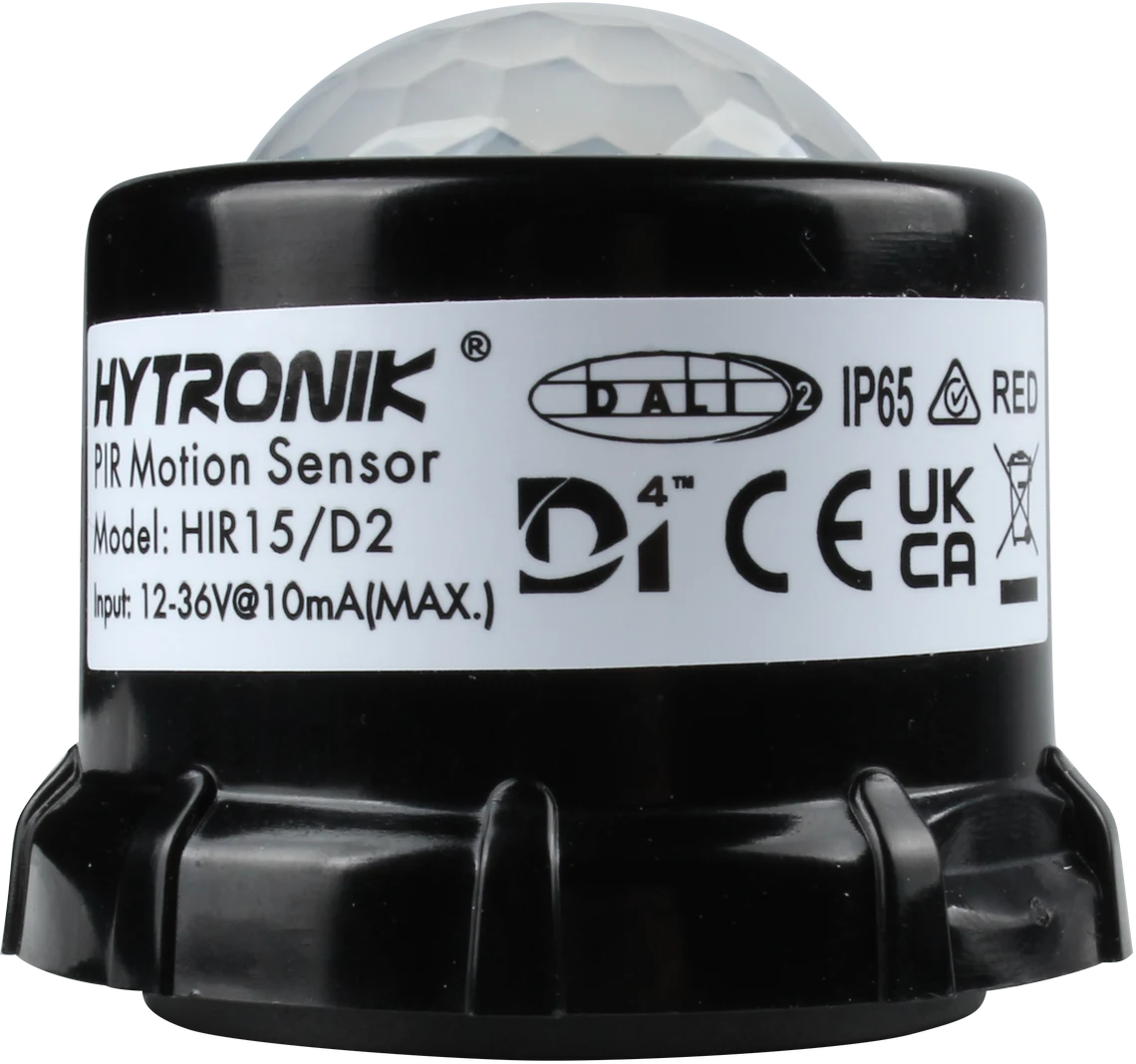

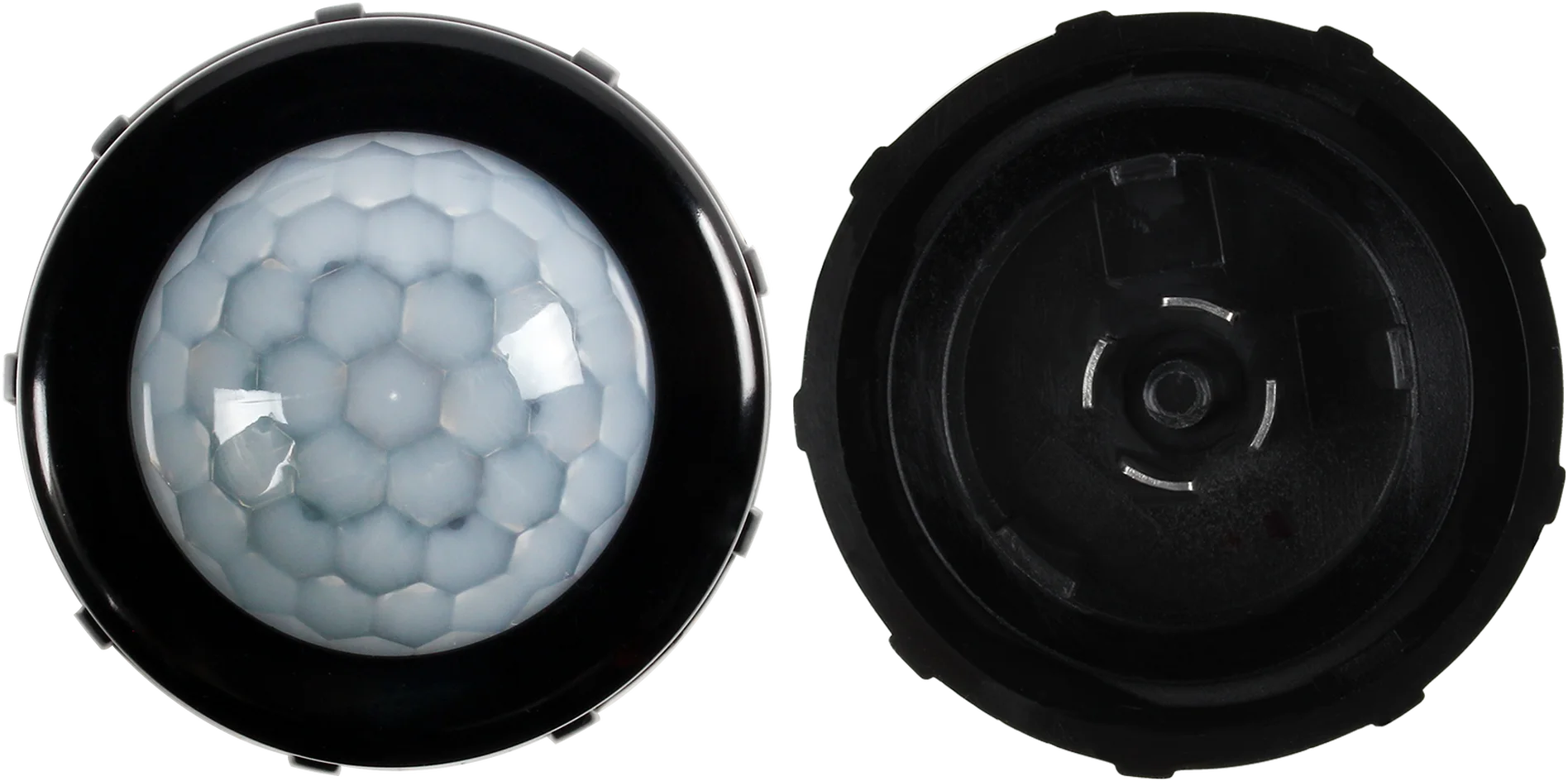

HIR15/D2 is a DALI-2 input device high-bay PIR motion sensor with IP65 protection and a typical mounting height of up to 15 m, designed for industrial and outdoor applications. Compliant with Zhaga Book 18, it enables tool-free integration into luminaires, while D4i certification ensures seamless compatibility within DALI-2 systems. A removable shielding cap allows easy adjustment of the detection area to suit different installation needs.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | Zhaga book 18 |
| DALI-2 D4i type: | Typ B |
| DALI Bus Current Consumption: | 10.0000 mA |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | D4i, Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 12-36 VDC |
| Product Status: | Active / New |
| Product height: | 43.8000 mm |
| Product length: | 50.4000 mm |
| Product weight: | 45.0000 g |
| Product width: | 50.4000 mm |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Zhaga: | Yes |
Datasheets
Product datasheet: hir15-d2.pdf
Installation Manual
User manual: installation-manual-hir15-d2.pdf
