Active / Make to Stock
HIR15
PIR Highbay | DALI-2 Broadcast Output | Zhaga Book 18 Standard
BENEFITS
- Standardized: Zhaga Book 18 interface with IP65 for reliable integration
- Power Supply: Integrated 30mA DALI-2 bus supply
- Simple: Sensor settings are done via the IR remote control
APPLICATIONS

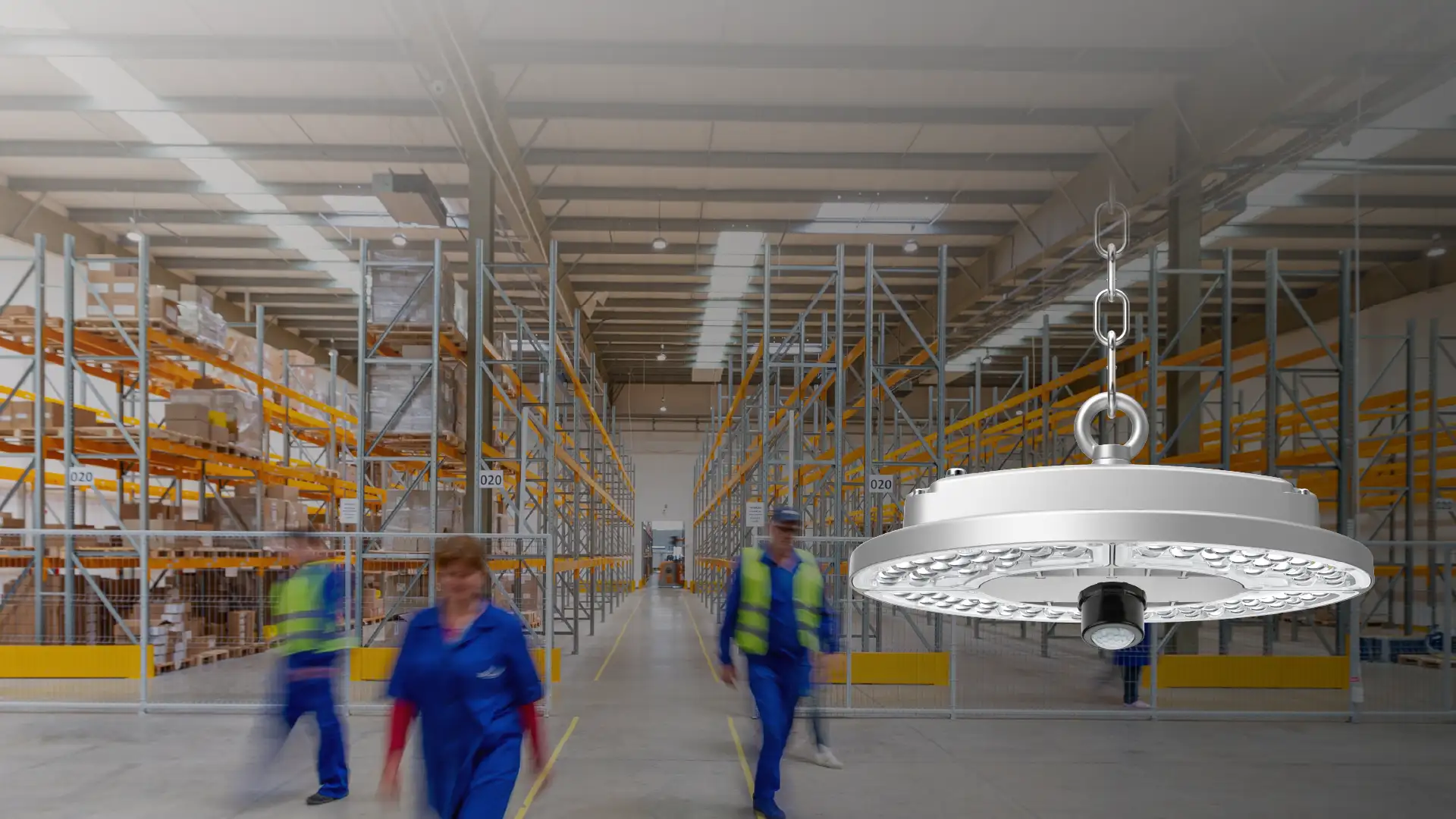

- For highbay luminaire up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights
Product information "HIR15"

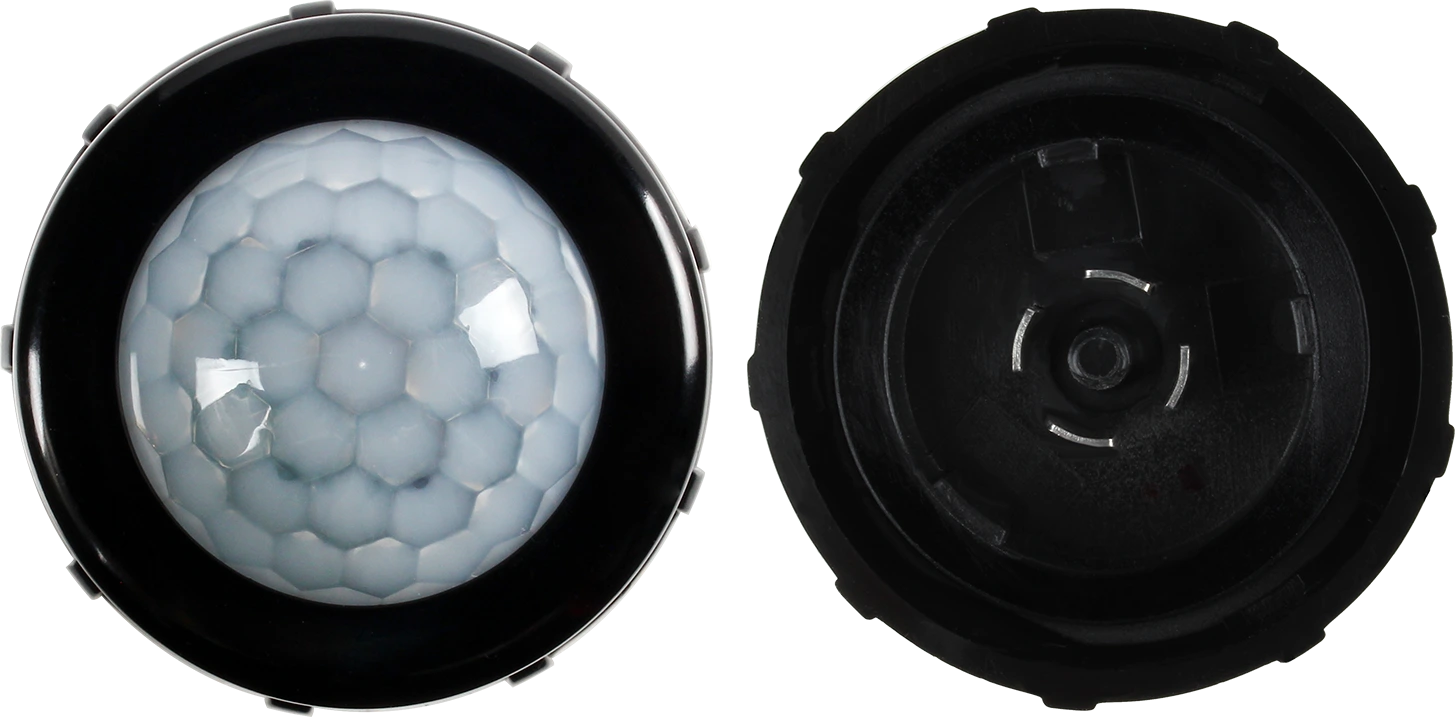

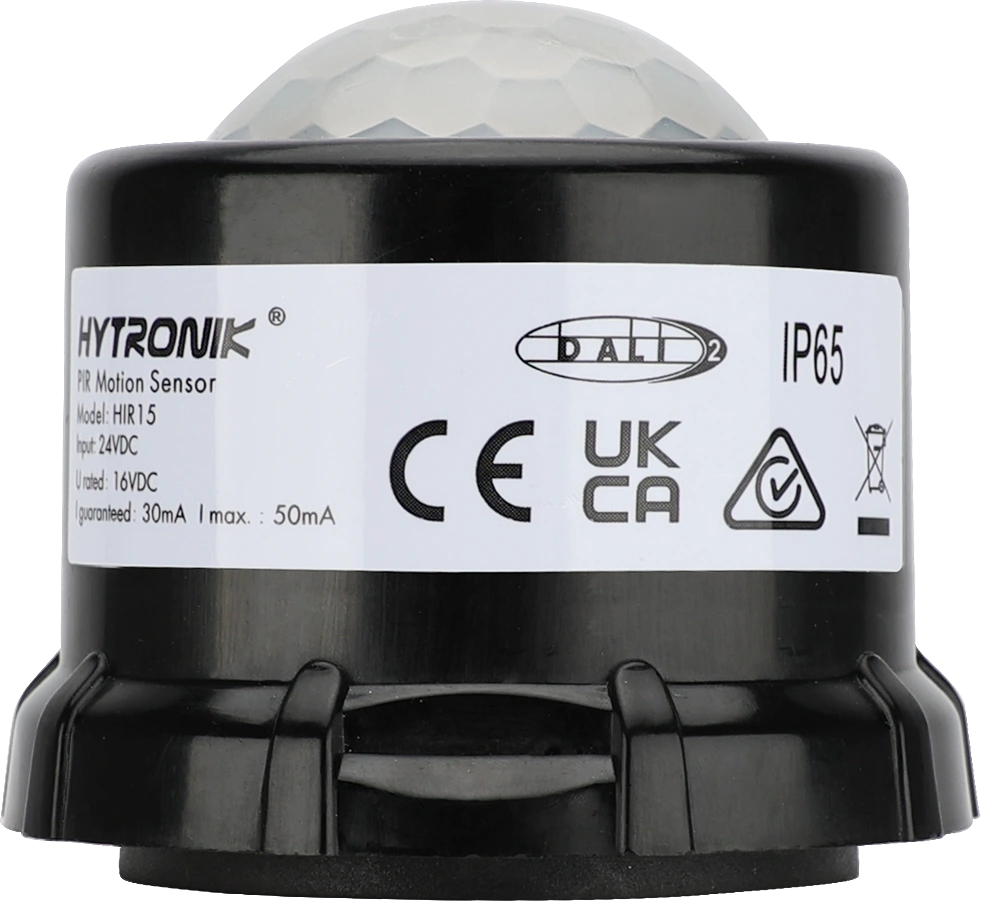

HIR15 is a DALI-2 highbay PIR motion sensor with integrated 30 mA DALI bus power supply, designed to simplify system design by powering connected DALI devices without an external PSU. Supporting dimming, tunable white, and daylight-based control, it features dual-photocell technology to distinguish natural and artificial light for more stable daylight regulation. With an IP65 rating and up to 15 m installation height, it is well suited for industrial and outdoor applications. Optional shielding accessories allow flexible adjustment of the detection area to suit different installation requirements. All parameters can be configured via remote control, enabling fast and efficient commissioning.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Zhaga book 18 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | D4i, Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 24VDC |
| Product Status: | Active / Make to Stock |
| Product height: | 47.8000 mm |
| Product length: | 50.4000 mm |
| Product weight: | 41.0000 g |
| Product width: | 50.4000 mm |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Zhaga: | Yes |
Datasheets
Product datasheet: hir15.pdf
Installation Manual
User manual: installation-manual-hir15.pdf
