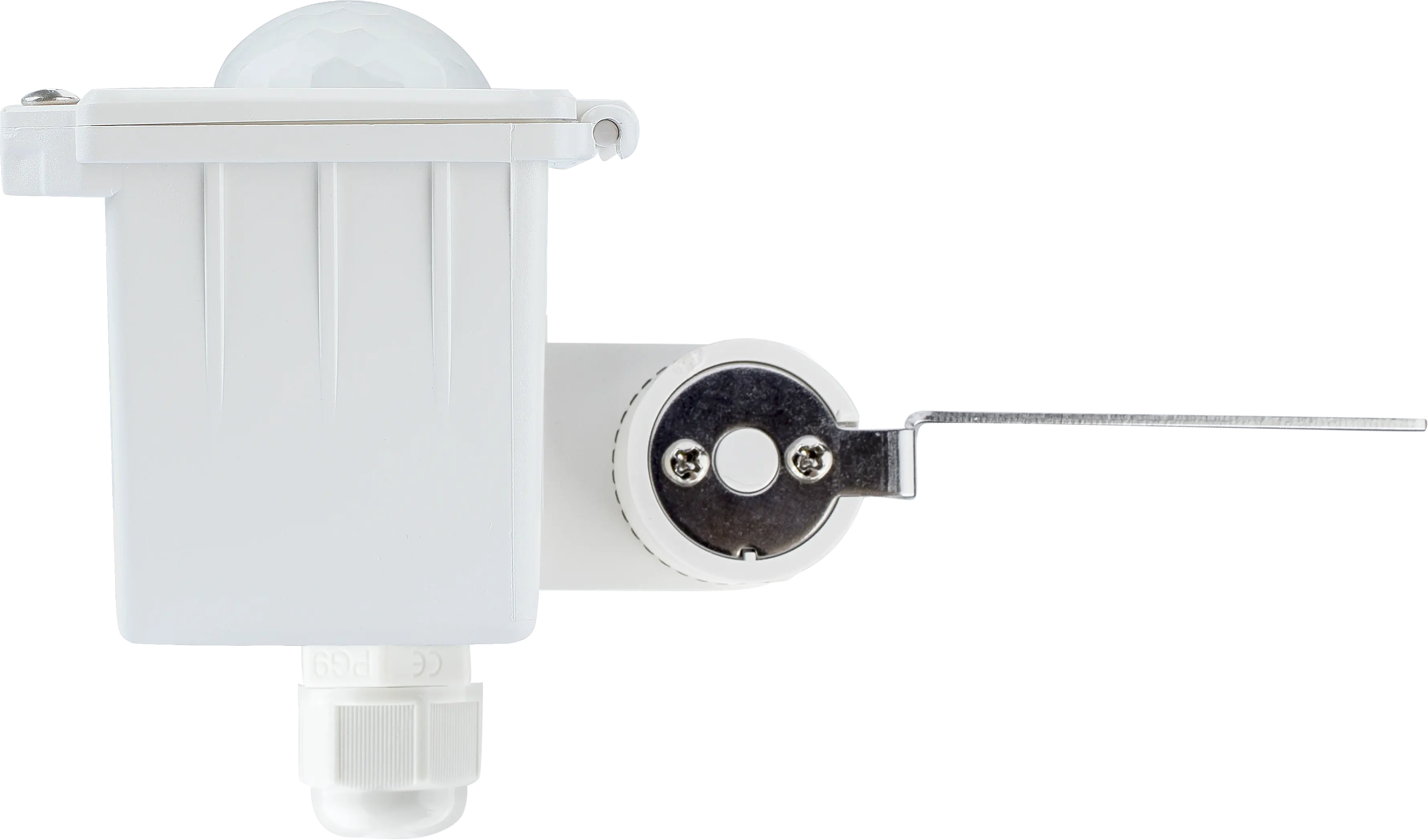

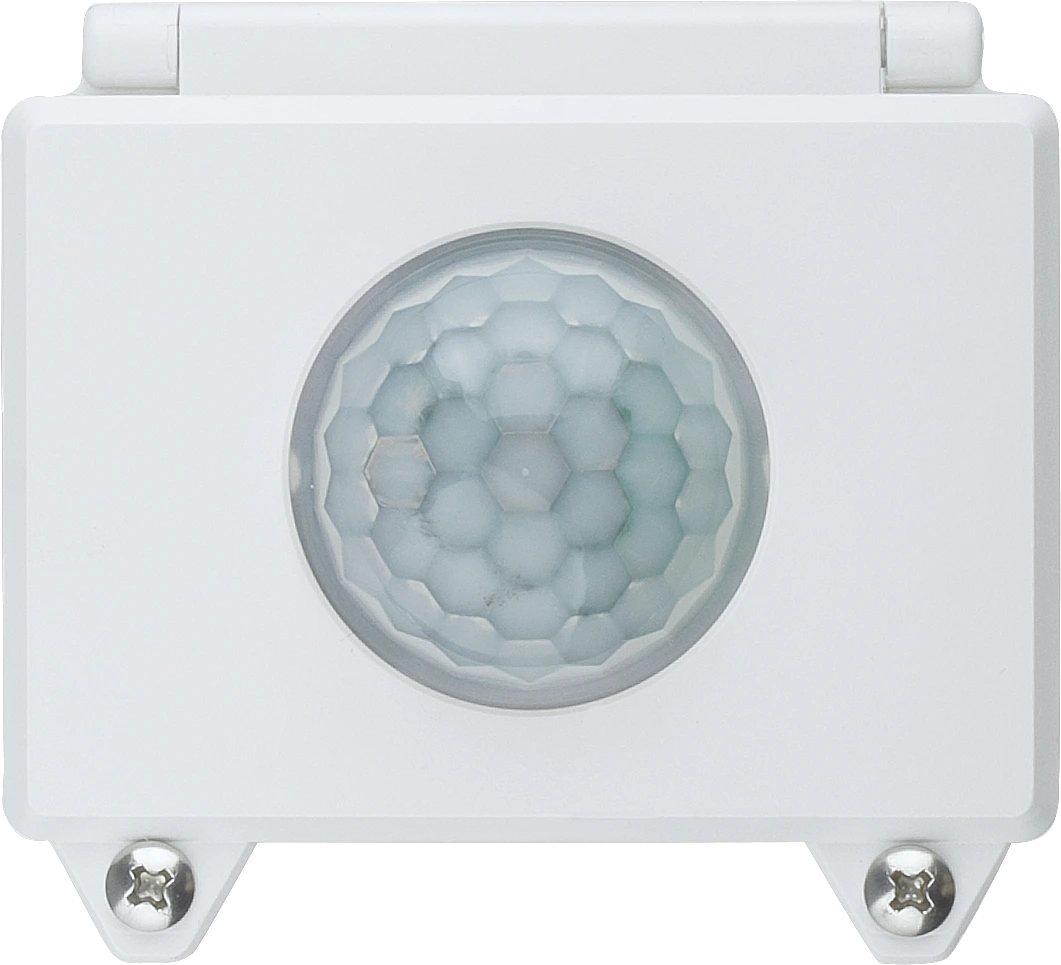

HIM32-C-L1
HF+PIR Highbay | Daylight harvest | Clamp mount+Circular lenses
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- Versatile: Zero-cross Relay Operation + Daylight harvest
- User-Friendly: With one-key commissioning via IR controller/Rotary Switch
APPLICATIONS
- Standalone installation for ceiling up to 15m
- Warehouse
- Production
Product information "HIM32-C-L1"
HIM32 is an IP65-rated Dual-sense™ motion sensor that combines Microwave and PIR detection. It supports installation heights up to 15m and features daylight harvesting capabilities. Sensor settings can be adjusted using both HRC-11 remote controller and rotary switch.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Dual-Sense (MW+PIR), Microwave (MW), Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 18×15 |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Clamp mounting |
| Lens type: | High-bay |
| Load capacitive: | 800.0000 VA |
| Load resistive: | 1000.0000 W |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 93.8000 mm |
| Product length: | 164.7000 mm |
| Product weight: | 255.0000 g |
| Product width: | 74.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: him32-c-l1.pdf
Installation Manual
User manual: installation-manual-him32-c-l1.pdf
