HIM31-A-L2
HF+PIR Highbay | 1-10V | Surface mount+Horzontal lenses
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- 2 in 1 : 1-10V dimming output
- User-Friendly: One-key commissioning with IR controller
APPLICATIONS
- Standalone installation for ceiling up to 15m
- Warehouse
- Production
Product information "HIM31-A-L2"

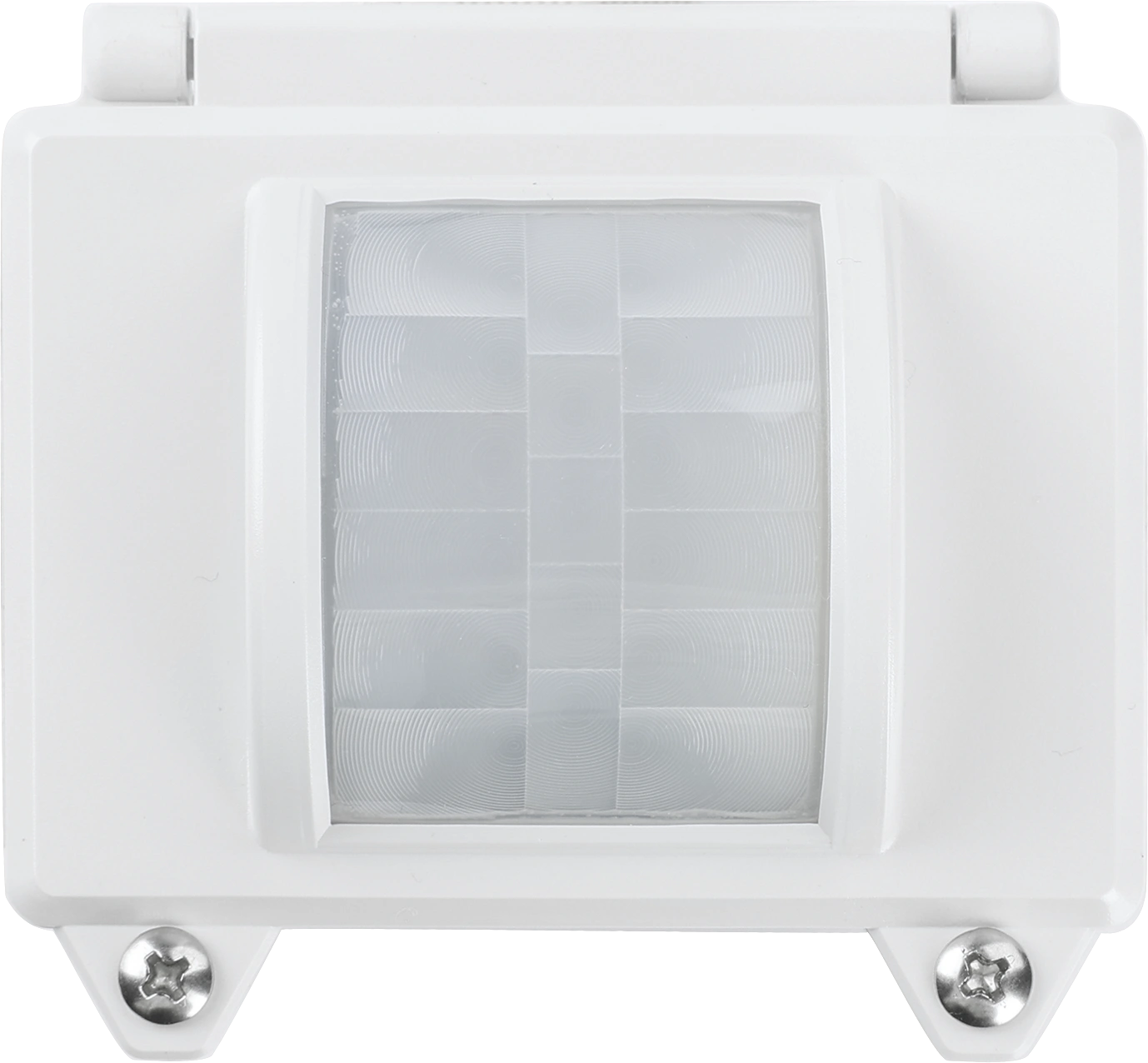

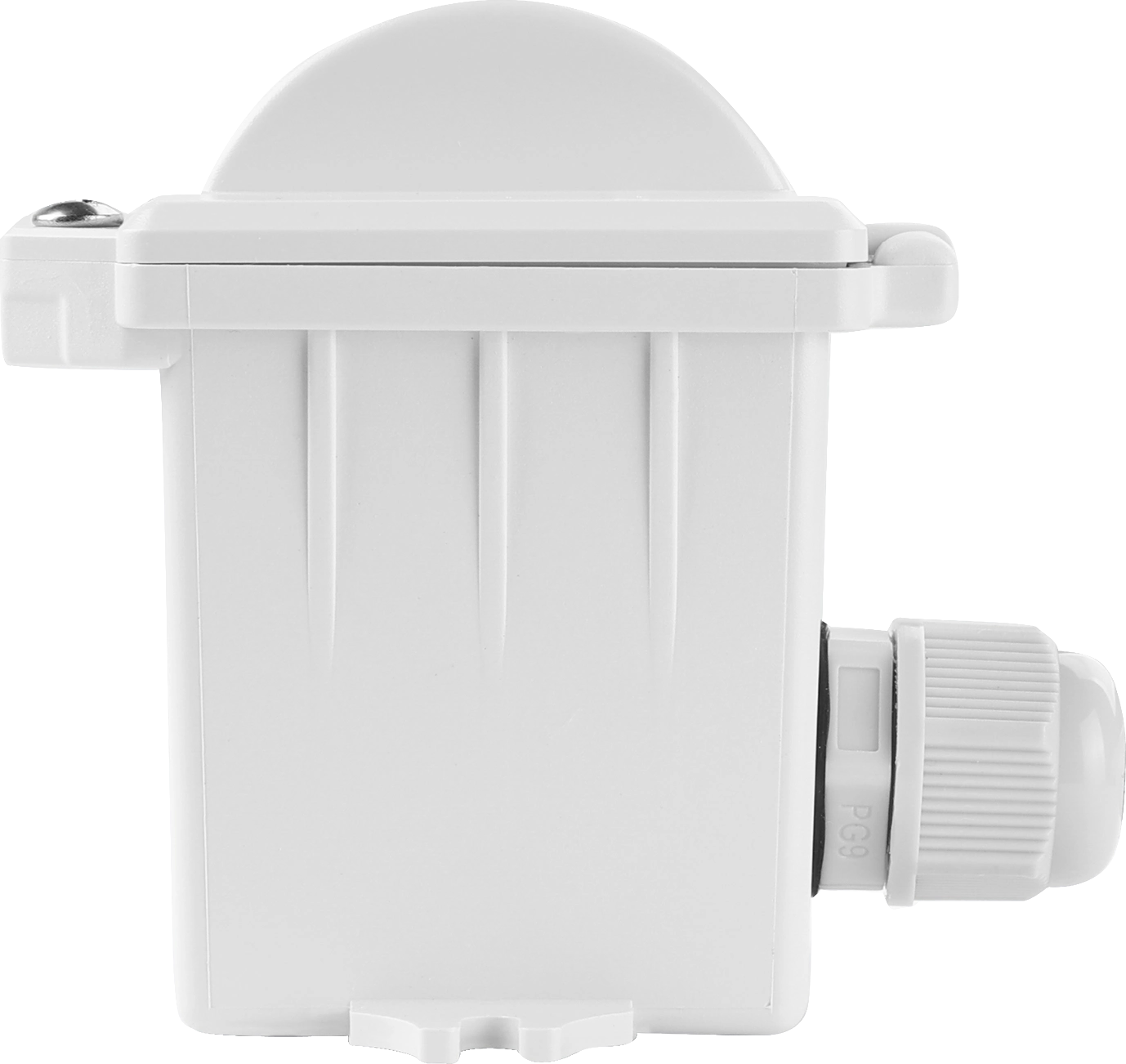

HIM31 is an IP65-rated Dual-sense™ motion sensor that combines Microwave and PIR detection. It supports installation heights up to 15m and offers 1-10V dimming capabilities. Sensor settings are adjustable using the HRC-11 remote controller or a rotary switch.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Dual-Sense (MW+PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 18×15 |
| Dimming (Output) Interface: | 1-10V |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.1000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 73.5000 mm |
| Product length: | 91.5000 mm |
| Product width: | 83.0000 mm |
| Push Button Input: | |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
