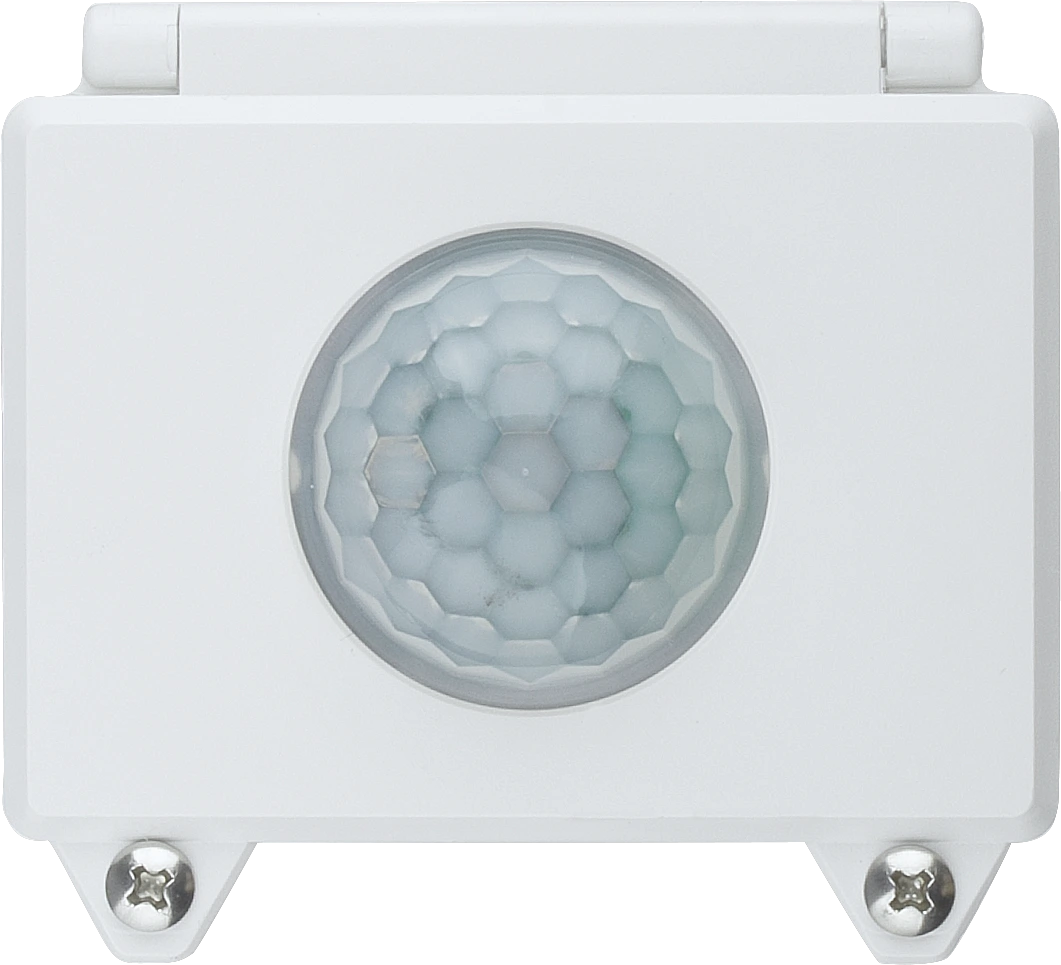

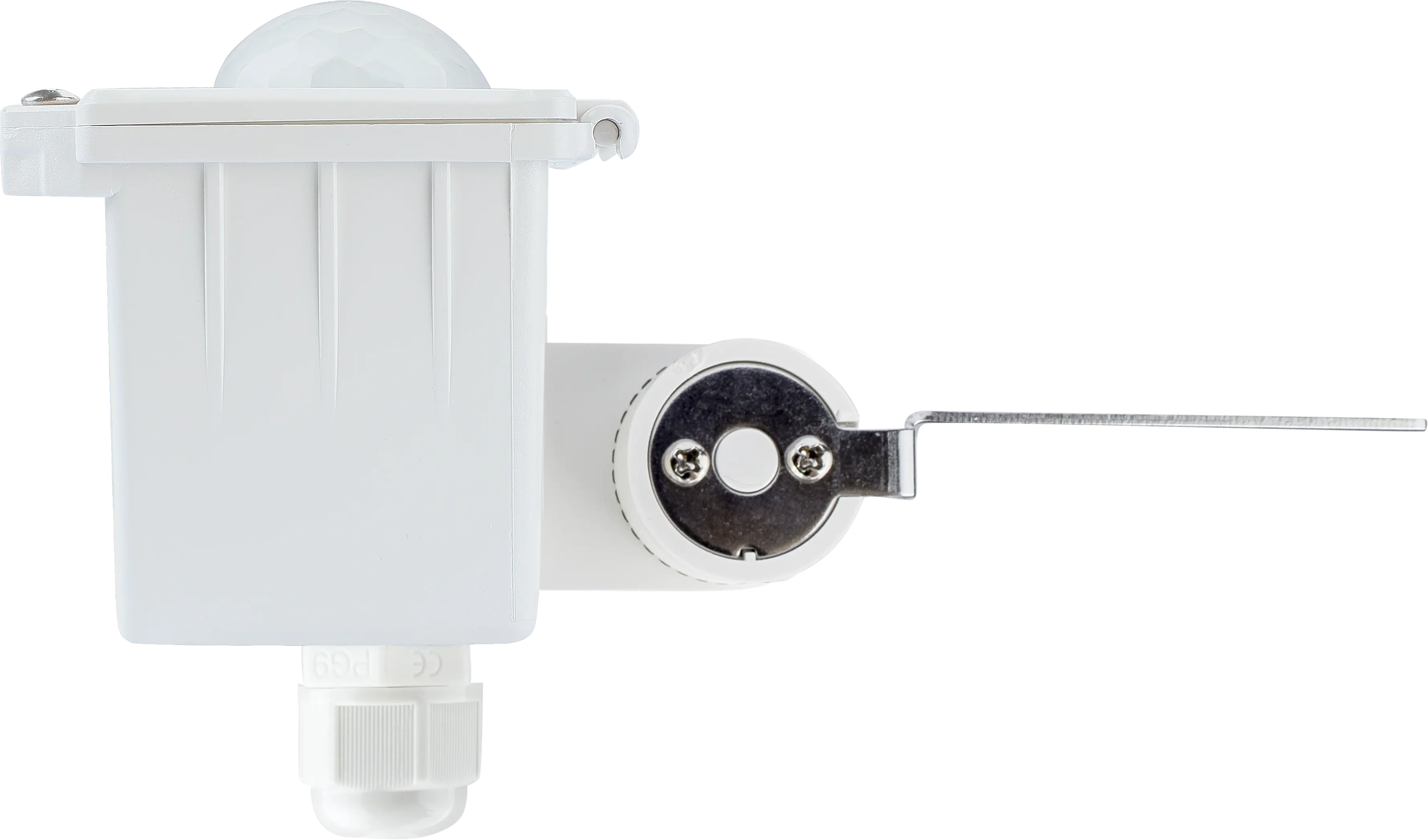

HIM30-C-L1
HF+PIR Highbay | ON/OFF | Clamp mount+Circular lenses
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- Autonomous: On/off occupancy control for up to 1000W
- User-Friendly: With one-key commissioning via IR controller/Rotary Switch
APPLICATIONS
- Standalone installation for ceiling up to 20m
- Warehouse
- Production
Product information "HIM30-C-L1"
HIM30 is an IP65-rated high-bay dual-sense motion sensor integrating both HF and PIR technologies, designed to provide reliable on/off control in high-bay applications. By combining the advantages of HF and PIR sensing, it ensures stable detection performance across different environments. The device supports flexible parameter adjustment via remote control and a rotary switch, enabling convenient setup and efficient commissioning.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Dual-Sense (MW+PIR), Microwave (MW), Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10×12 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Clamp mounting |
| Lens type: | High-bay |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 93.8000 mm |
| Product length: | 164.7000 mm |
| Product weight: | 210.0000 g |
| Product width: | 75.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: him30-c-l1.pdf
