Active / Make to Stock
HIM30-B-L2

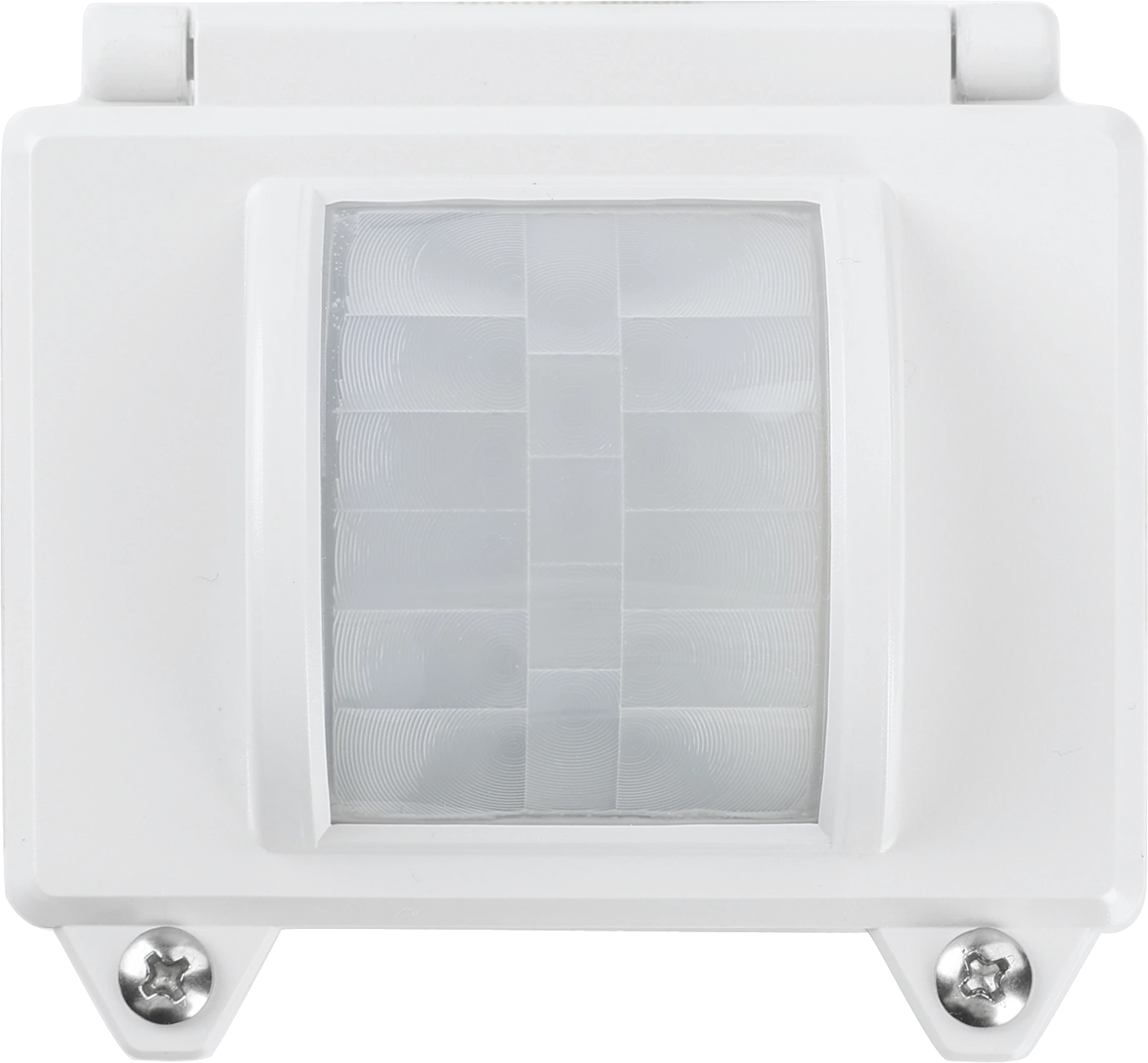

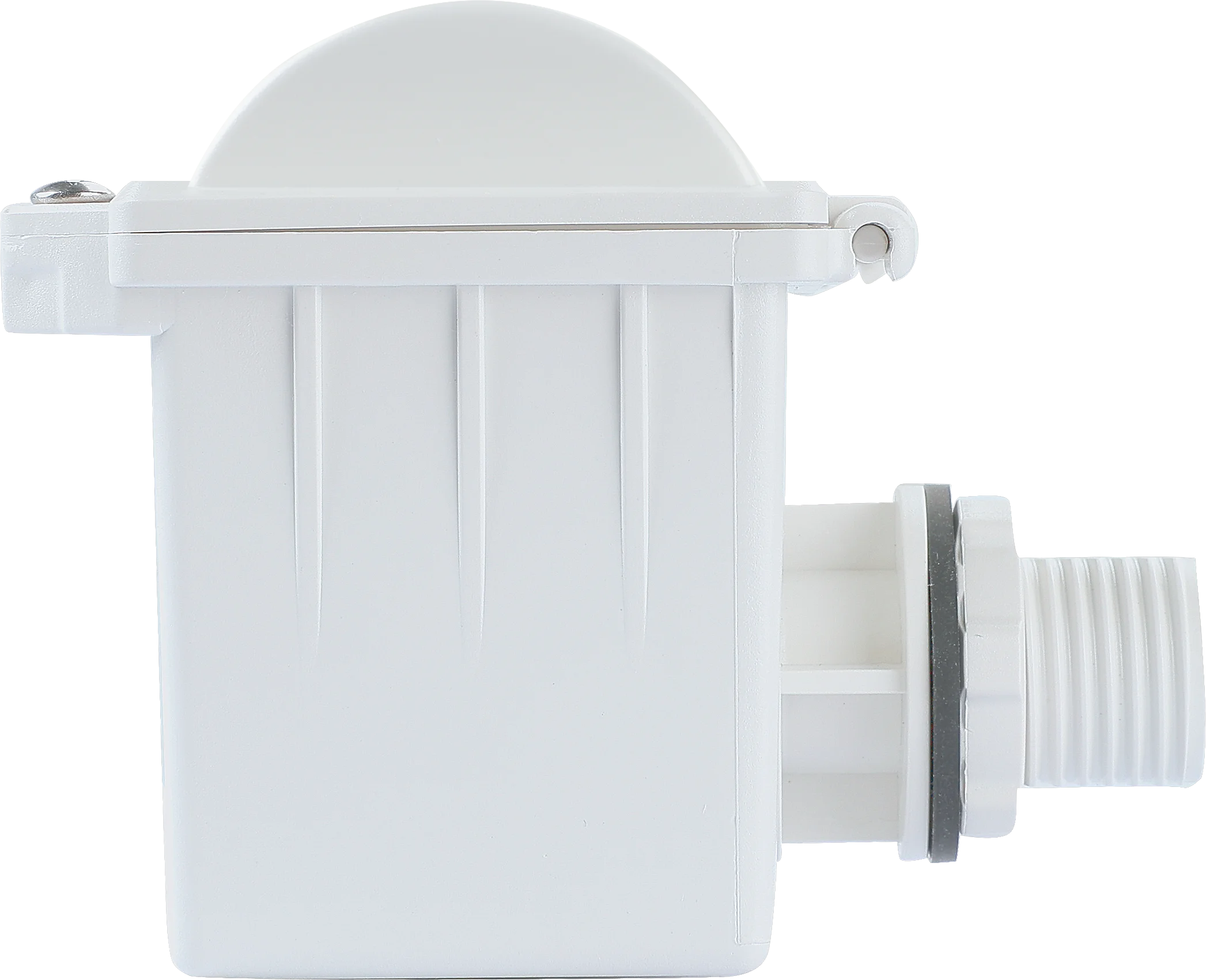

HF+PIR Highbay | ON/OFF | Conduit screws+Vertical lenses
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- Autonomous: On/off occupancy control for up to 1000W
- User-Friendly: With one-key commissioning via IR controller/Rotary Switch
APPLICATIONS
- Industrial Warehouse
- Manufacturing Workshop
- Logistics Center
Product information "HIM30-B-L2"
HIM30 is an IP65 rated highbay dual sense motion sensor integrating both HF and PIR technologies, designed to provide reliable on/off control in high-bay applications. By combining the advantages of HF and PIR sensing, it ensures stable detection performance across different environments. The device supports flexible parameter adjustment via remote control and a rotary switch, enabling convenient setup and efficient commissioning.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Harvest: | Yes |
| Detection Methods: | Dual-Sense (MW+PIR), Microwave (MW), Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Conduit screws |
| Lens type: | High-bay |
| Load capacitive: | 800.0000 VA |
| Load resistive: | 1000.0000 W |
| Maximum Mounting Height: | 15.0000 m |
| Max withstandable in-rush current: | 120A@160μs |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 73.5000 mm |
| Product length: | 91.4000 mm |
| Product weight: | 210.0000 g |
| Product width: | 75.0000 mm |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: him30-b-l2.pdf
