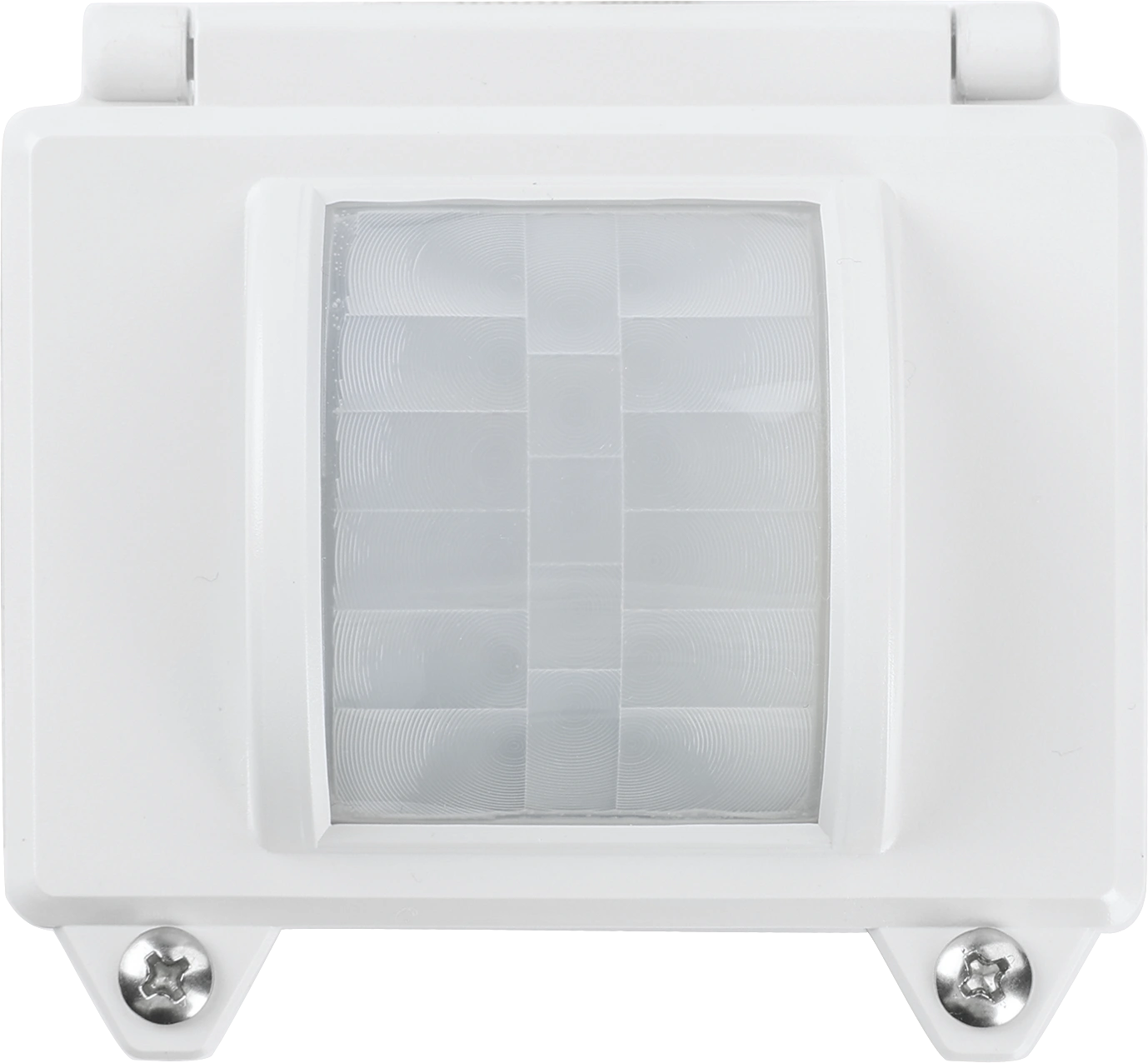

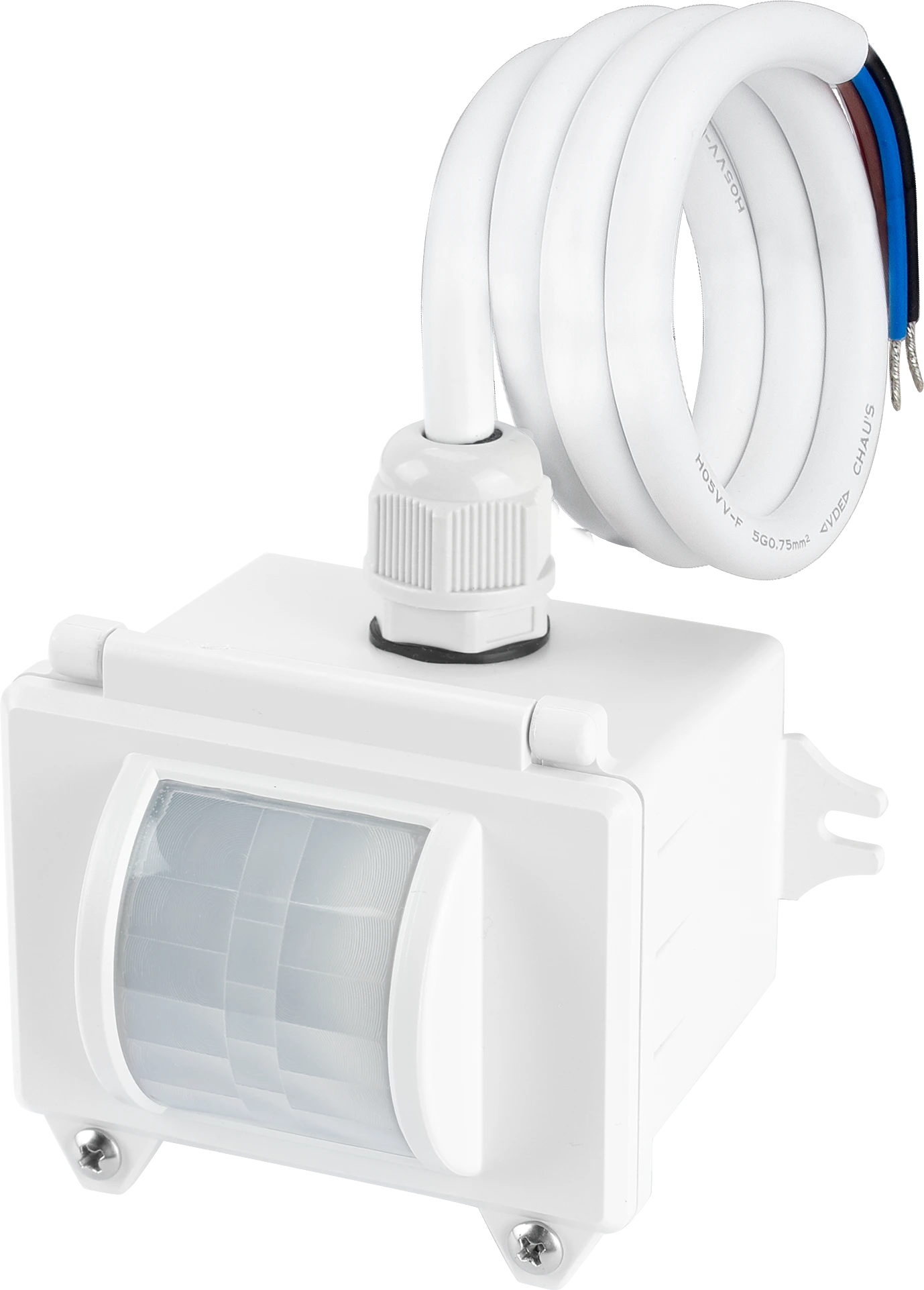

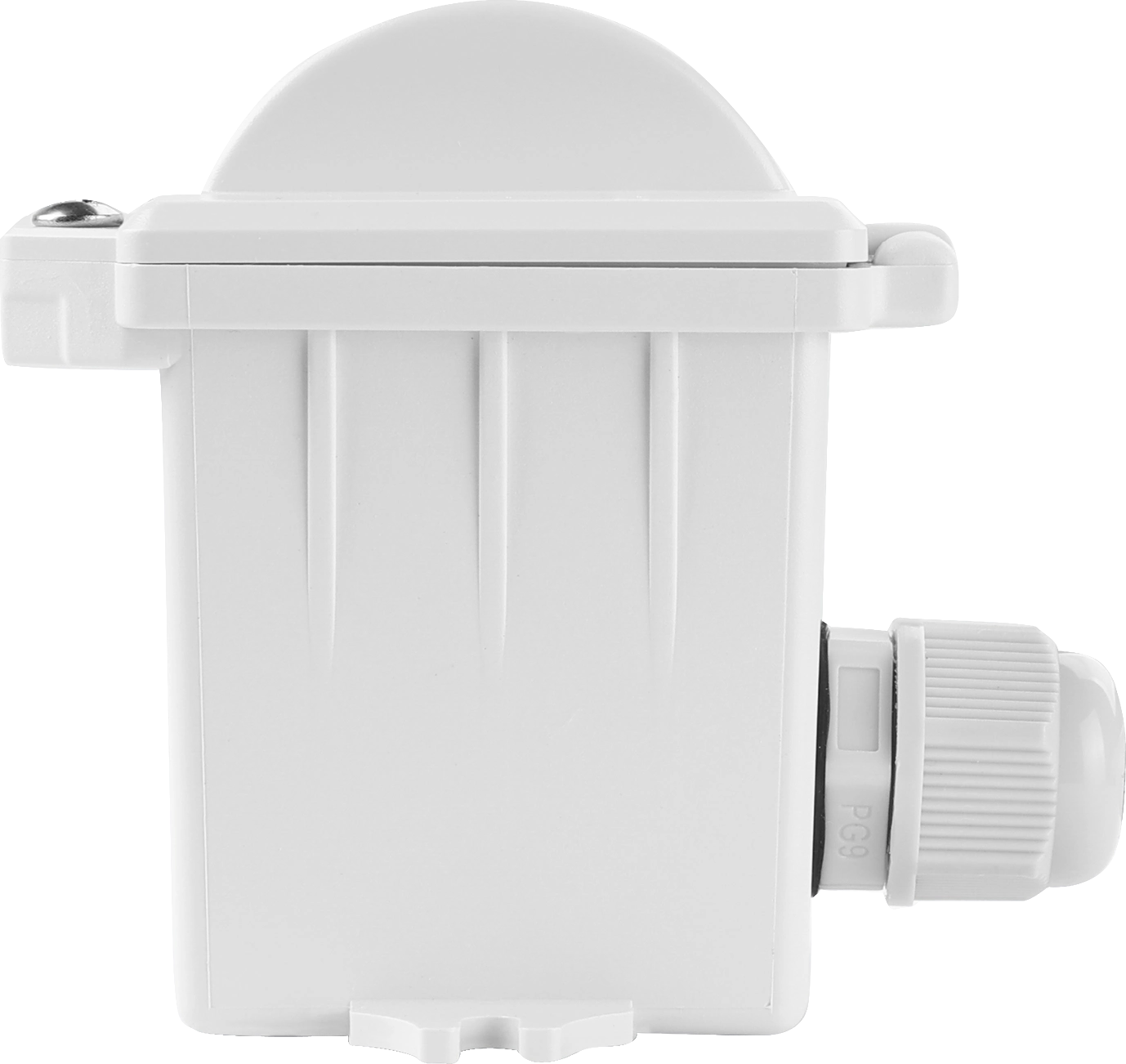

HIM30-A-L2
HF+PIR Highbay | ON/OFF | Surface mountingt+Horzontal lenses
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- Autonomous: On/off occupancy control for up to 1000W
- User-Friendly: With one-key commissioning via IR controller/Rotary Switch
APPLICATIONS
- Standalone installation for ceiling up to 12m

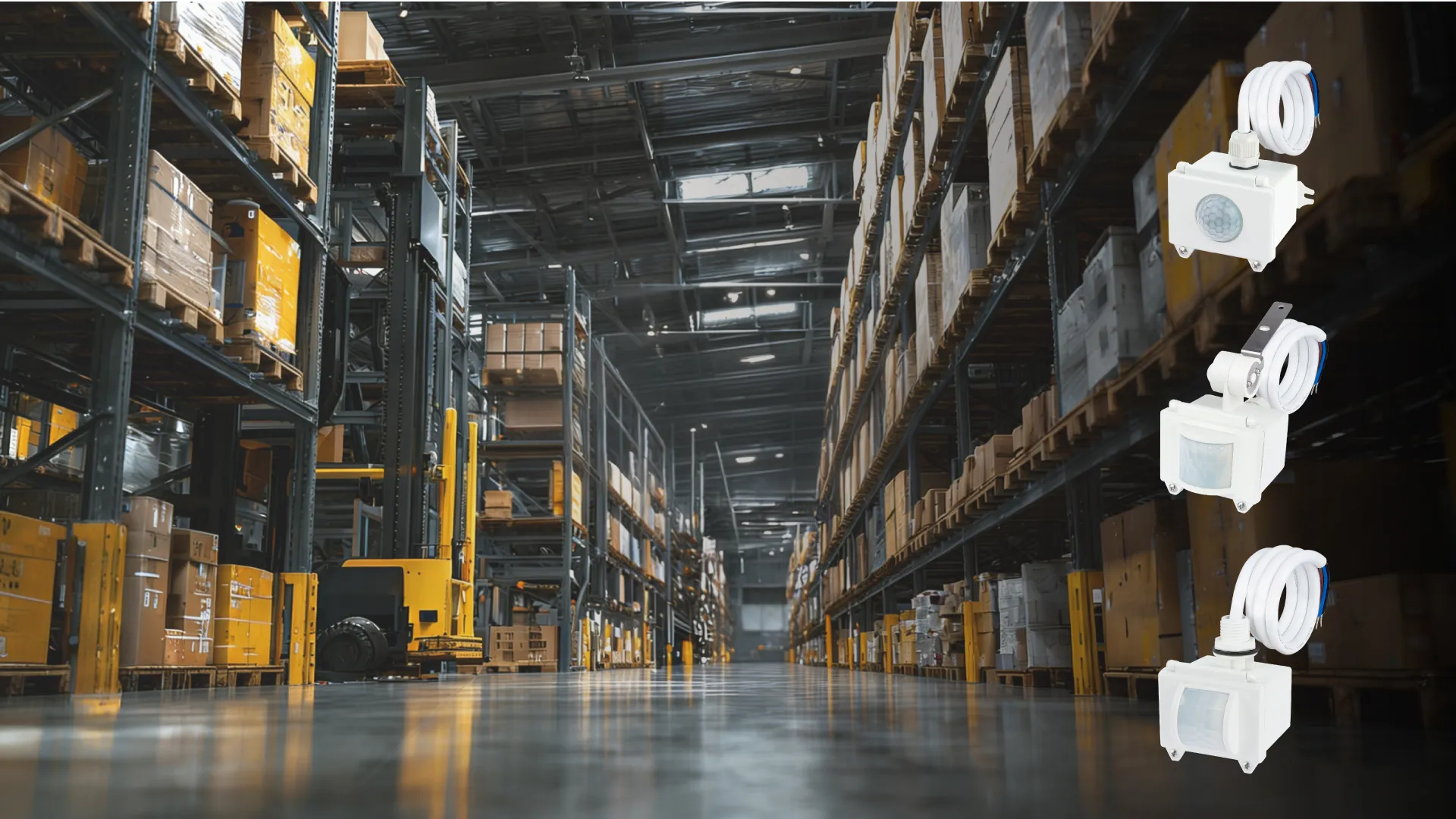

- Warehouse
- Production
Product information "HIM30-A-L2"
HIM30 is an IP65 High Bay Dual Sense Sensor featuring both HF and PIR technologies. It provides On/Off control and is suitable for high bay installations. The sensor includes a remote control and a rotary switch for easy adjustments.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Dual-Sense (MW+PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 10×12 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.1000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 73.5000 mm |
| Product length: | 91.5000 mm |
| Product width: | 83.0000 mm |
| Push Button Input: | |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
