HED6010
DALI-2 DT6 LED Driver 12.8W (CC) | Dimmable | Built-in/Stand-alone
BENEFITS
- Compact: LED Driver with DALI feedback
- Flexible: Switch-Dim(PUSH) terminal
- Easy: Configurable constant current (CC) output via DIP switches
APPLICATIONS
- Optional terminal-cap for stand-alone installation
- Offices
- Classrooms
Product information "HED6010"

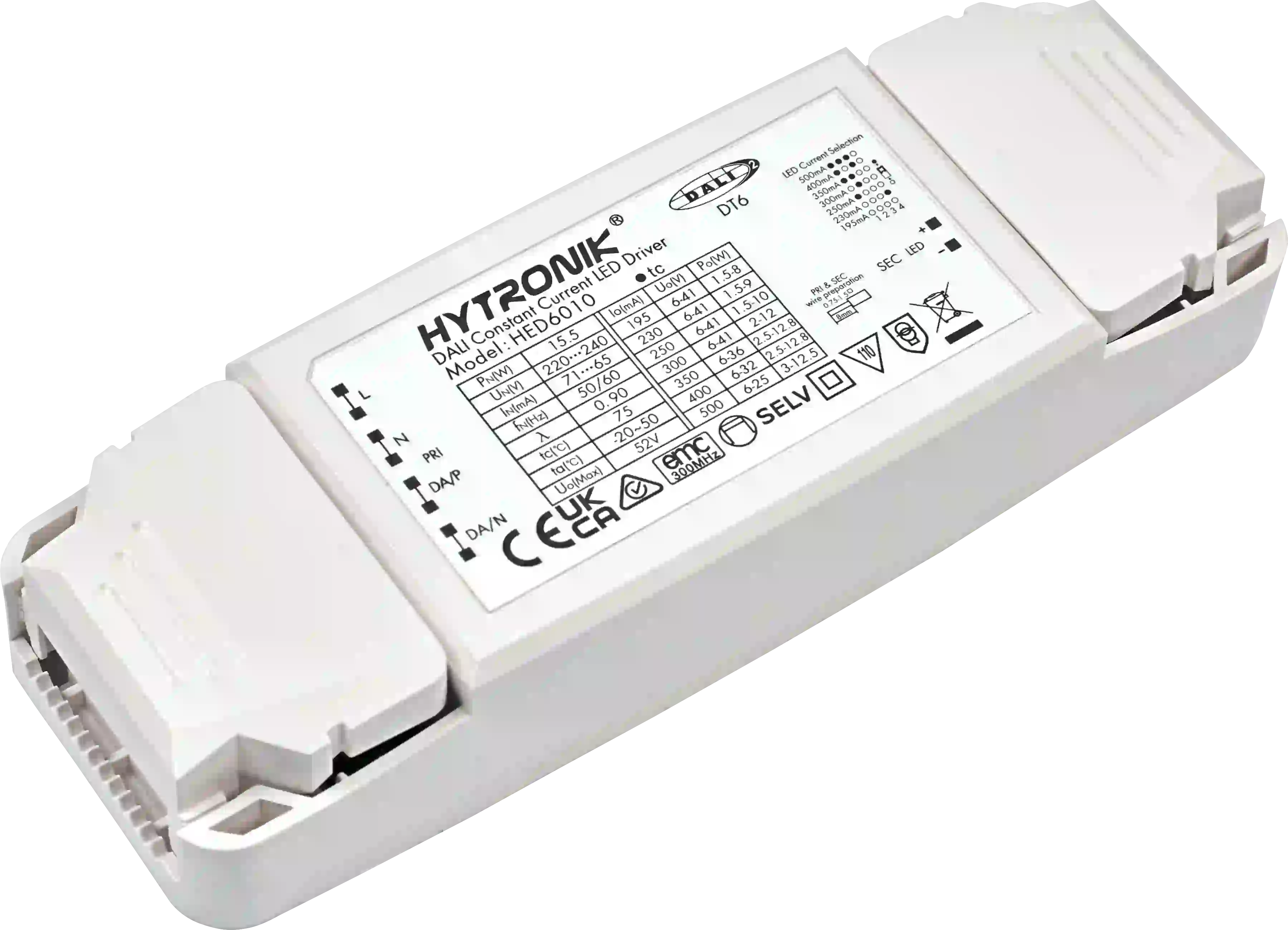

HED6010 is a DALI-2 DT6 dimmable LED driver that offers a maximum power of 12.8W. It features a Switch-Dim interface using a push switch. Available in various form factors and sizes, it provides flexibility for direct projects or new luminaire designs, making it ideal for lighting manufacturers.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Dimming (Output) Interface: | DALI |
| Driver Type: | Dimming Only |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| Installation Type: | Built-in, Stand-alone |
| Mounting hole: | 4.1000 mm |
| Operating Mode: | Constant Current |
| Output Power: | ≤25W |
| Product height: | 28.0000 mm |
| Product length: | 150.0000 mm |
| Product weight: | 120.0000 g |
| Product width: | 52.0000 mm |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
Datasheets
Product datasheet: hed6010.pdf
