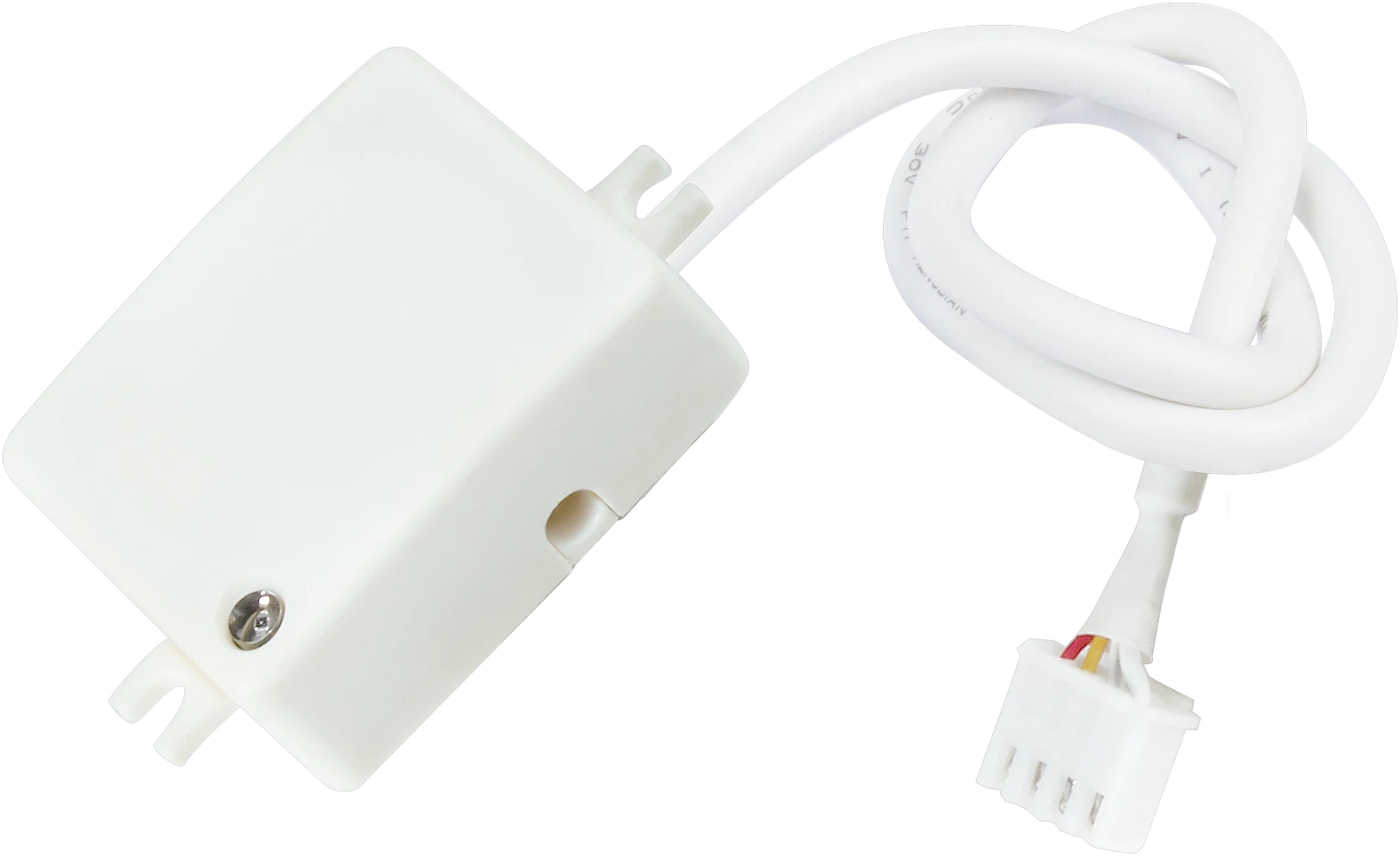

HEC9025+SAM4
SensorDIM LED Driver 25.2W (CC) | Dimmable & Tri-level | Built-in version
BENEFITS
- Compact: Integrated HF Lowbay Sensor + LED Driver
- Simple: Tri-level control (corridor function)
- Easy configuration: Current selections/Daylight senor settings via Dip-switch
APPLICATIONS
- Luminaire Built-in integration
- Offices
- Classrooms
Product information "HEC9025+SAM4"

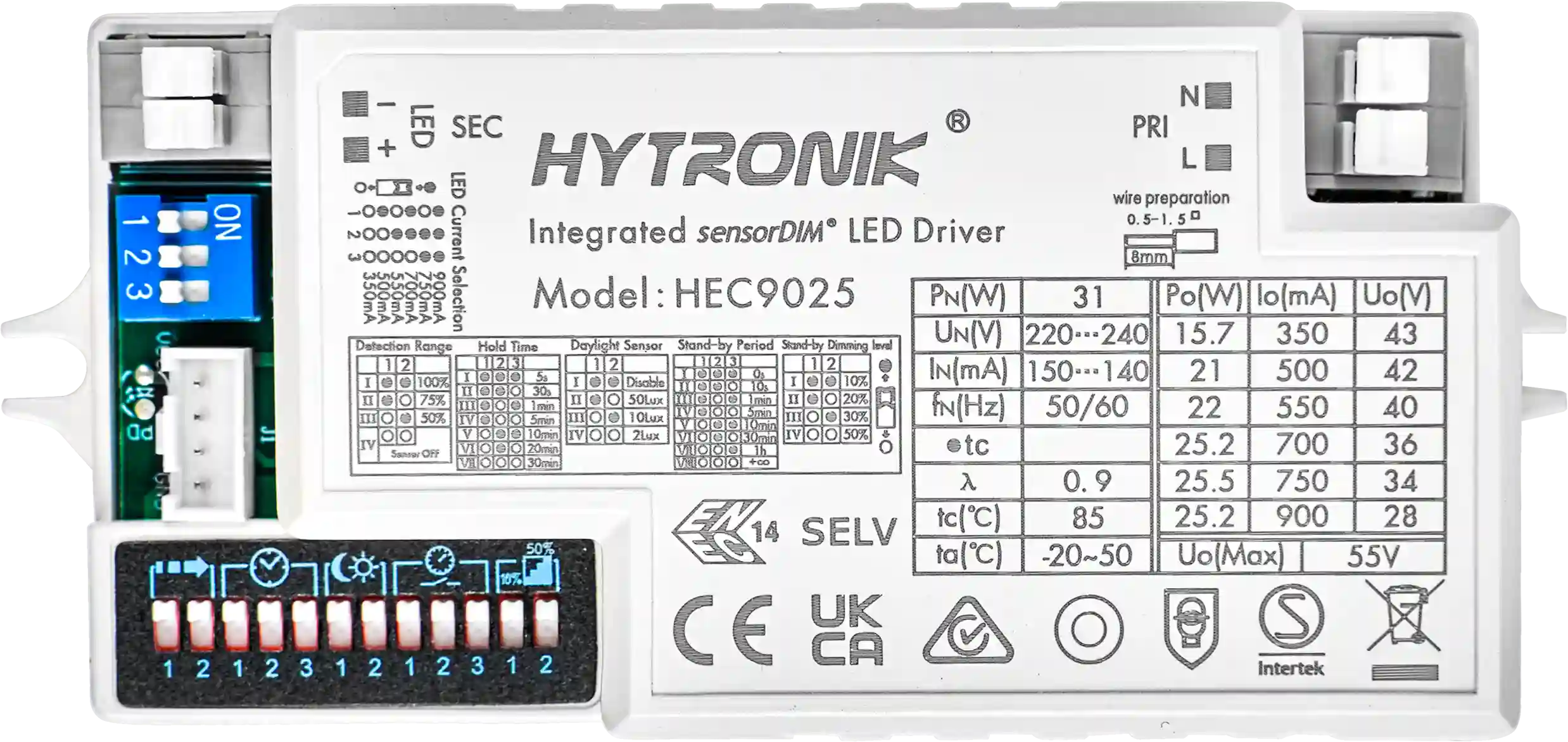

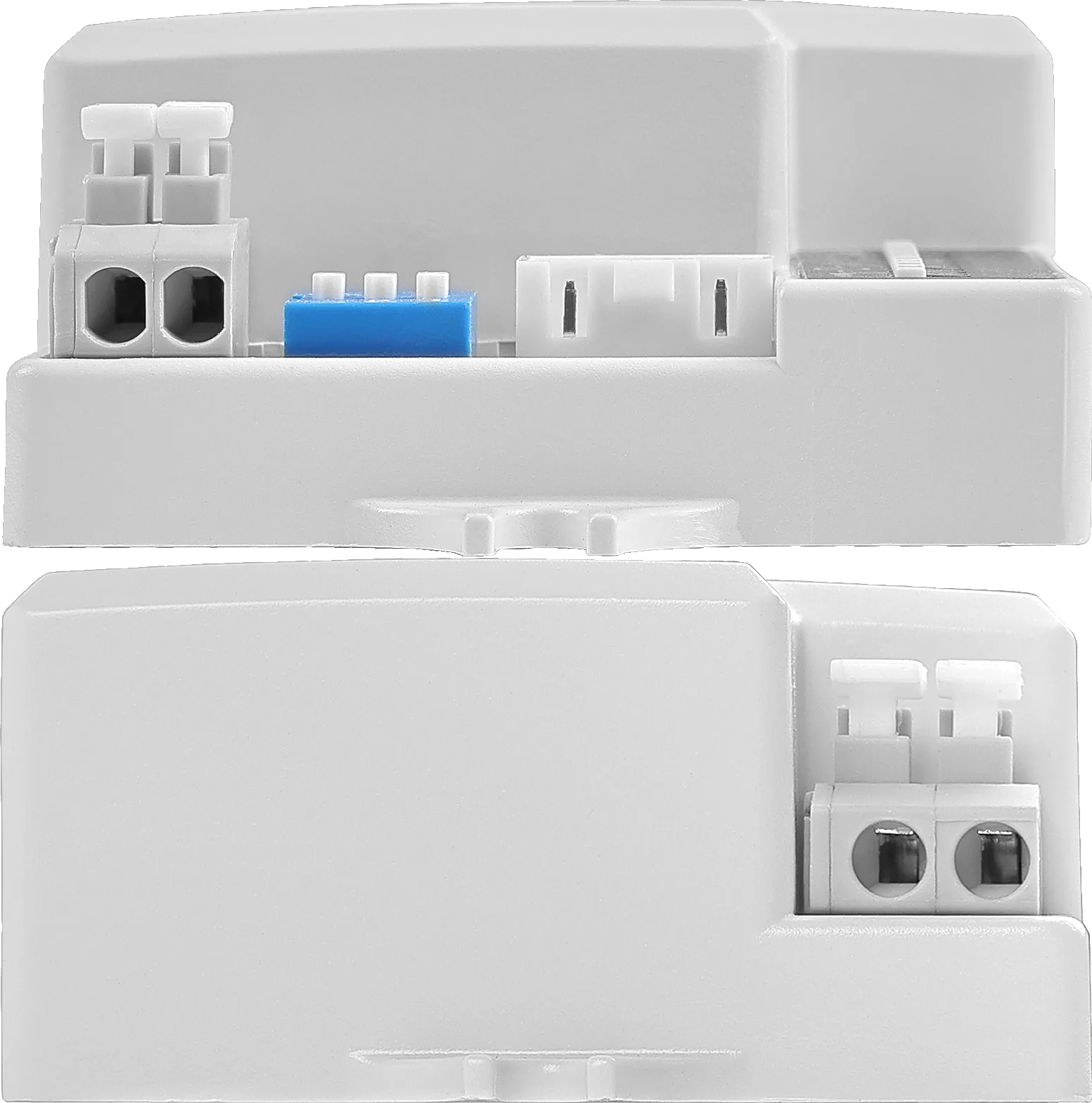

HEC9025 is an integrated HF Sensor and constant LED Driver (2-in-1) with tri-level control. The max. power is 25W. It is suitable for building into the fixture for office/commercial lighting, classroom and meeting room.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DIP-switch |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection range (Diameter): | 12x6 |
| Efficiency: | 85 % |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | ≤25W |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product height: | 26.0000 mm |
| Product length: | 119.5000 mm |
| Product weight: | 130.0000 g |
| Product width: | 53.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Zhaga: | No |
Datasheets
Product datasheet: hec9025-sam4.pdf
