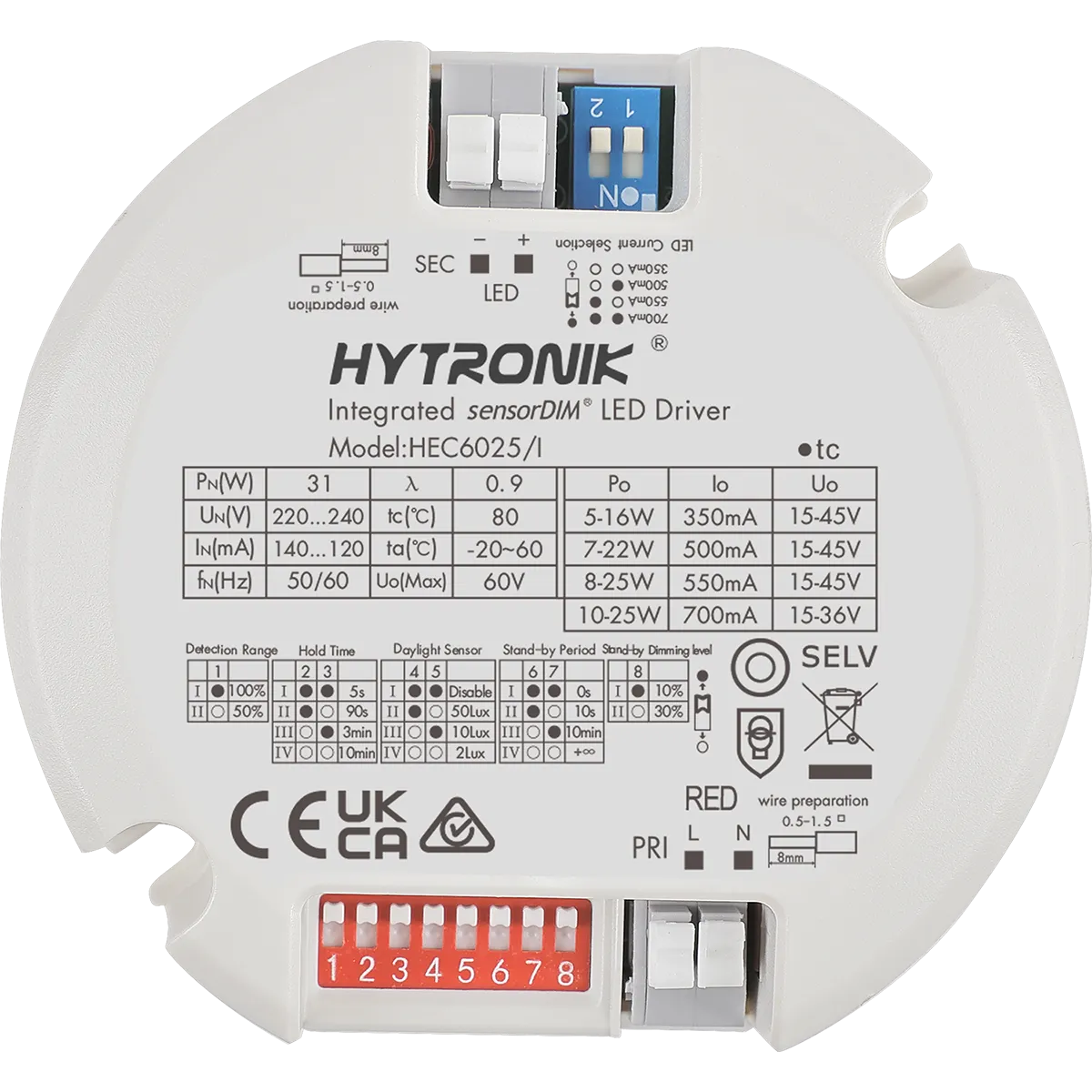

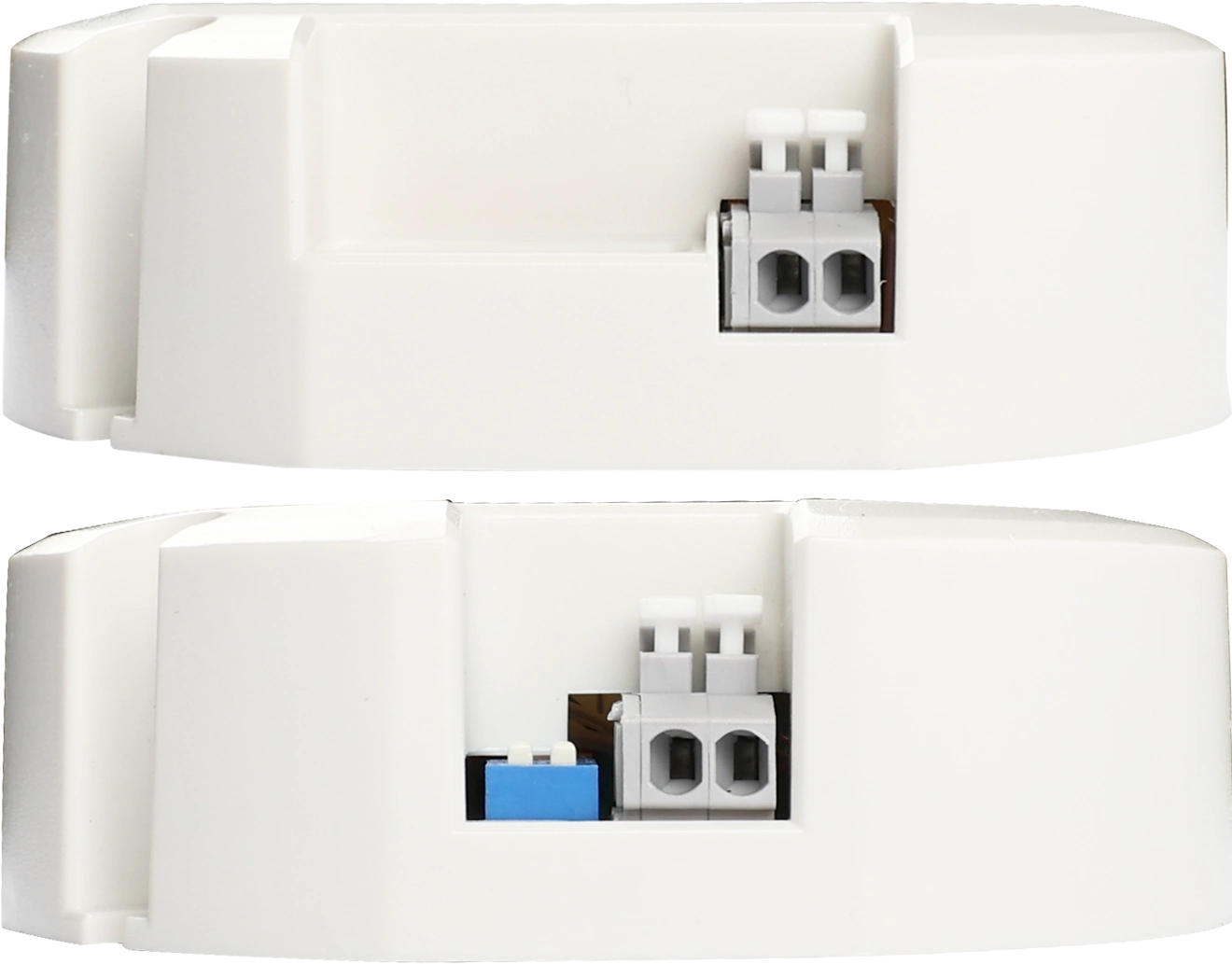

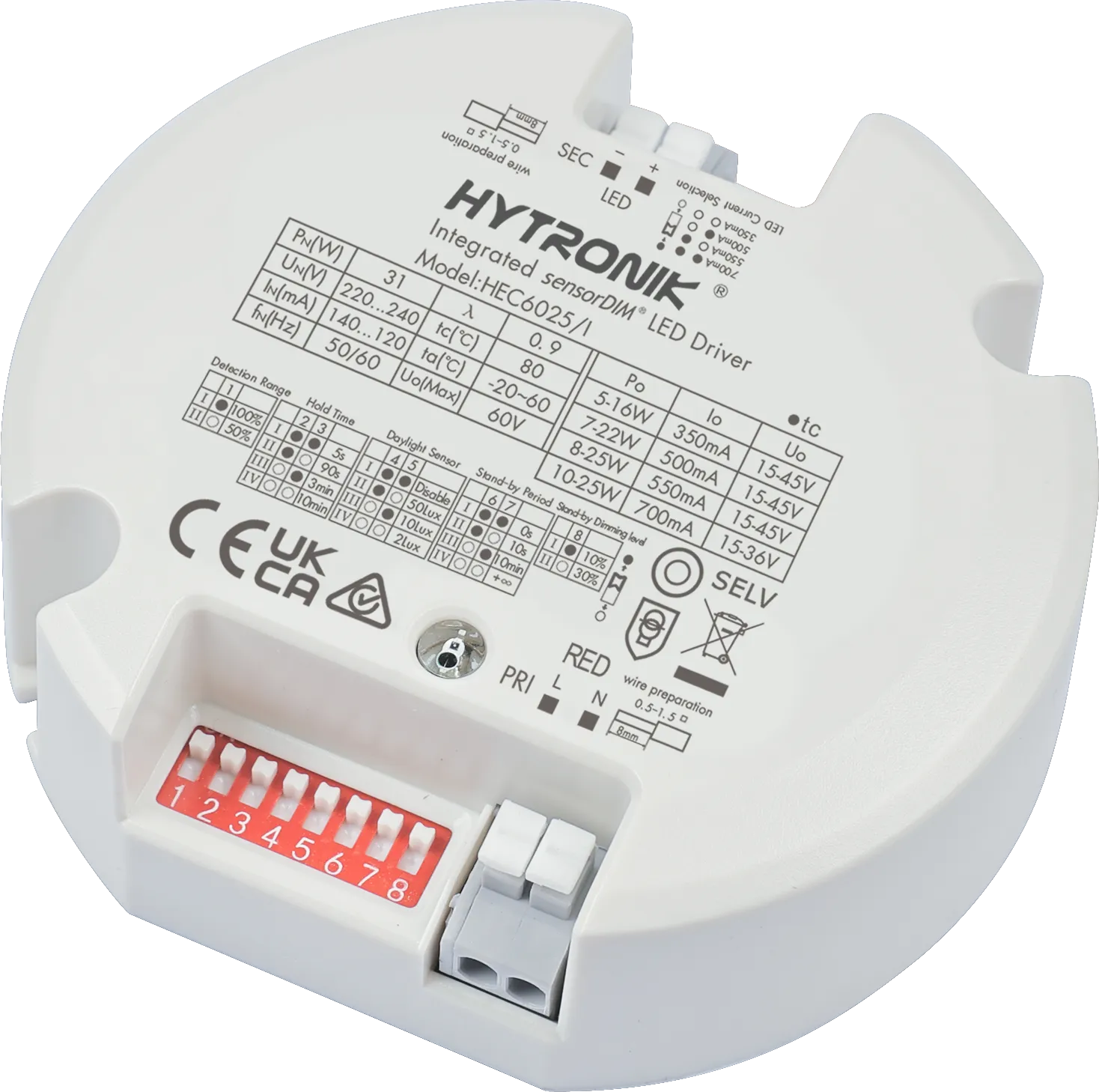

HEC6025/I
LED Driver + HF Low bay | 5-25W | Photocell Advance
BENEFITS
- Compact: 8.2cm diameter to fit in the luminaire
- 2-in-1: 25W driver + occupancy sensor up to 6m
- Easy control: Corridor function and Dip-switch config
APPLICATIONS
- Retrofit and new luminaire designs/installations
- Meeting Room
- Classroom, Office, Commercial Lighting
Product information "HEC6025/I"
HEC6025/I is integrated HF Sensor and LED Driver with maximum power output of 31W. Such 2 in 1 integrated design is a very cost-effective solution, it is ideal for new luminaires design for lighting manufacturers. It comes with Switch-Dim interface by using Push switch (retractive switch).
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DIP-switch |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Efficiency: | 84.0000 % |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Power: | ≤25W |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product height: | 26.5000 mm |
| Product length: | 82.0000 mm |
| Product weight: | 94.0000 g |
| Product width: | 82.0000 mm |
| Sensitivity: | 100%/50% |
| Storage temperature max.: | 80 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hec6025-i.pdf
