Active / New

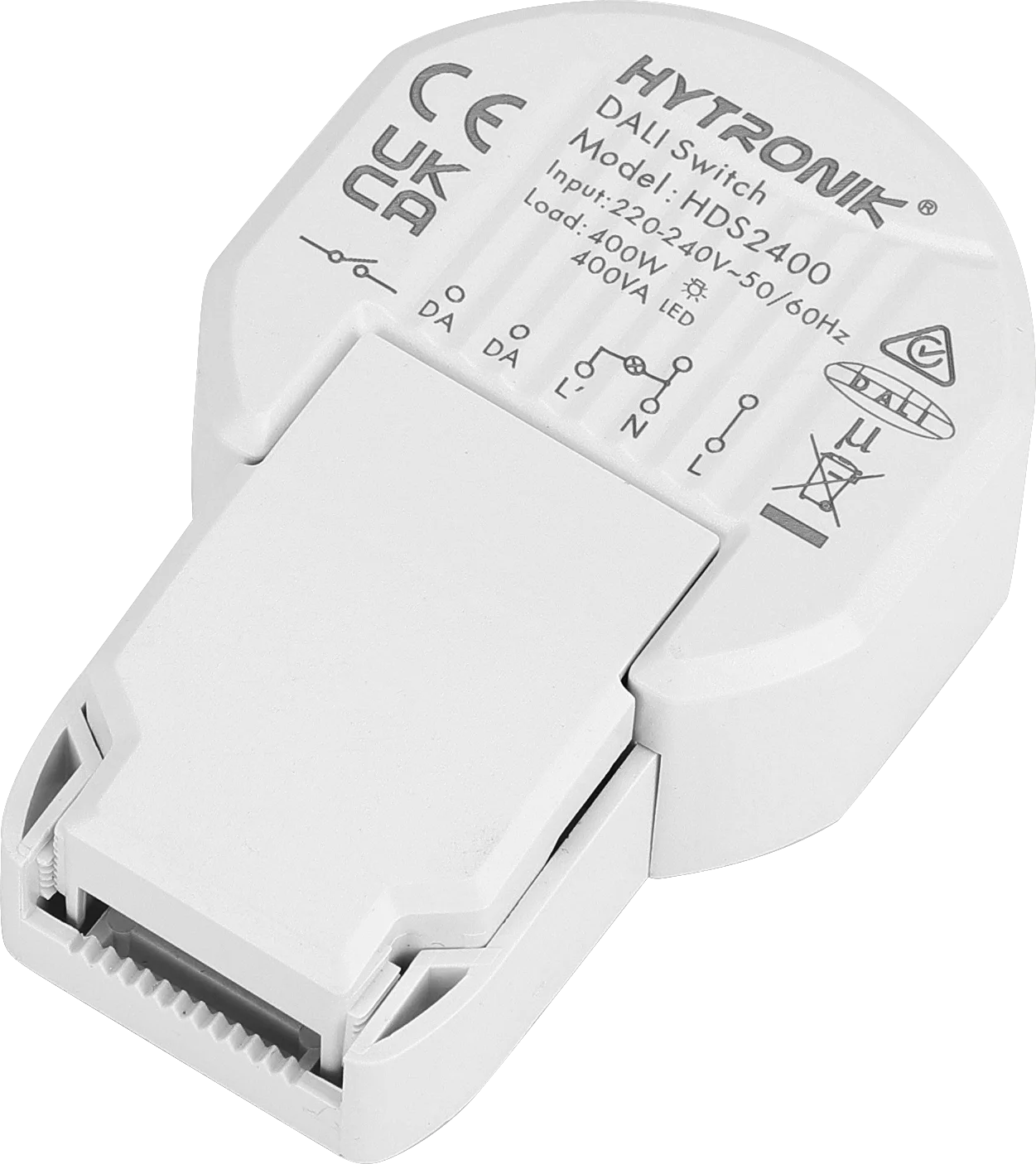

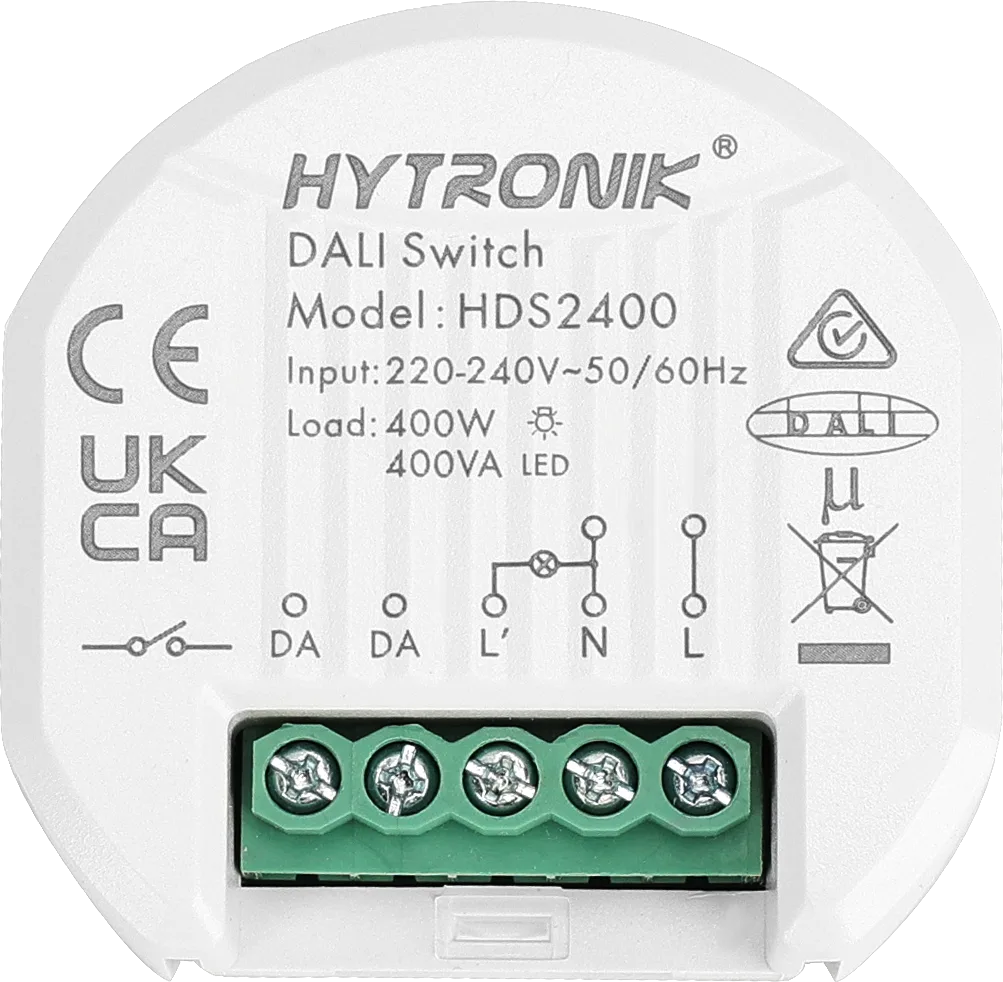

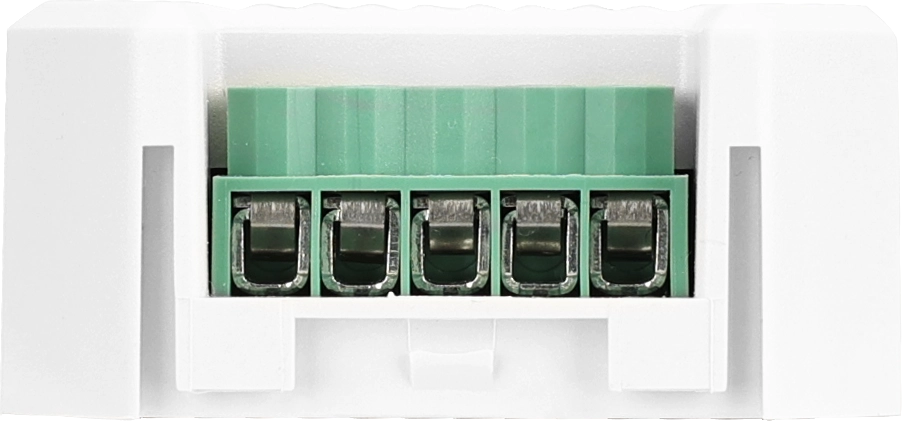

HDS2400
DALI-2 Relay Switch | On/Off Control | Wall Junction Box
BENEFITS
- Flexible: Supports in-box or external installation for different needs
- Autonomous: On/off occupancy control for up to 400W
- Standardized: DALI-2 certified for reliable interoperability
APPLICATIONS
- Retrofit for non-dimmable LED drivers, transformer or uorescent ballasts
- Built-in box / Stand alone installation
- Offices, Classrooms, Industry and Healthcare Spaces
Product information "HDS2400"
HDS2400 is a DALI-controlled relay switch designed to convert DALI commands into reliable on/off control for connected loads. It is ideally suited for retrofit applications where non-dimmable LED drivers, transformers, or fluorescent ballasts are used, enabling integration into DALI lighting control systems without replacing existing equipment. By eliminating the need for additional components and complex rewiring, it helps reduce installation costs and simplifies system upgrades, providing a cost-effective and efficient solution for lighting control retrofits.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Dimmers for Wall Junction Box |
| Commissioning Methods: | DALI Master/Application Controller |
| DALI Bus Current Consumption: | 2.0000 mA |
| Dimming (Output) Interface: | Relay On/Off |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Load capacitive: | 400.0000 VA |
| Load resistive: | 400.0000 W |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / New |
| Product height: | 23.0000 mm |
| Product length: | 51.0000 mm |
| Product weight: | 42.0000 g |
| Product width: | 48.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hds2400.pdf
Installation Manual
User manual: installation-manual-hds2400.pdf
