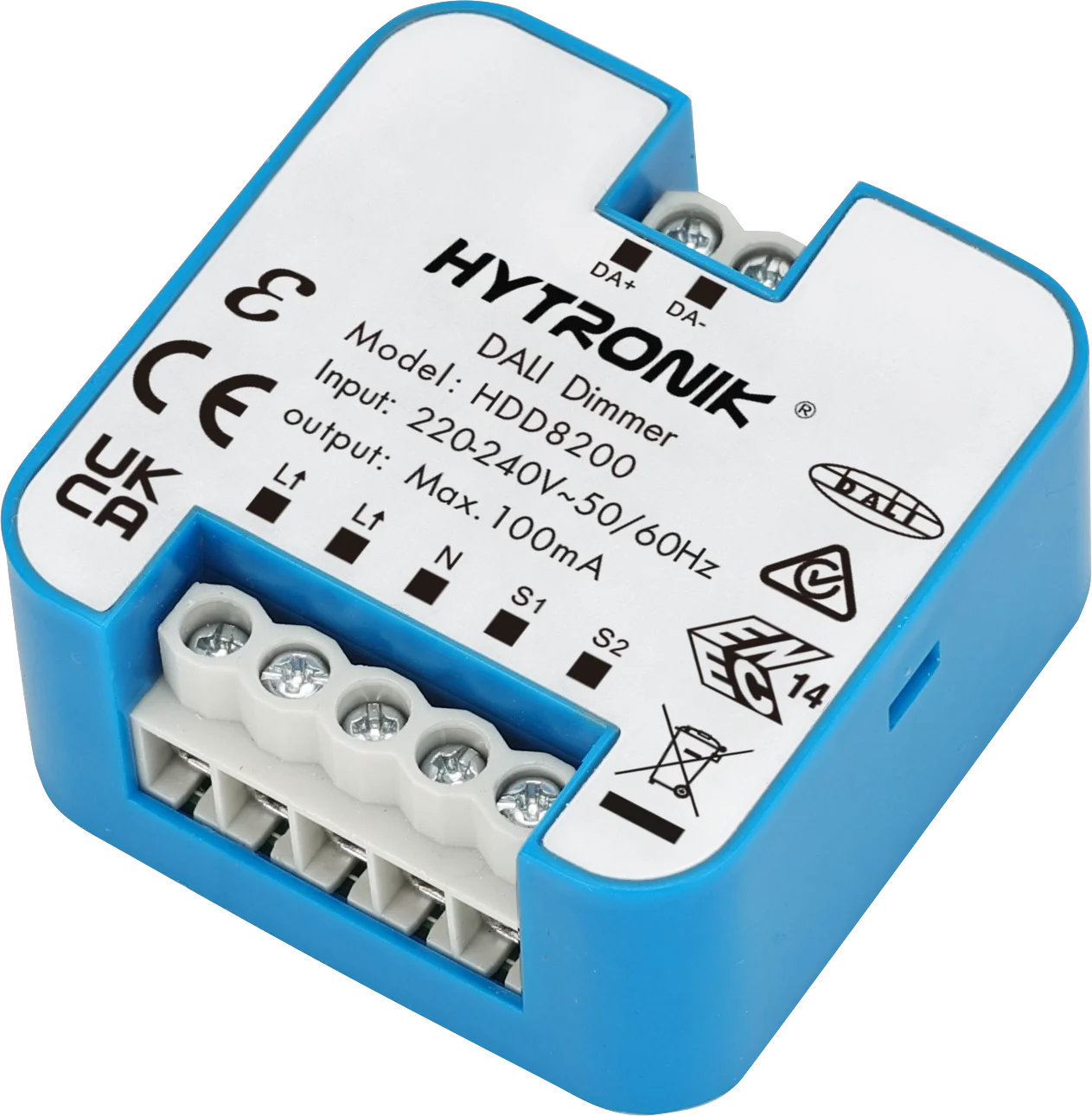

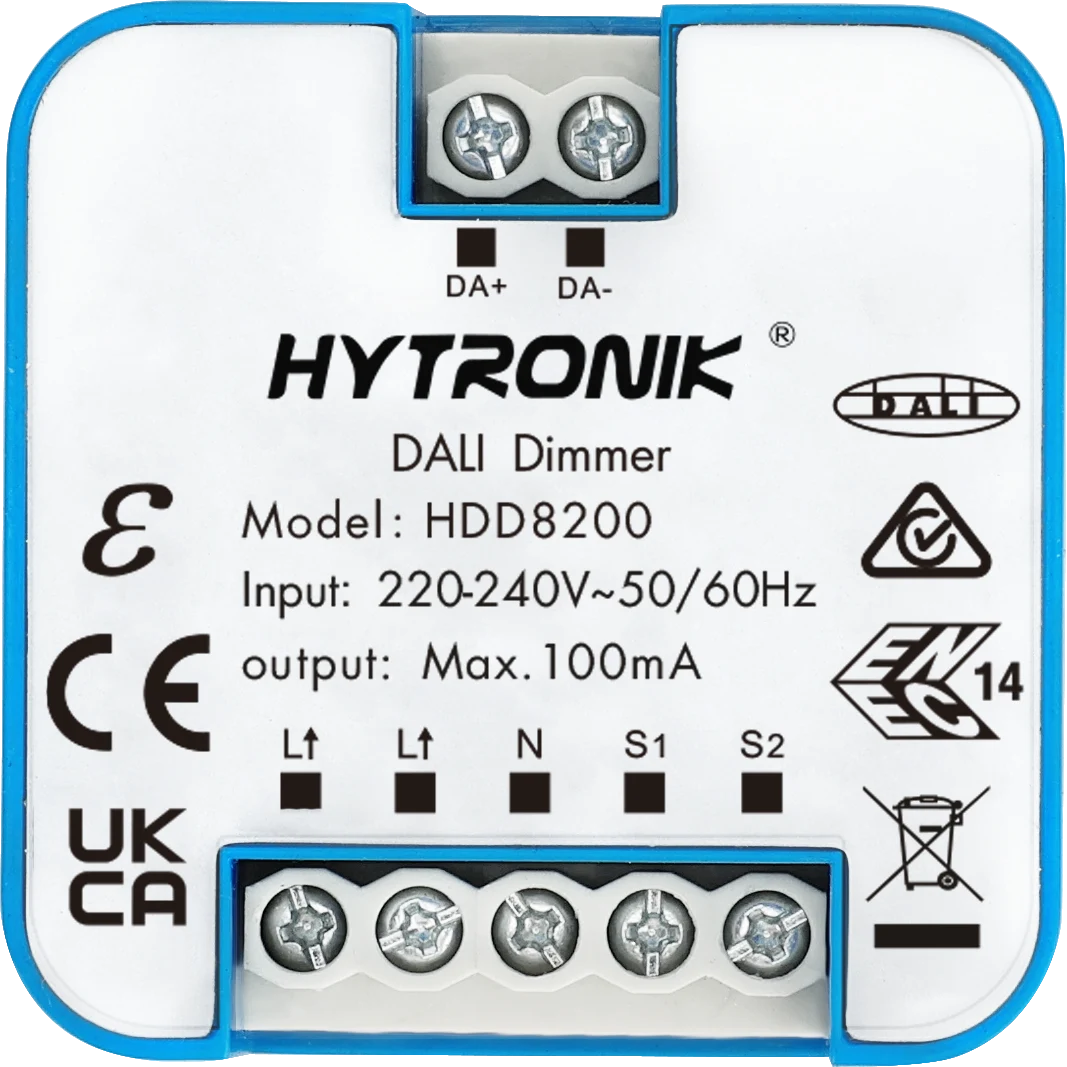

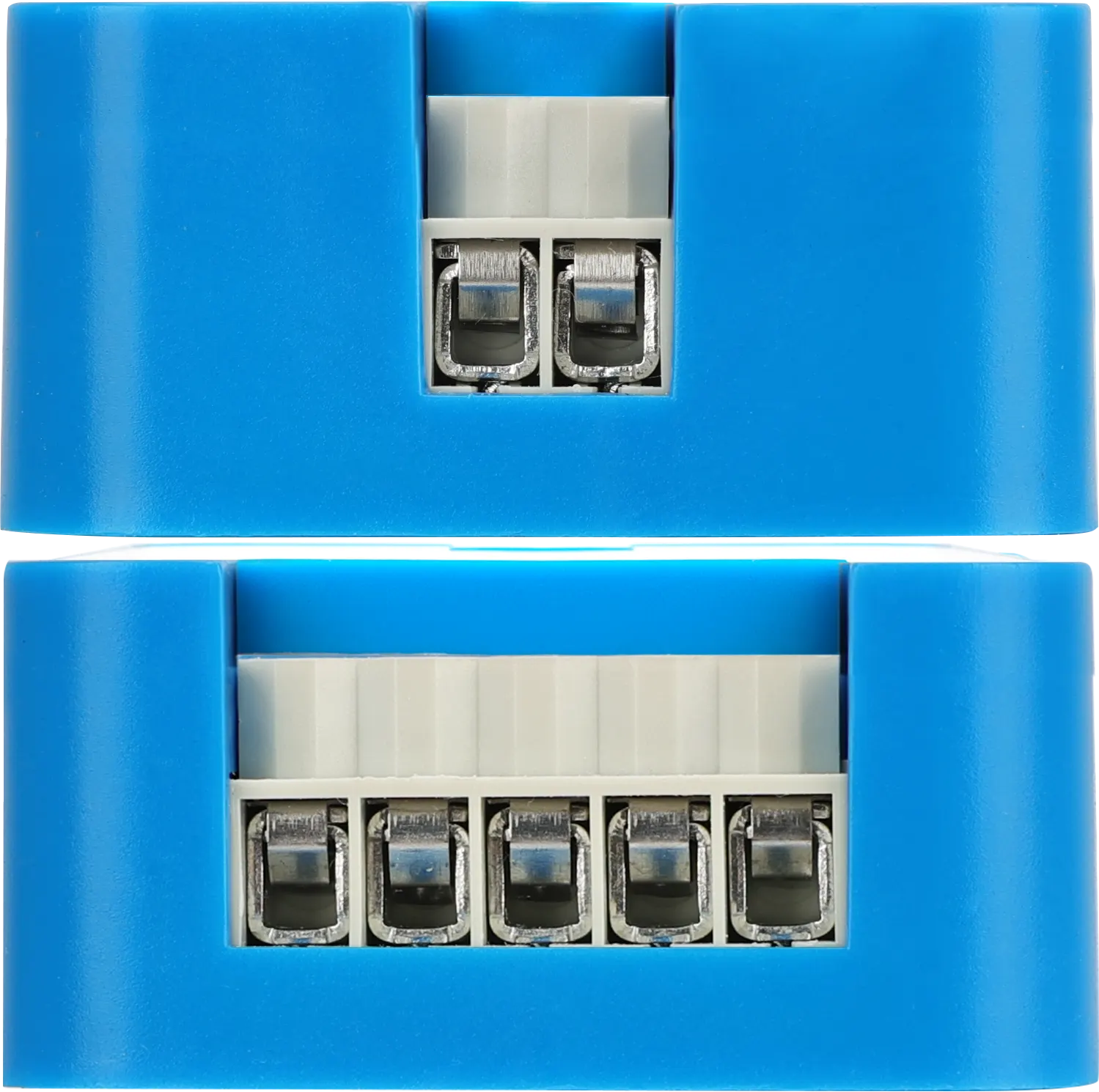

HDD8200
Dimmer/Controller | DALI Broadcast | Wall Junction Box
BENEFITS
- Compact: Designed to fit into Wall Junction Box
- Integrated: 80 mA DALI PSU for stable control
- Flexible: 2 Push switch for manual control
APPLICATIONS
- Switch-Dim to DALI control dimming interface
- Offices, Classrooms
- Industry, Healthcare Spaces
Product information "HDD8200"

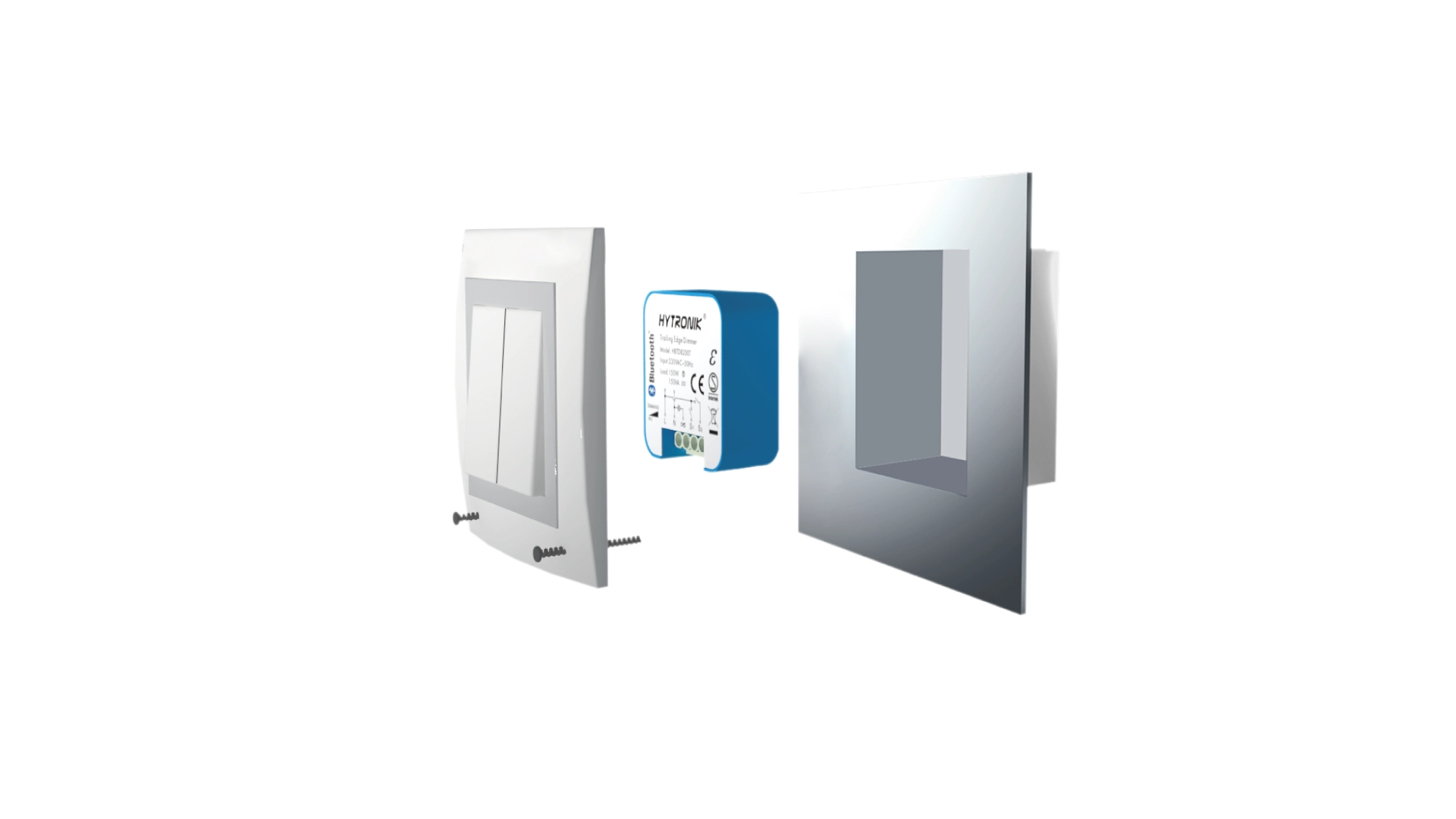

HDD8200 is a versatile dimmer designed for easy installation into standard lighting backboxes. It provides smooth dimming control via
Switch-DIM logic, enabling seamless integration with DALI-controlled lighting systems. Ideal for both retrofitting existing installations
and new projects, it is suitable for office, commercial, and domestic applications, offering flexibility and convenience for a wide range of
lighting environments.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Dimmers for Wall Junction Box |
| Commissioning Methods: | DALI Master/Application Controller |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 22.0000 mm |
| Product length: | 46.0000 mm |
| Product weight: | 39.0000 g |
| Product width: | 46.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hdd8200.pdf
