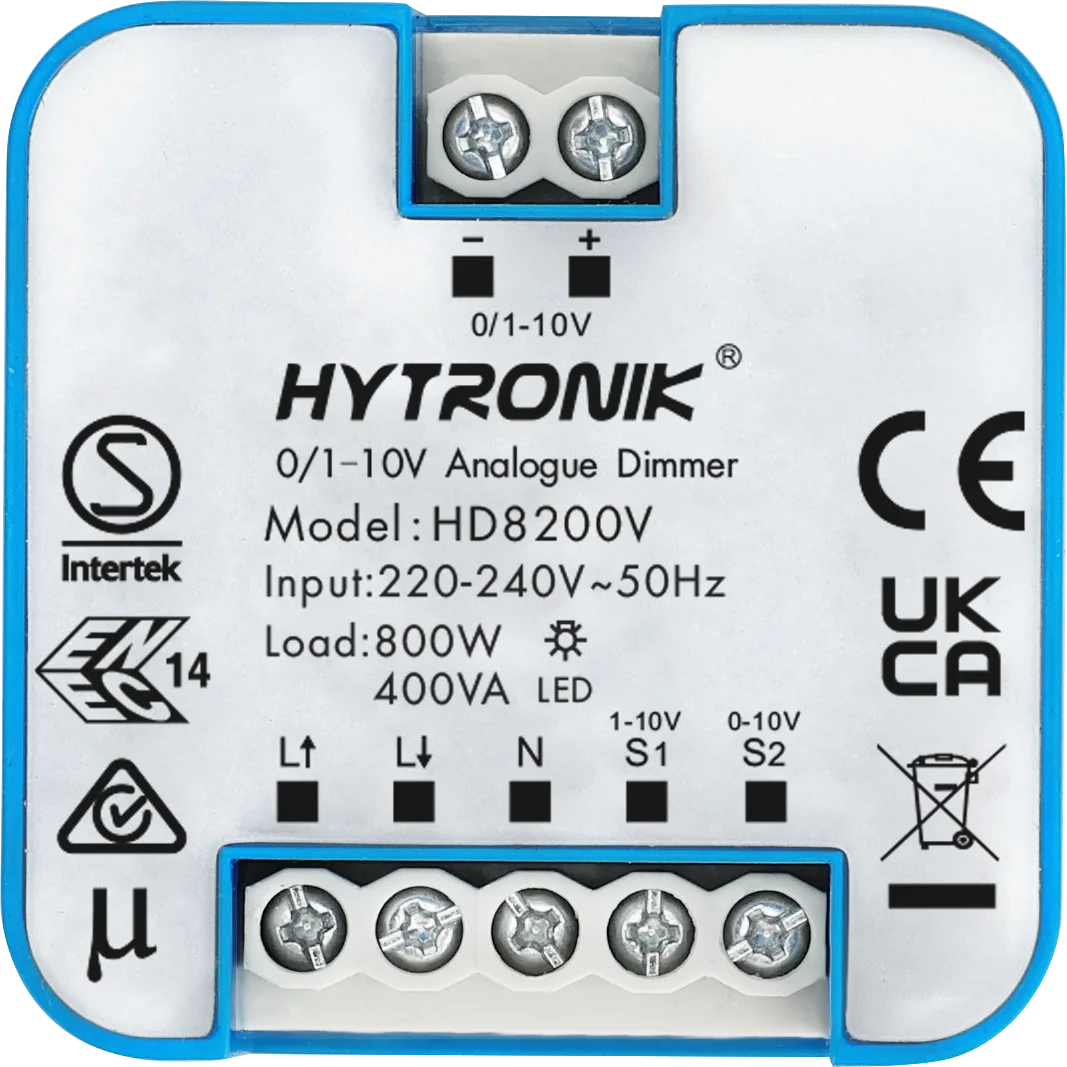

HD8200V
Dimmer/Controller | 0/1-10V output | Wall Junction Box
BENEFITS
- Compact: Designed to fit into Wall Junction Box
- Capacity: 0/1-10V output with relay control
- Flexible: 2 Push switch for manual control
APPLICATIONS
- Use for retrofit upgrades & new installations.
- Office、Commercial Lighting
- Home office、 Domestic use
Product information "HD8200V"
Ideal for mounting into a standard lighting backbox, this dimmer interface
provides smooth dimming via the popular Switch-DIM logic to light fixtures
using 0/1-10V control technology
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Dimmers for Wall Junction Box |
| Dimming (Output) Interface: | 0/1-10V |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 22.0000 mm |
| Product length: | 46.0000 mm |
| Product weight: | 35.0000 g |
| Product width: | 46.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Zhaga: | No |
Datasheets
Product datasheet: hd8200v.pdf
