HD2200
Dimmer/Controller | Trailing Edge | Wall Junction Box
BENEFITS
- Compact: Designed to fit into Wall Junction Box
- Streamlined: Trailing edge dimming technology
- Easy setting: Dimming control via switch-Dim (PUSH)
APPLICATIONS
- Junction Box / Electrical box
- Retrofit upgrades & new installations
- Offices, Classrooms, Industry and Healthcare Spaces

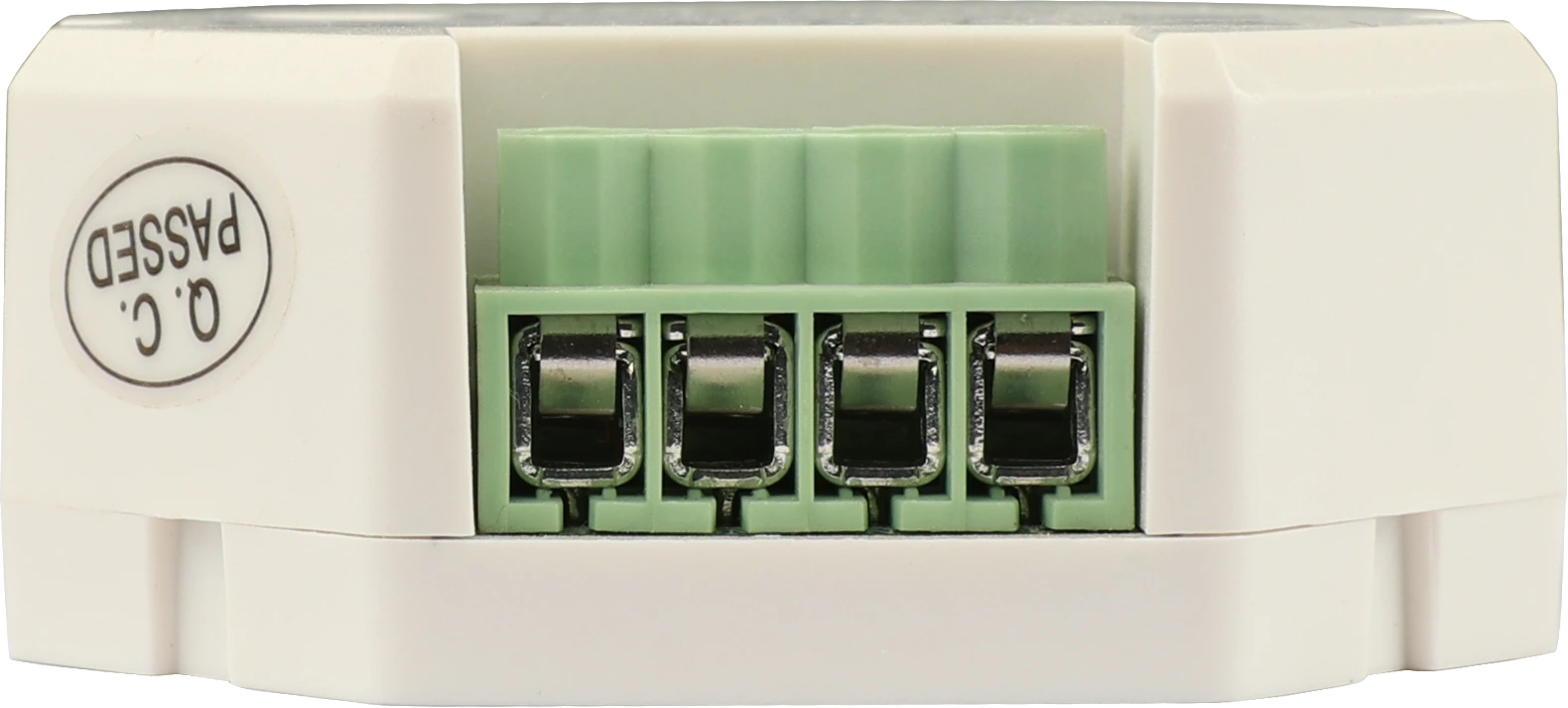

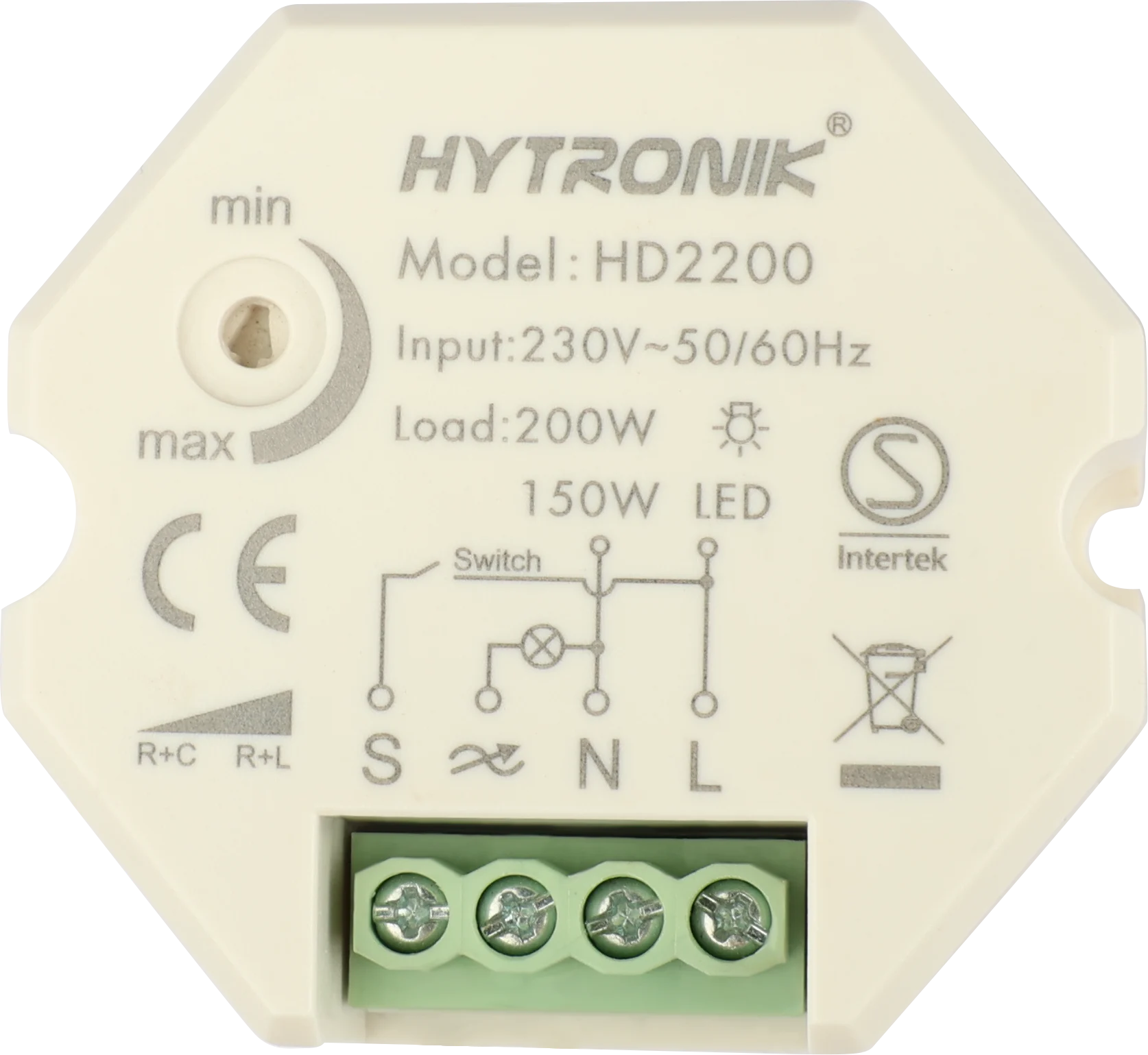

Product information "HD2200"
Ideal for mounting into a standard lighting backbox, this dimmer interface
provides smooth dimming via the popular Switch-DIM logic to light fixtures
using trailing edge technology.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Dimmers for Wall Junction Box |
| Dimming (Output) Interface: | DALI |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 23.0000 mm |
| Product length: | 51.0000 mm |
| Product weight: | 45.0000 g |
| Product width: | 48.5000 mm |
| Push Button Input: | |
| Required DALI Current: | 2.0000 mA |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Zhaga: | No |
