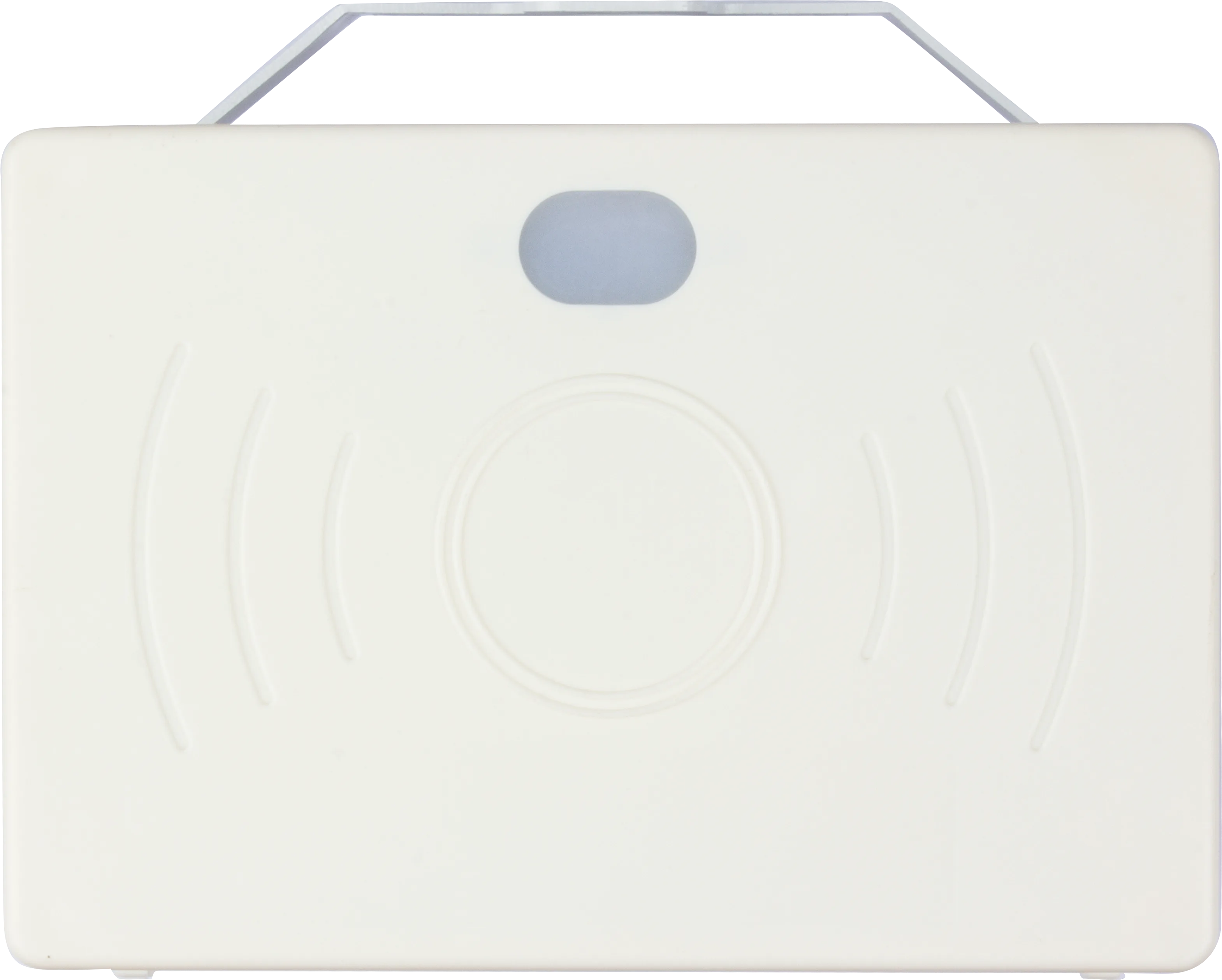

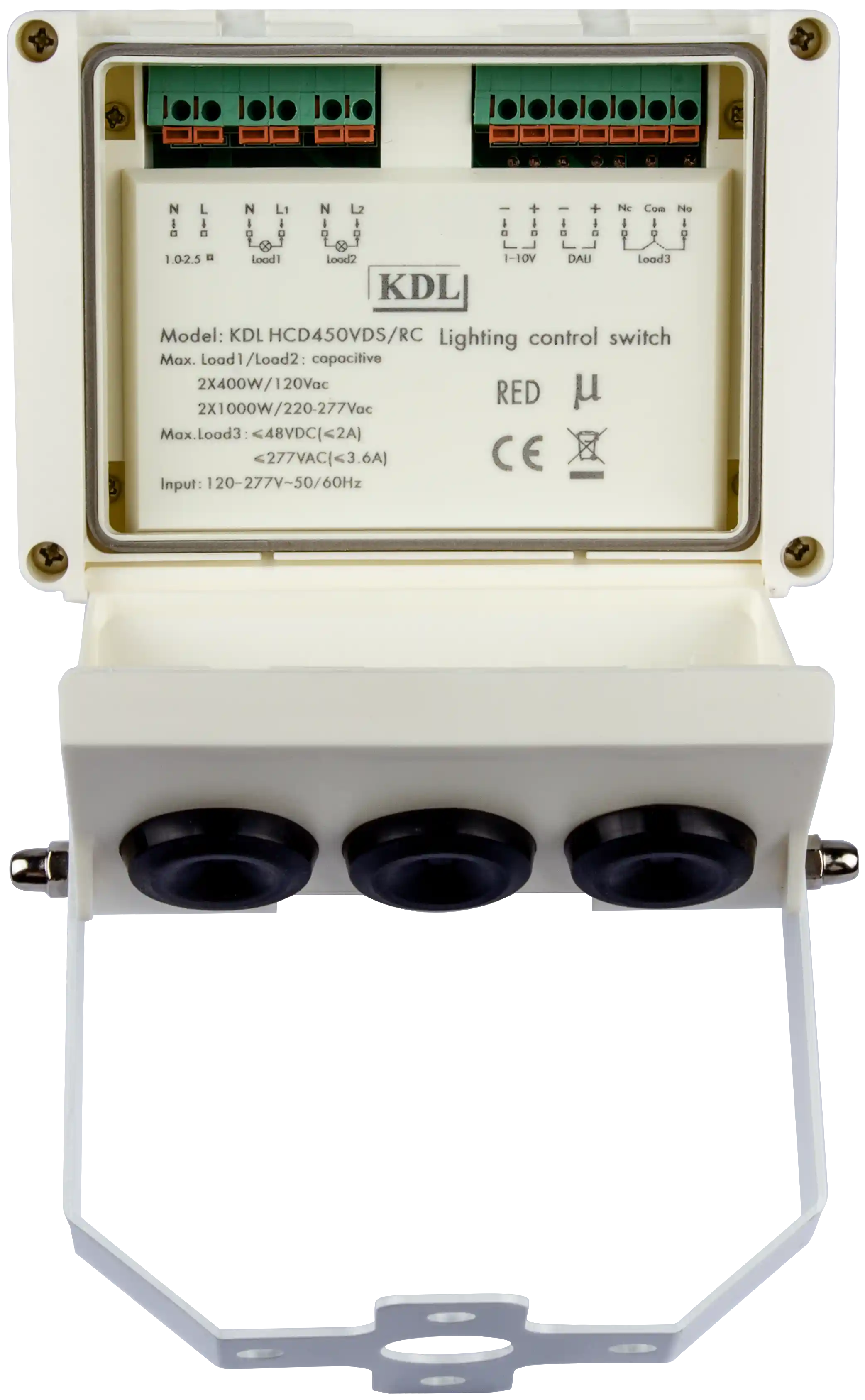

HCD450VDS/RC
HF Highbay | 1-10V /DALI Dimming | Wall/Surface mounting
BENEFITS
- Durable: IP65 rated boosts reliability & extends lifespan
- Versatile: DALI + 0/1-10V Dimming + Tri-level + Daylight harvest + Circadian Rhythm
- User-Friendly: One-key commissioning with IR controller
APPLICATIONS
- Standalone installation for ceiling up to 20m
- Warehouse, Large storage room
- Production
Product information "HCD450VDS/RC"
HCD450VDS/RC is a HF Aisle Sensor. Occupancy detector with tri-level dimming control suitable for below applications such as warehouse and large storage room. Use for retrofit and new luminaire designs/installations.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 10×15 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 10.525GHz +/- 75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Stand-alone |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 7.0000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 82.3000 mm |
| Product length: | 135.0000 mm |
| Product weight: | 457.0000 g |
| Product width: | 125.5000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd450vds-rc.pdf
