HCD450/D2
HF Highbay | DALI command | Wall/Surface mounting
BENEFITS
- Durable: IP65 rated boosts reliability & extends lifespan
- Standard: DALI-2 multi-sensor input device
- Easy setting: DALI sensitivity adjustment/DALI command
APPLICATIONS
- Standalone installation for ceiling up to 20m
- Warehouse, Large storage room
- Production
Product information "HCD450/D2"

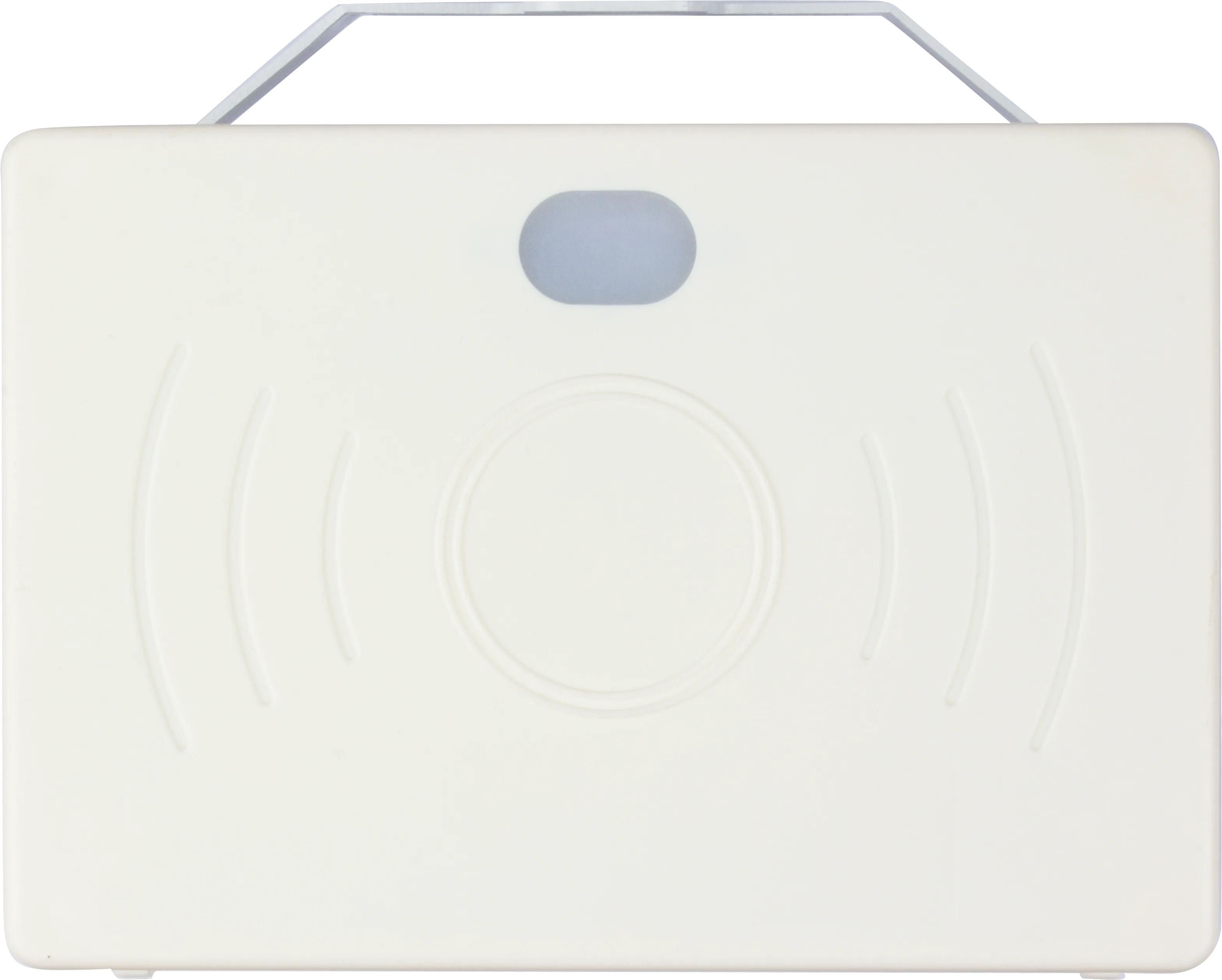

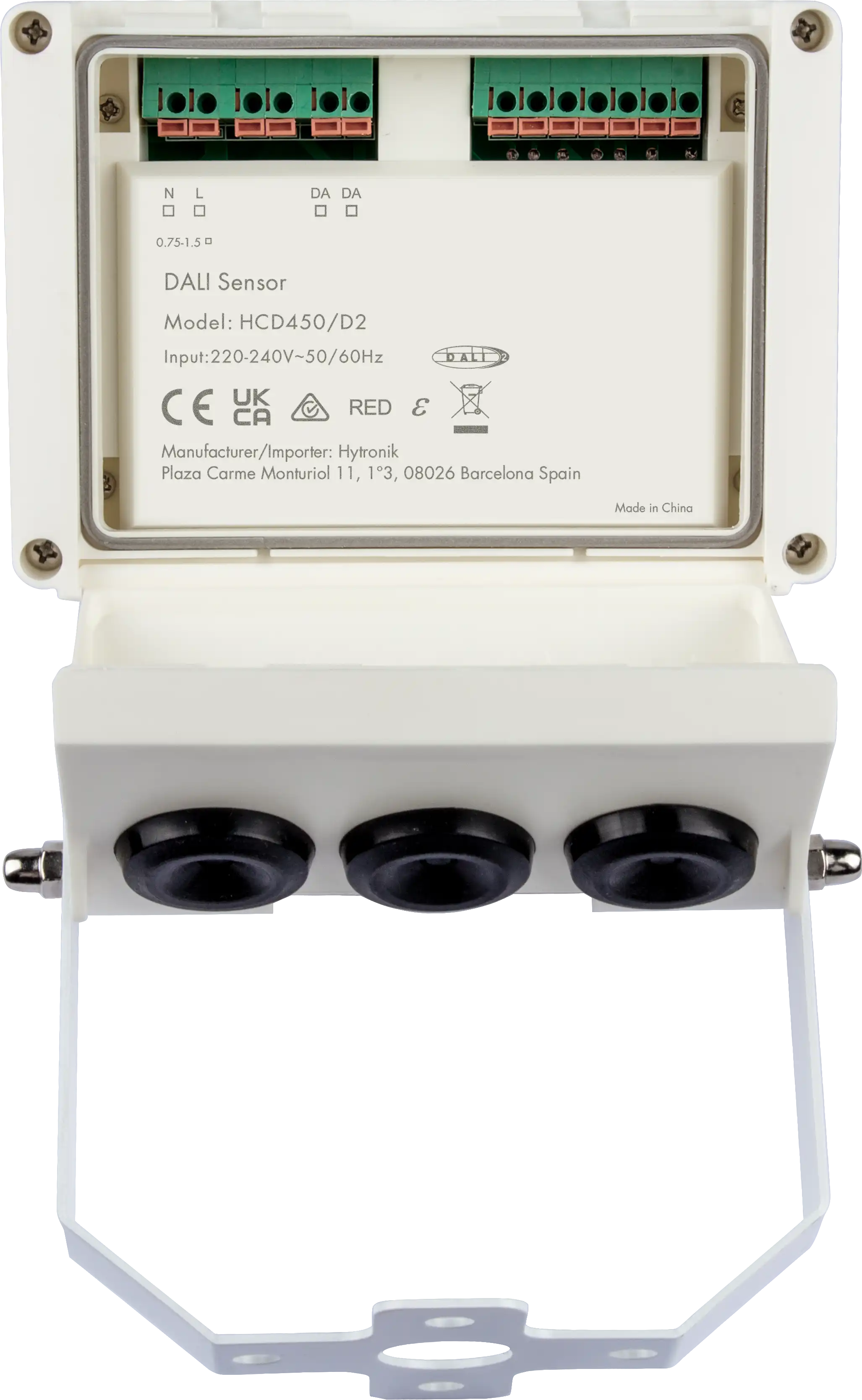

HCD450D2 is a DALI/DALI-2 high-bay HF motion sensor designed for installations up to 20m high. Featuring a built-in microwave sensor, it operates as a DALI-2 input device with instances for daylight sensing and HF motion detection. Ideal for warehouses and large storage rooms, it provides comprehensive functionality for efficient lighting management.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 17×27 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 10.525GHz +/- 75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Stand-alone |
| Maximum Mounting Height: | 27.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 7.0000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 112.9000 mm |
| Product length: | 135.0000 mm |
| Product weight: | 455.0000 g |
| Product width: | 126.5000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd450-d2.pdf
Installation Manual
User manual: installation-manual-hcd450-d2.pdf
