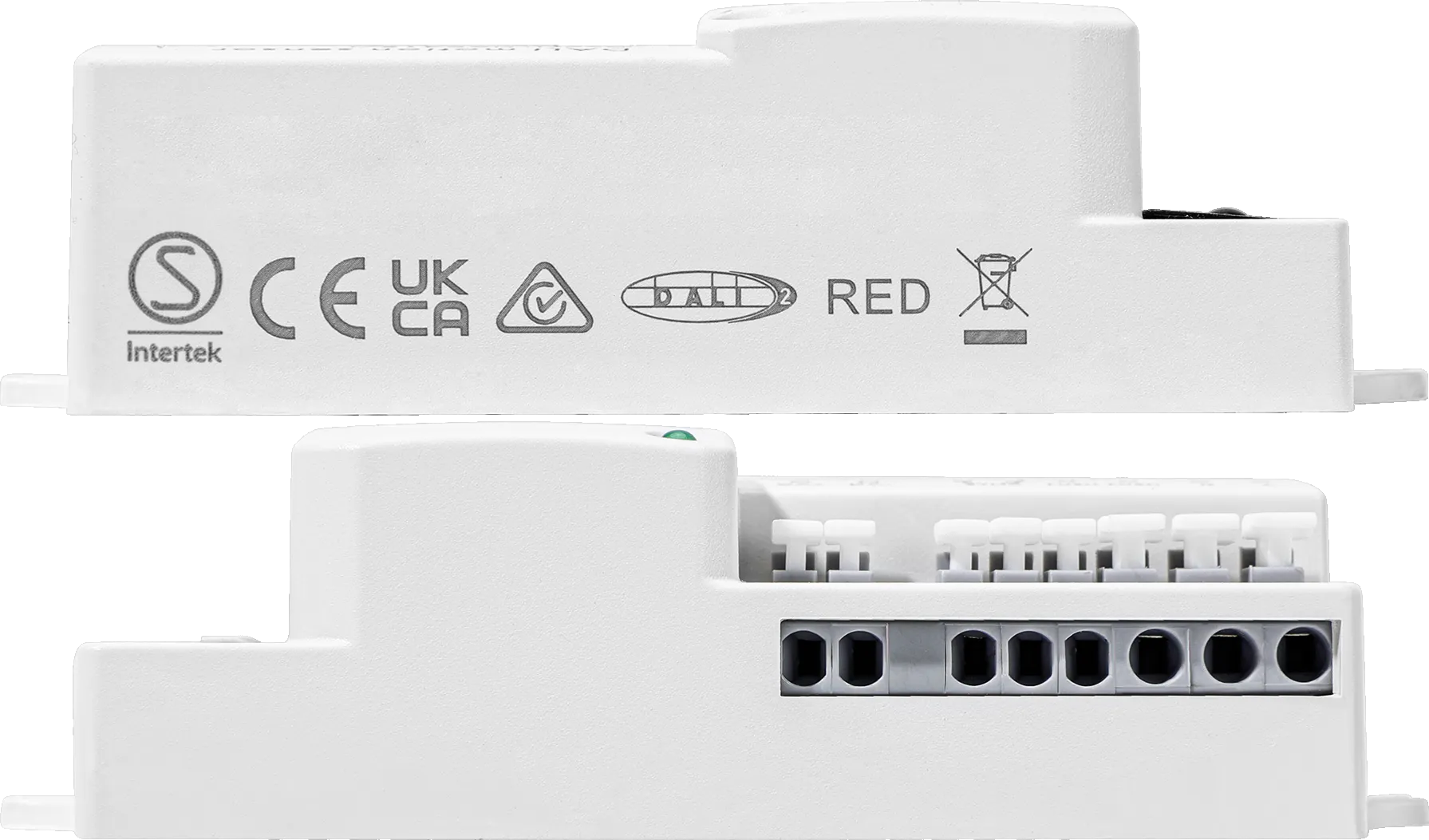

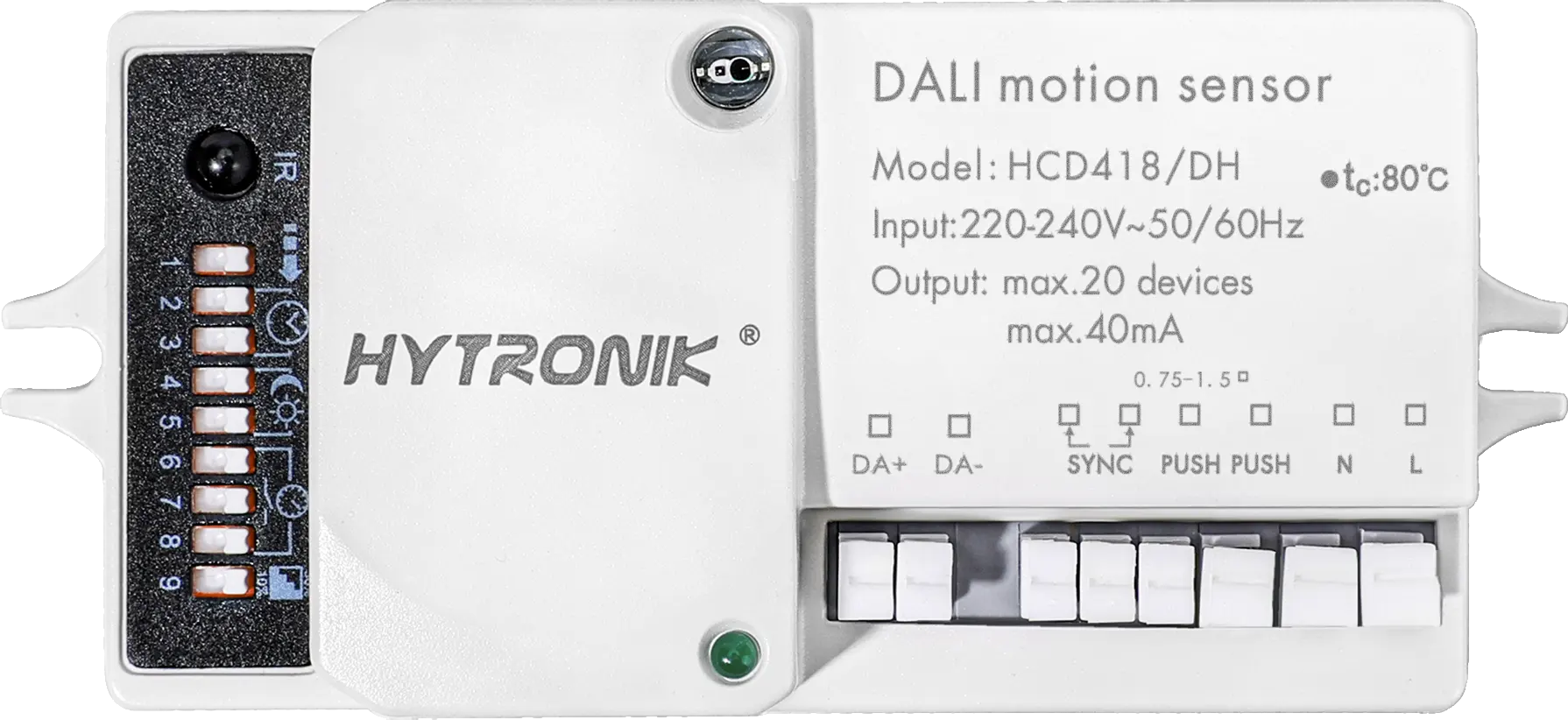

HCD418/DH
DALI HF Lowbay | Daylight harvest | Dip-Switch
BENEFITS
- Compact: Super compact size - Daylight harvest sensor
- Professional: DALI dimming with PSU
- Simple: Sensor settings via Dip-switch/IR controller
APPLICATIONS
- For round shape luminaire with a height of up to 6m
- Office / Meeting rooms
- Schools / Classroom
Product information "HCD418/DH"
HCD418/DH is an independent DALI-2 sensor featuring Photocell Advance™ with DALI-2 Broadcast output. It includes tri-level dimming and a daylight harvest function for adjusting light output based on ambient light levels. The sensor supports synchronized dimming across multiple sensor circuits.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 40.0000 mA |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x5 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 5.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product weight: | 55.0000 g |
| Product width: | 45.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 80 °C |
| Storage temperature min.: | -38 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd418-dh.pdf
