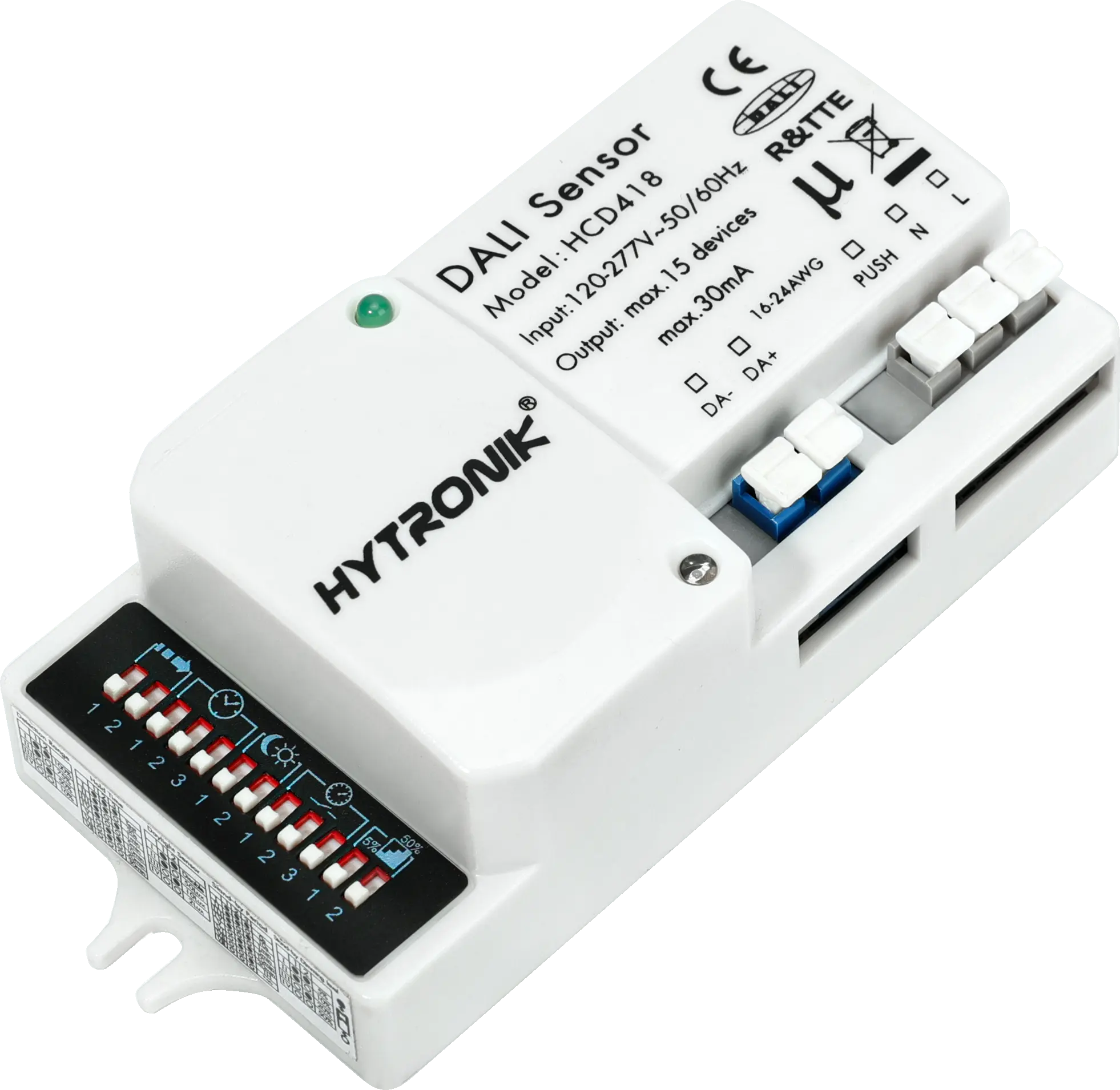

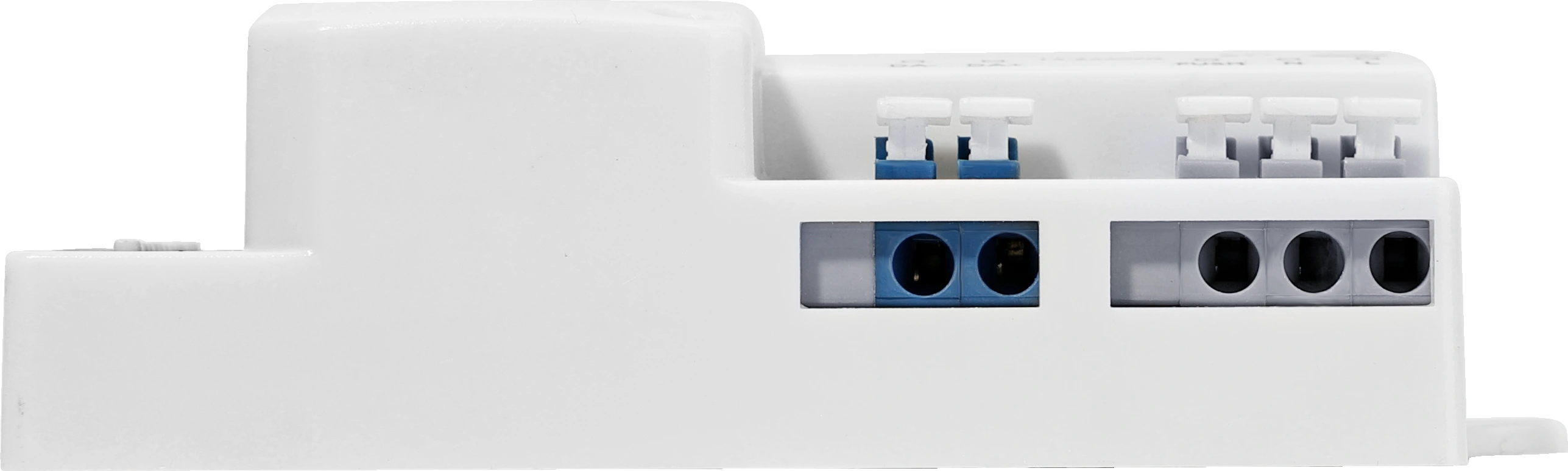

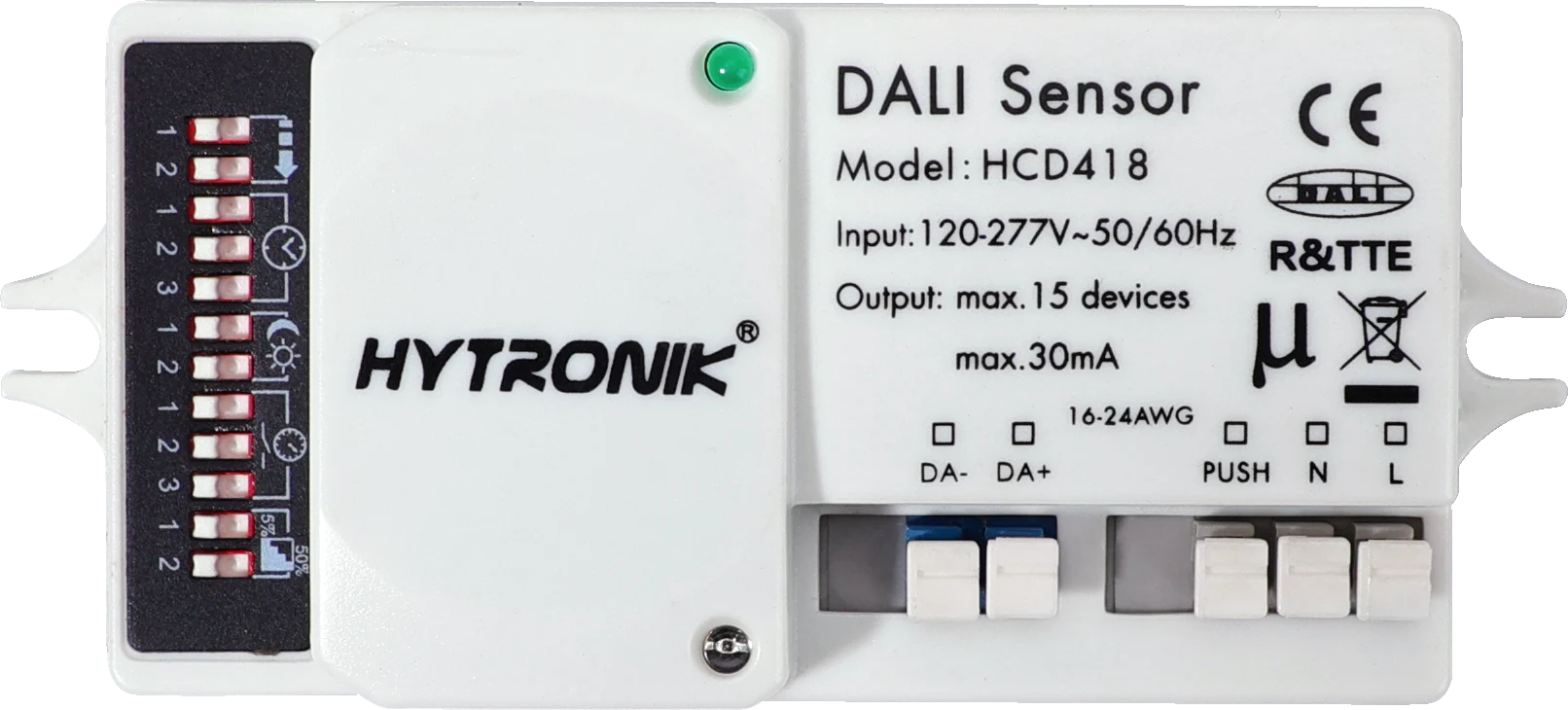

HCD418
DALI HF Lowbay | Daylight Harvest | Dip-Switch
BENEFITS
- Compact: Super compact size - Tri-level control
- Professional: DALI dimming with PSU
- Simple: Daylight, detection range, holdtime configuration, Stand-by period via Dip-Switch
APPLICATIONS
- For round shape luminaire up to 6m height
- Offices
- Classrooms
Product information "HCD418"
HCD418 is designed for integration into fixtures, offering tri-level dimming control based on occupancy (corridor function) and DALI-2 dimming control (includes DALI power supply circuit).
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 40.0000 mA |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x5 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 5.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product weight: | 55.0000 g |
| Product width: | 45.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd418.pdf
