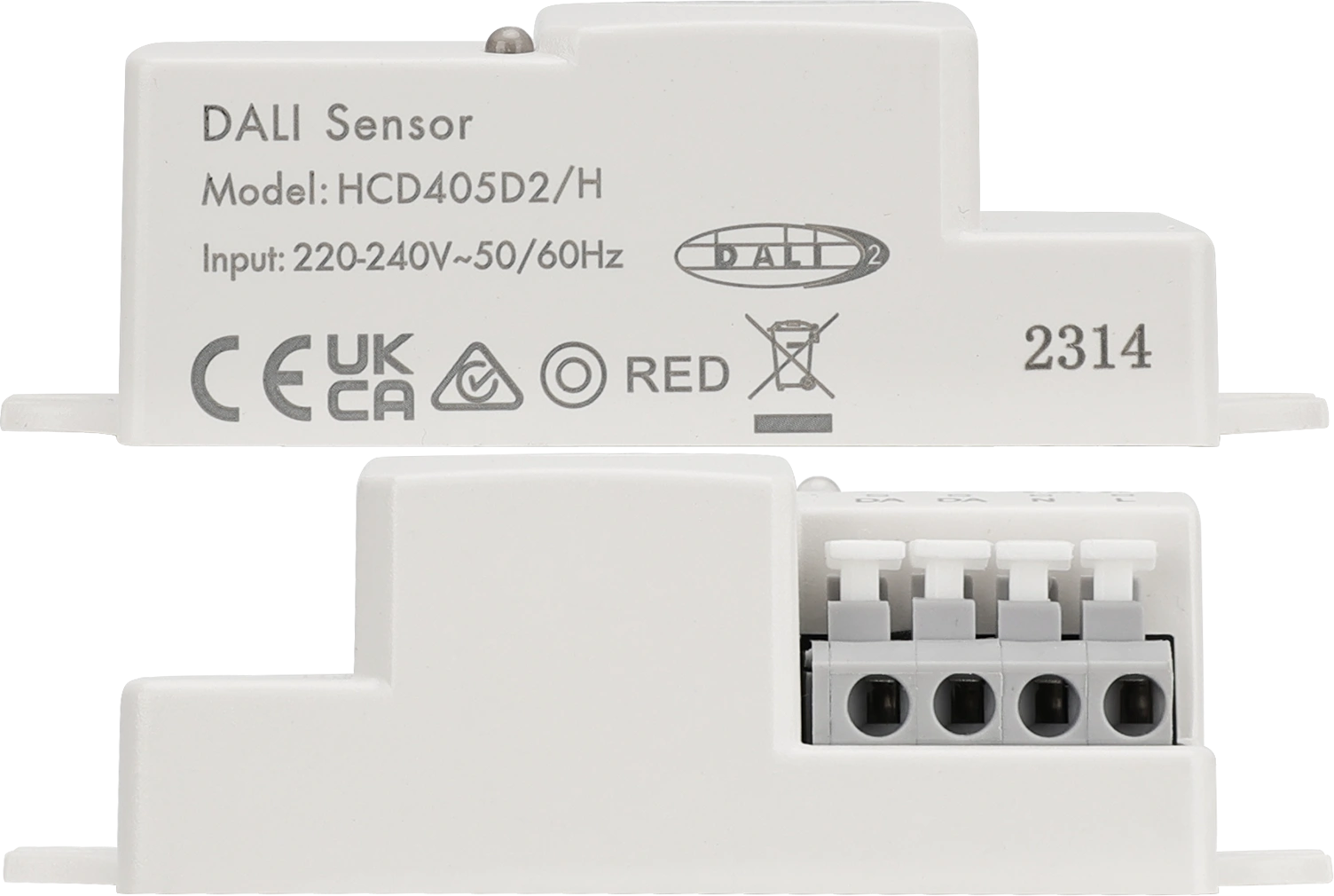

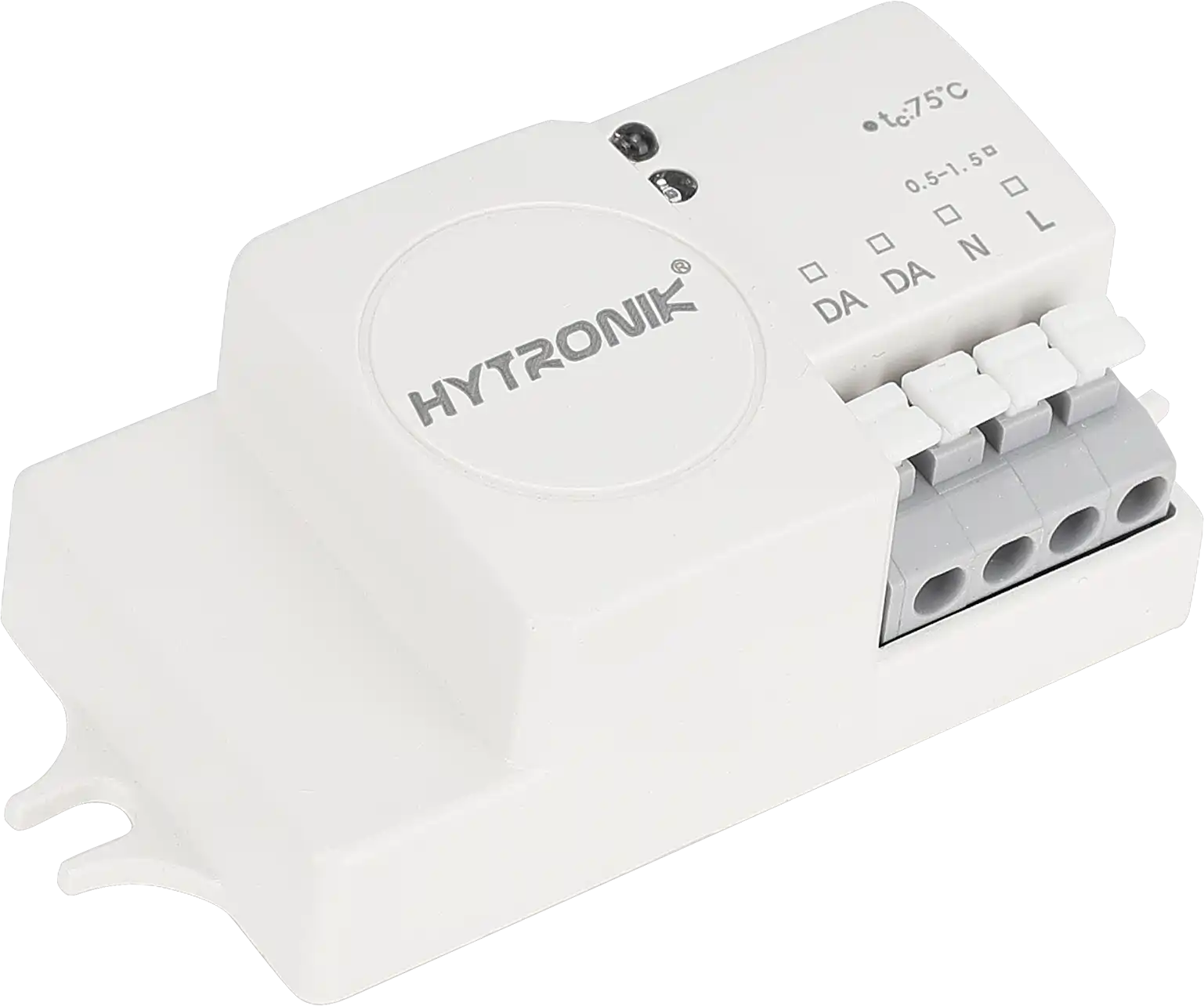

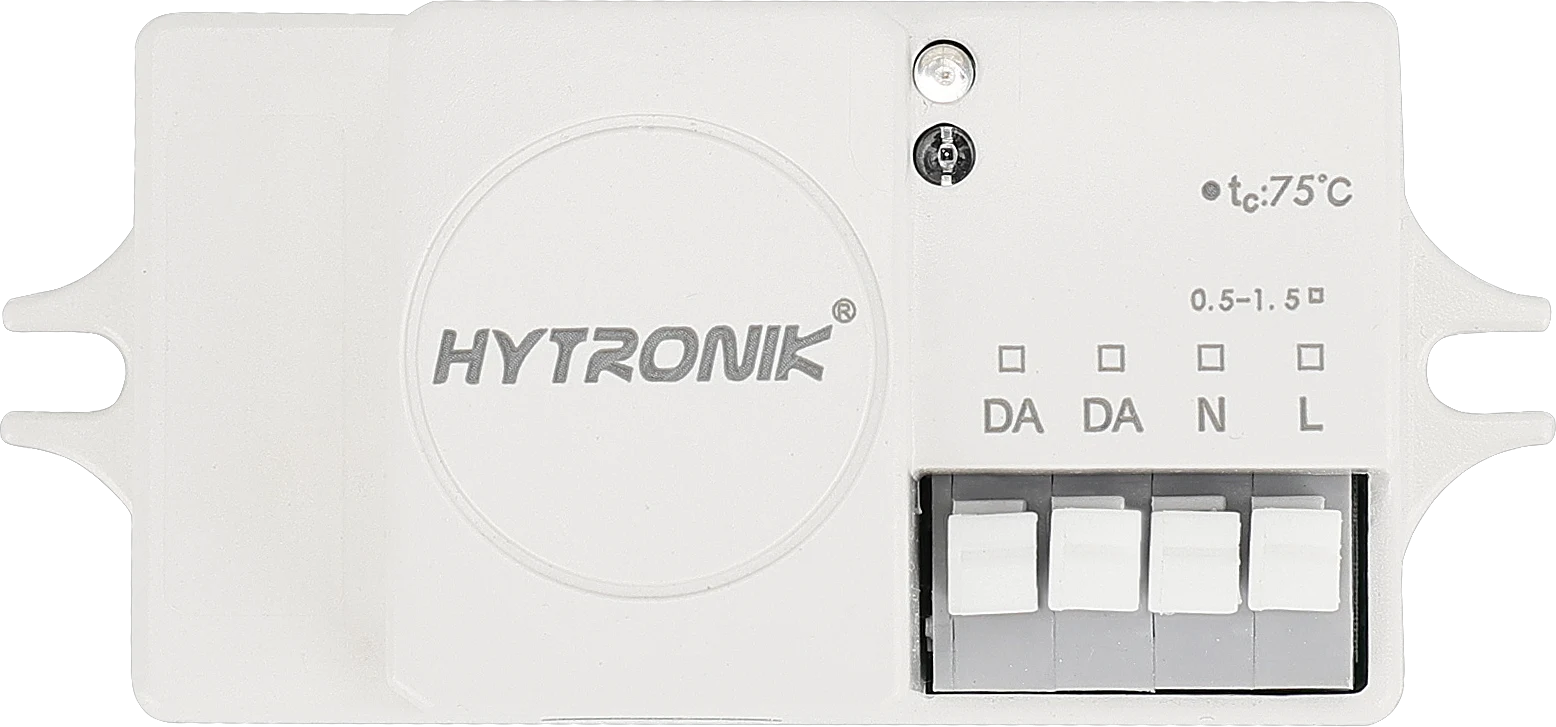

HCD405D2/H
HF Highbay | DALI-2 input device | Photodiode
BENEFITS
- Compact: Super compact size - DALI-2 sensor
- DALI-2 feature: Occupancy (part 303) Daylight (part 304)
- Standardized: Compliant to IEC62386 101, 103, 303, 304
APPLICATIONS
- For round shape luminaire up to 15m height
- Industry
- Warehouse
Product information "HCD405D2/H"
HCD405D2/H built-in microwave sensor has been certified as
DALI-2 input device with daylight sensor instance and HF motion
sensor instance. It is a high-bay motion sensor, with capability of up
to 15m installation height. HCD405D2/H is suitable for any typical
indoor applications such as office, classroom, car park, warehouse
and other commercial/industrial areas.
| Ambient temperature max.: | -20 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12×11 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 26.0000 mm |
| Product length: | 80.5000 mm |
| Product weight: | 35.0000 g |
| Product width: | 36.5000 mm |
| Storage temperature max.: | -20 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd405d2-h.pdf
