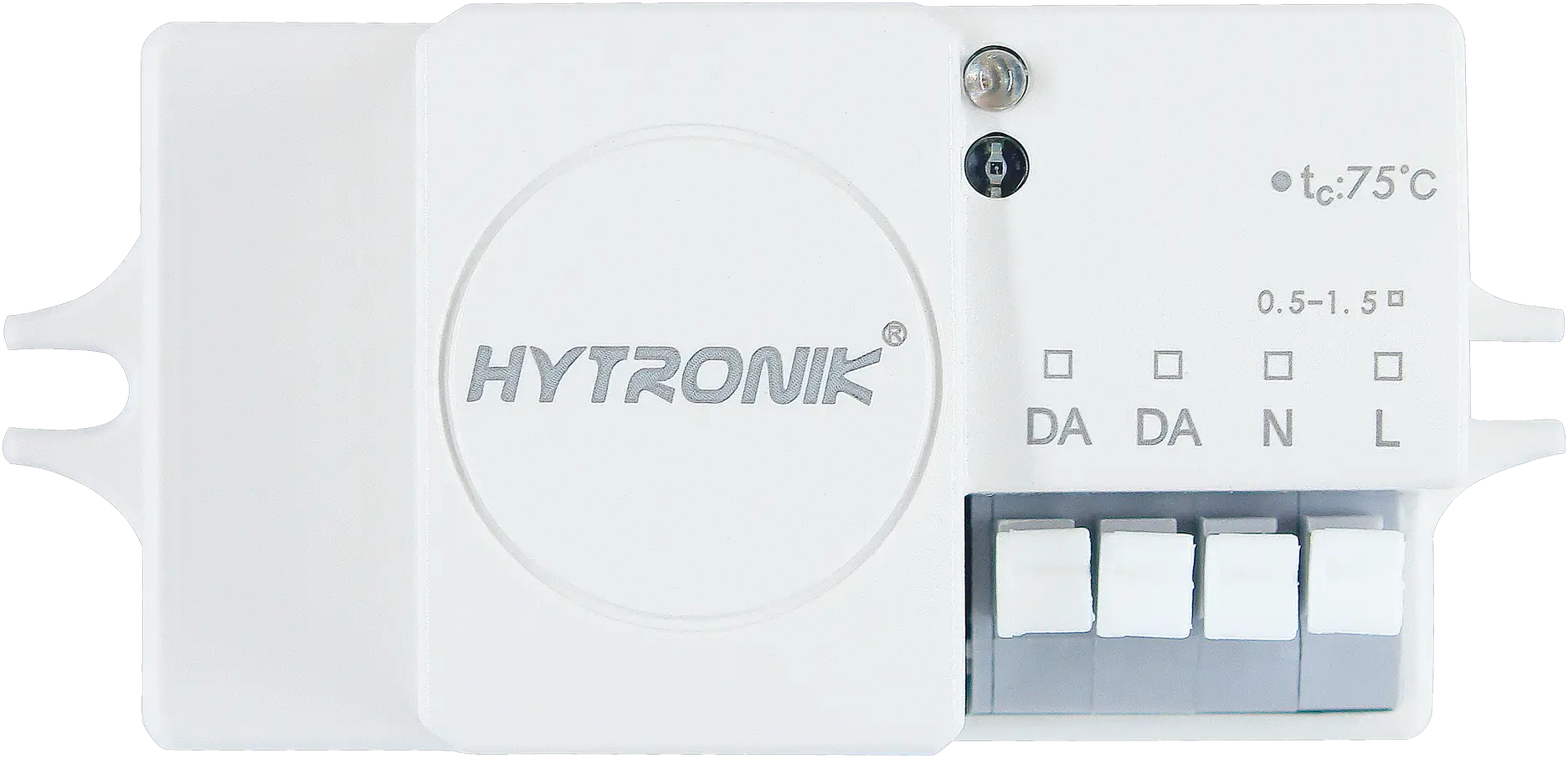

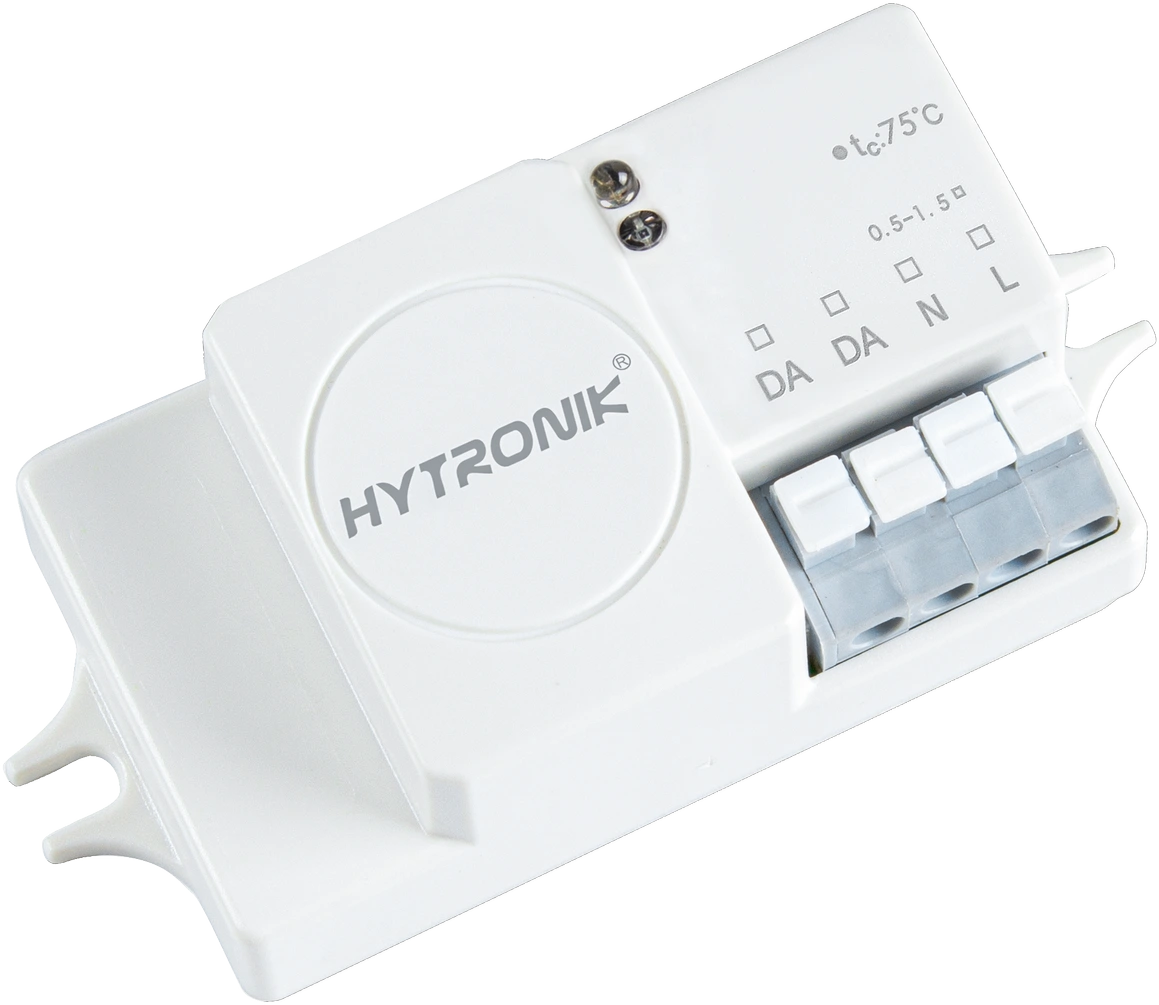

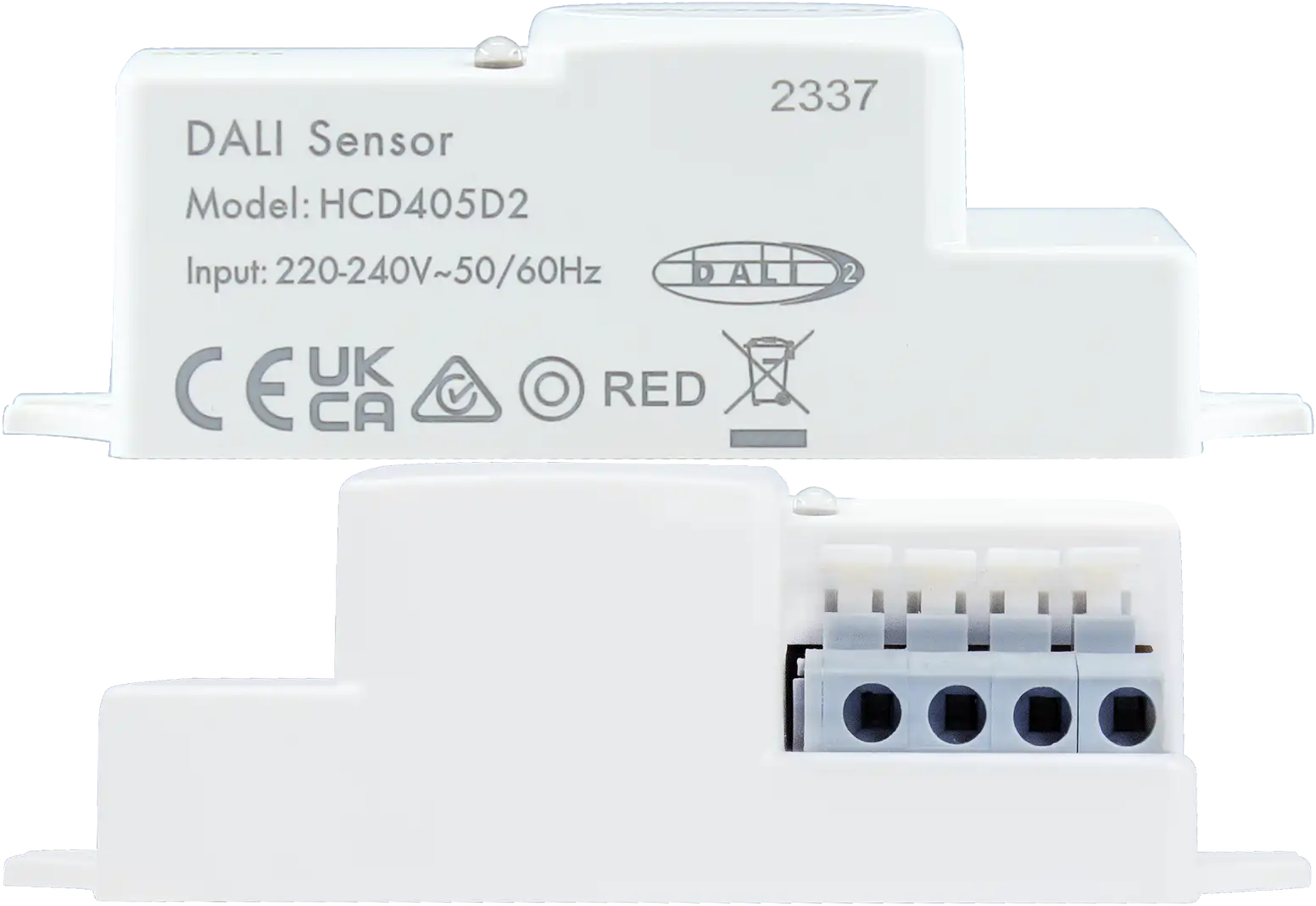

HCD405D2
HF Lowbay | DALI-2 input device | Photodiode
BENEFITS
- Compact: Super compact size - DALI-2 sensor
- DALI-2 feature: Occupancy (part 303) Daylight (part 304)
- Standardized: Compliant to IEC62386 101, 103, 303, 304
APPLICATIONS

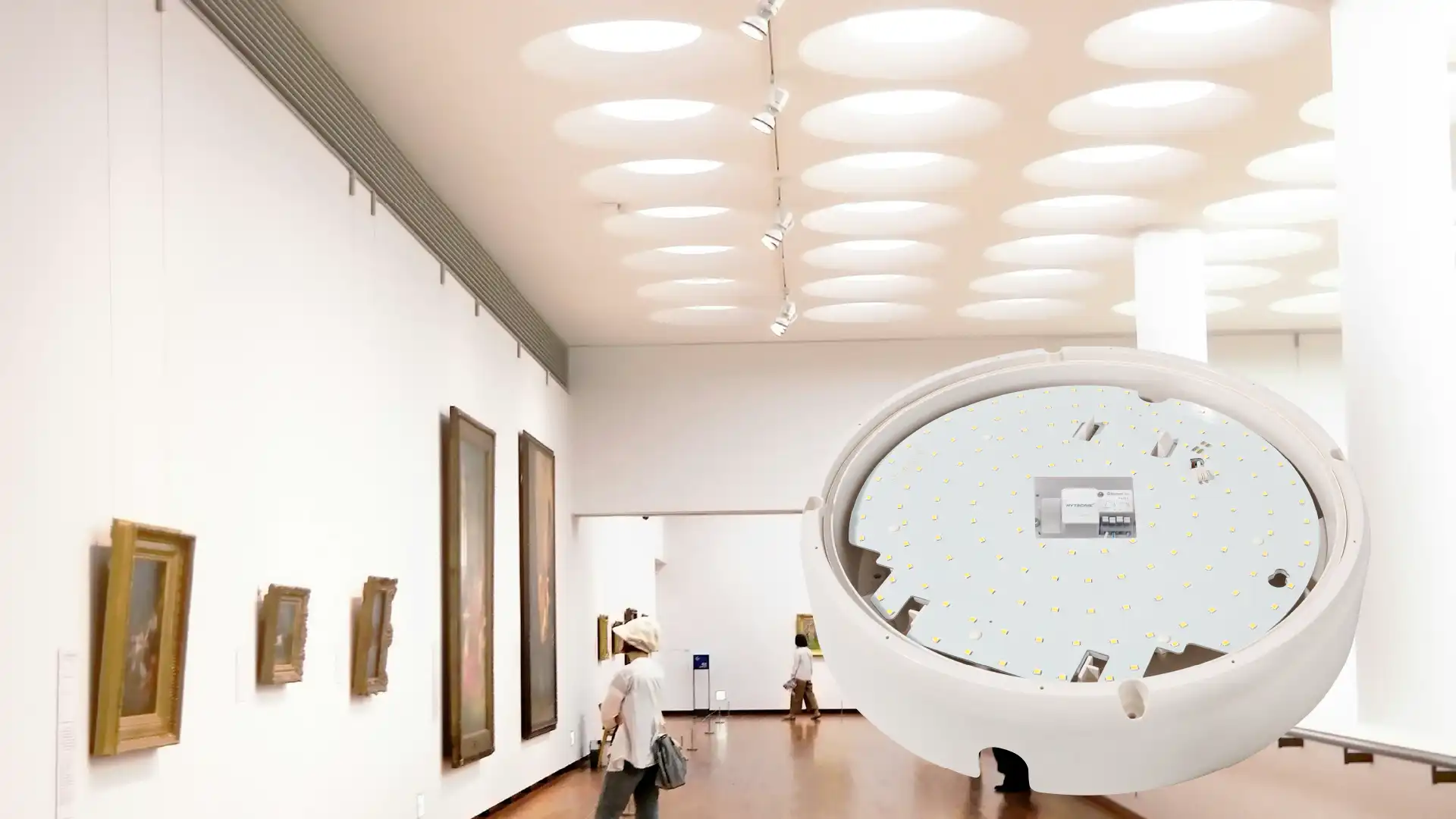

- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HCD405D2"
HCD405D2 built-in microwave sensor has been certified as DALI-2 input device with daylight sensor instance and HF motion sensor instance. It is ideal for typical indoor applications such as office, classroom, healthcare and other commercial areas.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 2.0000 mA |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 10x3 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 9.5-22.5 VDC |
| Product height: | 26.0000 mm |
| Product length: | 80.5000 mm |
| Product weight: | 35.0000 g |
| Product width: | 36.5000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd405d2.pdf
