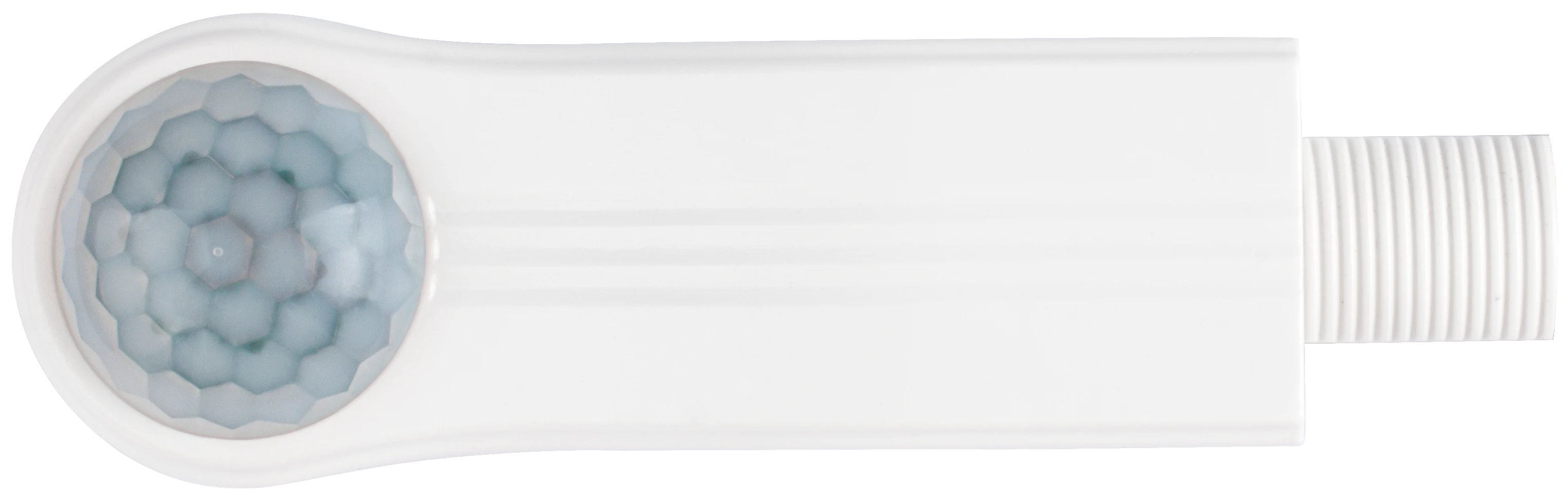

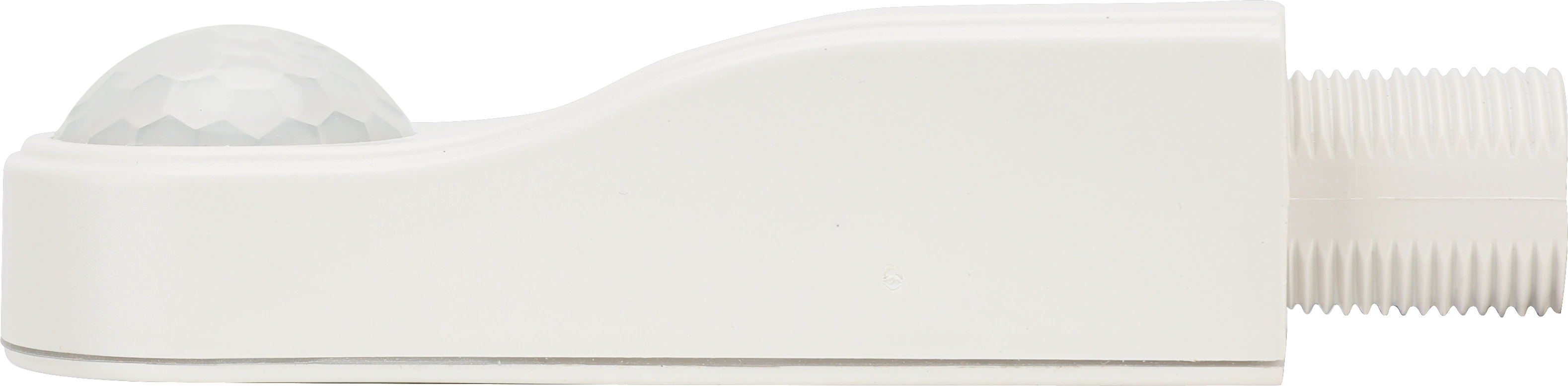

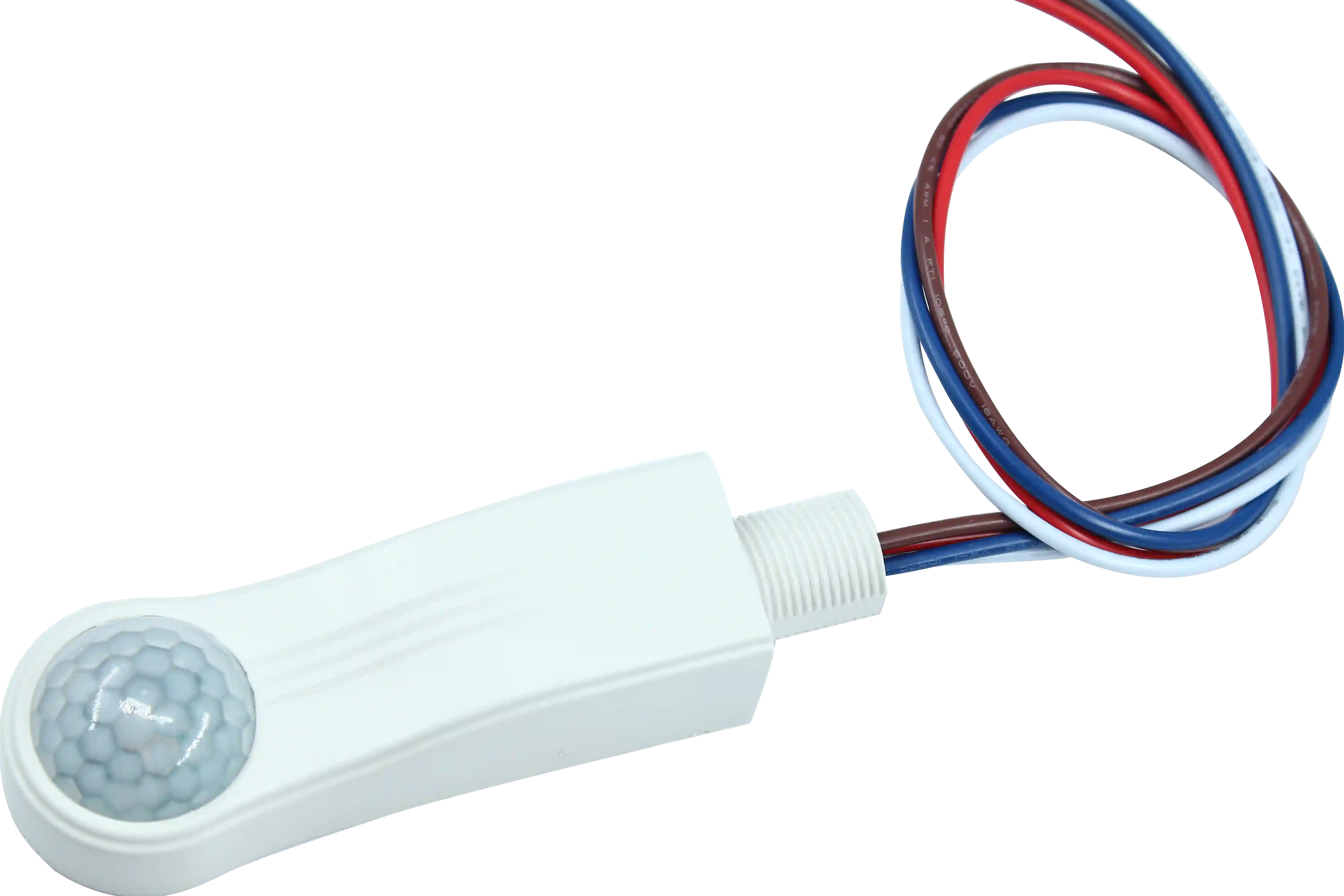

HCD049
DALI-2 PIR Highbay | IR Controller | Batten-fit/Bolt-on mount
BENEFITS
- Adaptable: Removable shielding accessory for different detection ranges
- Integrated: Built-in 30 mA DALI PSU simplifying system wiring
- User-Friendly: With one-key commissioning with IR controller

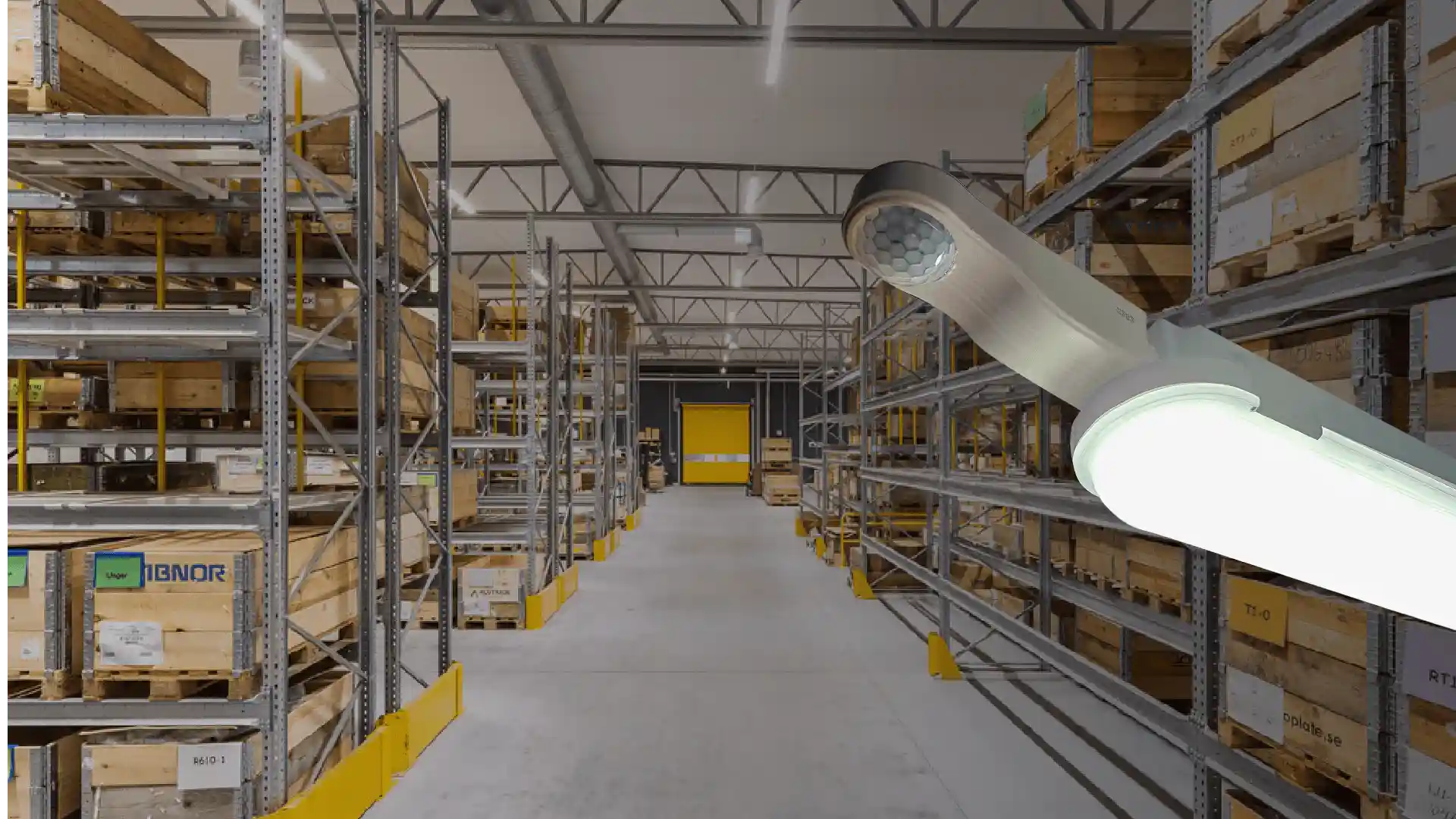

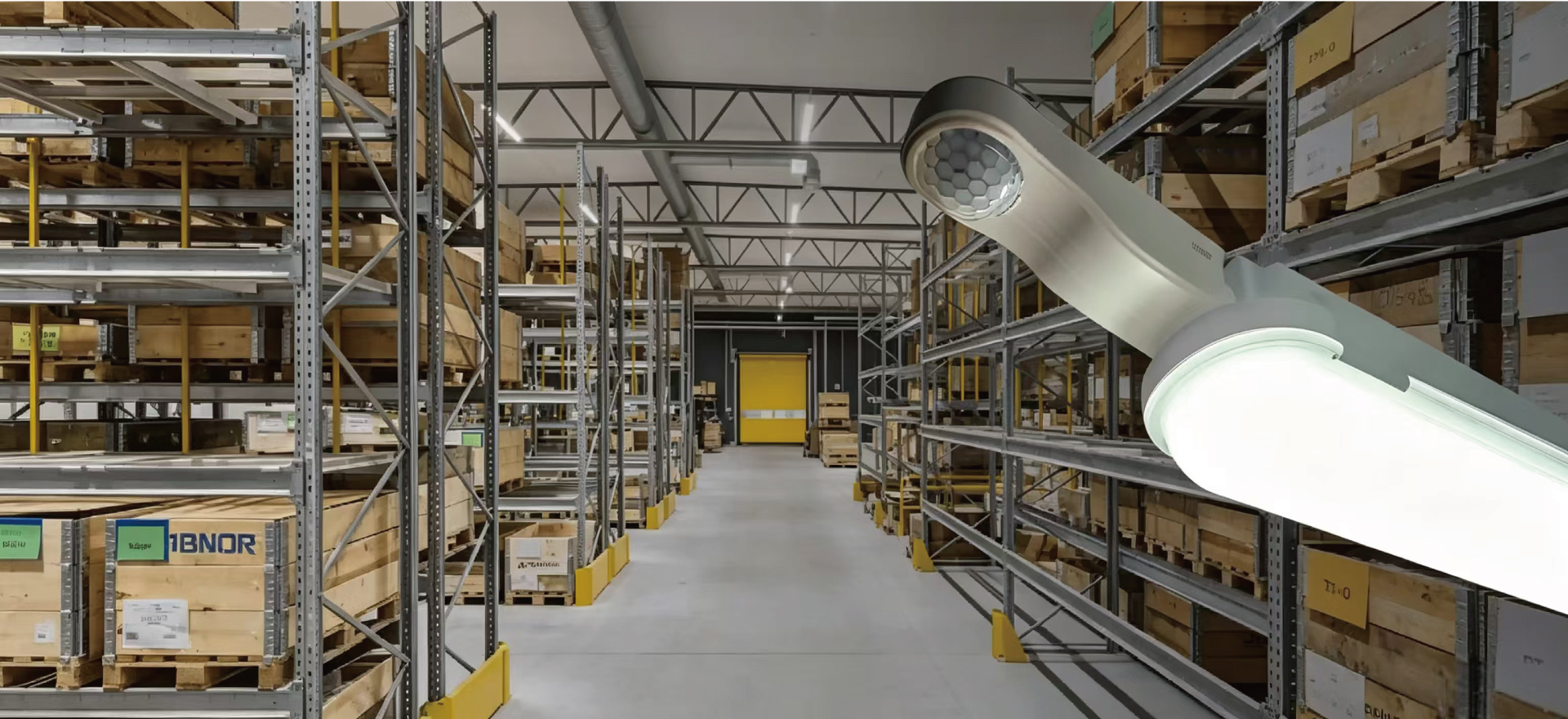

APPLICATIONS
- Warehouses
- Logistics Centers
- Industrial Facilities
Product information "HCD049"
HCD049 is a DALI-2 high-bay PIR motion sensor designed for batten-style luminaires, supporting installation heights of up to 15 m. It integrates a PIR motion sensor and daylight sensor to provide reliable occupancy detection and daylight-based lighting control. All sensor parameters can be configured via the HRC-11 handheld remote controller, allowing quick setup and convenient commissioning.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20x12 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Batten Mount |
| Lens type: | High-bay |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 40.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 28.2000 mm |
| Product length: | 107.0000 mm |
| Product weight: | 90.0000 g |
| Product width: | 34.0000 mm |
| Push Button Input: | 0 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -25 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: hcd049.pdf
