HC419VRC/R
HF Highdbay | Photocell Advance | Setting via Dip-Switch/IR controller
BENEFITS
- Compact: Super compact size - Tri-level & 1-10V Sensor
- Flexibale: Synchronization Control in maximum 10pcs
- Simple: Detection range, stand-by dimming level and holdtime configuration via Dip-Switch/ IR controller
APPLICATIONS
- For round shape luminaire up to 6m height
- Retrofit and new luminaire designs/installations
- Warehouse / Storage room

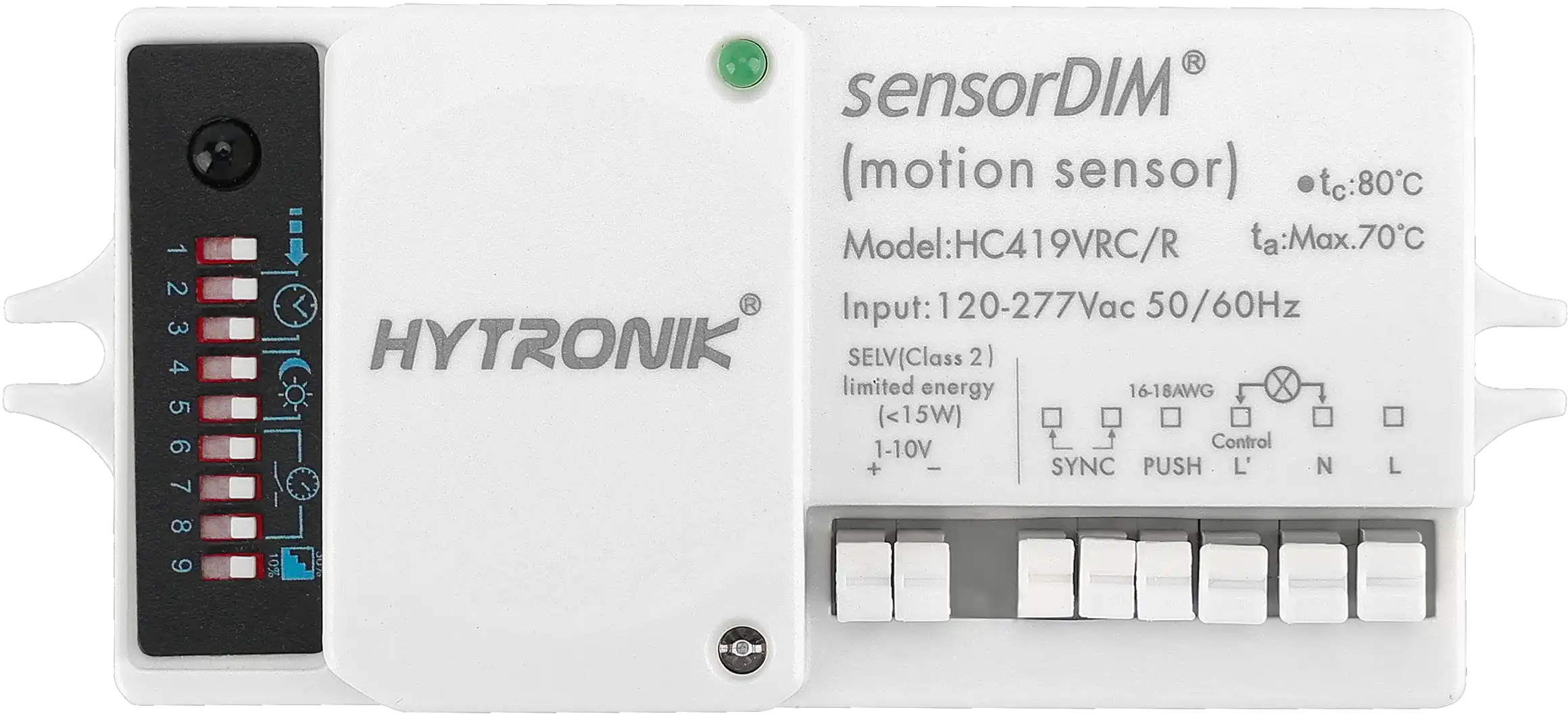

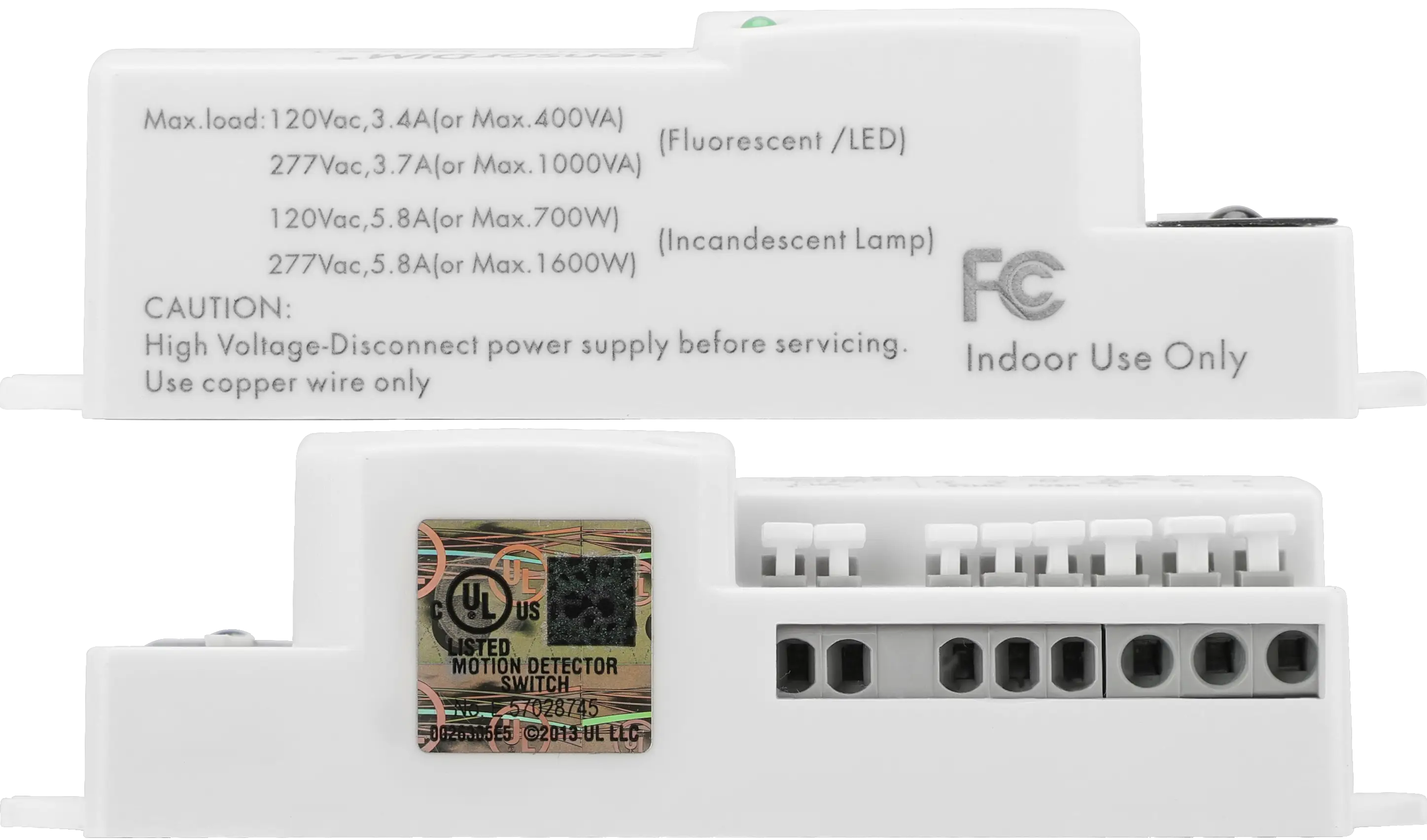

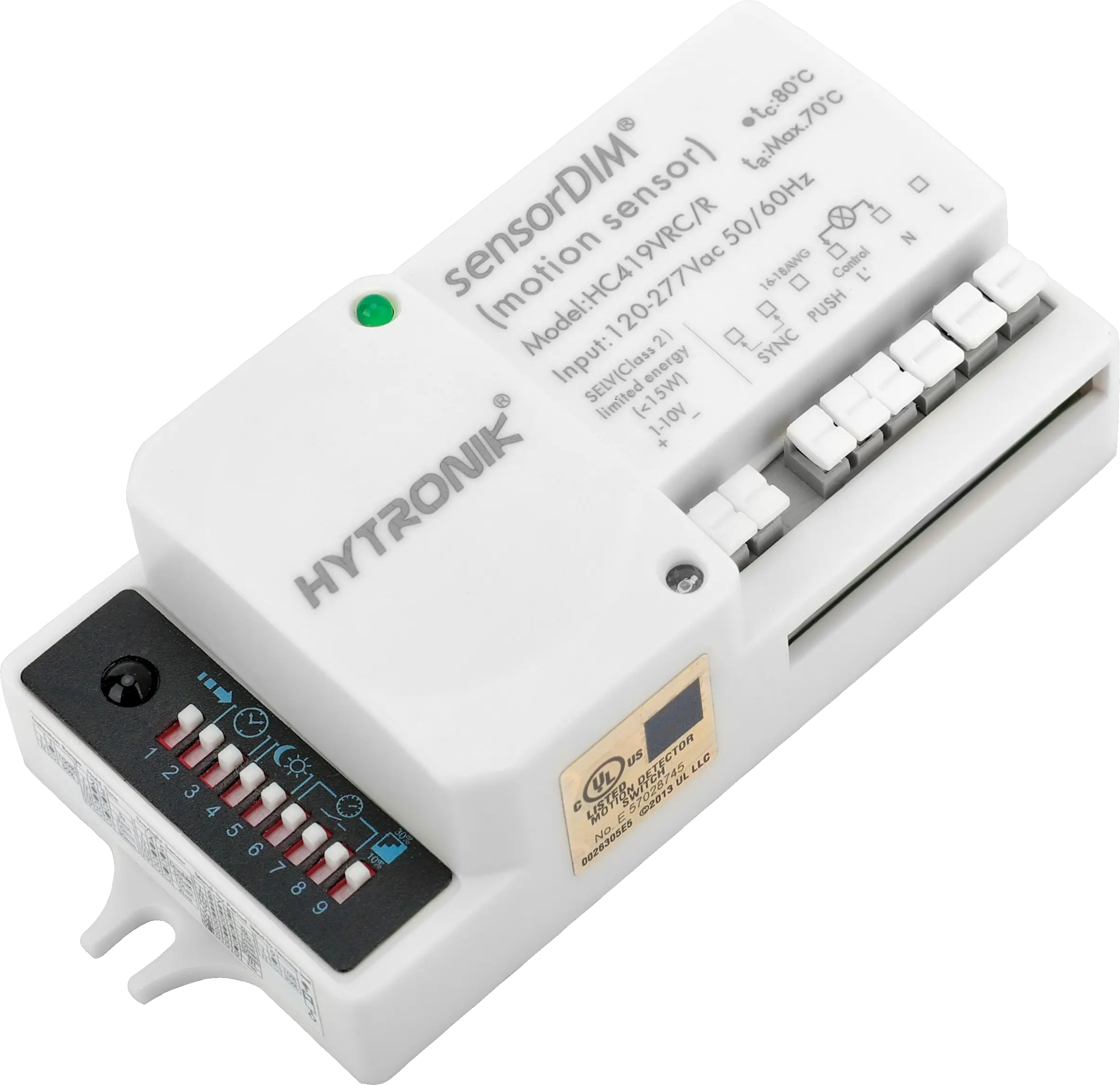

Product information "HC419VRC/R"
HC419VRC/R is a built-in HF motion sensor equipped with 1-10V dimming control and relay output. It features tri-level dimming functionality and integrates a daylight sensor using Photodiode (PD). Sensor settings can be adjusted via DIP-Switches and handset HRC-05. Additionally, it includes Switch-Dim (PUSH) functionality and a Sync terminal for enhanced control options.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 16x15 |
| Dimming (Output) Interface: | 1-10V |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Lens type: | High-bay |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.2000 mm |
| Operating Voltage: | 120-277 VAC |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
