HC419VRC
HF Lowbay | Tri-level & 1-10V | Setting via Dip-Switch/IR controller
BENEFITS
- Compact: Super compact size - Tri-level dimming sensor
- Flexibale: Synchronization Contro in maximum 10pcs
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch/ IR controller
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC419VRC"

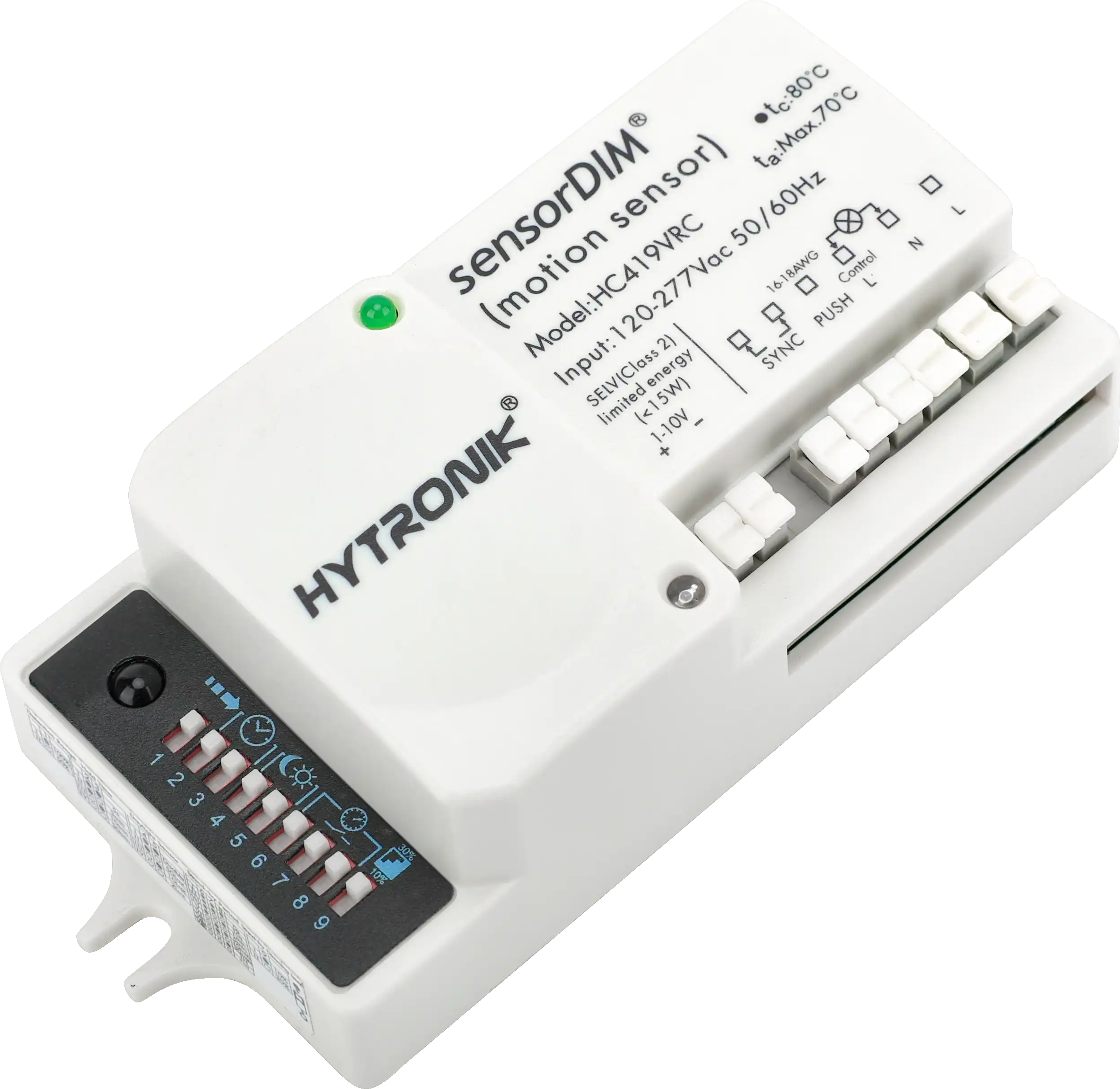

HC419VRC is a Tri-level Control HF Sensor, and compatible with Synchronisation and Remote Control Occupancy detector with tri-level dimming control suitable for indoor use.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 8x5 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 5.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product weight: | 70.0000 g |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc419vrc.pdf
