HC419V/I
HF Lowbay | Tri-level & 1-10V | Photocell Advance
BENEFITS
- Compact: Super compact size - Tri-level & 1-10V Sensor
- 3 in 1: Tri-level dimming + 1-10V control + Photocell advance
- Simple: Detection range, tri-level and holdtime configuration via Dip-Switch
APPLICATIONS
- For round shape luminaire up to 6m height
- Offices/Meeting rooms
- School/Classrooms

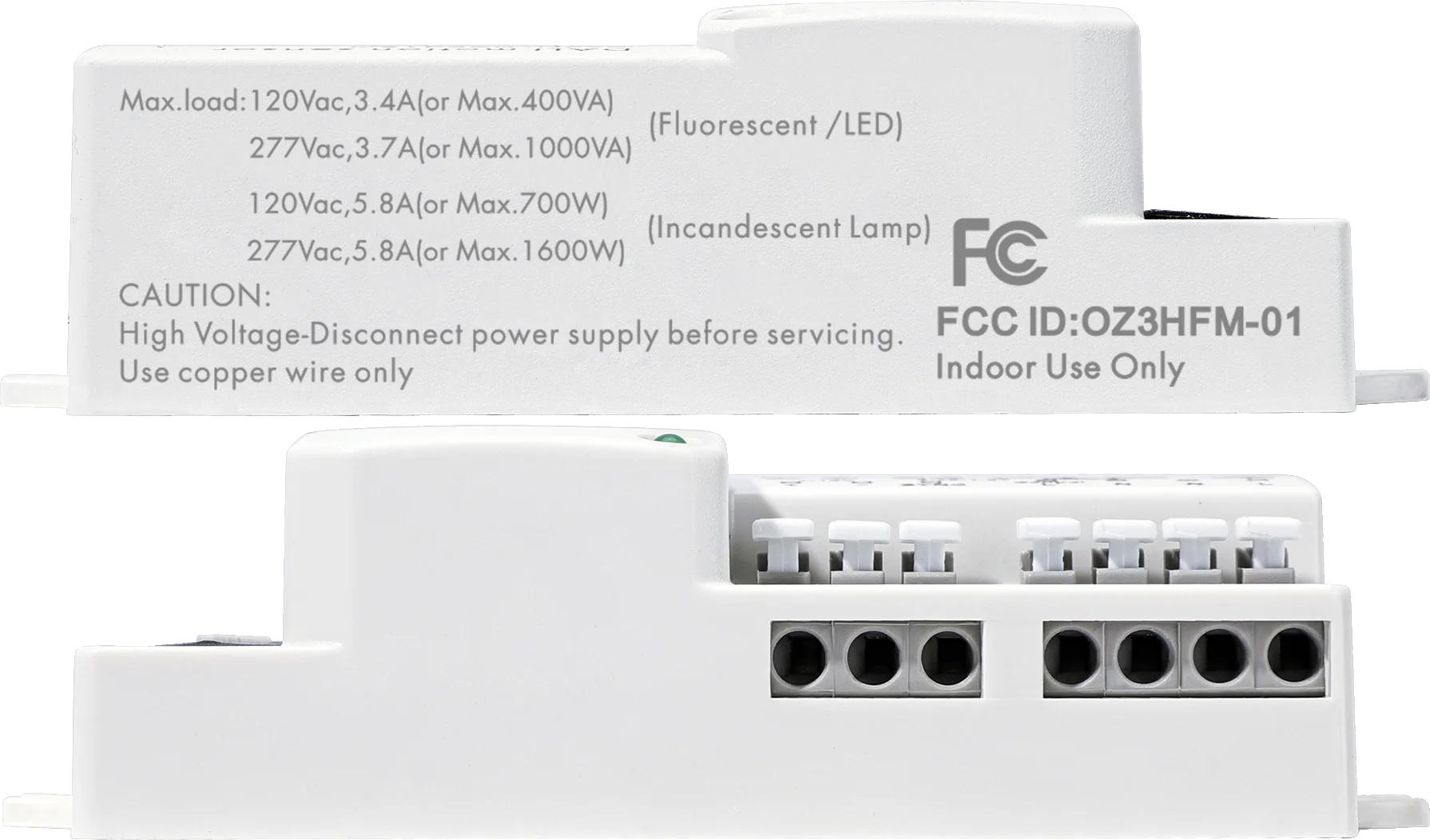

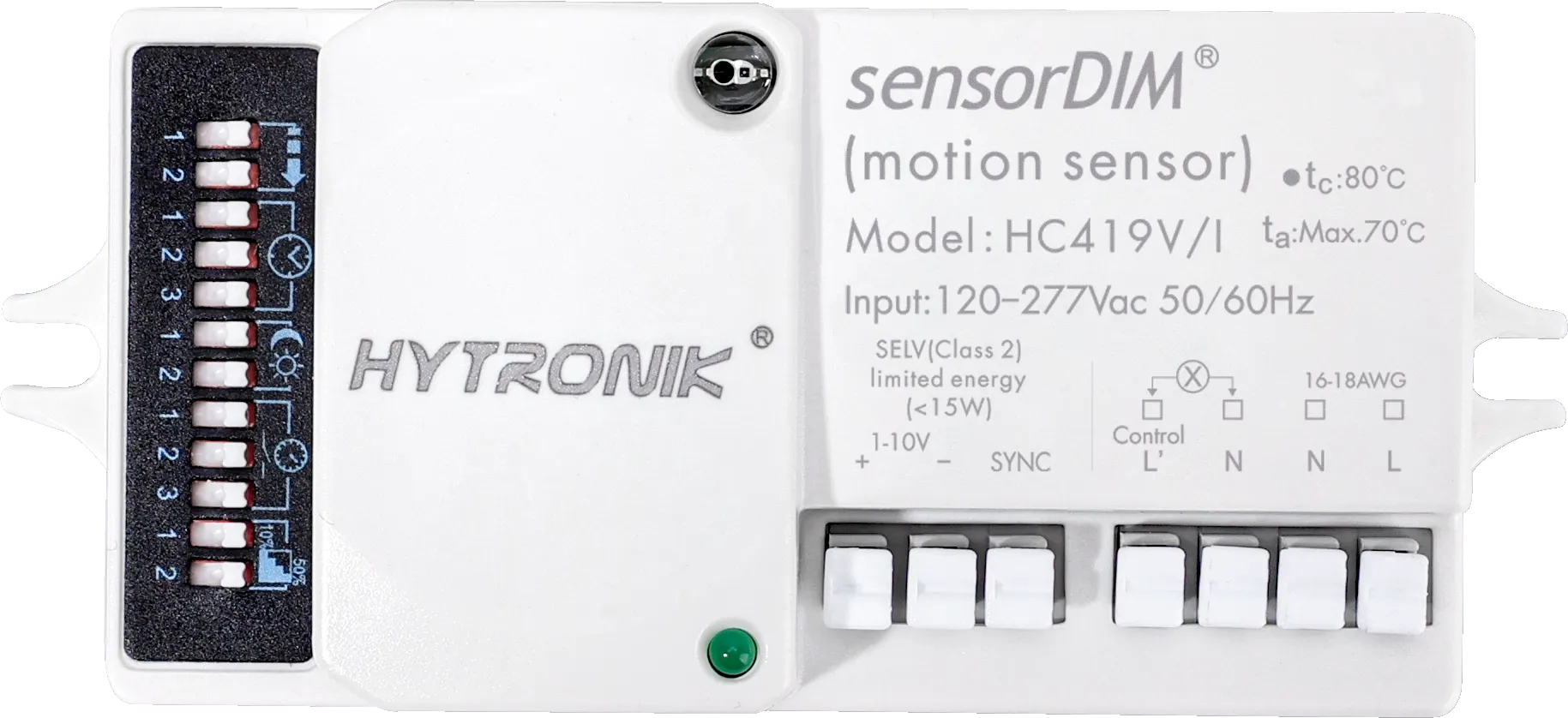

Product information "HC419V/I"
HC419V/I is a built-in HF motion sensor with dimming control and relay output. It supports tri-level dimming functionality and integrates a daylight sensor using Photocell Advance™. Sensor settings can be adjusted via DIP-Switches, and it includes a sync terminal for synchronized operations.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 12x6 |
| Dimming (Output) Interface: | 1-10V |
| Features: | Tri-level (Corridor Function) |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating Voltage: | 120-277 VAC |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
