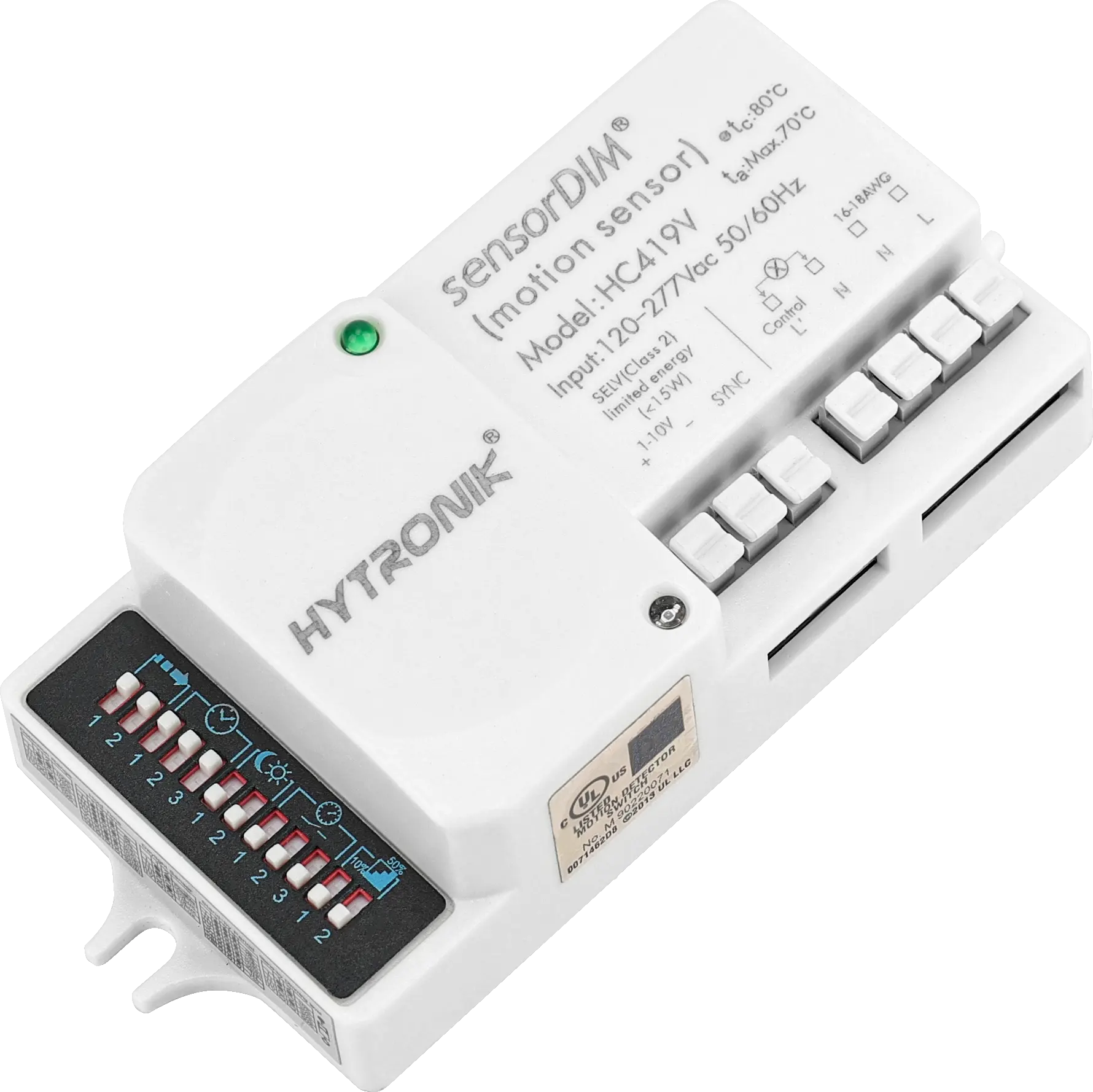

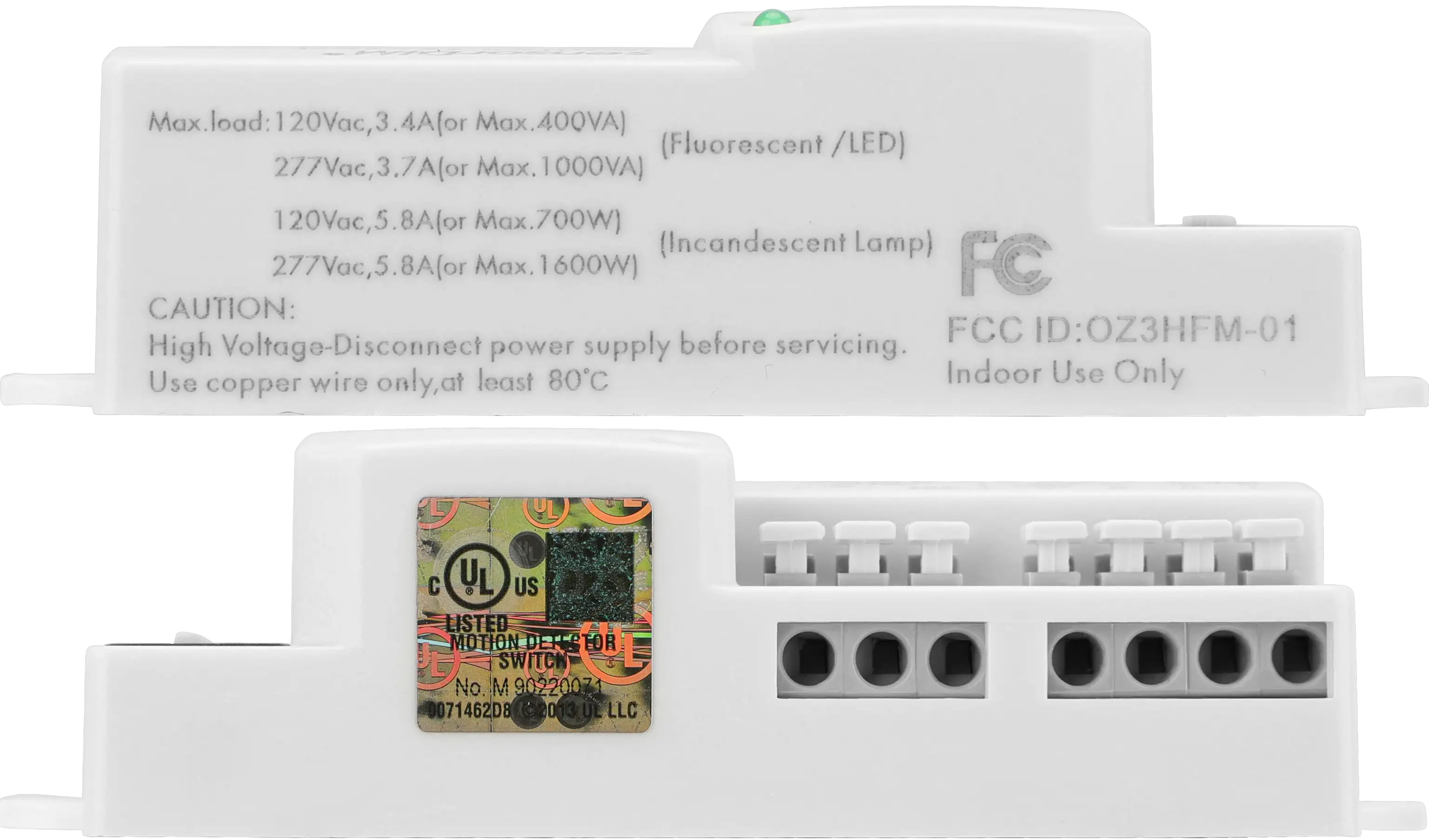

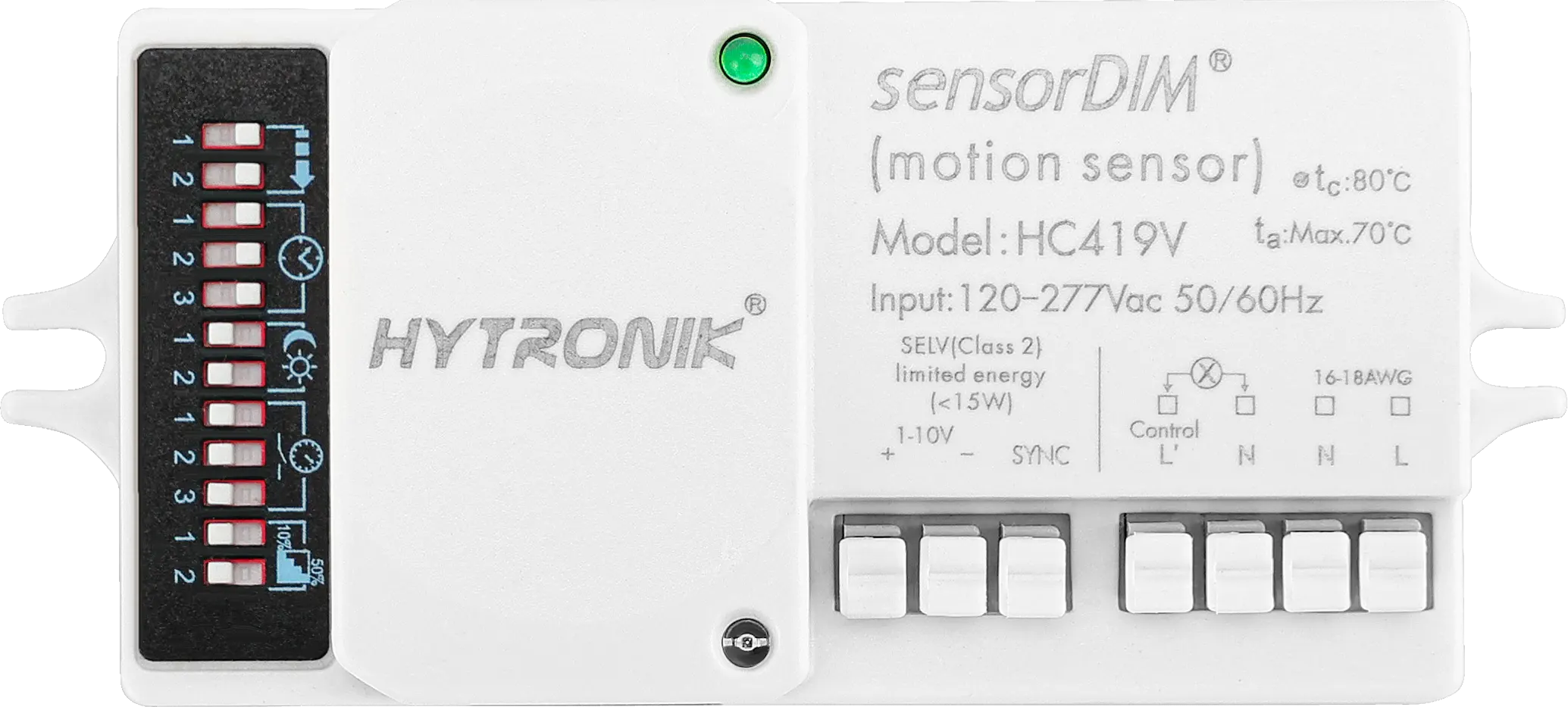

HC419V
HF Lowbay | Tri-level & 1-10V | Setting via Dip-Switch
BENEFITS
- Compact: Super compact size - Tri-level & 1-10V Sensor
- Flexibale: Synchronization control in maximum 10pcs
- Simple: Detection range, tri-level and holdtime configuration via Dip-Switch
APPLICATIONS
- For round shape luminaire up to 6m height
- Offices/Meeting rooms
- School/Classrooms
Product information "HC419V"
In many cases, several sensors are connected together to control the same fixture, or to trigger on each other, the sudden on/off may cause
huge magnetic pulse and mis-trigger the sensor. Hytronik synchronized sensor HC419V is specially designed for these applications with 1-10V
output which employes a strong software to overcome the magnetic interferences.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product weight: | 70.0000 g |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Zhaga: | No |
Datasheets
Product datasheet: hc419v.pdf
