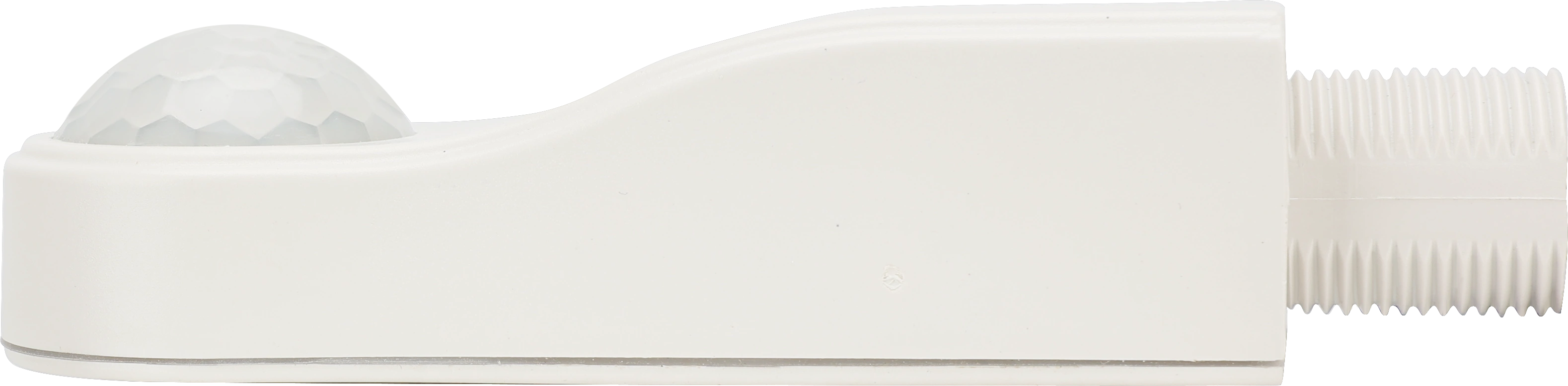

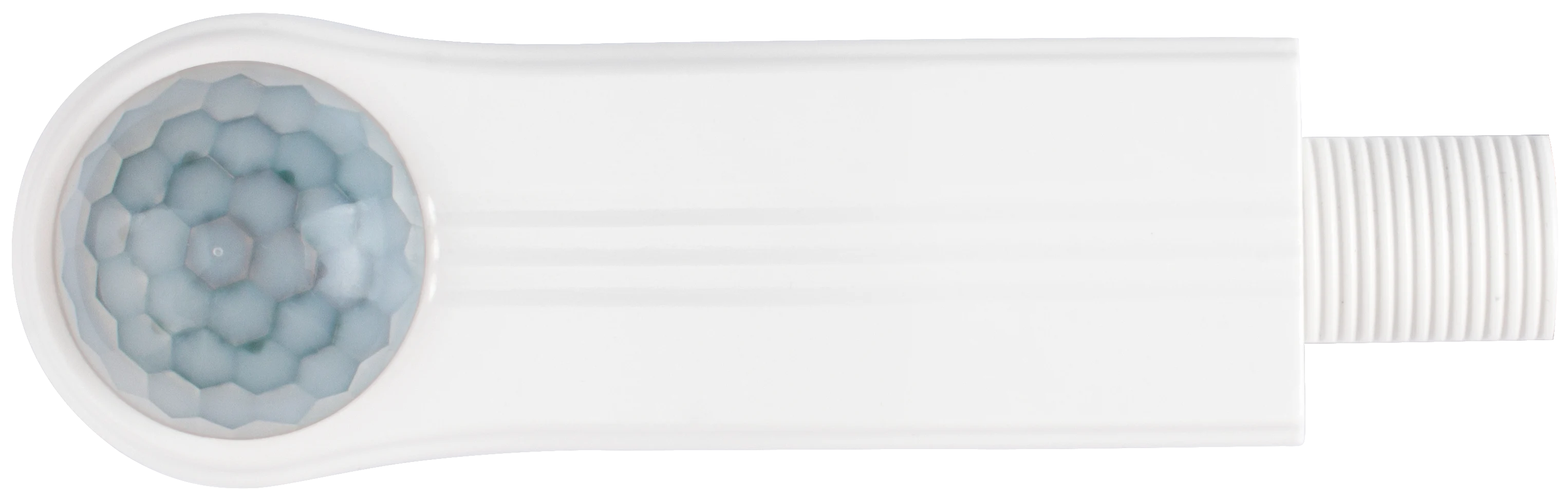

HC049S
PIR Highbay | ON/OFF and IR Controller | Batten-fit/Bolt-on mount
BENEFITS
- Adaptable: Removable shielding accessory for different detection ranges
- Autonomous: On/Off occupancy control for up to 800W
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Batten-fit/Bolt-on mount style

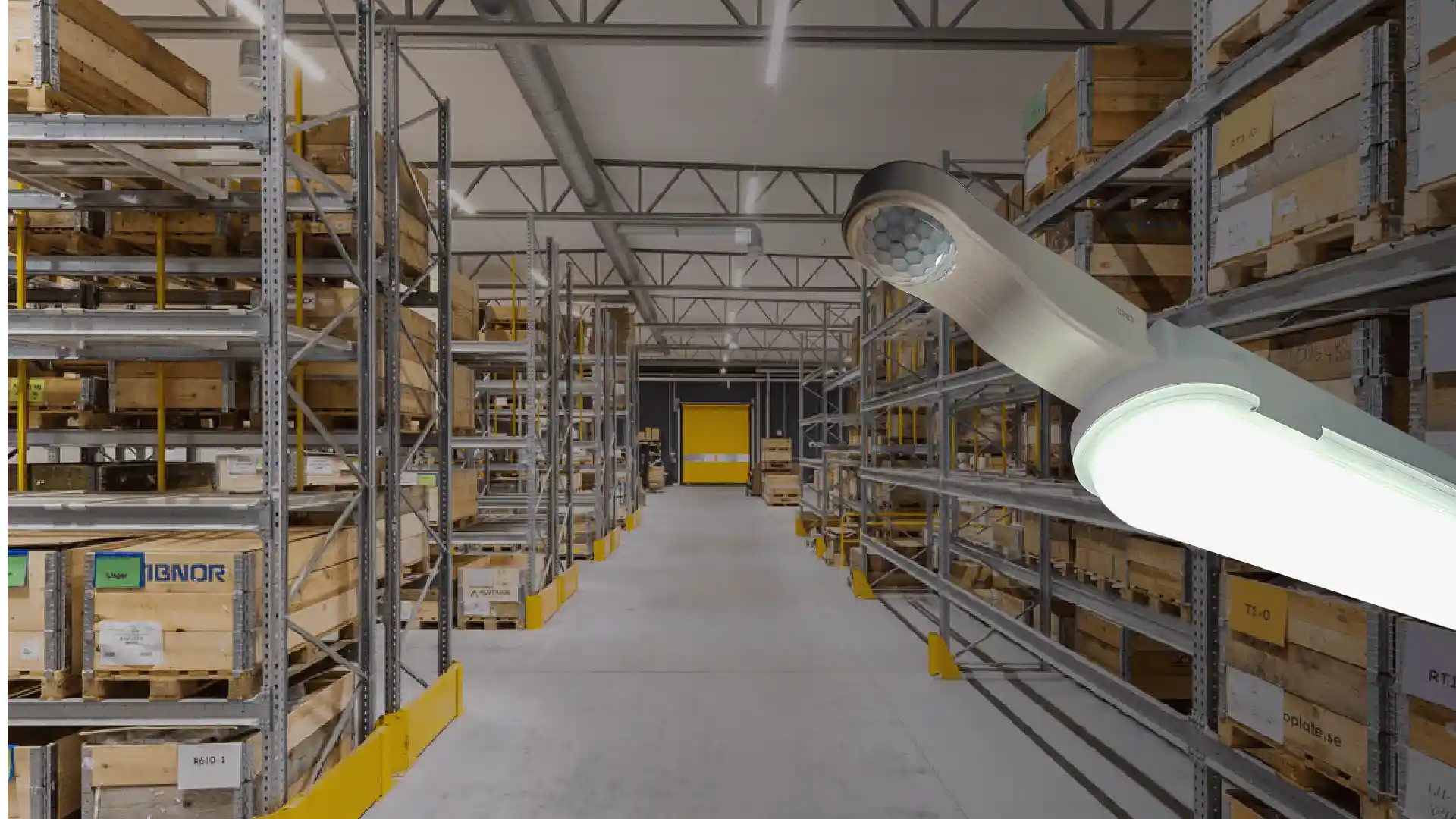

- Warehouse, Industry
- Offices, Classrooms
Product information "HC049S"

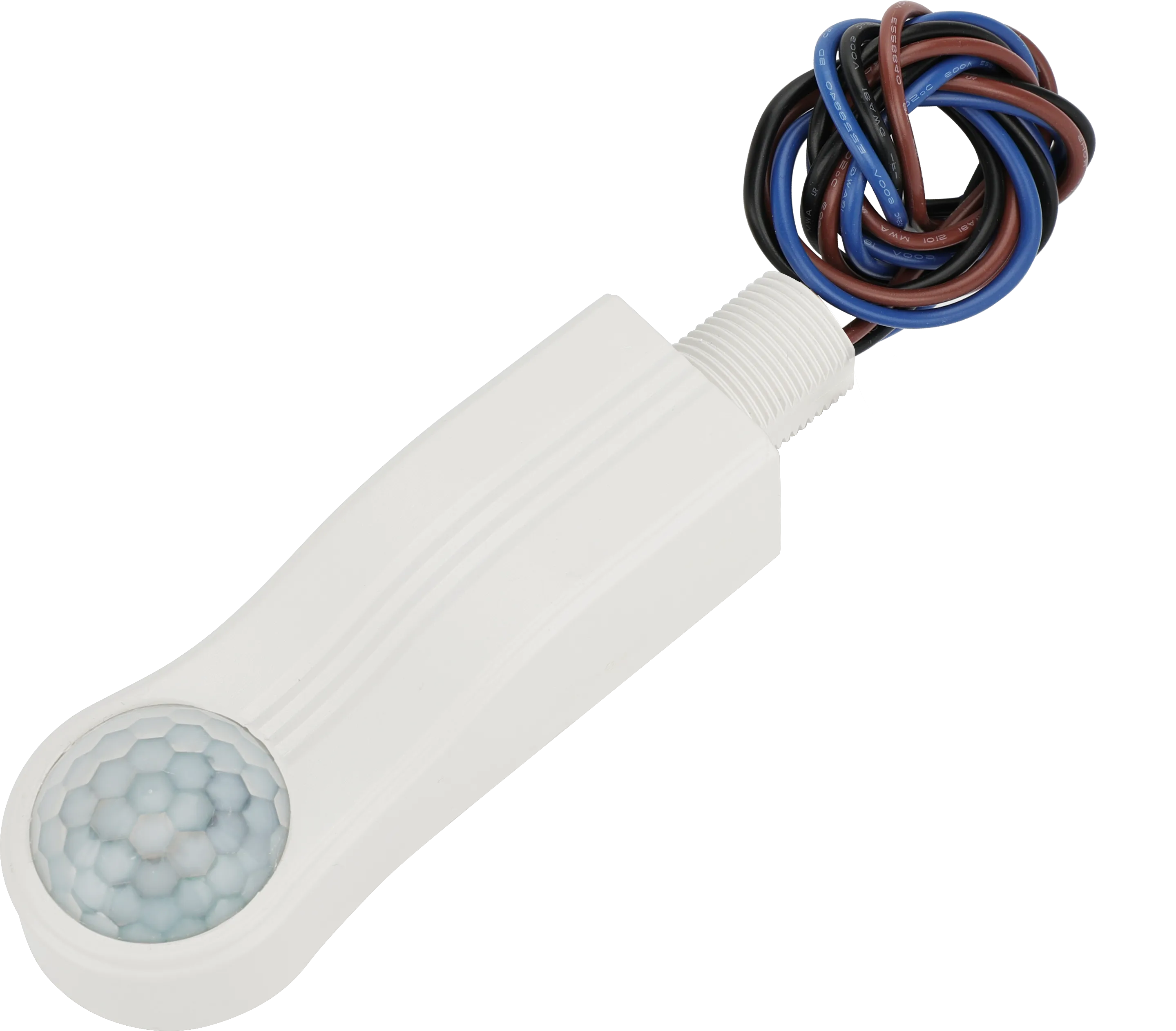

HC049S is a high-bay PIR on/off motion sensor, suitable for installations up to 15m high. It features a built-in daylight sensor and is designed for batten-style luminaires. All sensor settings can be programmed via remote control.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10×12 |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP65 |
| Installation Type: | Batten Mount |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 40.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product height: | 28.2000 mm |
| Product length: | 107.0000 mm |
| Product weight: | 89.0000 g |
| Product width: | 34.0000 mm |
| Push Button Input: | 0 |
| Sensitivity: | 10%/ 30% /50% /75%/ 100% |
| Storage temperature max.: | 55 °C |
| Storage temperature min.: | -30 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc049s.pdf
