HC019V/I
HF Lowbay | Photocell Advance | Dip-Switch
BENEFITS
- Compact: Super compact size - Tri-level control
- Simple: Daylight, detection range, holdtime configuration, Stand-by period via Dip-Switch
- Robust: Zero crossing detection circuit for increased relay life
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom

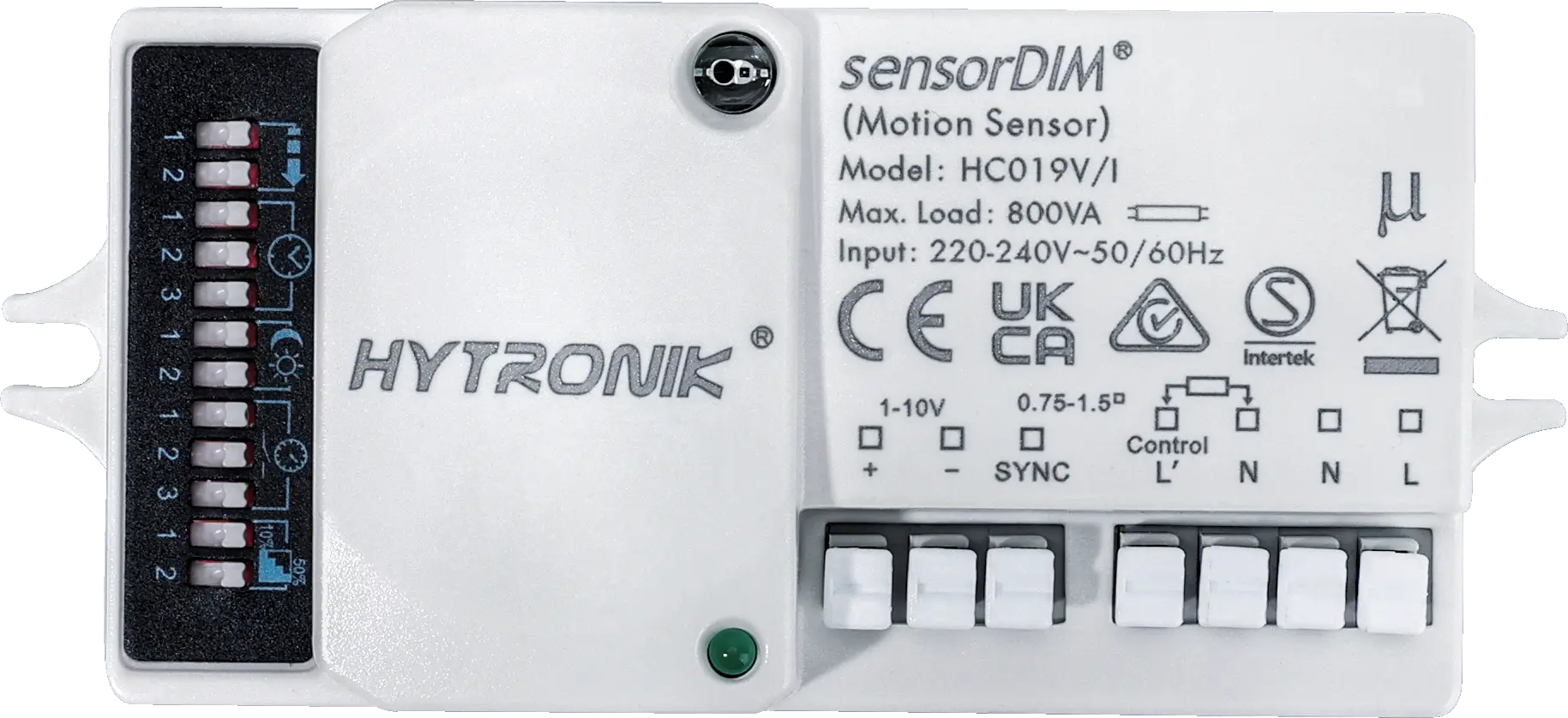

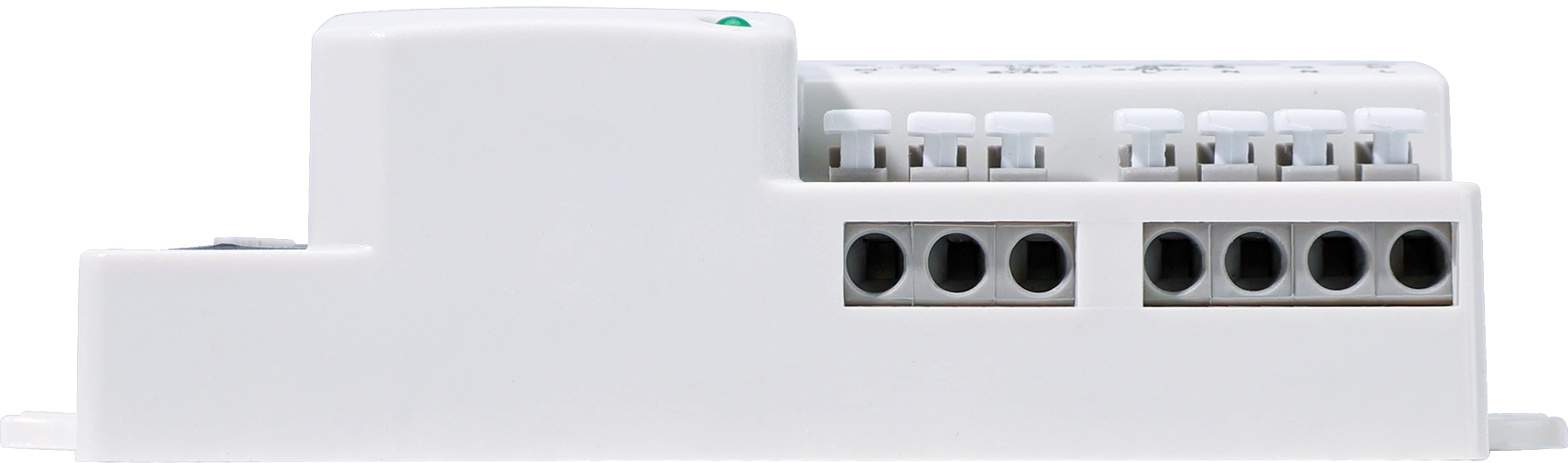

Product information "HC019V/I"
HC019V/I is a Tri-level Control HF Sensor, with Synchronised Control Version with Photocell Advance .Occupancy detector with tri-level control suitable for indoor use.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Photocell Advance |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | 1-10V |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product weight: | 65.0000 g |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc019v-i.pdf
