Phase-Out / Limited Availability or last orders

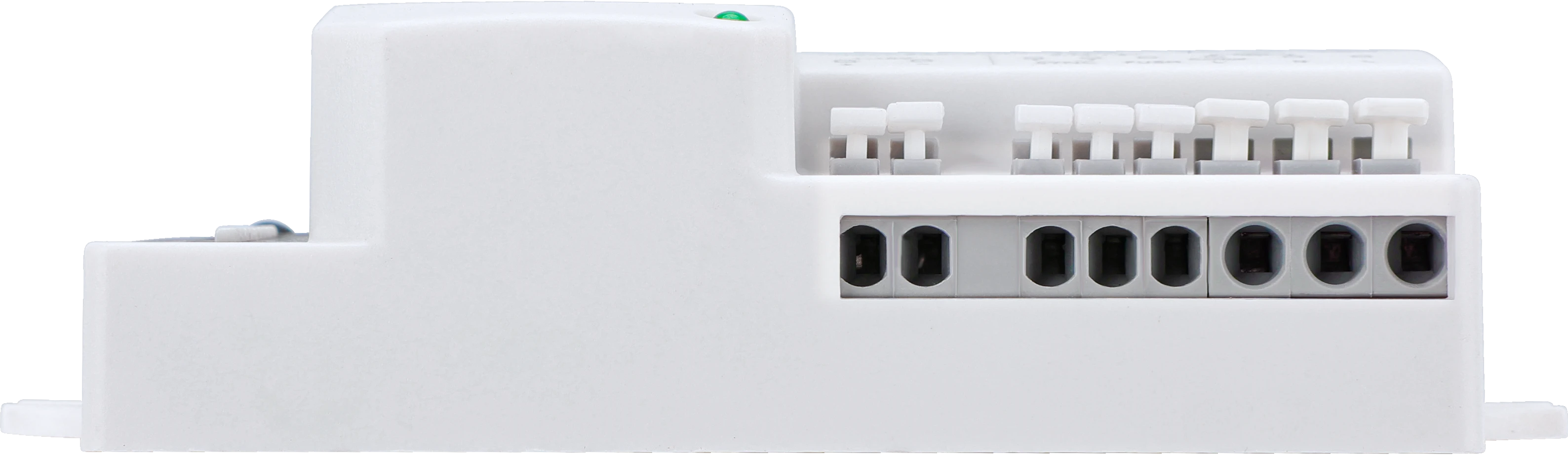

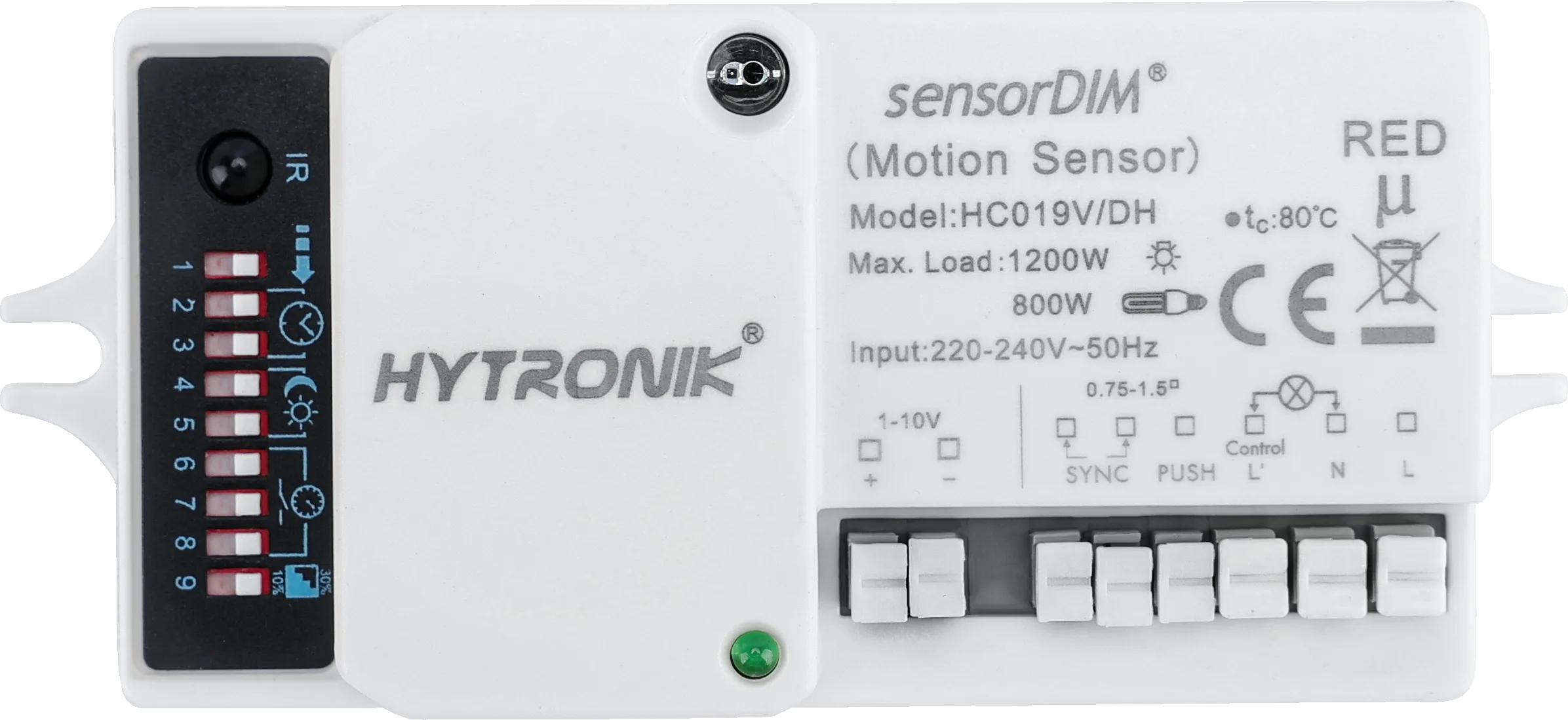

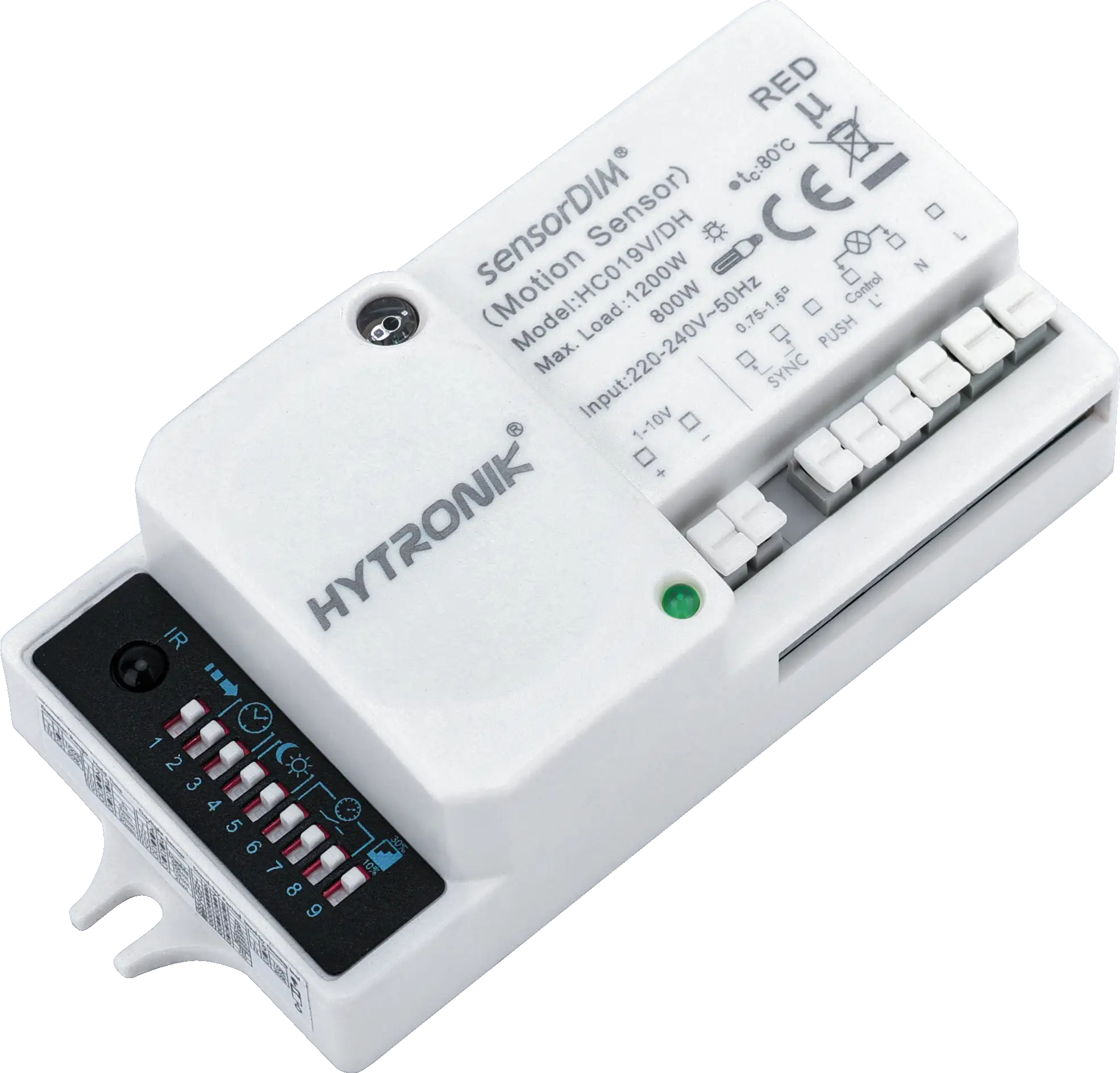

HC019V/DH
HF Lowbay | Photocell Advance | Dip-Switch/IR Controller
BENEFITS
- Compact: Super compact size - Daylight harvest sensor
- 3 in 1: Daylight harvest + 1-10V + Photocell Advance
- Easy: Settings via Dip-switch/IR controller
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC019V/DH"
HC019V/DH is am occupancy detector with daylight harvest suitable for building into the fixture.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Phase-Out / Limited Availability or last orders |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product weight: | 70.0000 g |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc019v-dh.pdf
