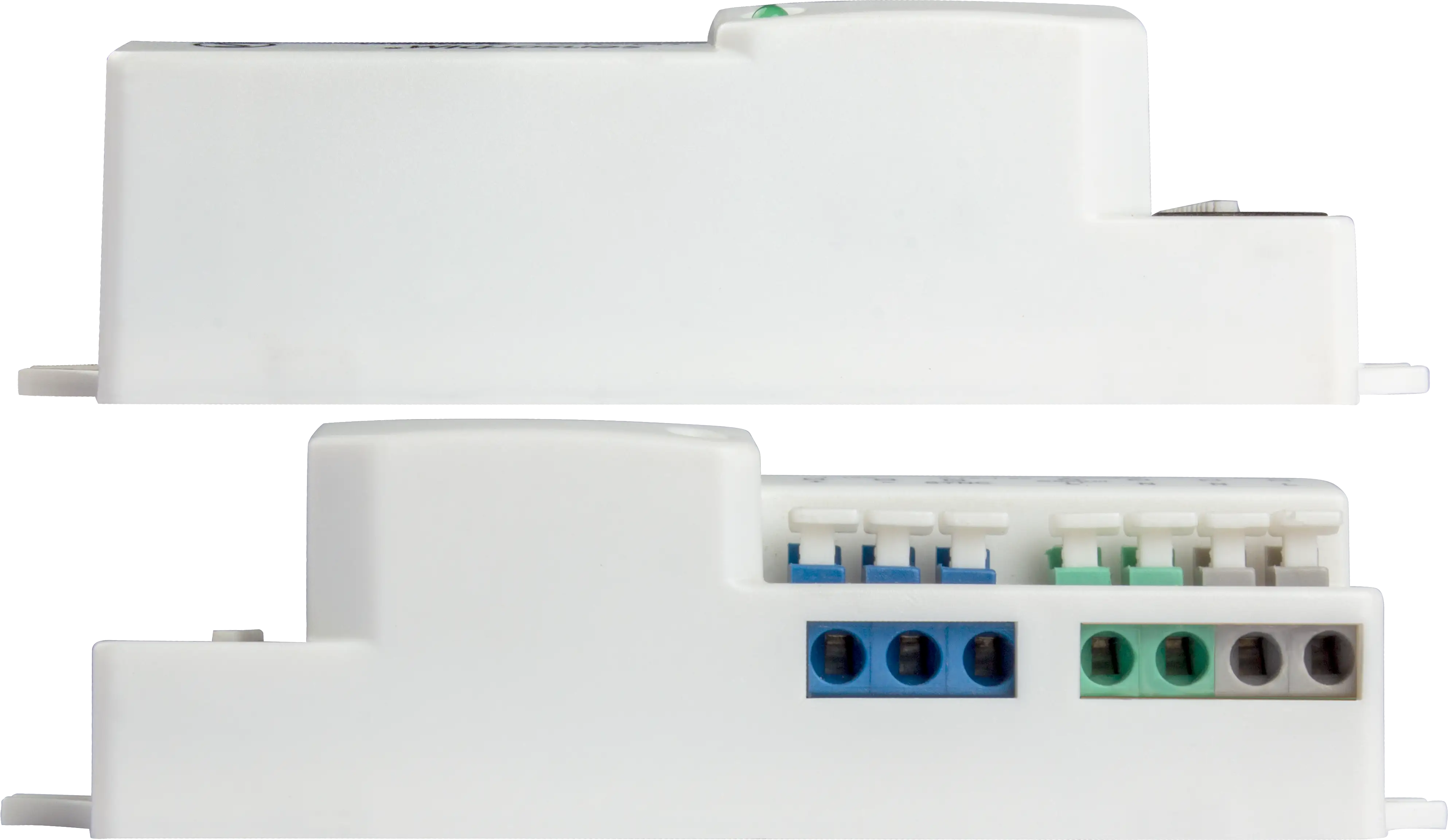

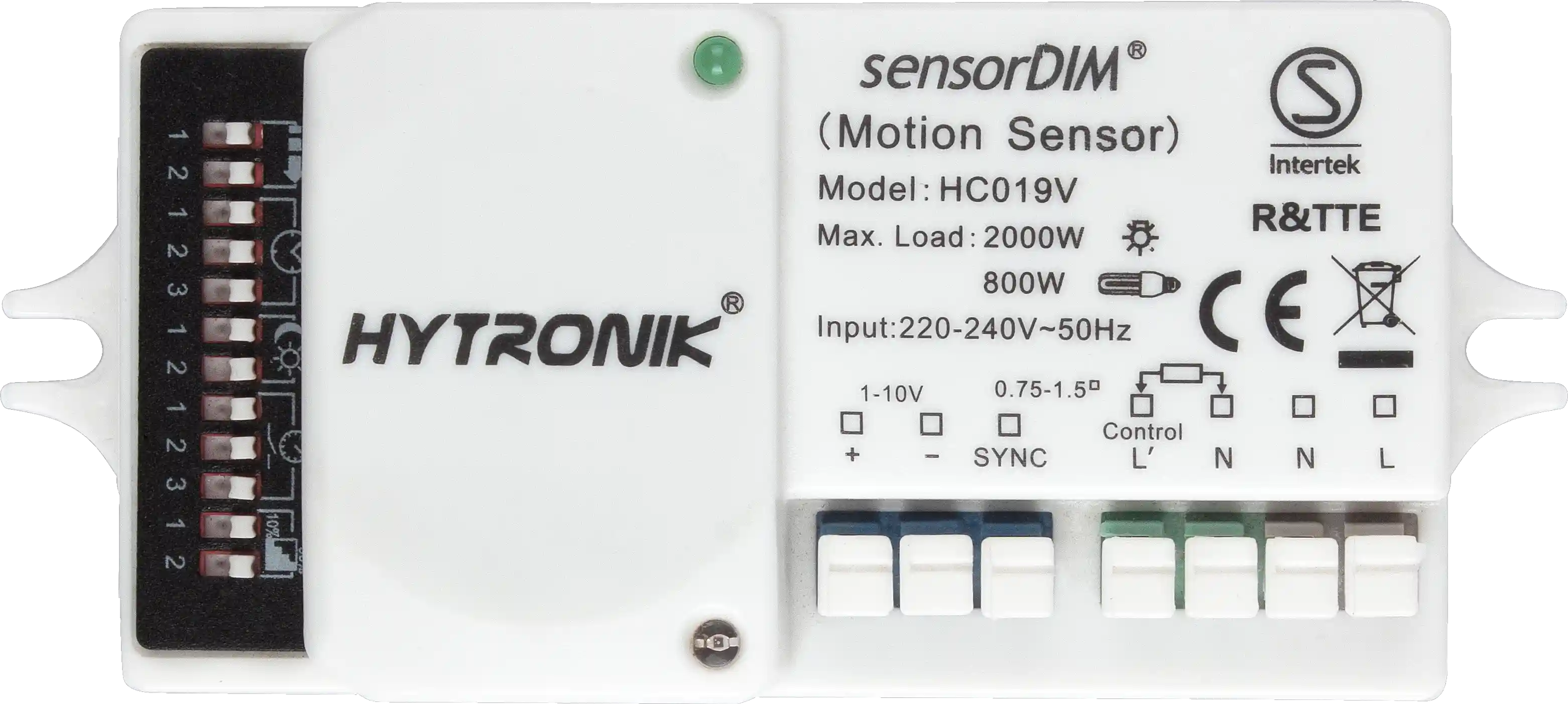

HC019V
HF Lowbay | Tri-level / 1-10V | Dip-Switch
BENEFITS
- Compact: Super compact size - Tri-level control
- Simple: Daylight, detection range, holdtime configuration, Stand-by period via Dip-Switch
- Robust: Zero crossing detection circuit for increased relay life
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC019V"
HC019V employed a strong software to
overcome that megnatic interference and is specially designed for that application with 1-10V dimming control.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Dimming (Output) Interface: | 1-10V |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 150 % |
| Humidity min: | 30 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product weight: | 70.0000 g |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc019v.pdf
