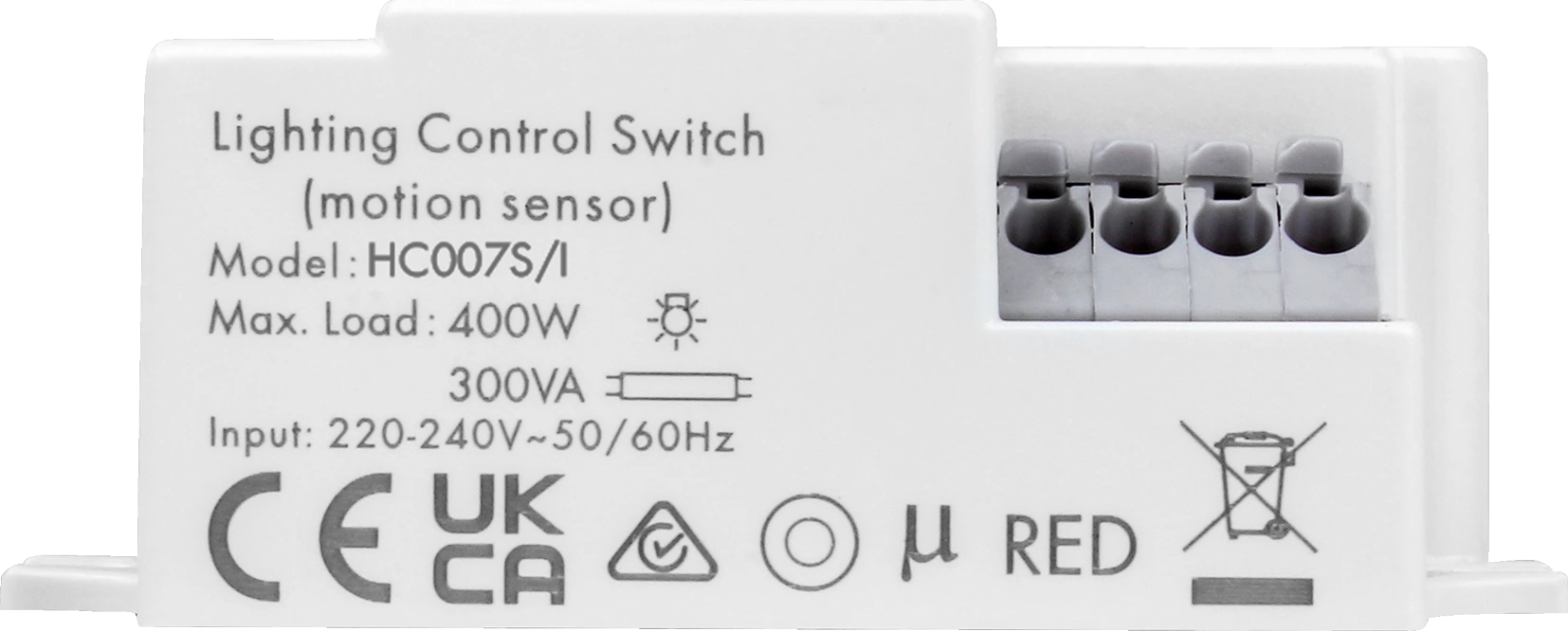

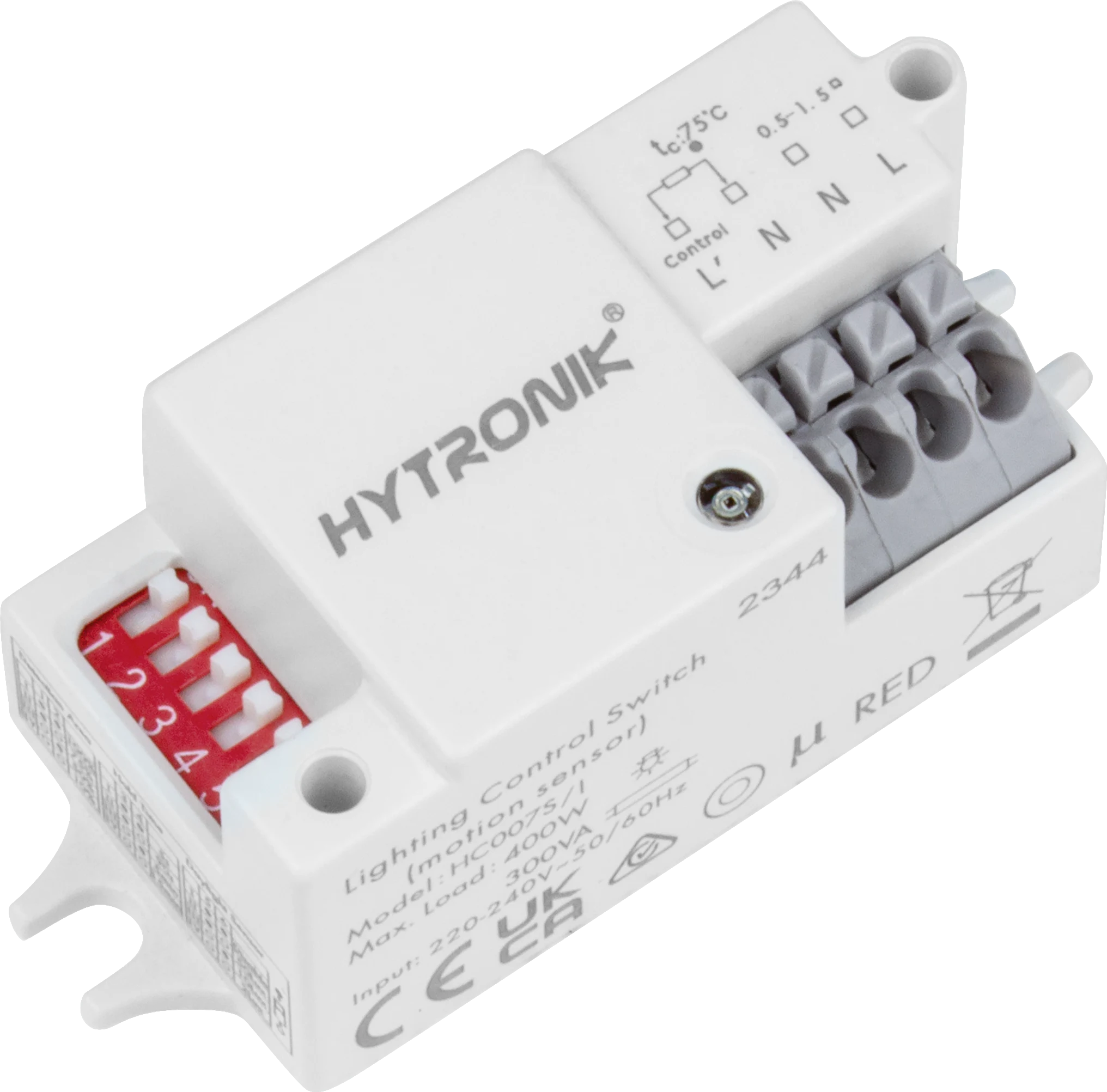

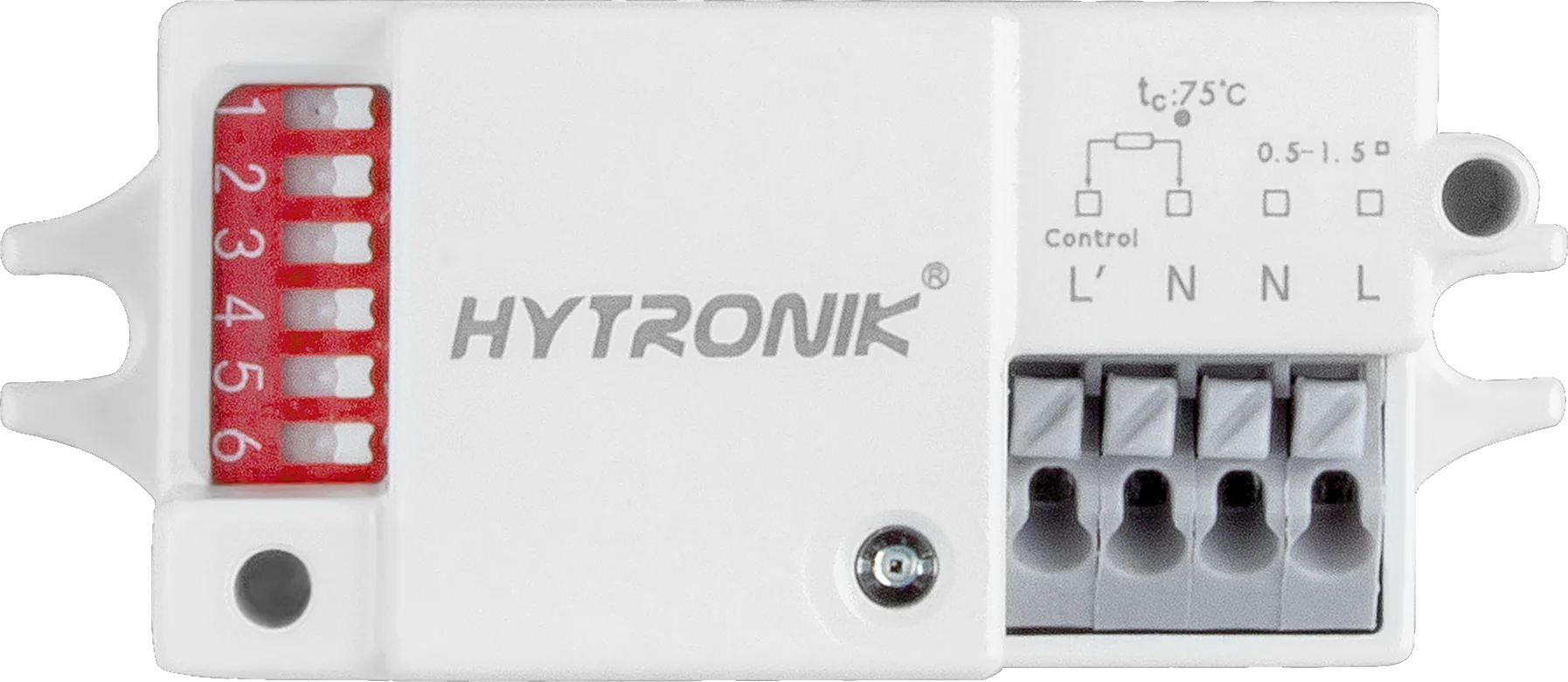

HC007S/I
HF Lowbay | ON/OFF via Dip-Switch | Photocell Advance
BENEFITS
- Compact: Super mini compact size - ON/OFF Sensor
- Robust: Zero crossing detection circuit for increased relay life
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC007S/I"
HC007S/I is am occupancy detector with on/off control suitable for indoor use.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Connector Type: | Standard 2 cables |
| Daylight Sensor Option: | Photocell Advance |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting Height: | Low-bay |
| Mounting hole: | 14.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 23.5000 mm |
| Product length: | 61.0000 mm |
| Product weight: | 30.0000 g |
| Product width: | 26.0000 mm |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 10 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc007s-i.pdf
