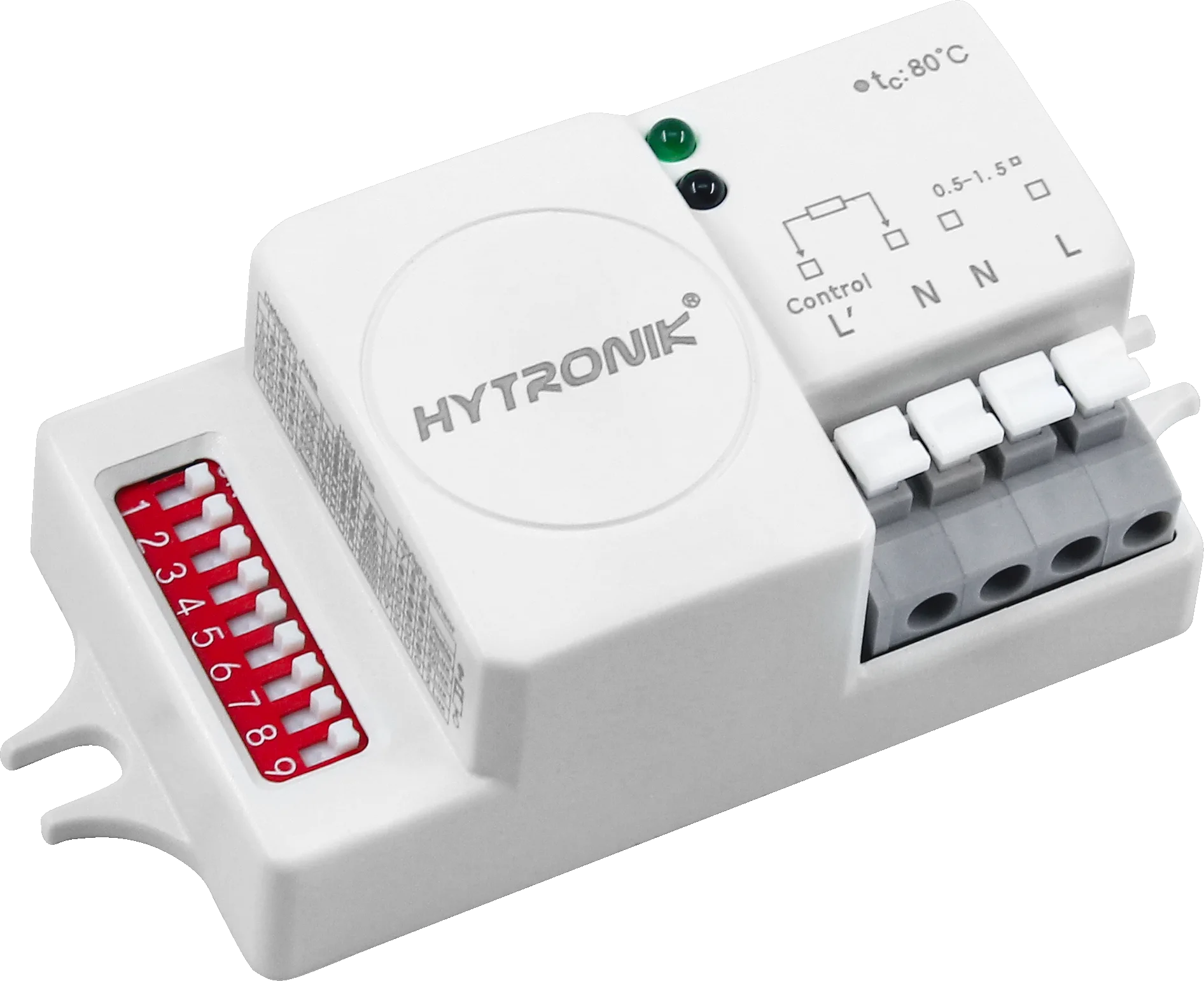

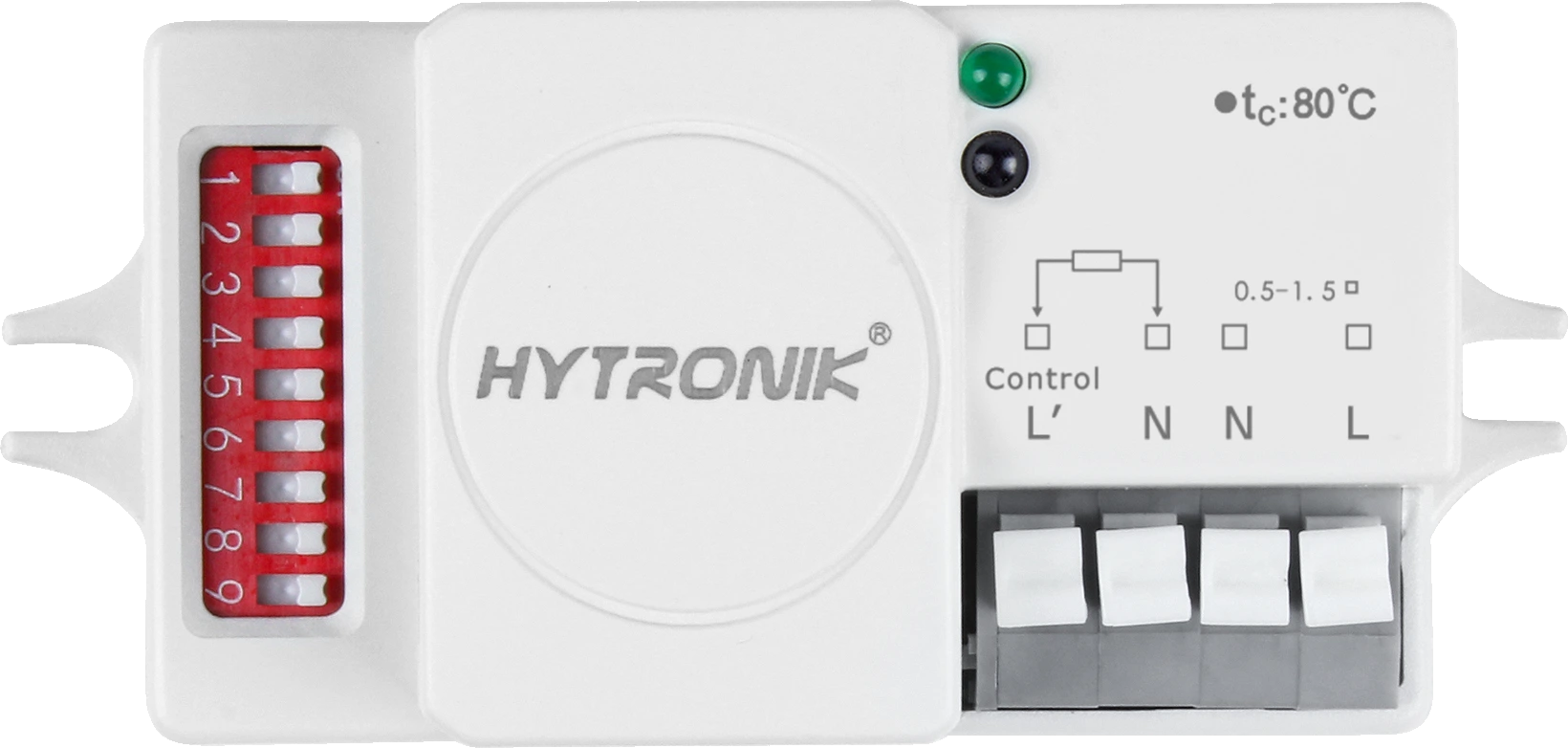

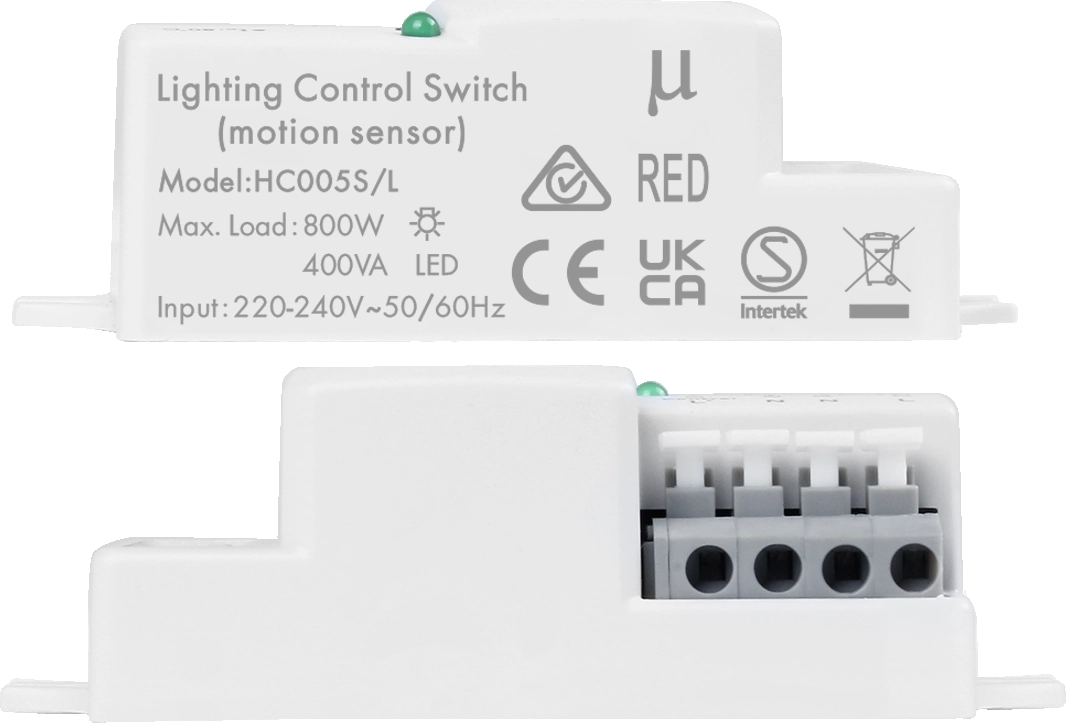

HC005S/L
HF Lowbay | ON/OFF via Dip-Switch | Special PD (IR only)
BENEFITS
- Compact: Super compact size - ON/OFF Sensor
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch
- Robust: Zero crossing detection circuit for increased relay life
APPLICATIONS
- For round shape luminaire with a height of up to 6m
- Office / Meeting rooms
- Schools / Classroom
Product information "HC005S/L"
The HC005S/L is a built-in sensor with On/Off control and relay output. It features a robust HF antenna design to minimize wireless interference and a specialized photodiode that reads infrared (IR) light only for daylight sensing. Sensor settings are easily adjustable via DIP-Switches. The device supports both horizontal and vertical screw mount orientations, with horizontal as the default.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | -35 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 26.0000 mm |
| Product length: | 80.5000 mm |
| Product weight: | 30.0000 g |
| Product width: | 36.5000 mm |
| Storage temperature max.: | 50 °C |
| Storage temperature min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 10 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc005s-l.pdf
