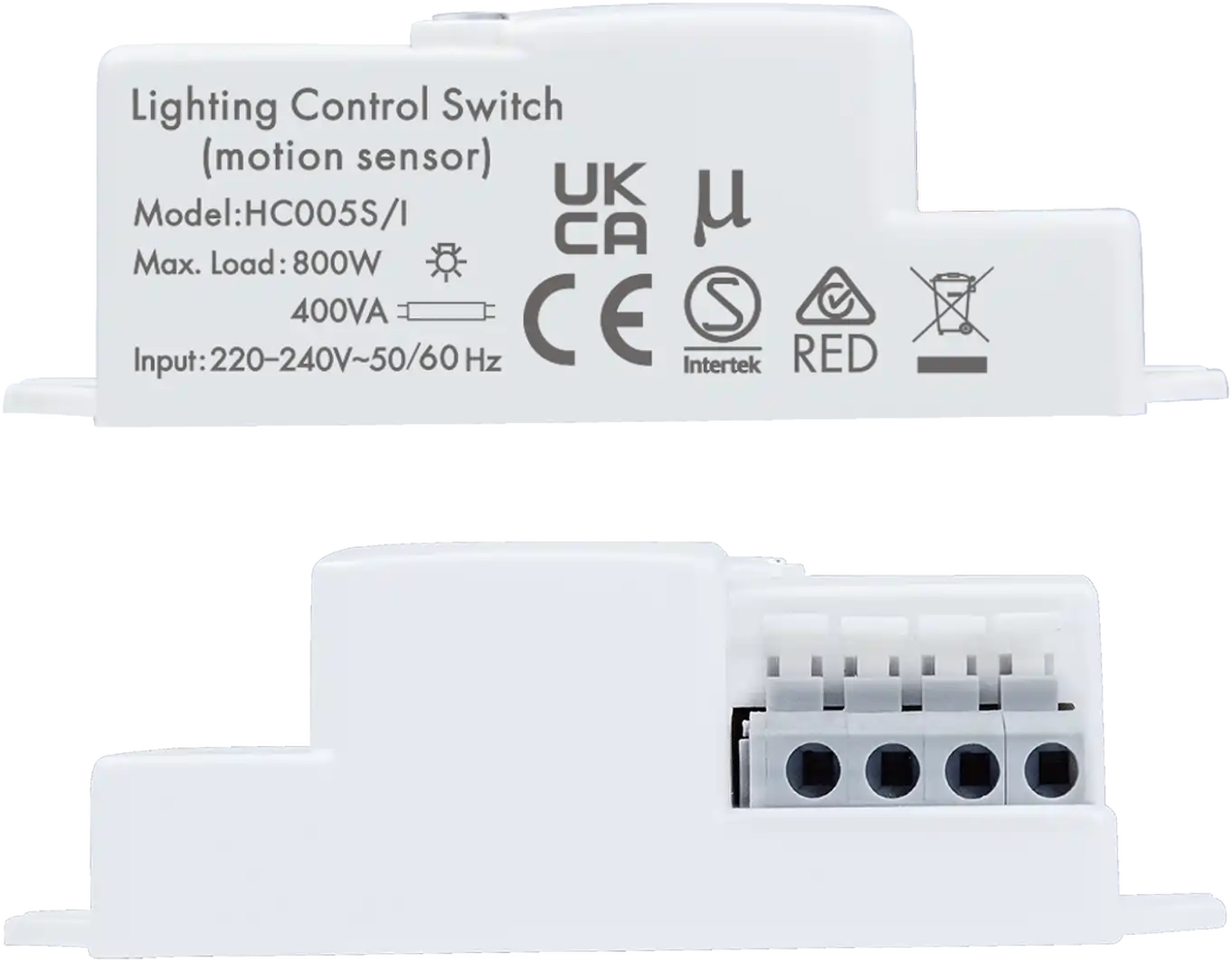

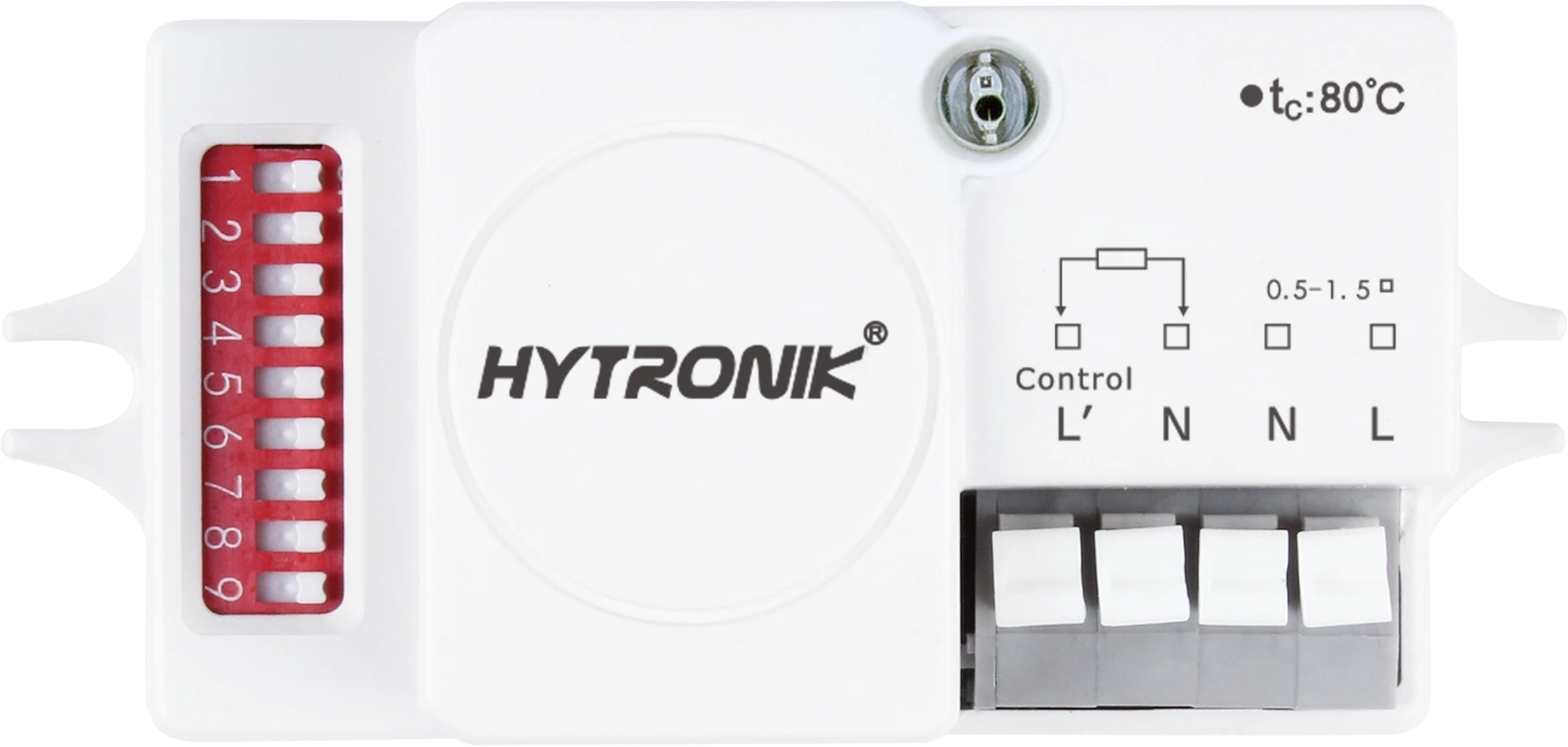

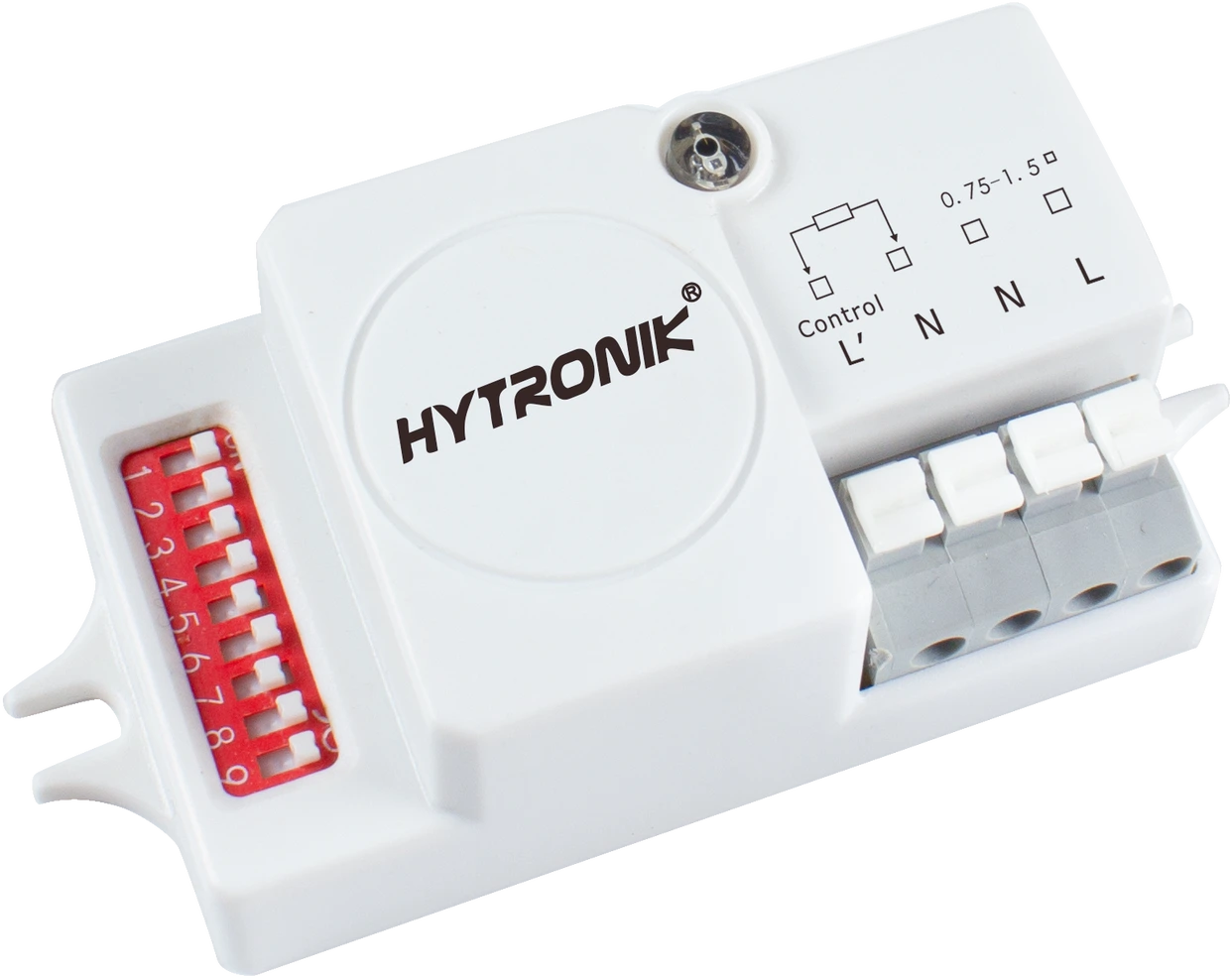

HC005S/I
HF Lowbay | ON/OFF via Dip-Switch | Photocell Advance
BENEFITS
- Compact: Super compact size - ON/OFF Sensor
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch
- Robust: Zero crossing detection circuit for increased relay life
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC005S/I"
HC005S/I is a HF motion sensor with on/off control, it is design with a super mini compact size and ideal for new luminaire designs and project installations. With special photocell, HC005S/I can measure and differentiate natural light from LED light from behind the fixture cover. Moreover，the robust design prevent wireless signal interference such as Wi-Fi, GSM tower, ultra-high-voltage cable etc.
| Ambient temperature max.: | 70 °C |
|---|---|
| Ambient temperature min.: | 35 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 10x3 |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220-240VAC 50/60Hz |
| Product height: | 23.8000 mm |
| Product length: | 80.5000 mm |
| Product weight: | 30.0000 g |
| Product width: | 36.5000 mm |
| Push Button Input: | |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Zhaga: | No |
