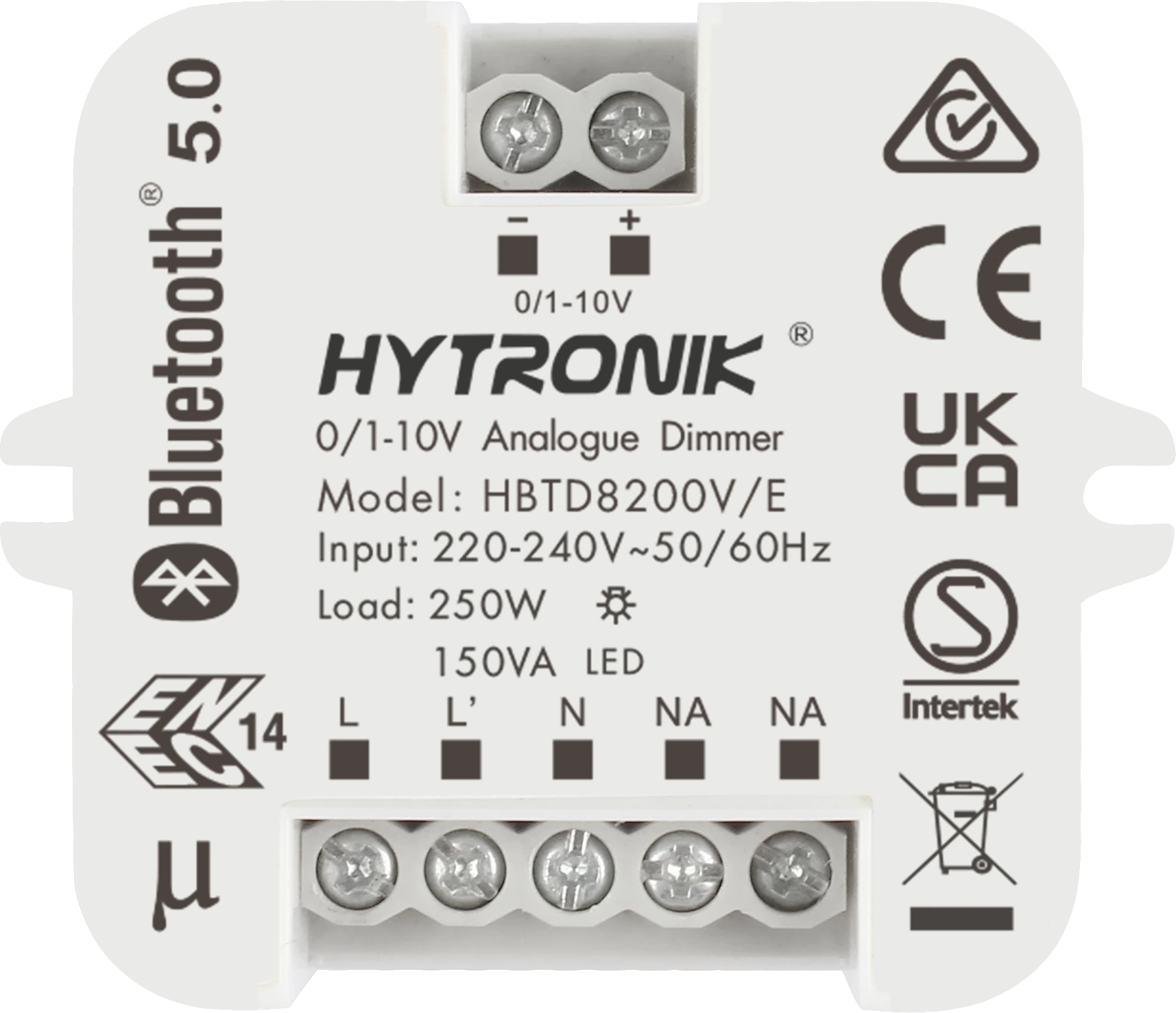

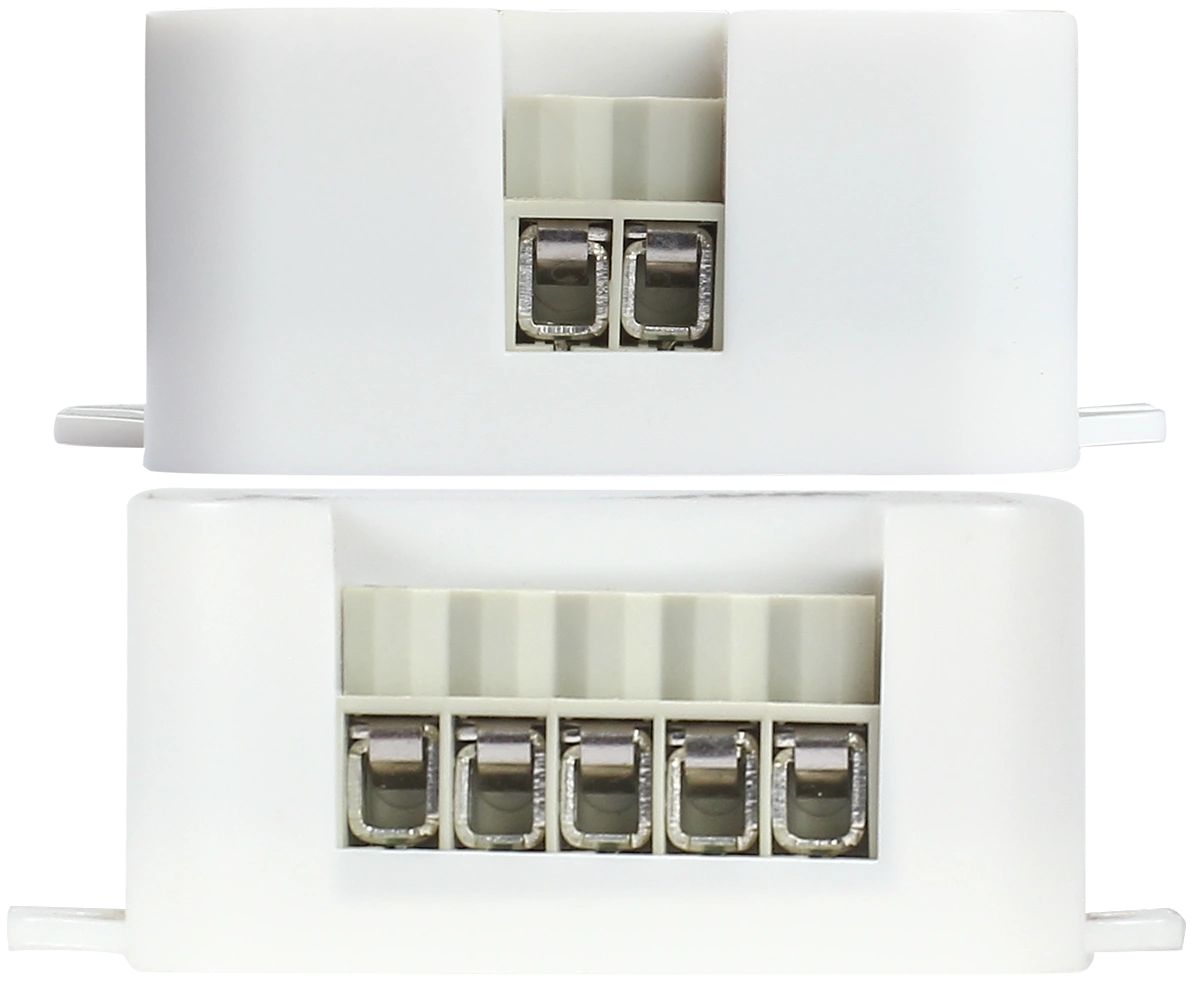

HBTD8200V/E
Bluetooth Receiver | 0/1-10V | Screw Mounting
BENEFITS
- Compact: Two screw holes to be built inside luminaires
- Simple: 0/1-10V dimming control
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Built-in luminaires
- Offices, Classrooms
- Industry and Healthcare Spaces
Product information "HBTD8200V/E"
HBTD8200V/E is a Bluetooth to 0/1-10V dimmer that allows dimming control and scene recall for 0-10V or 1-10V drivers via an app. Whether for new installations or retrofitting existing projects, the HBTD8200V/E enables the addition of smart control to standard lighting fixtures.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Application Type: | Controller for Built-in Luminaire |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Dimming (Output) Interface: | 0/1-10V |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Operating voltage range: | 220-240VAC 50Hz |
| Output Voltage: | 220-240VAC 50Hz |
| Product height: | 22.0000 mm |
| Product length: | 46.0000 mm |
| Product weight: | 34.0000 g |
| Product width: | 58.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 80 °C |
| Storage temperature min.: | -10 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: hbtd8200v-e.pdf
