DS06
Daylight Sensor | Daylight Harvest & ON/OFF Control | Photocell Advance
BENEFITS
- Adaptable: Small unit with photocell advance
- 2 in 1: Daylight Harvest + automatic on/off operation
- Easy: Dayligh settings via IR controller/with PUSH terminal
APPLICATIONS
- Built-in luminaire
- Office / Meeting rooms
- Schools / Classroom

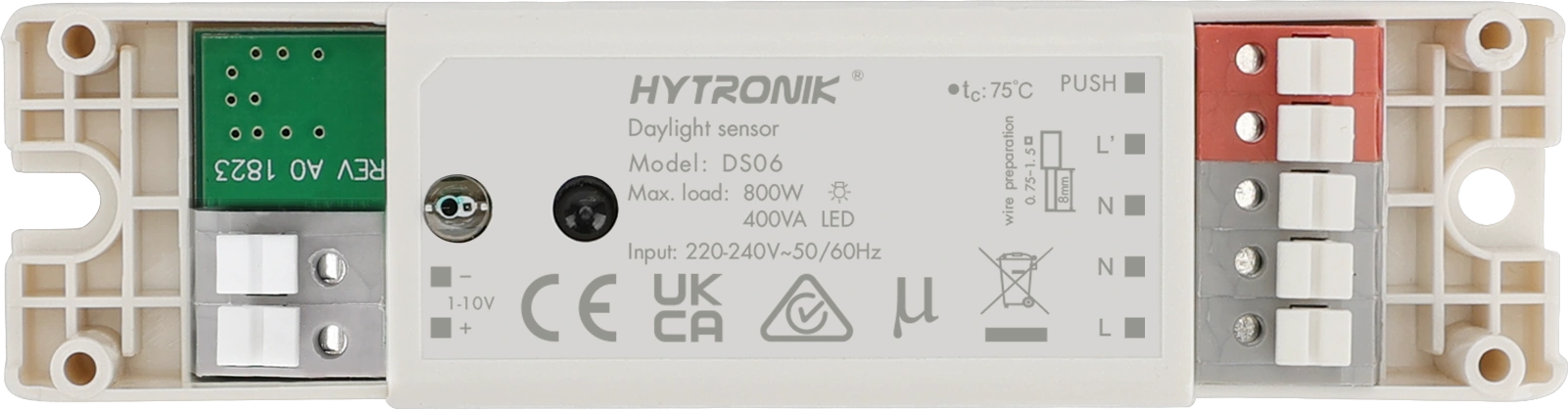

Product information "DS06"
These daylight sensor can built
inside the fixture completely. The fixture is effectively controlled by the
Photocell Advance daylight sensor, automatic on/off operation based
upon daylight.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |

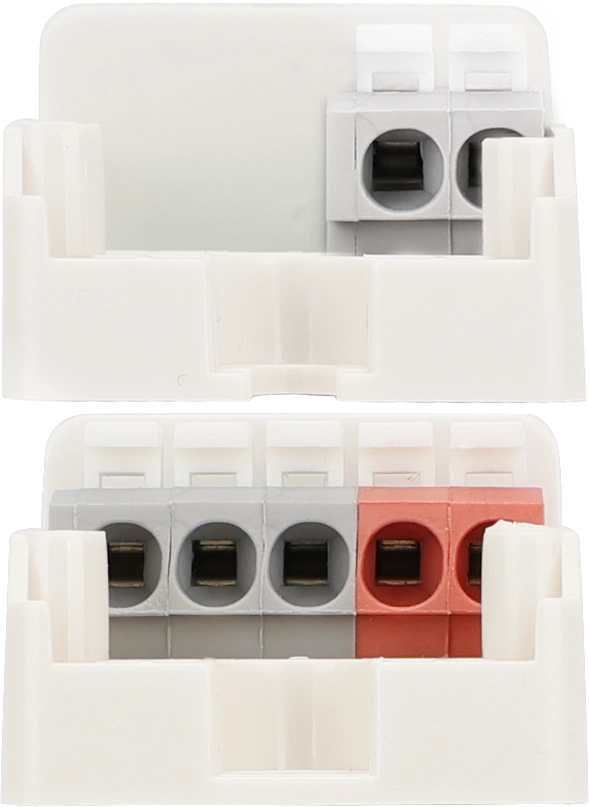

| Connector Type: | Standard 2 cables |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | No motion (Daylight Only) |
| Detection angle: | 360° |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Mounting hole: | 4.5000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 21.0000 mm |
| Product length: | 120.0000 mm |
| Product weight: | 50.0000 g |
| Product width: | 30.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: ds06.pdf
