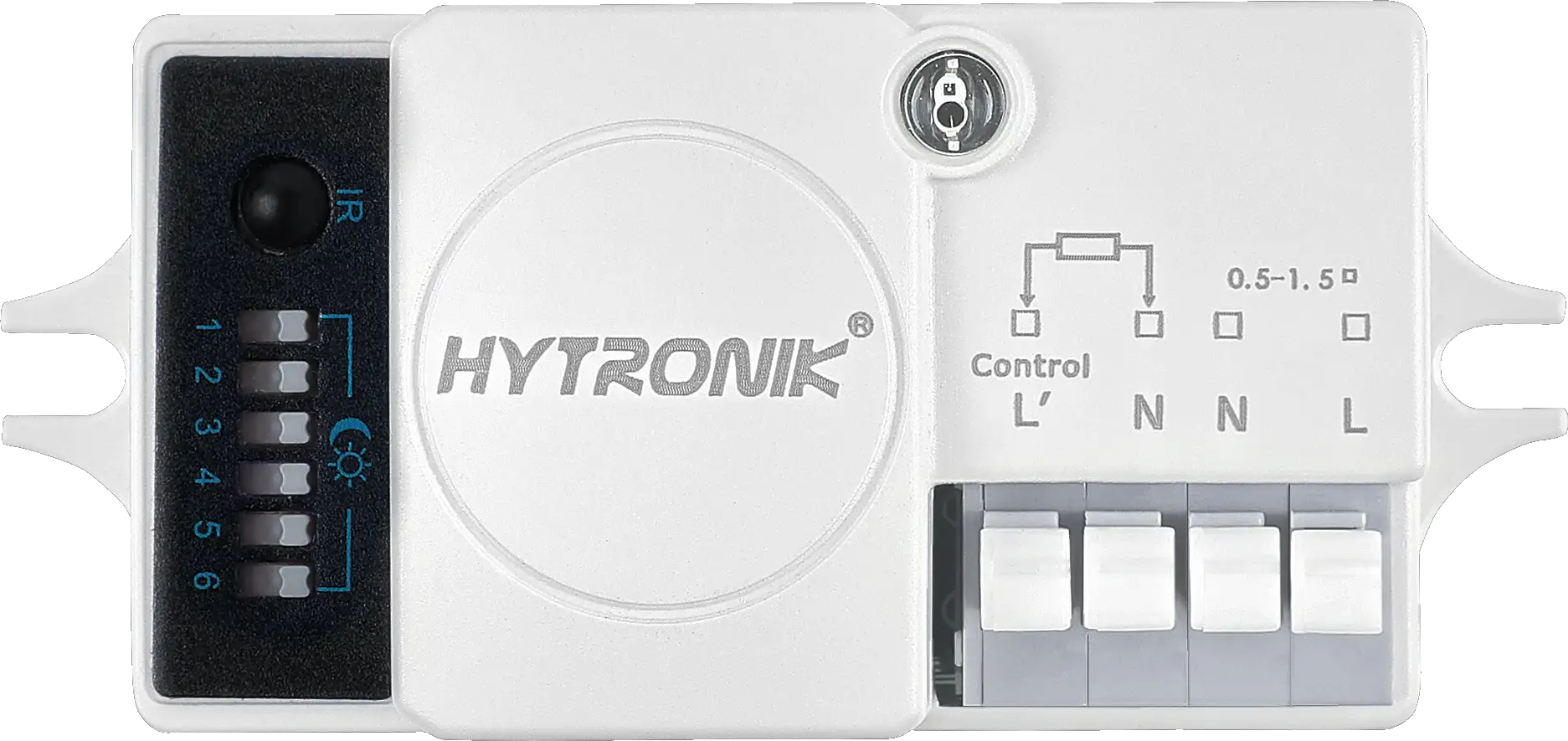

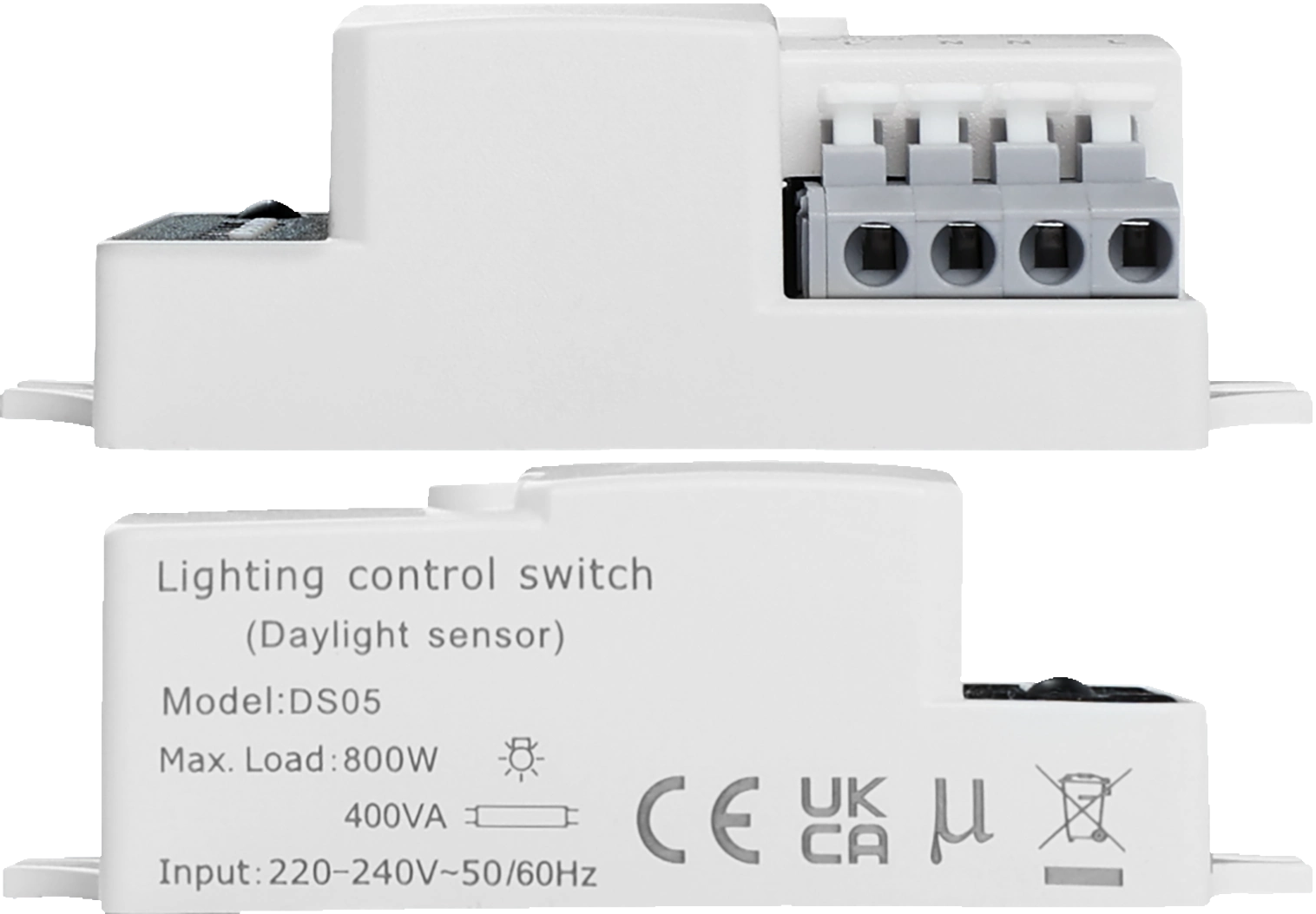

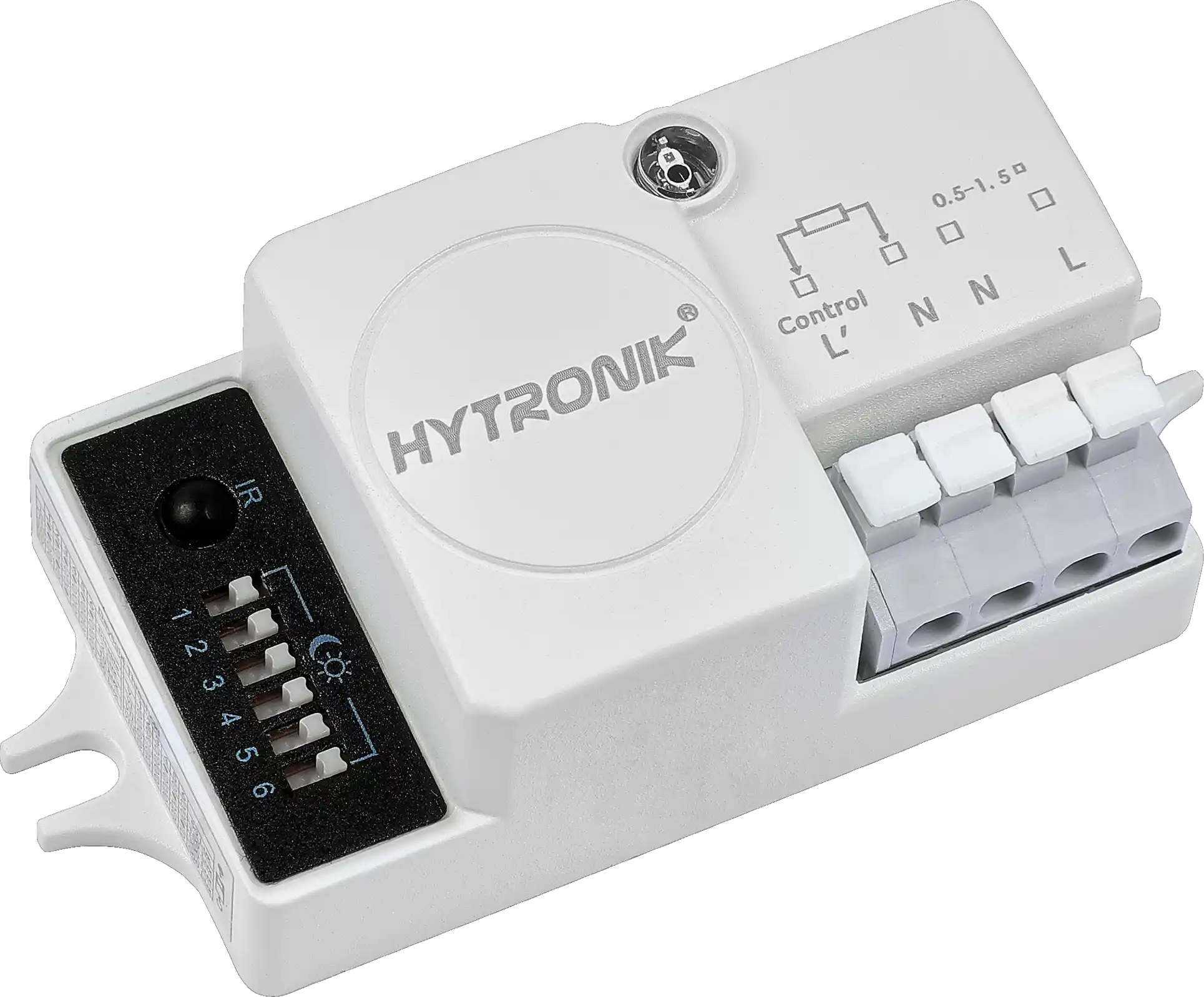

DS05
Daylight Sensor | ON/OFF | Photocell Advance
BENEFITS
- Compact: Super compact size - ON/OFF Daylight Sensor
- Adaptive: Automatic on/off operation based on daylight threshold
- Easy: Dayligh settings via Dip-Switch/IR controller
APPLICATIONS
- Integrated in luminaire
- Office / Meeting rooms
- Schools / Classroom
Product information "DS05"
DS05 can built inside the fixture completely. The fixture is effectively controlled by the Photocell AdvanceTM daylight sensor, automatic on/off operation based upon daylight.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | No motion (Daylight Only) |
| Detection angle: | 30° - 150° |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Lens type: | Standard Low-bay |
| Load capacitive: | 400.0000 VA |
| Load resistive: | 800.0000 W |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240VAC 50Hz |
| Product height: | 24.9000 mm |
| Product length: | 80.5000 mm |
| Product weight: | 34.0000 g |
| Product width: | 36.5000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: ds05.pdf
