HIR15V/BLE
PIR Highbay | Bluetooth/1-10V | Zhaga Book 18 Standard
Vorteile
- Compact: Small IP65 1-10V Zhaga Book 18 sensor
- All-in-one: Occupancy, Daylight and Circadiam Rhythm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN

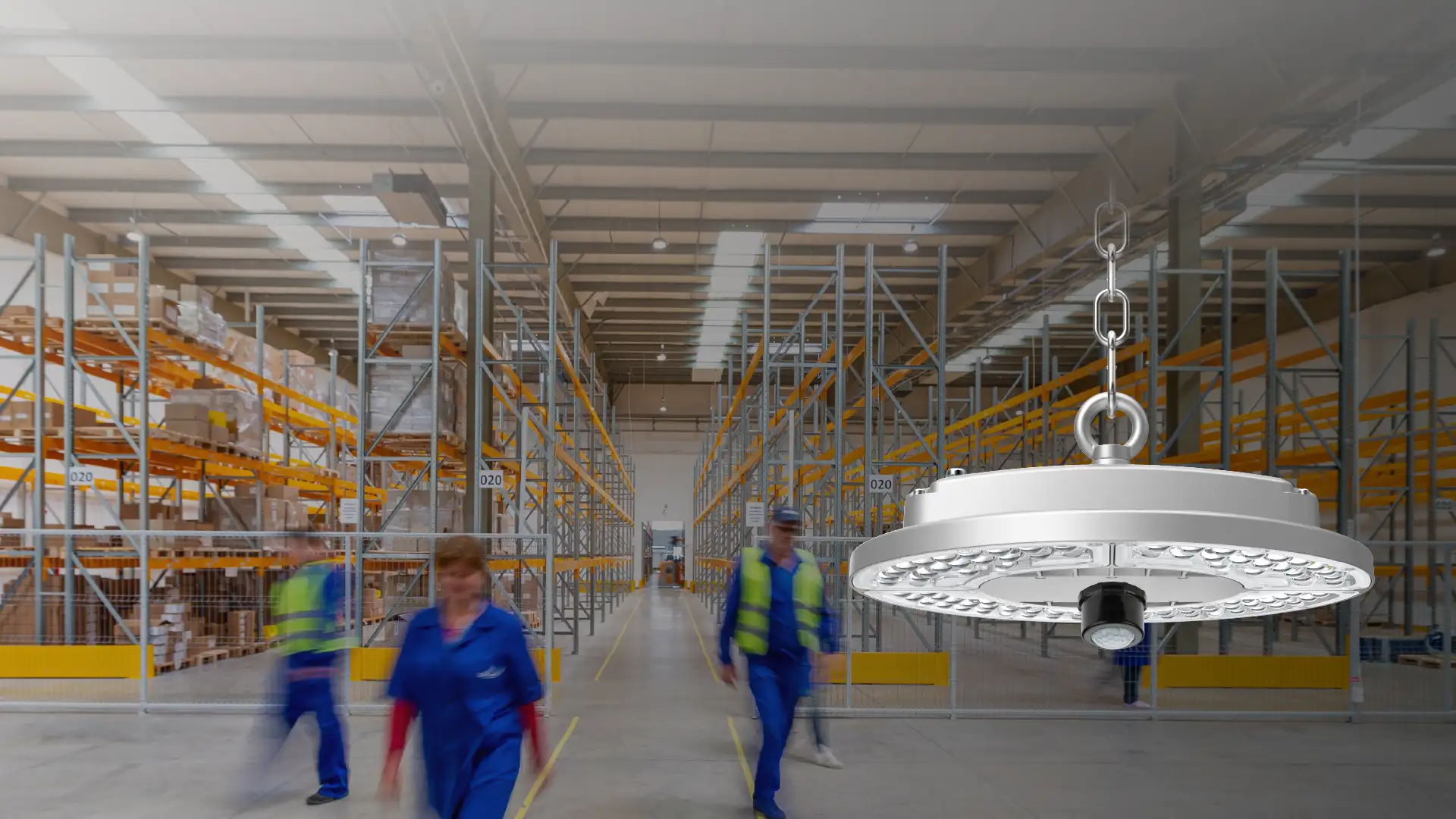

- For highbay luminaire up to 12m height
- Warehouse/ Logistic
- Outdoor/Street lights
Produktinformationen "HIR15V/BLE"

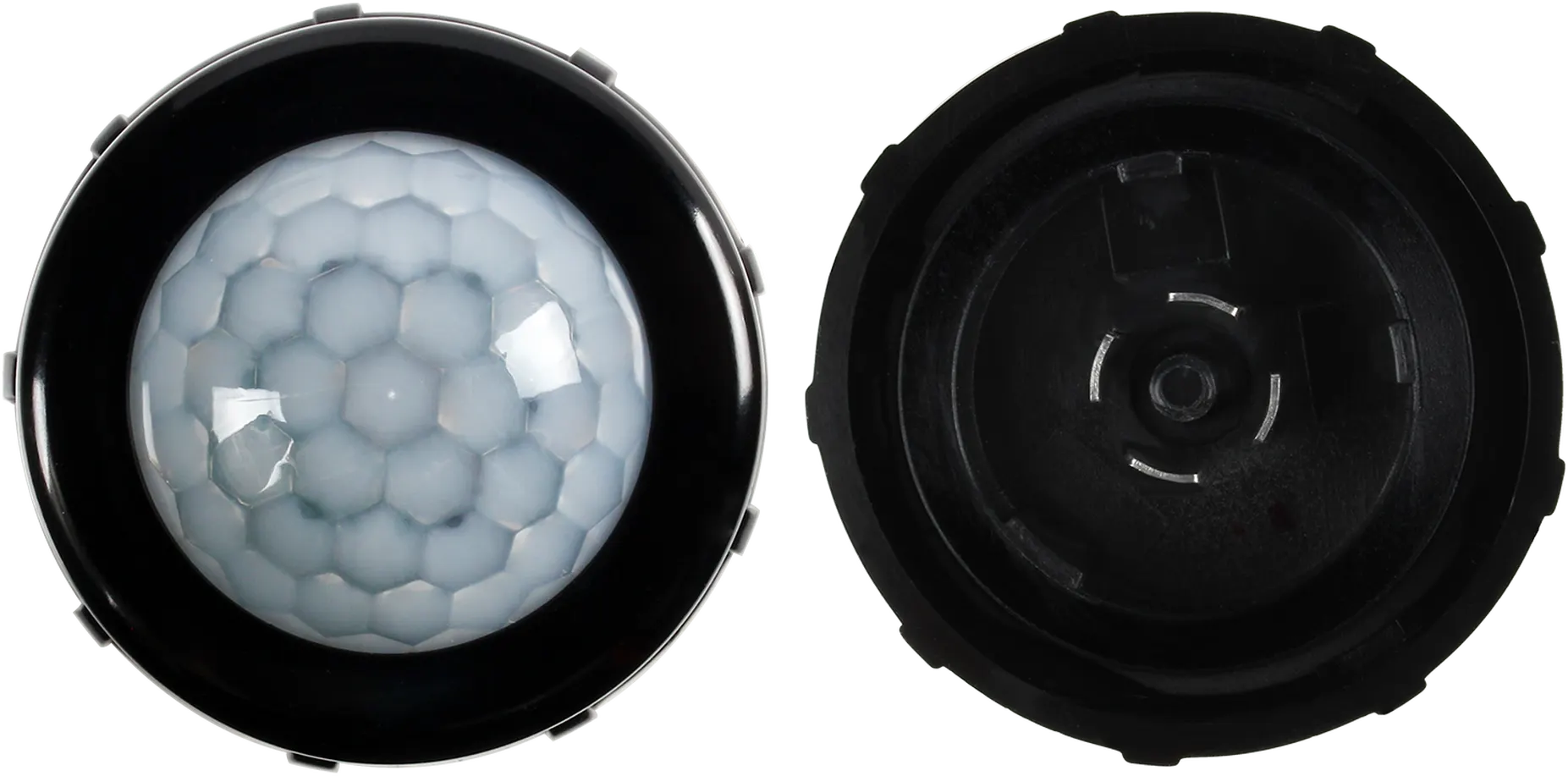

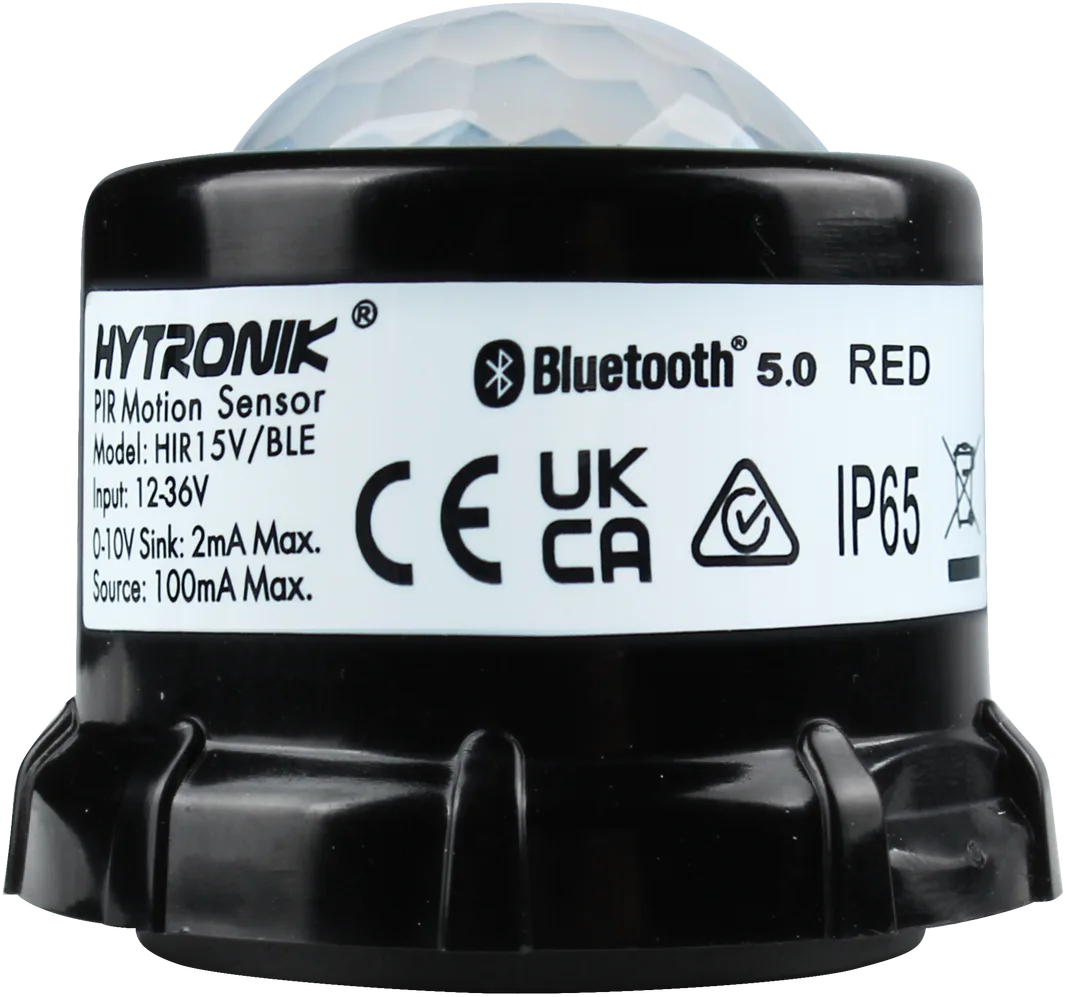

HIR15V/BLE is a Bluetooth PIR motion sensor with 0-10V output and compatible with the Zhaga book 18 standard. It is designed with a robust IP65 structure and the capability can be up to 12m installation height, which is ideal for the typical outdoor lamp (such as a streetlight). HIR15V/BLE is embedded with a Bluetooth module to achieve dimming control and colour tuning. The Bluetooth wireless mesh networking makes communication much easier without any hardwiring, which eventually adds value to luminaires and saves costs for projects. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
Anschlusstyp: | Zhaga book 18 |
---|---|
Ausgangsschnittstelle: | 0/1-10V |
Ausgangsspannung: | 0 - 10 V |
Befestigungsloch: | 50.4000 mm |
Betriebsspannung: | 12 - 36 VDC |
Bluetooth Frequenz: | 2.4 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Daylight Harvest: | Ja |
Detection angle: | 360° |
Detektionsverfahren: | Passive Infrared (PIR) |
Erfassungsbereich (DxH): | 20x12 |
Erforderlicher DALI-Strom: | 20.0000 mA |
Features: | Daylight Harvest, Tri-level (Corridor Function) |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 10 % |
Human Centric Lightning (HCL): | Ja |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Built-in, Zhaga |
Lagertemperatur: | 70 °C |
Lagertemperatur min.: | -40 °C |
Lens type: | High-bay |
Maximale Montagehöhe: | 12.0000 m |
Montagehöhe: | Mid-bay |
Product height: | 43.8000 mm |
Produkttiefe: | 50.4000 mm |
Schutzart: | IP65 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Taster Eingänge: | |
Tri-level (Korridorfunktion): | Ja |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | DC |
Zhaga: | No |
