HCD049/BT
PIR Highbay | Bluetooth DALI with PSU | Batten-fit/Bolt-on mount
Vorteile
- Adaptable: Removable shielding accessory for different detection ranges
- Innovative: Bluetooth PIR sensor with built-in DALI PSU
- Easy: Motion and Daylight harvest configuration via Koolmesh app
ANWENDUNGEN
- Batten-fit/Bolt-on mount style
- Wireless control integration

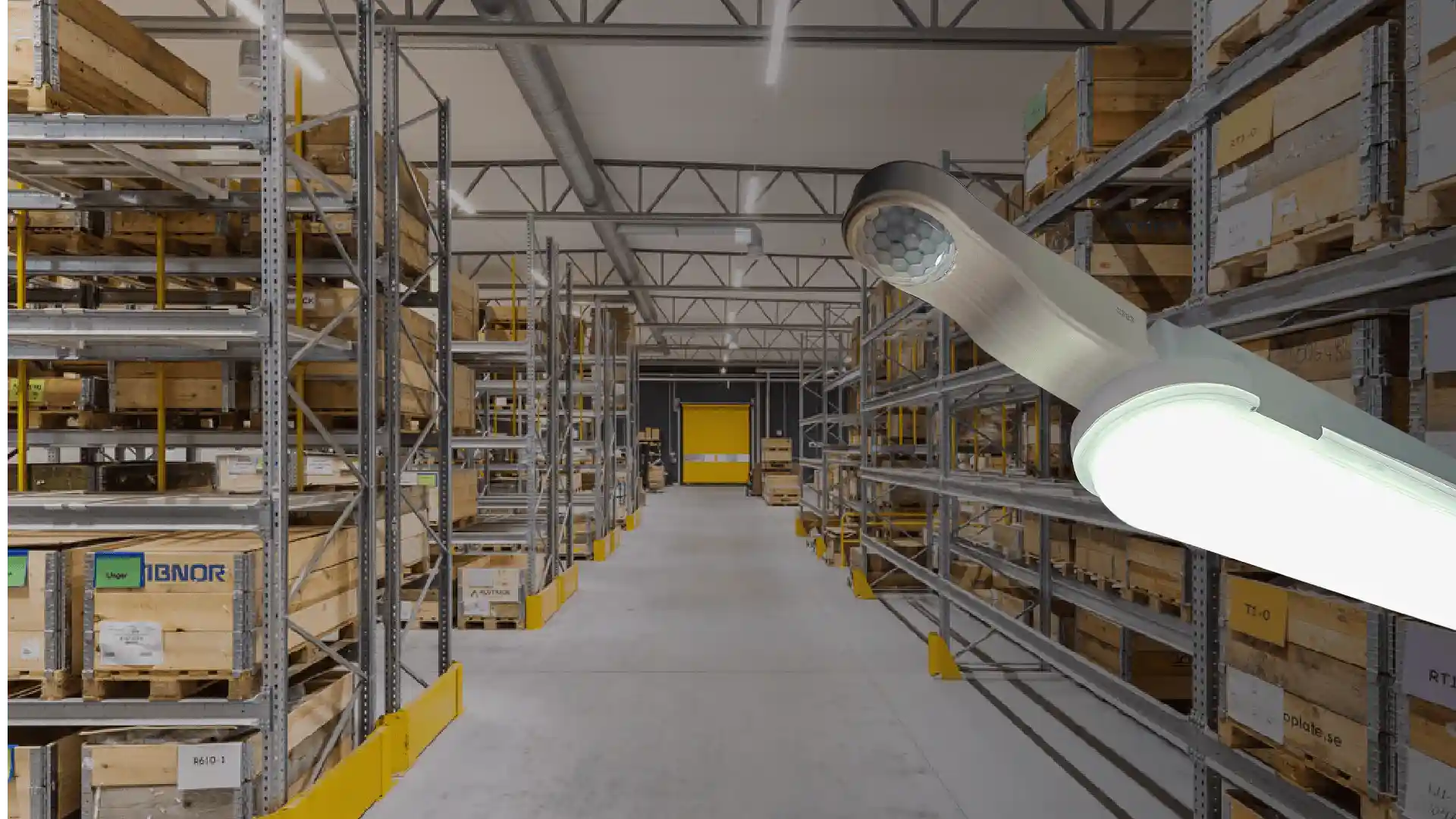

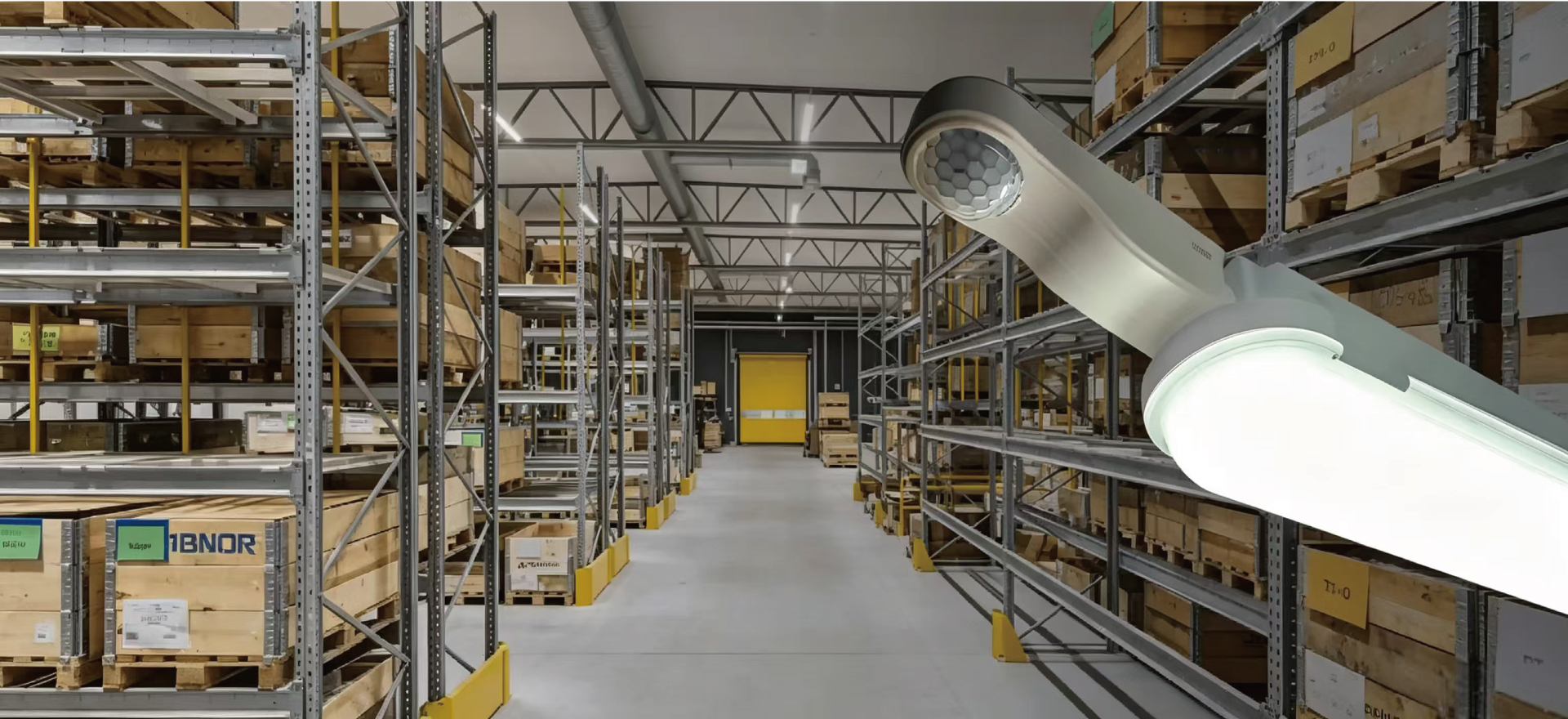

- Offices, Classrooms, Industry
Produktinformationen "HCD049/BT"

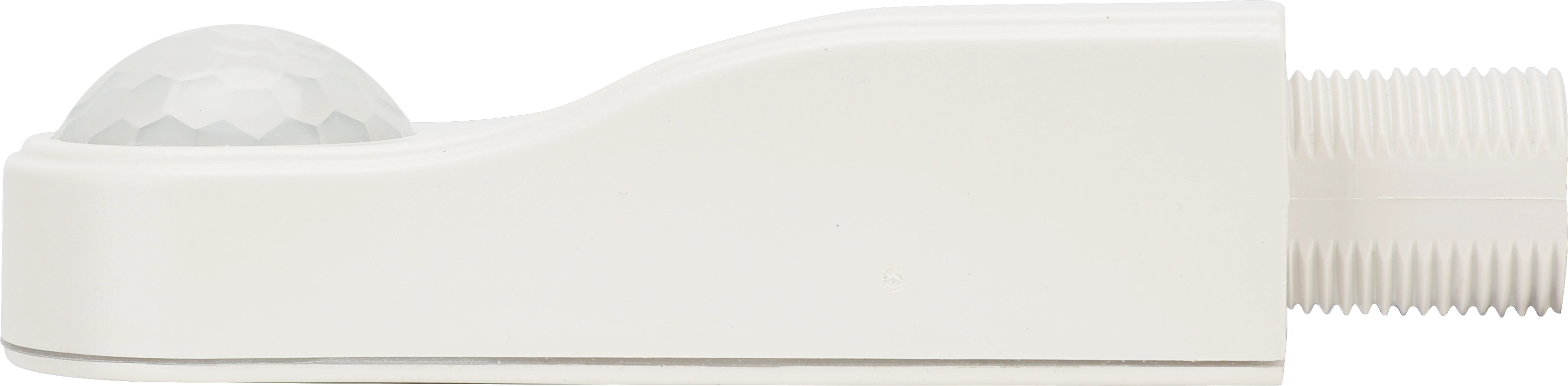

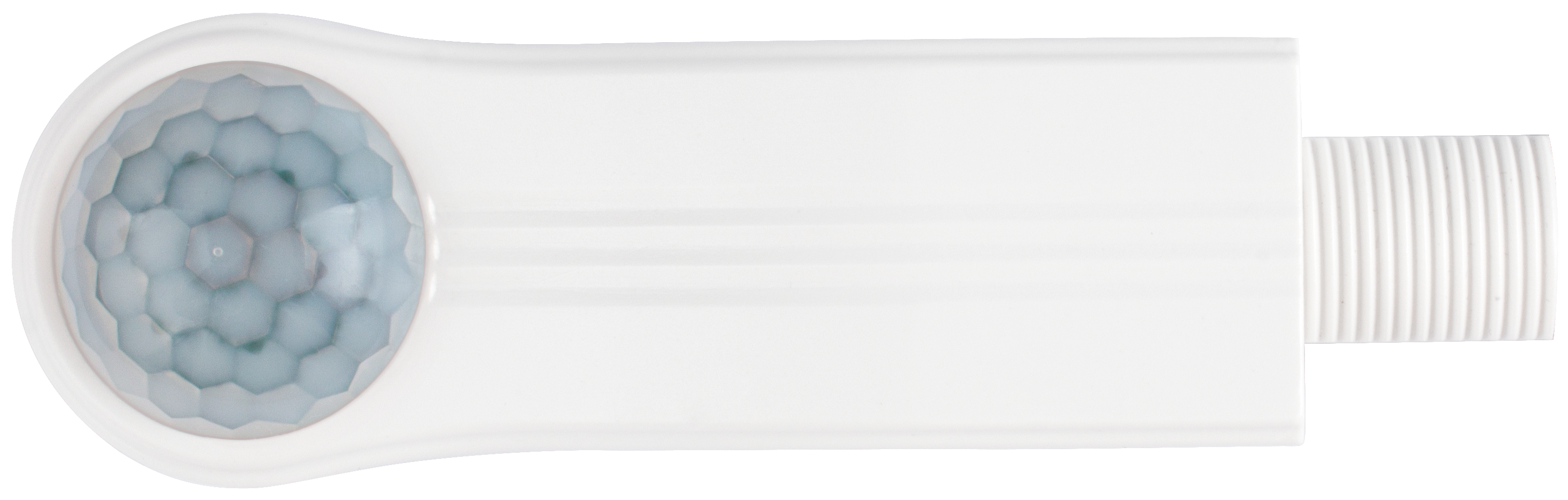

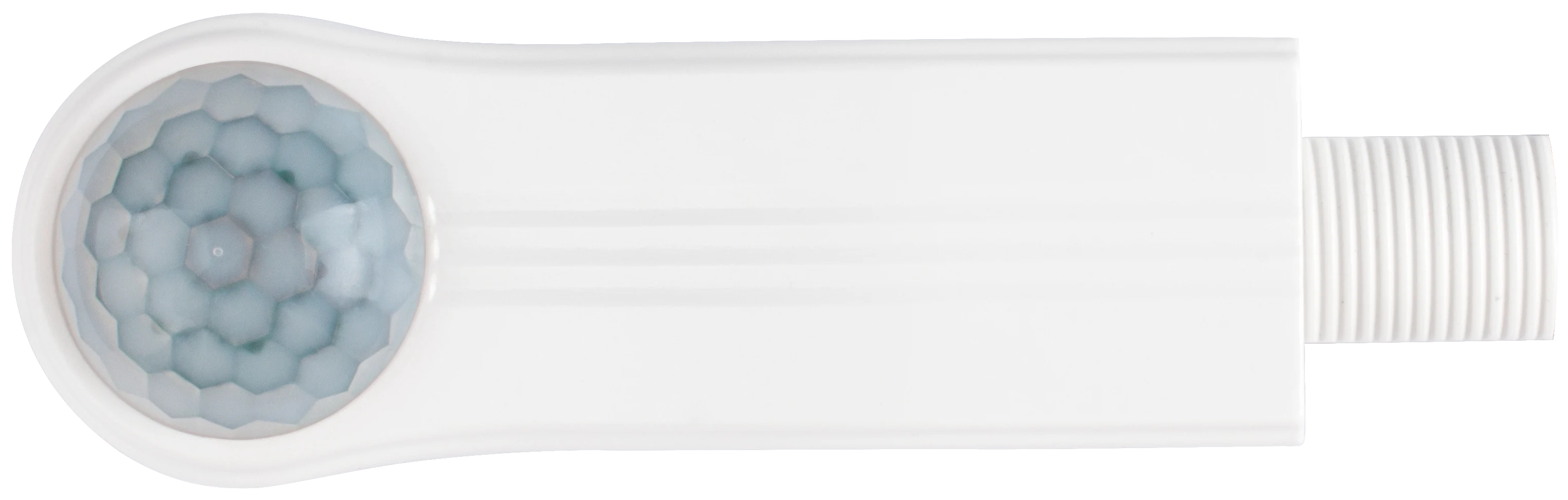

HCD049/BT is a Bluetooth DALI high-bay PIR motion sensor, with
capability of up to 15m installation height. HCD049/BT has a daylight
sensor built-in, and is specifically designed for mounting onto a batten style
luminaire. It is also designed for professional lighting manufactures who
would like to incorporate wireless control into their luminaires.
HCD049/BT is suitable for any typical indoor applications.
| Anschlusstyp: | Standard 2 cables |
|---|---|
| Ausgangsschnittstelle: | DALI-2 |
| Befestigungsloch: | 40.0000 mm |
| Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Bluetooth Technologie: | Nordic nRF52832 |
| DALI-2 D4i Type: | Typ D |
| Daylight Harvest: | Ja |
| Detection angle: | 360° |
| Detektionsverfahren: | Passive Infrared (PIR) |
| Erfassungsbereich (DxH): | 16x15 |
| Erforderlicher DALI-Strom: | 24.0000 mA |
| Features: | Daylight Harvest, Human Centric Lighting, Tri-level (Corridor Function) |
| Feuchtigkeit max: | 90 % |
| Feuchtigkeit min: | 10 % |
| Human Centric Lightning (HCL): | Ja |
| Inbetriebnahmemethoden: | App & Web (Bluetooth) |
| Installationstyp: | Batten Mount |
| Lagertemperatur: | 70 °C |
| Lagertemperatur min.: | -40 °C |
| Lens type: | High-bay |
| Maximale Montagehöhe: | 15.0000 m |
| Montagehöhe: | High-bay |
| Product height: | 28.2000 mm |
| Produktlänge: | 107.0000 mm |
| Produkttiefe: | 34.0000 mm |
| Schutzart: | IP65 |
| Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
| Taster Eingänge: | |
| Tri-level (Korridorfunktion): | Ja |
| Umgebungstemperatur: | 50 °C |
| Umgebungstemperatur min.: | -20 °C |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
