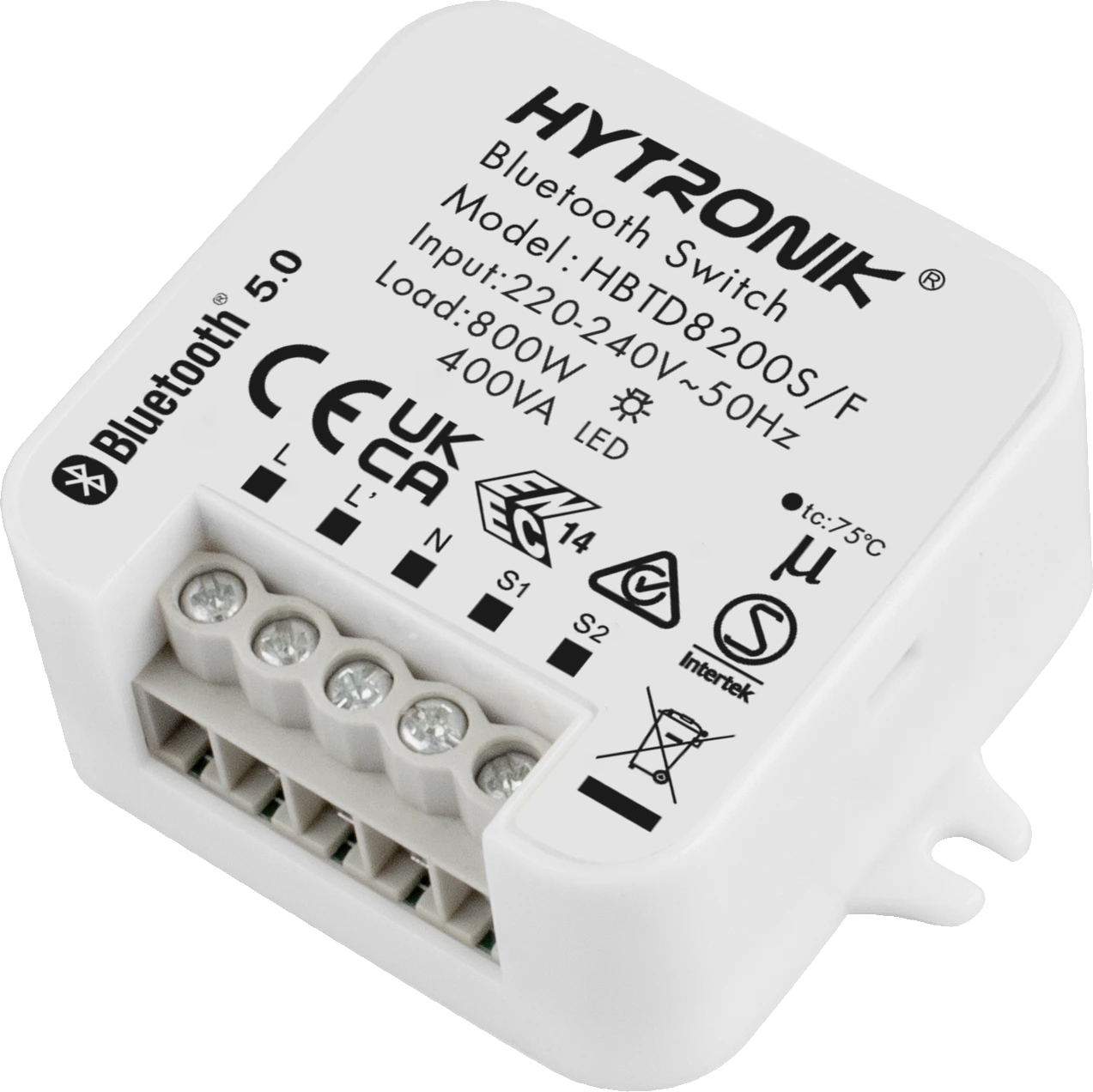

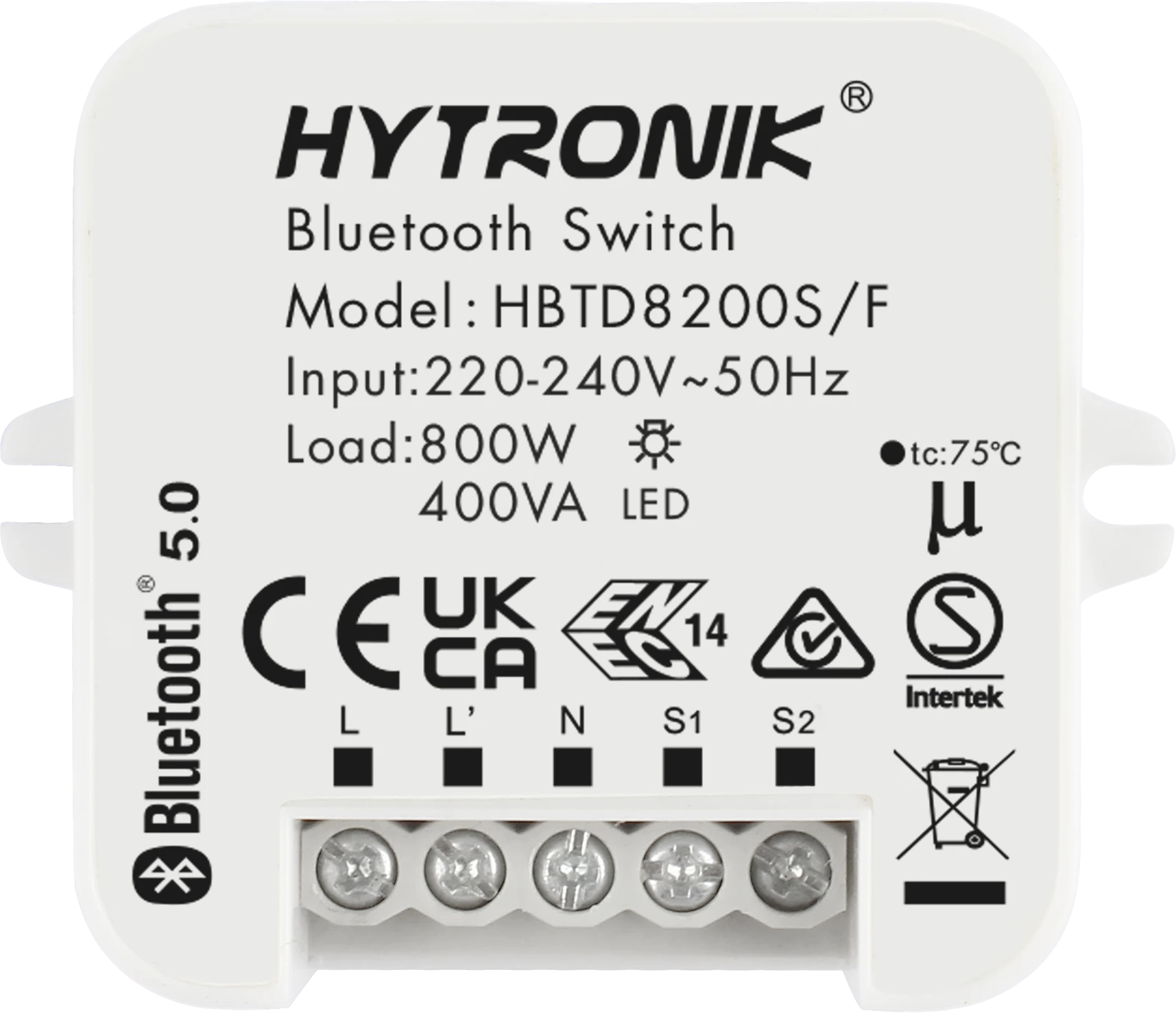

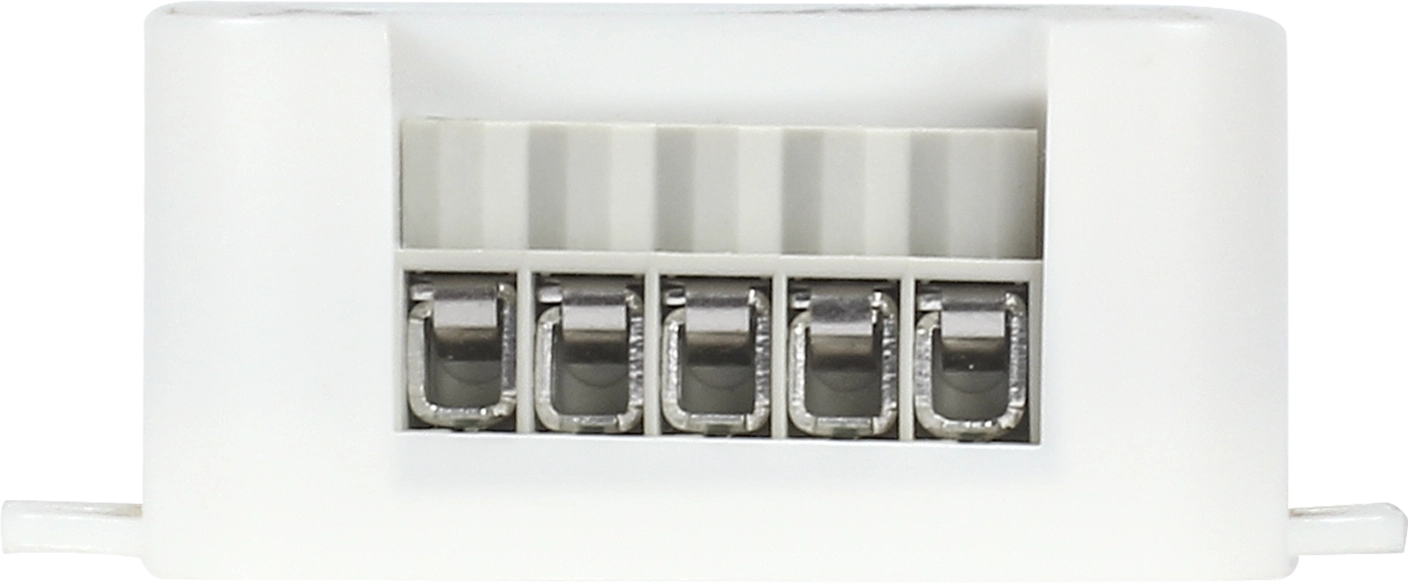

HBTD8200S/F
Bluetooth Receiver | Relay Control | Screw Mounting
Vorteile
- Compact: Two screw holes to be built inside luminaires
- Autonomous: On/off occupancy control for up to 800W
- Flexible: 2 Push inputs for manual control
ANWENDUNGEN
- Bluetooth receiver node
- Offices, Classrooms
- Offices, Classrooms, Industry and Healthcare Spaces
Produktinformationen "HBTD8200S/F"
HBTD8200/F series are designed as Bluetooth built-in
receiver node. They can be used alongside our Bluetooth
motion sensor range as Bluetooth receiver nodes. Or, they can
also be used solely as Bluetooth control unit for each luminaire.
Whether for home use, commercial or industrial applications,
HBTD8200/F series does it all. Simple device setup and
commissioning can be done via Koomesh app.
Application Type: | Controller for Built-in Luminaire |
---|---|
Ausgangsschnittstelle: | Relais On/Off |
Betriebsspannung: | 220 - 240 VAC 50/60 Hz |
Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 7 dBm |
Bluetooth System: | Koolmesh |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 20 % |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Lagertemperatur: | 60 °C |
Lagertemperatur min.: | -10 °C |
Product height: | 22.0000 mm |
Produktlänge: | 58.0000 mm |
Produkttiefe: | 46.0000 mm |
Schutzart: | IP20 |
Taster Eingänge: | 2 |
Umgebungstemperatur: | 45 °C |
Umgebungstemperatur min.: | -20 °C |
Zhaga: | No |
