SAM15V/BLE
HF Highbay | Bluetooth/1-10V | Zhaga Book 18 Standard
Vorteile
- Compact: Small IP65 1-10V Zhaga Book 18 sensor
- All-in-one: Occupancy, Daylight and Circadiam Rhythm
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN

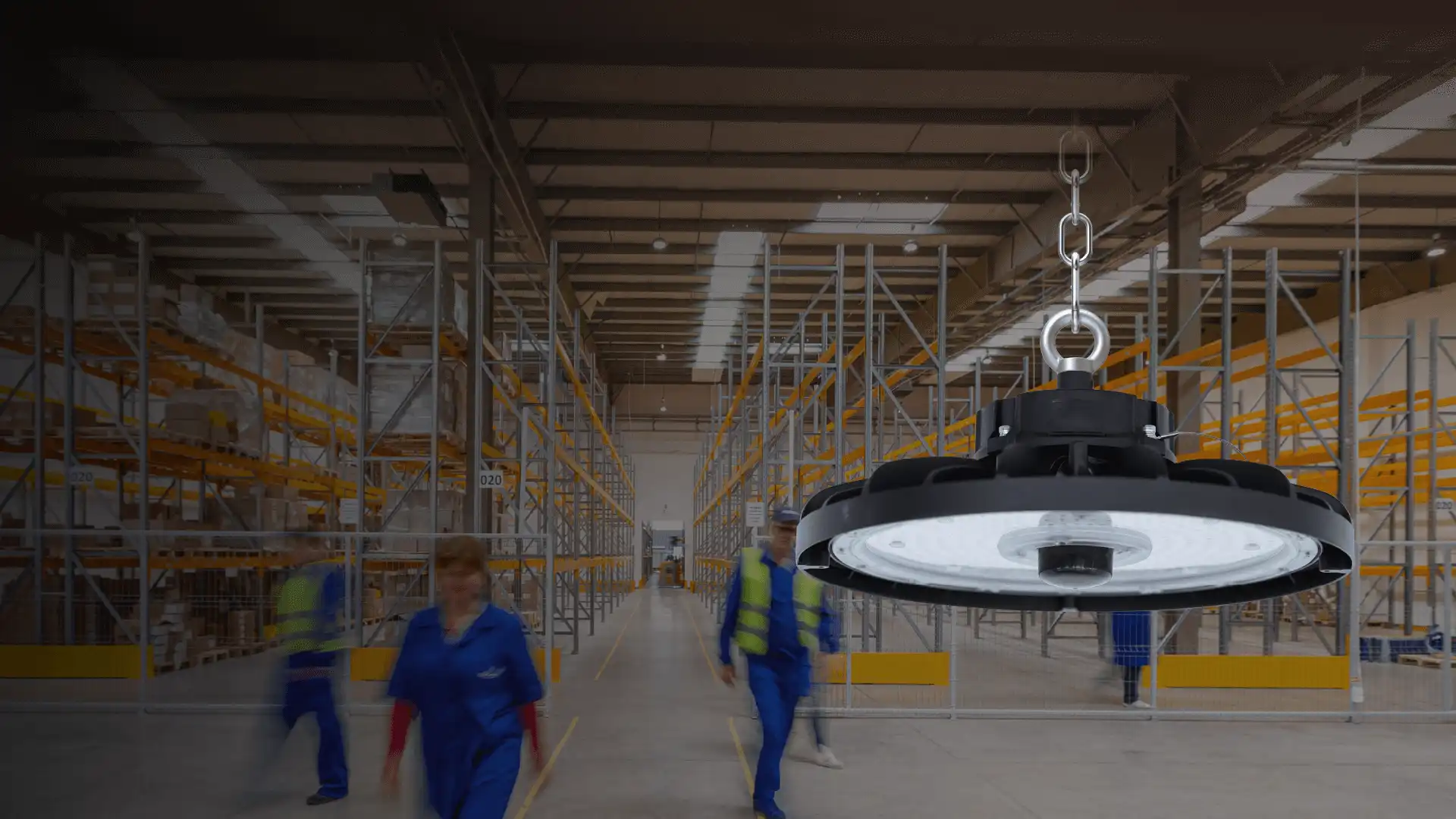

- For highbay luminaire up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights
Produktinformationen "SAM15V/BLE"

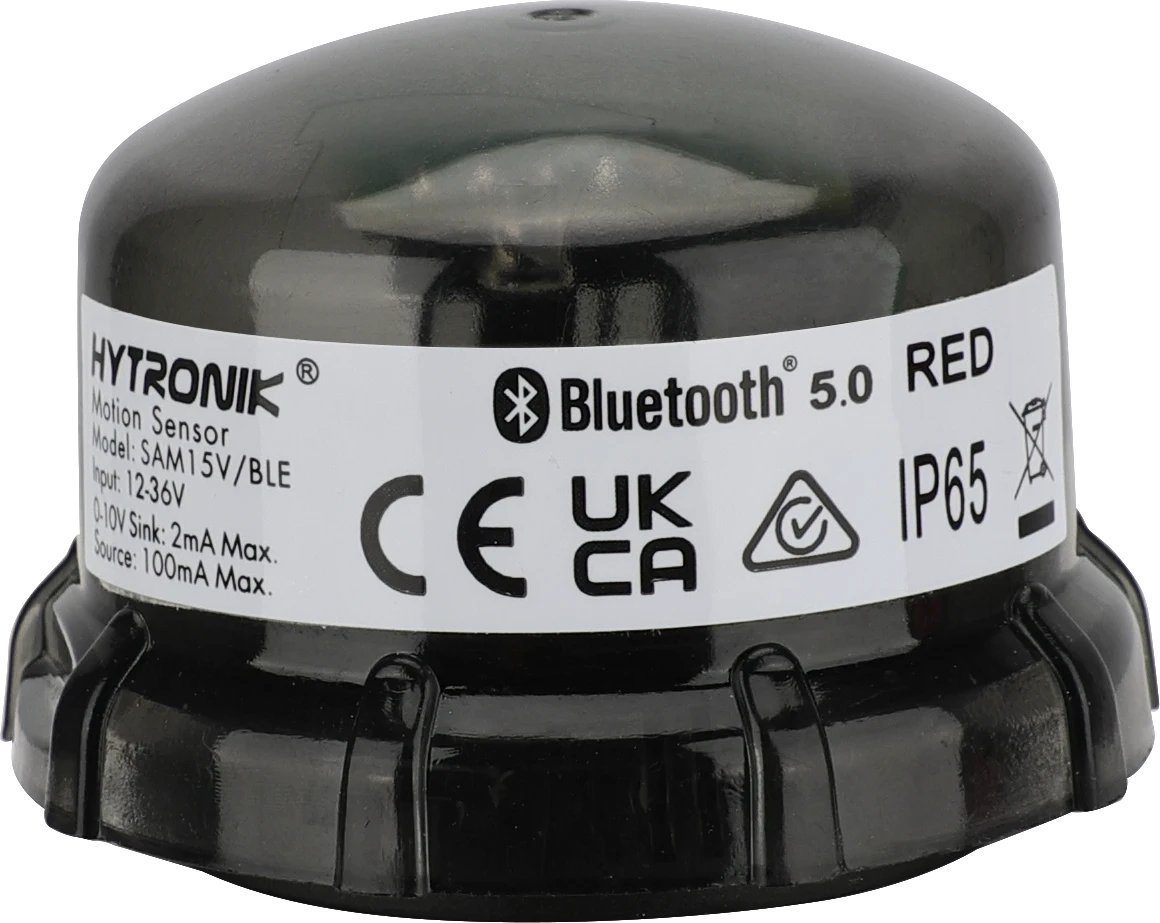

Product Description SAM15V/BLE is a Bluetooth HF motion sensor with 0 -10V output and compatible with the Zhaga book 18 standard. It is designed with a robust IP65 structure and the capability can be up to 15m installation height, which is ideal for the typical outdoor lamp (such as a streetlight). SAM15V/BLE is embedded with a Bluetooth module to achieve dimming control and colour tuning. The Bluetooth wireless mesh networking makes communication much easier without any hardwiring, which eventually adds value to luminaires and saves costs for projects. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.
Anschlusstyp: | Zhaga book 18 |
---|---|
Ausgangsschnittstelle: | 0/1-10V |
Ausgangsspannung: | 0 - 10 V |
Betriebsspannung: | 12 - 36 VDC |
Bluetooth Frequenz: | 2.4 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
Bluetooth Technologie: | Nordic nRF52832 |
Daylight Harvest: | Ja |
Detection angle: | 360° |
Detektionsverfahren: | Microwave (MW) |
Erfassungsbereich (DxH): | 14x15 |
Features: | Daylight Harvest, Tri-level (Corridor Function) |
Feuchtigkeit max: | 90 % |
Feuchtigkeit min: | 20 % |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Ja |
Inbetriebnahmemethoden: | App & Web (Bluetooth) |
Installationstyp: | Built-in, Zhaga |
Lagertemperatur: | 55 °C |
Lagertemperatur min.: | -25 °C |
Lens type: | High-bay |
Maximale Montagehöhe: | 15.0000 m |
Montagehöhe: | Mid-bay |
Product height: | 35.0000 mm |
Produktlänge: | 50.8000 mm |
Produkttiefe: | 43.5000 mm |
Schutzart: | IP65 |
Tageslicht Sensor Option: | Ordinary Photodiode/Photocell |
Taster Eingänge: | |
Tri-level (Korridorfunktion): | Ja |
Umgebungstemperatur: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Voltage Type: | DC |
Zhaga: | Yes |
