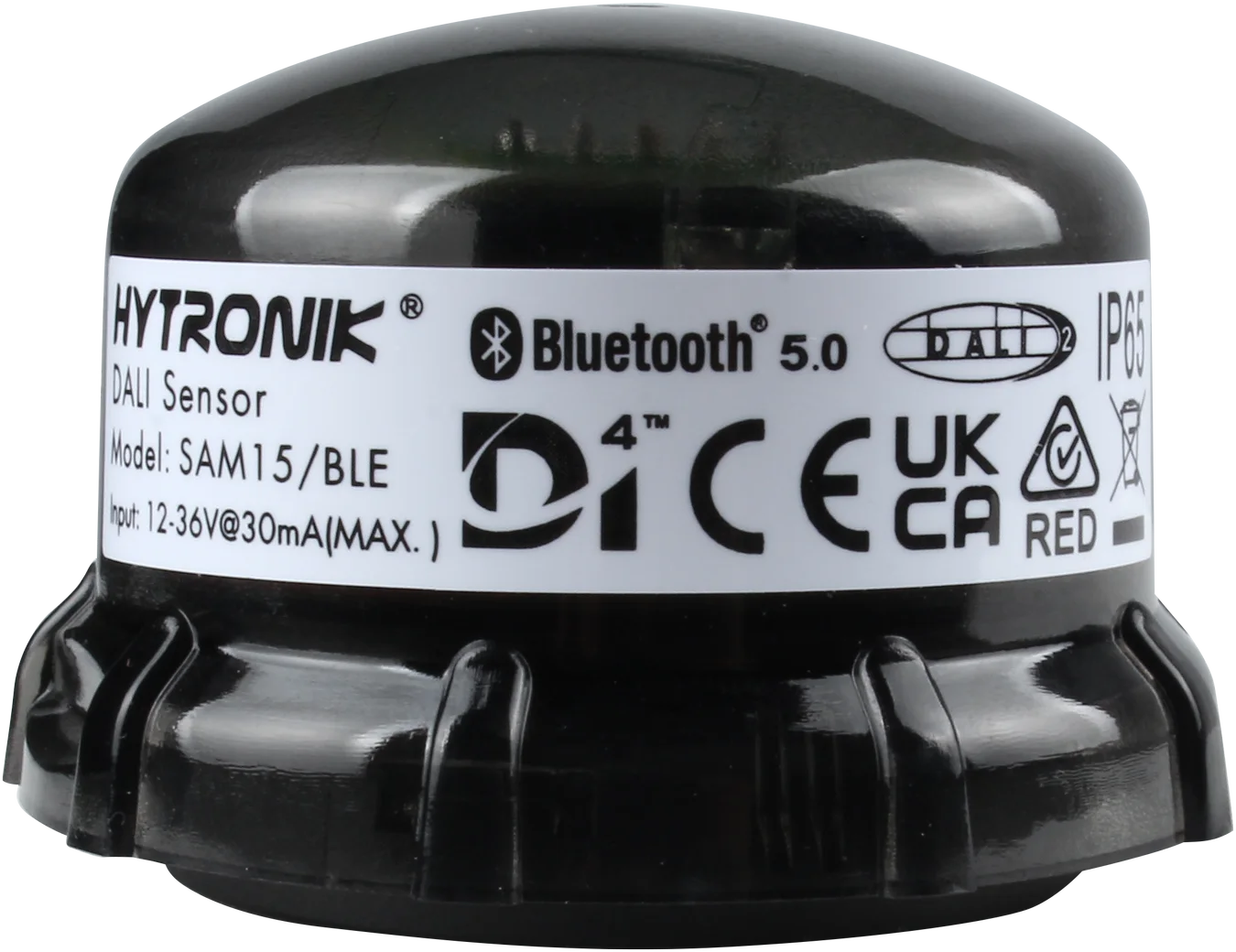

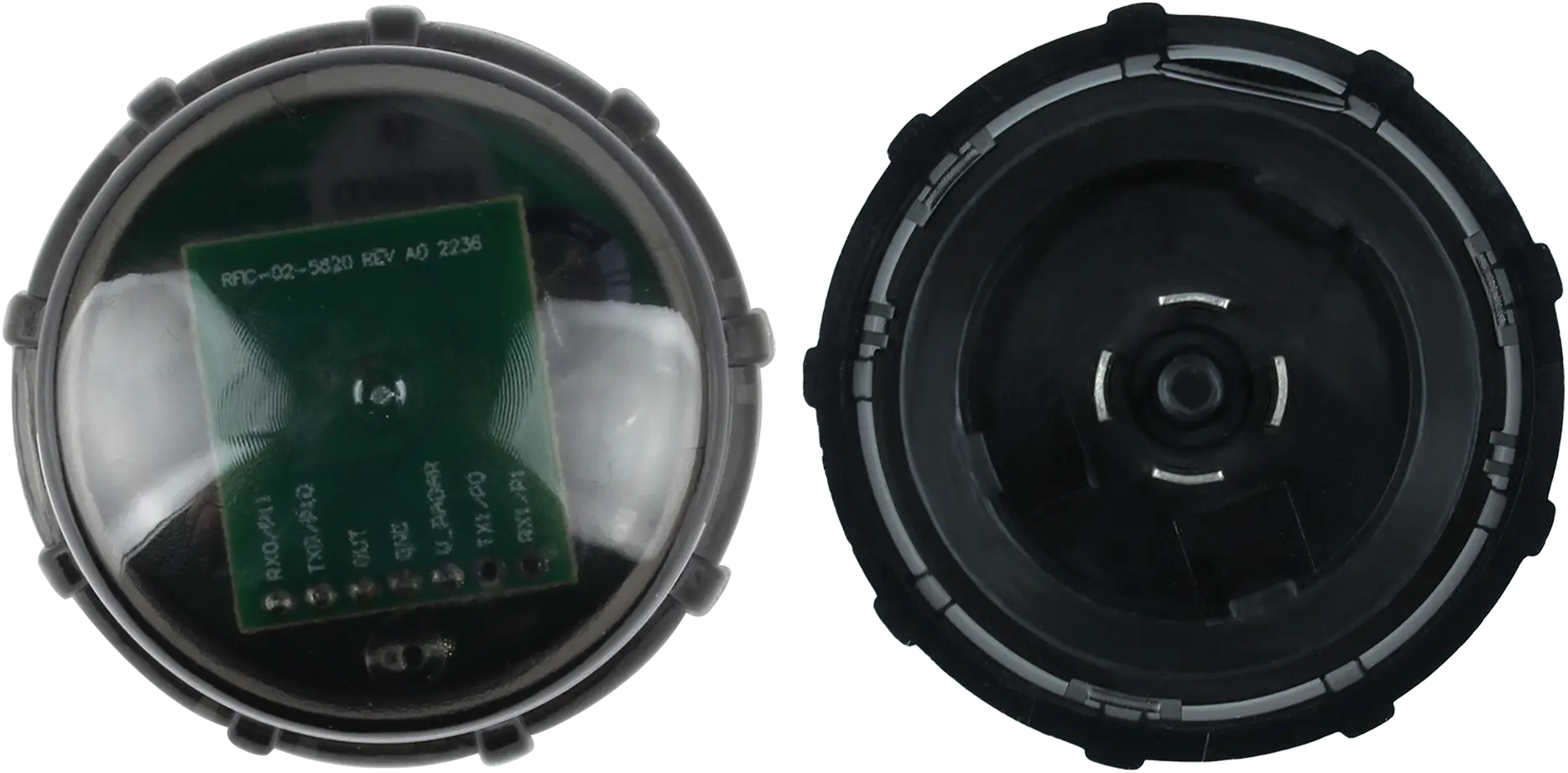

SAM15/BLE
HF Highbay | Bluetooth/DALI-2 D4i | Zhaga Book 18 Standard
FEATURES
- Kompakt: Kleiner IP65-Sensor Zhaga Book 18
- Alles in einem: Belegung, Tageslicht und Circadiam-Rhythmus
- Einfache Konfiguration: Drahtloses Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN

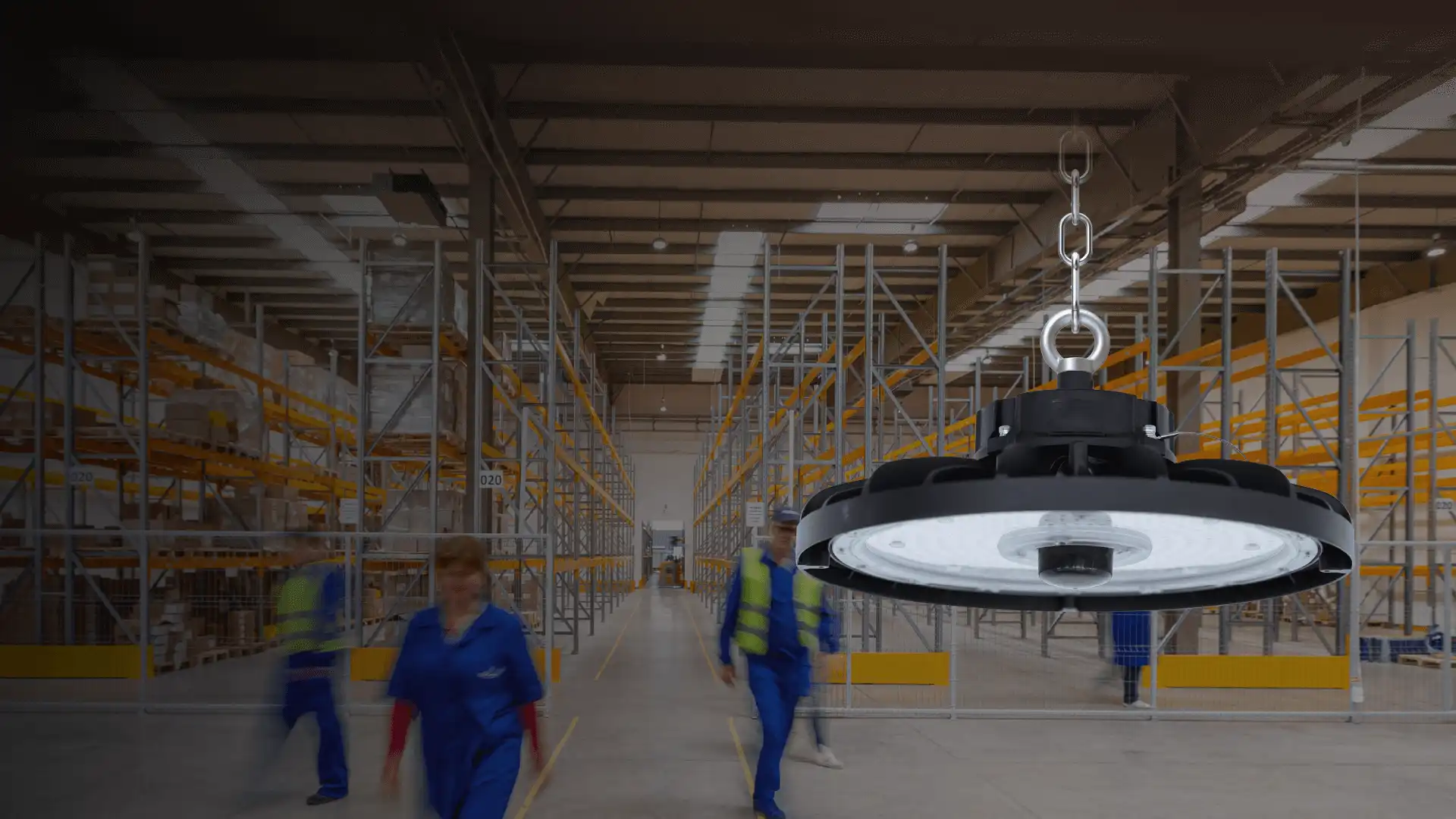

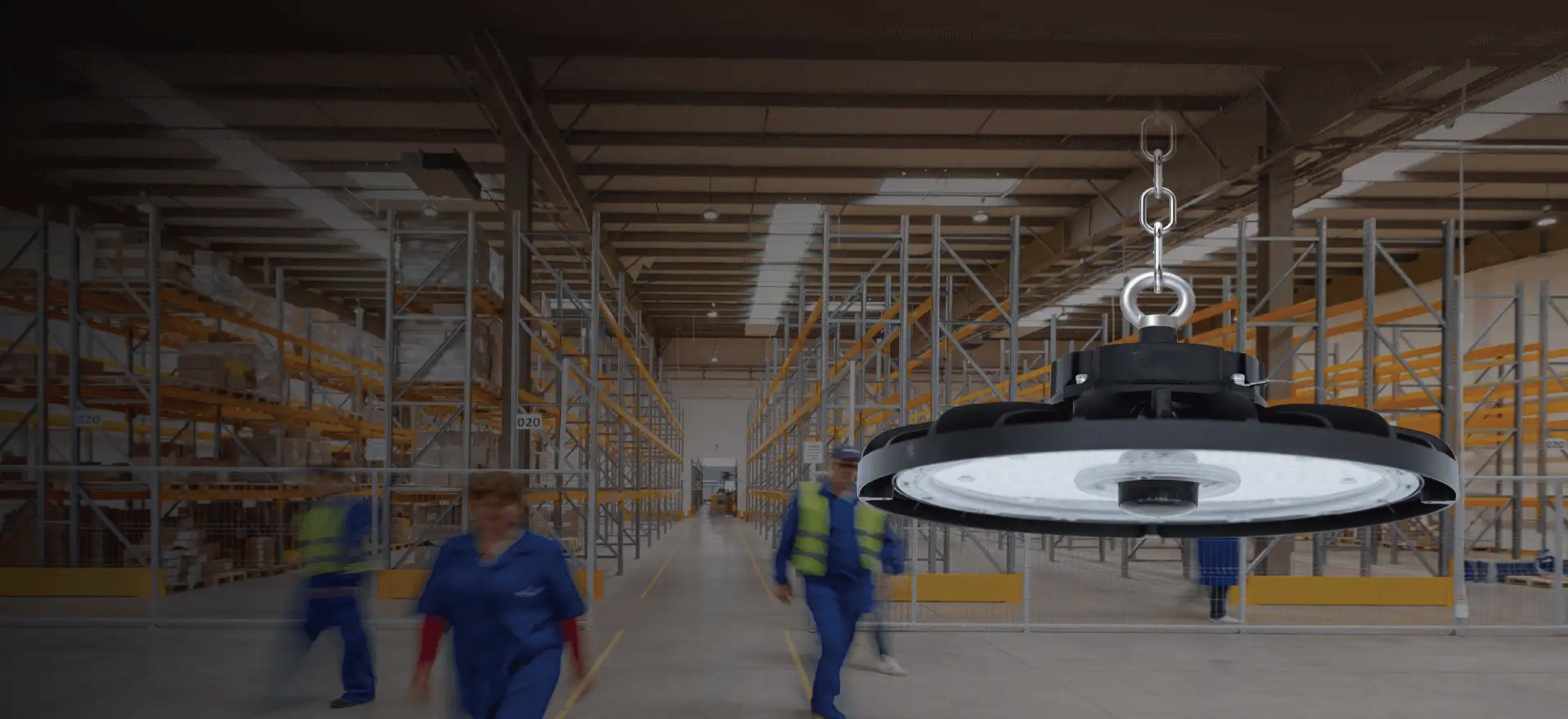

- Für Hochregalleuchten bis zu 15m Höhe
- Lager/Logistik
- Außen-/Straßenbeleuchtung
Produktinformationen "SAM15/BLE"
SAM15/BLE ist ein Bluetooth High-Bay HF-Bewegungsmelder und kompatibel mit dem Zhaga Buch 18 Standard. Er ist mit einer robusten IP65-Struktur ausgestattet und kann bis zu 15 m hoch installiert werden, was ideal für die typische Außenlampe (z. B. eine Straßenlaterne) ist. SAM15/BLE ist mit einem Bluetooth-Modul ausgestattet, das die Dimmsteuerung und Farbabstimmung ermöglicht. Das drahtlose Bluetooth-Mesh-Networking erleichtert die Kommunikation ohne feste Verkabelung, was letztendlich den Wert der Leuchten erhöht und Kosten für Projekte spart. Die einfache Einrichtung und Inbetriebnahme des Geräts kann über die Koolmesh-App erfolgen.
Anschlusstyp: | Zhaga book 18 |
---|---|
Betriebsspannung: | 12-36 VDC |
Bluetooth-Plattform: | Nordic nRF52832 |
Bluetooth Frequenz: | 2.4 GHz |
Bluetooth Reichweite: | 10-30m |
Bluetooth Sendeleistung: | 4 dBm |
Bluetooth System: | Koolmesh |
DALI-2 D4i Type: | Typ D |
Detektionsverfahren: | Mikrowellensensor (MW) |
Dimm-Steuersignal: | DALI/DALI-2 |
Eigenschaften: | D4i, Korridorfunktion, Tageslichtsteuerung, Tunable White Steuerung |
Erfassungsbereich (DxH): | 16x15 |
Erfassungswinkel: | 360° |
Erforderlicher DALI-Strom: | 2.0000 mA |
HF Betriebsfrequenz (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | Ja |
IP-Schutzart: | IP65 |
Inbetriebnahme-Methoden: | App & Web (Bluetooth) |
Installationstyp: | Einbau, Zhaga |
Korridorfunktion: | Ja |
Lagertemperatur: | 70 °C |
Linsentyp: | High-bay |
Max. Luftfeuchtigkeit: | 90 % |
Maximale Montagehöhe: | 15.0000 m |
Min. Lagertemperatur: | -40 °C |
Min. Luftfeuchtigkeit: | 10 % |
Montagehöhe: | Mid & High-bay |
Produktbreite: | 43.5000 mm |
Produktgewicht: | 34.0000 g |
Produkthöhe: | 35.0000 mm |
Produktlänge: | 50.8000 mm |
Spannungsart: | DC |
Tageslichtsensor-Option: | Fortgeschrittene Fotowiderstand |
Tageslichtsteuerung: | Ja |
Taster Eingänge: | 0 |
Umgebungstemperatur max.: | 50 °C |
Umgebungstemperatur min.: | -20 °C |
Zhaga: | Ja |
Datenblätter
Produktdatenblatt: sam15-ble.pdf
Installationsanleitung
Bedienungsanleitung: installation-manual-sam15-ble.pdf
