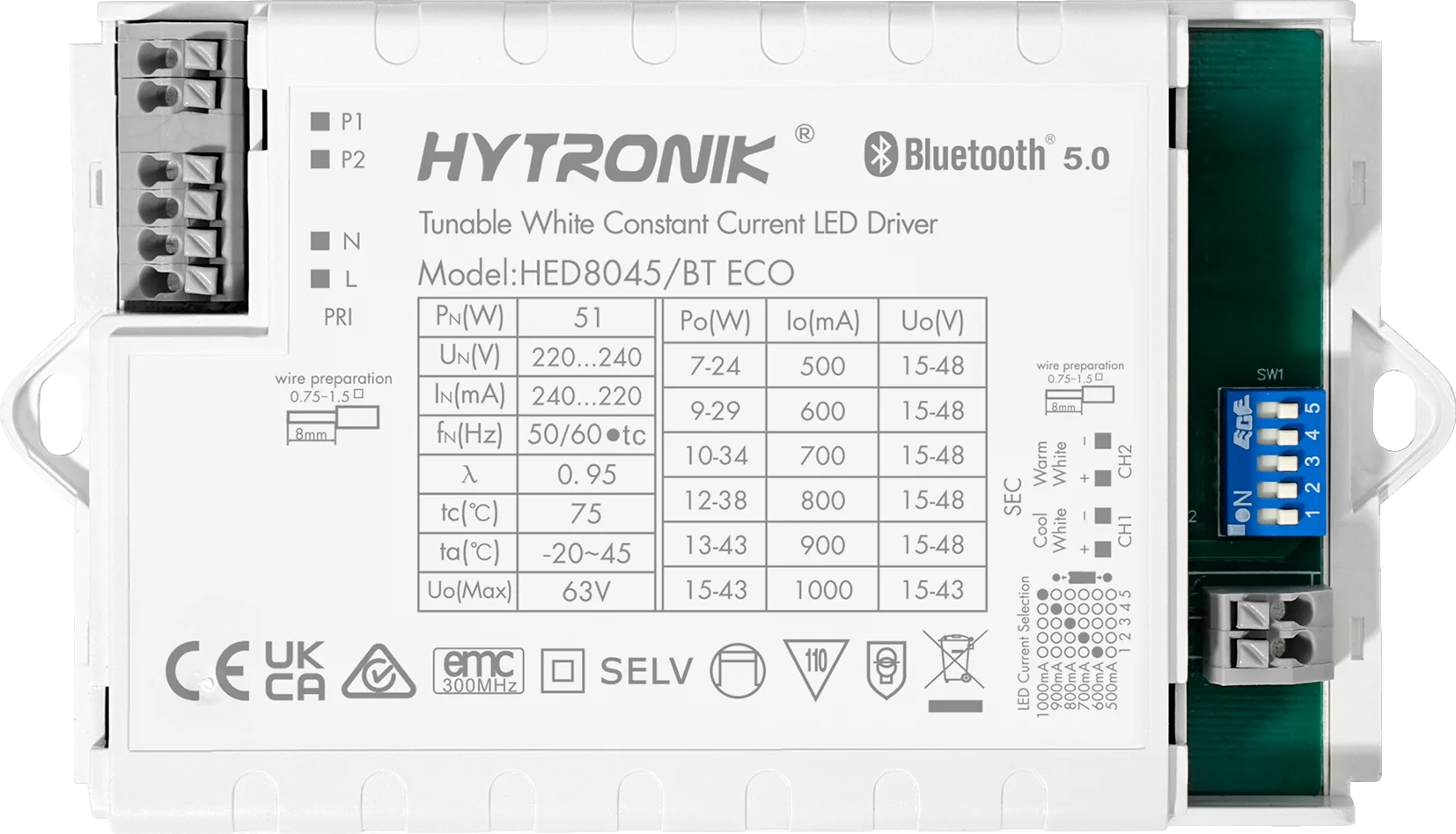

HED8045/BT ECO
Bluetooth LED Driver 45W (CC) | Tunable white | Built-in/Stand alone
FEATURES
- Compact: 45W LED Driver with Bluetooth interface
- Innovative: Featuring Switch-Dim and Bluetooth dimming interfaces
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
ANWENDUNGEN
- Luminaire Built-in integration
- Offices
- Classrooms
Produktinformationen "HED8045/BT ECO"
HED8045/BT ECO is Bluetooth dimming and tunable white LED driver, with maximum power output of 45W. It comes with Switch-Dim interface by using Push switch (retractive switch) and of course Bluetooth dimming interface. It is ideal for direct projects or new luminaires design for lighting manufacturers. With Bluetooth wireless mesh networking, it makes communication between luminaires much easier without time-consuming hardwiring, which eventually saves costs for projects.
| Ausgangsleistung: | ≥45W |
|---|---|
| Ausgangsspannung: | 220~240VAC 50/60Hz |
| Betriebsart: | Konstantstrom |
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Dimm-Steuersignal: | Relais An/Aus |
| Human Centric Lightning (HCL): | Nein |
| IP-Schutzart: | IP20 |
| Inbetriebnahme-Methoden: | App & Web (Bluetooth), DIP-Schalter |
| Installationstyp: | Stand-alone |
| Korridorfunktion: | Nein |
| Lagertemperatur: | 45 °C |
| Max. Luftfeuchtigkeit: | 90 % |
| Min. Lagertemperatur: | -20 °C |
| Min. Luftfeuchtigkeit: | 10 % |
| Produktbreite: | 79.2000 mm |
| Produktgewicht: | 260.0000 g |
| Produkthöhe: | 23.0000 mm |
| Produktlänge: | 140.6000 mm |
| Treiber Typ: | Dimmung und Farbsteuerung |
| Umgebungstemperatur max.: | 45 °C |
| Umgebungstemperatur min.: | -20 °C |
| Wirkungsgrad: | 88.0000 % |
Datenblätter
Produktdatenblatt: hed8045-bt-eco.pdf
