Aktiv / Neu

HBTD8200PWM

Bluetooth CV Dimmer | Full Color | Built-in/ Stand alone

FEATURES

Compact: 4-channel RGBW Bluetooth dimmer designed for LED strips
Versatile: 3 Color Dimensions - RGBW + xyY + DUV
Flexible: Enables full parameter setup and commissioning via app

ANWENDUNGEN

Supermarket/Shop
Entertainment Venues (hotel, bar)
Lounge

Datenblatt herunterladen

Produktinformationen "HBTD8200PWM"

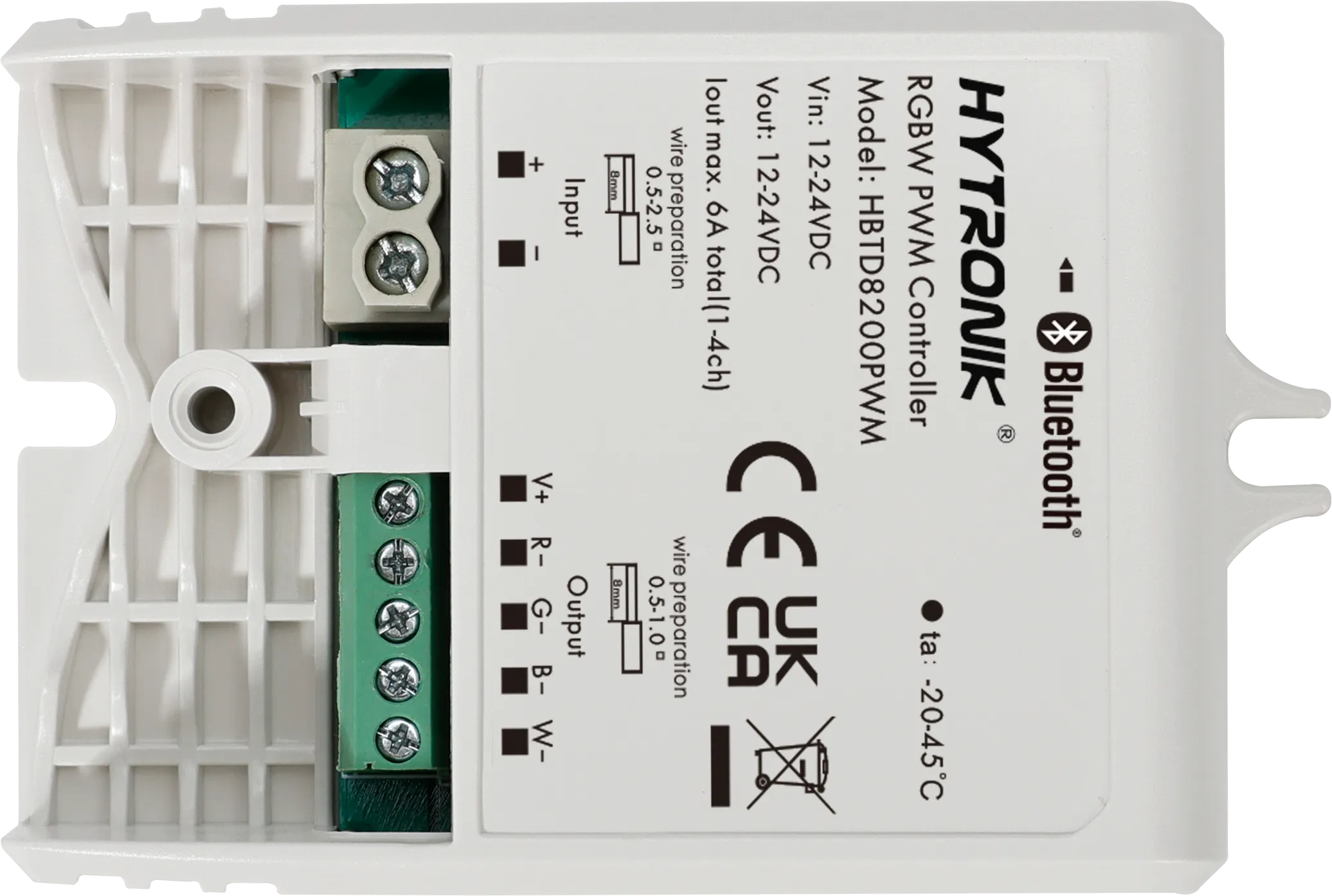

HBTD8200PWM is a compact Bluetooth RGBW dimmer designed for constant voltage lighting systems, providing an easy way to add wireless control and enhance lighting flexibility. It supports smooth PWM dimming, full-spectrum RGBW control, and tunable white adjustment to create a wide range of lighting scenes. Commissioning is quick and intuitive via the Koolmesh App, with no additional control wiring required. Featuring a 12–24V DC input and four independent MOSFET-controlled output channels, it delivers stable and reliable control for constant voltage lighting loads. Ideal for architectural, hospitality, and decorative lighting applications.

Ausgangsspannung:	12-24VDC
Bluetooth-Plattform:	Nordic nRF52840
Bluetooth Frequenz:	2.4 GHz - 2.483 GHz
Bluetooth Sendeleistung:	8 dBm
Bluetooth System:	Koolmesh
Dimm-Steuersignal:	PWM
IP-Schutzart:	IP20
Inbetriebnahme-Methoden:	App & Web (Bluetooth)
Lagertemperatur:	70 °C
Max. Luftfeuchtigkeit:	90 %
Min. Lagertemperatur:	-40 °C
Min. Luftfeuchtigkeit:	10 %
Produktbreite:	53.0000 mm
Produkthöhe:	22.0000 mm
Produktlänge:	80.2000 mm
Produktstatus:	Aktiv / Neu
Umgebungstemperatur max.:	50 °C
Umgebungstemperatur min.:	-20 °C
Wirkungsgrad:	90.0000 %
Zhaga:	Nein
