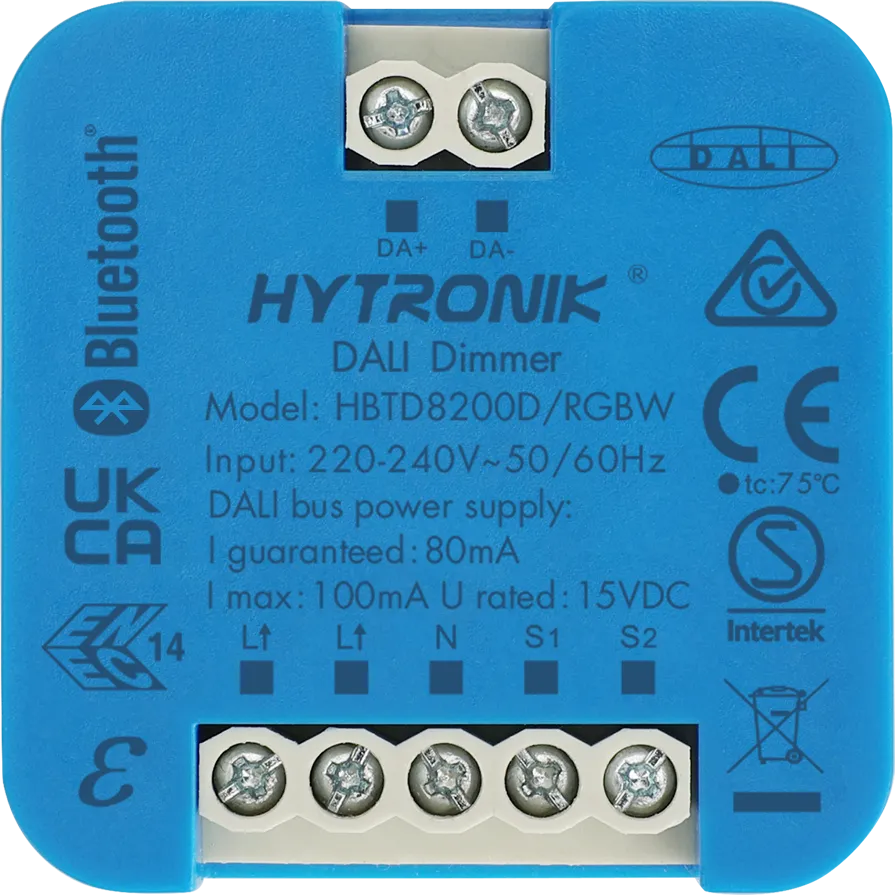

HBTD8200D/RGBW
Bluetooth DALI Converter | RGBW Control | Integrated 100 mA PSU
FEATURES
- Compact: Enabling direct Bluetooth-to-DALI conversion for modern luminaires
- Versatile: Supporting DALI RGBW for precise tuning
- Efficient: Enabling quick setup via Koolmesh app
ANWENDUNGEN
- DALI Application
- Bluetooth receiver node
- Lounge, Entertainment Venues
Produktinformationen "HBTD8200D/RGBW"
HBTD8200D/RGBW is a Bluetooth and DALI broadcast converter designed specifically to enable wireless Bluetooth control of DALI RGBW drivers, making it an ideal core module for smart RGBW lighting solutions. In addition to supporting DT6 and DT8 dimming and tunable-white functions, it features two freely configurable push-button inputs for on/off, dimming, and scene recall. The device delivers a stable DALI output current of up to 100 mA and installs easily in junction boxes for fast deployment. All parameters can be conveniently commissioned through the Koolmesh app.
| Anwendungsstyp: | DALI-zu-Bluetooth-Konverter/Übersetzermodul |
|---|---|
| Betriebsspannung: | 220-240 VAC 50/60 Hz |
| Bluetooth Frequenz: | 2.4 GHz - 2.483 GHz |
| Bluetooth Reichweite: | 10-30m |
| Bluetooth Sendeleistung: | 4 dBm |
| Bluetooth System: | Koolmesh |
| Dimm-Steuersignal: | DALI/DALI-2, Switch-Dim |
| Human Centric Lightning (HCL): | Ja |
| IP-Schutzart: | IP20 |
| Inbetriebnahme-Methoden: | App & Web (Bluetooth) |
| Korridorfunktion: | Nein |
| Lagertemperatur: | 60 °C |
| Max. Luftfeuchtigkeit: | 90 % |
| Min. Lagertemperatur: | -20 °C |
| Min. Luftfeuchtigkeit: | 20 % |
| Produktbreite: | 46.0000 mm |
| Produktgewicht: | 35.0000 g |
| Produkthöhe: | 18.0000 mm |
| Produktlänge: | 46.0000 mm |
| Taster Eingänge: | 2 |
| Umgebungstemperatur max.: | 45 °C |
| Umgebungstemperatur min.: | -20 °C |
| Zhaga: | Nein |
Datenblätter
Produktdatenblatt: hbtd8200d-rgbw.pdf
