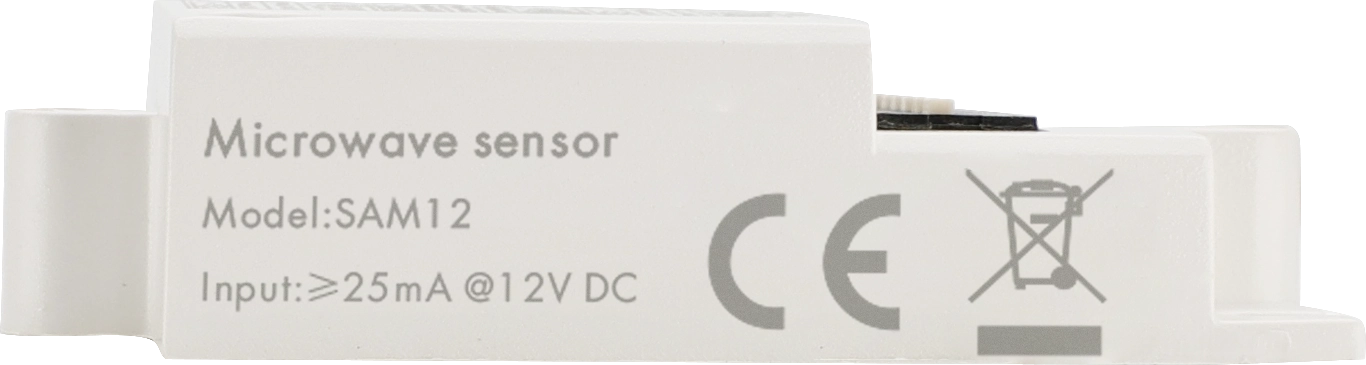

SAM12
HF Lowdbay VDC | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- 2 in 1: 12VDC input + tri-level dimming

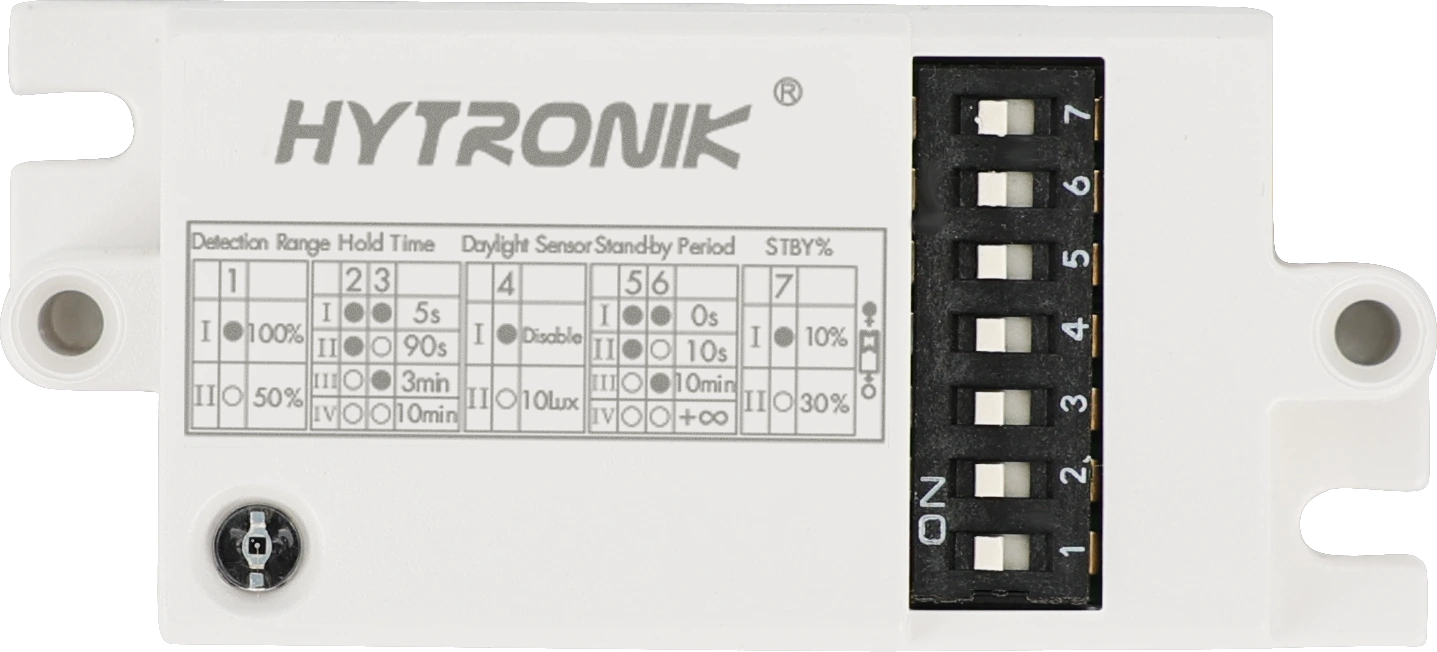

- Easy: Sensor setting via DIP-switches
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM12"
SAM12 is a sensor head only with 12VDC input and 5V 1kHz PWM
output, it ‘s ready to be integrated into a third-party LED driver, no control
base needed. It is suitable for bulkhead, tri-proof, LED panel, linear,
pendant, high-light.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DIP-switch |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating Voltage: | 12DVC |
| Product height: | 12.5000 mm |
| Product length: | 50.5000 mm |
| Product width: | 22.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
